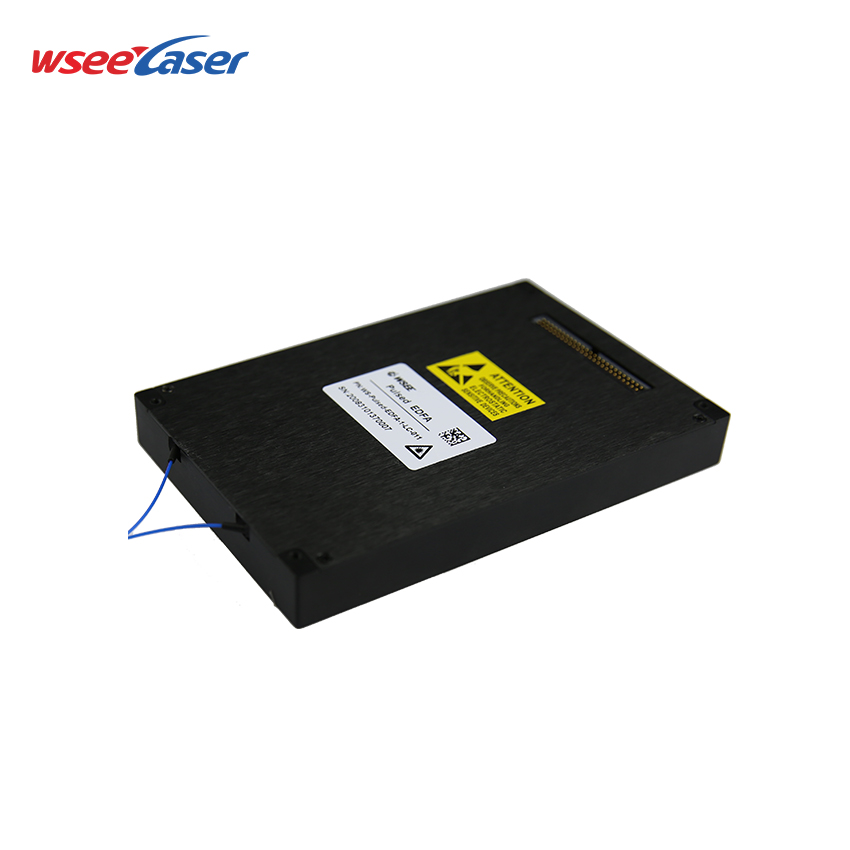

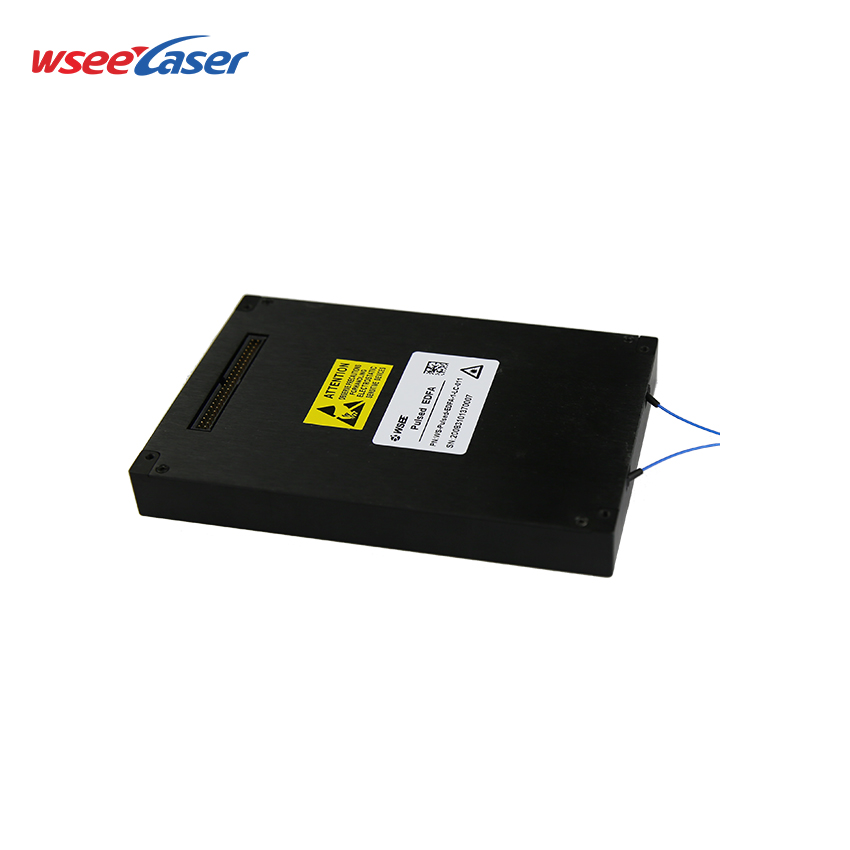

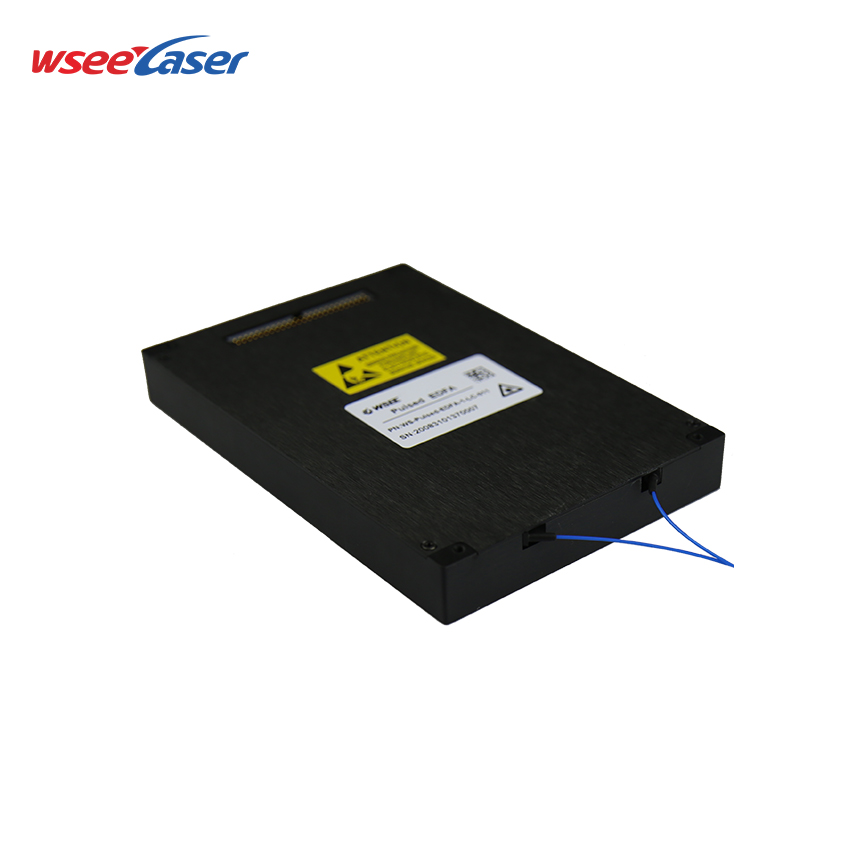

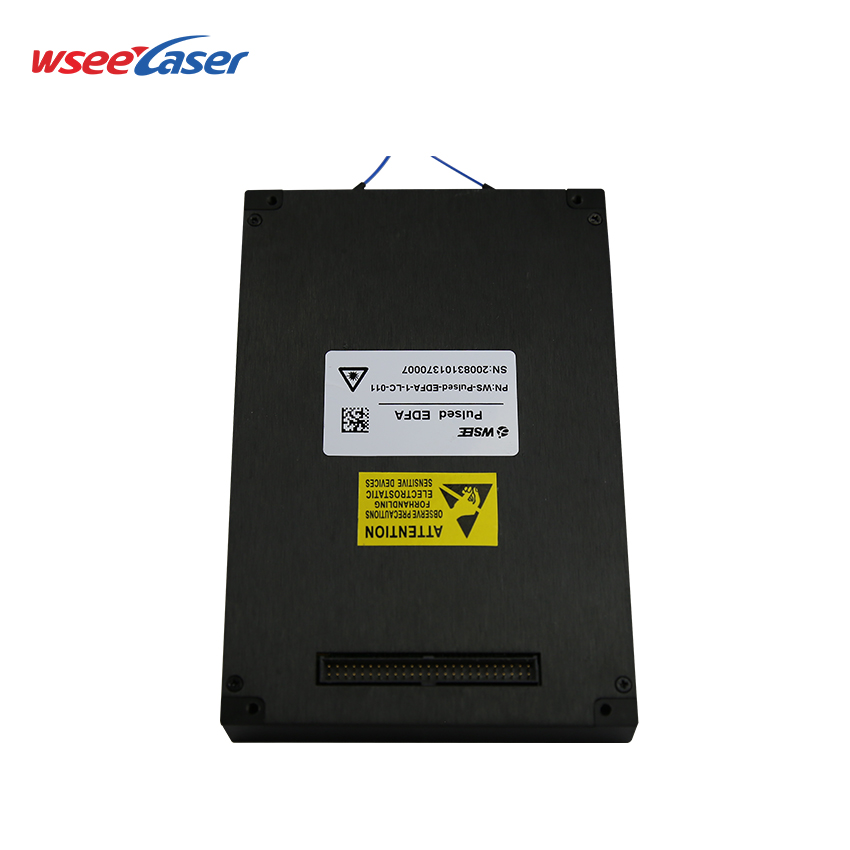

C-band Pulse EDFA

High-speed pulsed erbium-doped fiber amplifier is widely used for high-speed optical fiber communications, all-fiber sensing applications.

The pulsed EDFA module has built-in drive circuit and logic control circuit to monitor key information such as pump laser temperature, module temperature and signal gain in real time. The module is configured to work at APC/ACC/AGC mode. All module state parameters and configuration information can be flexibly adjusted and monitored by upper computer software.


Share:
  • Feature
  • Parameter
  • Diagram

Features

High output peak power

High reliability

Low noise figure

Low pulse signal deformation

Flexible control mode

Excellent thermal adaptability

Support customization



Applications

OTDR

Space optic communication Laser ranging

Non-linear optical research

Distributed fiber optic sensing


Parameter

Unit

Minimum


Typical

Maximum

Wavelength Range

nm

1528


-

1563







Input Peak Power

dBm

-20


1

10







Output Peak Power

W

-


-

20







Pulse Width

ns

10


100

200







Repetitive Frequency

KHz

-


2

-







Polarization Dependent Gain

dB

-


-

0.5







Polarization Mode Dispersion

ps

-


-

0.5







Noise Figure

dB

-


5.5

-







Input / Output Isolation

dB

40


-

-







Operating Temperature Range

-20


-

+60

Storage Temperature Range

-40


-

85

Humidity

%

5


-

90






Power Supply


DC+5V GND







Fiber Connector


FC/APC or custom design








Fiber Type


SMF28









Notes: If you need special parameters, please contact us for customization.
