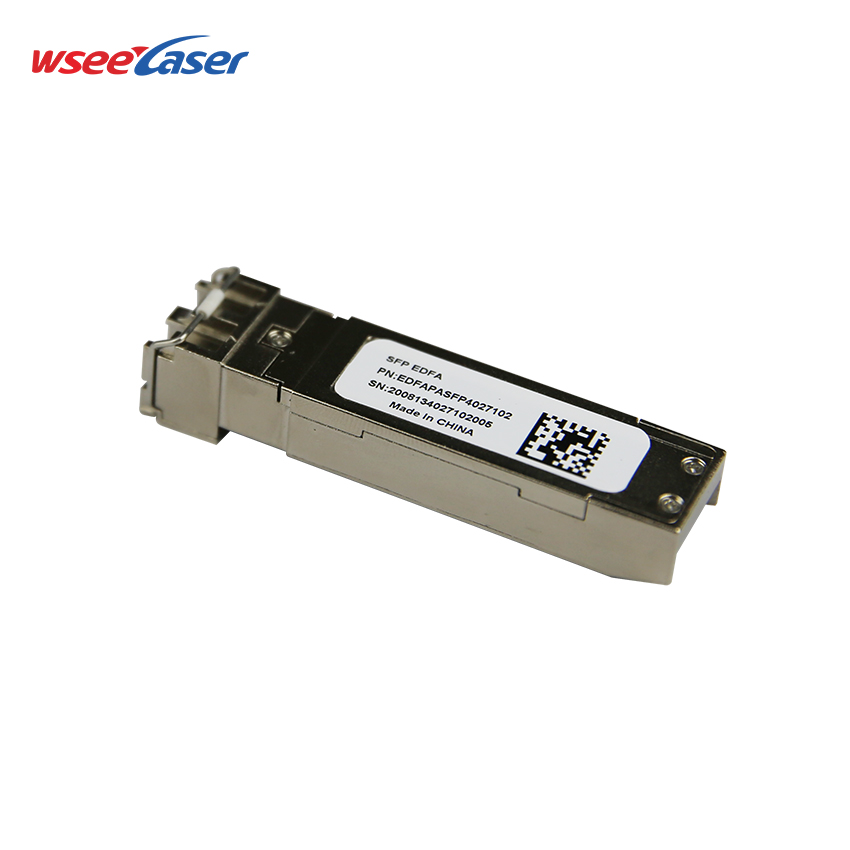

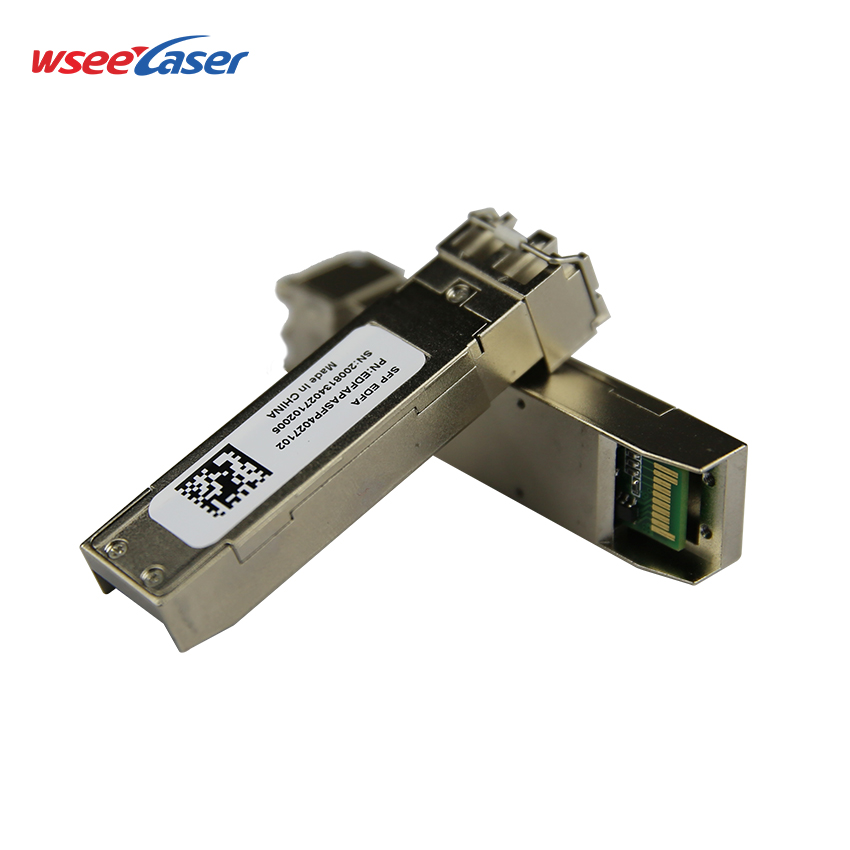

SFP EDFA

SFP EDFA is a full-functioning EDFA module with control circuitry packaged inside. It is totally compatible with conventional SFP+ optical transceiver in respect of size and pin-map.


Share:
  • Feature
  • Parameter

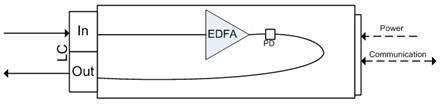

  • Diagram

Features

I2C control interface

SFP MSA compliant mechanical footprint and customized pinouts

APC operation

Low total ASE output power level

1M Laser Safety Specification compliance


Booster Amplifier

Description

Min

Typ

Max

Unit

Input optical wavelength

1530


1565

nm

Channel number


1



Input power

-5


+3

dBm

Output power

15



dBm

Nominal gain


20


dB

Noise Figure


6

7

dB

PDL



0.5

dB

PDG



0.5

dB

PMD



0.5

ps

Input and output return loss

40



dB


Pre-Amplifier

Description

Min

Typ

Max

Unit

Input optical wavelength

1530


1565

nm

Channel number


1



Input power

-32


-10

dBm

Output power

-5


-2

dBm

Nominal gain


25


dB

Noise Figure


6

7

dB

PDL



0.5

dB

PDG



0.5

dB

PMD



0.5

ps

Input and output return loss

40



dB


SFP EDFA
