Domestic chip solution
Small size (90*70*18)
Saturated output optical power up to 33dBm
low noise
Low power consumption
APC and ACC two working modes
customizable
Fiber optic sensing
Control optical communication system
Atmospheric monitoring
Nonlinear Optics Research
parameter | minimum value | Typical value | maximum value | unit |
Wavelength range | 1540 | - | 1565 | nm |
Input optical power | -10 | - | +10 | dBm |
Output optical power | twenty three | - | 33 | dBm |
Noise figure (NF) | - | 5.5 | 6 | dB |
Pump opening threshold | - | -12 | - | dBm |
High temperature pump shutdown threshold | - | 65 | - | ℃ |
Return loss | 45 | - | - | dB |
polarization dependent gain | - | 0.5 | dB | |
Operating temperature | -5 | - | +55 | °C |
storage temperature | -40 | - | 85 | °C |
Relative humidity ( non-condensation ) | 5 | - | 85 | % |

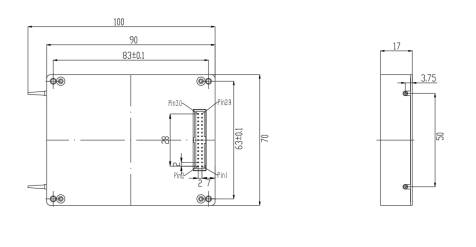

size | 90*70* 18 | mm | ||
Power consumption | 25 | W | ||
Voltage | 4.75 | 5 | 5.25 | V |
Communication level | LVTTL/RS232 | |||
