Saturated output optical power up to 40dBm
low noise
Low power consumption
APC, ACC three working modes
customizable
CATV
lidar
Nonlinear Optics Research
parameter | minimum value | Typical value | maximum value | unit |
Wavelength range | 1540 | - | 1565 | nm |
Number of channels | 1 | |||
Input optical power | -5 | - | +10 | dBm |
Output optical power | twenty three | - | 40 | dBm |
Noise figure (NF) | - | - | 6 | dB |
High temperature pump shutdown threshold | - | 65 | - | ℃ |
Return loss | 45 | - | - | dB |
polarization dependent gain | - | 0.5 | dB | |
Operating temperature | -5 | - | +55 | °C |
storage temperature | -40 | - | 85 | °C |
Relative humidity ( non-condensation ) | 5 | - | 85 | % |

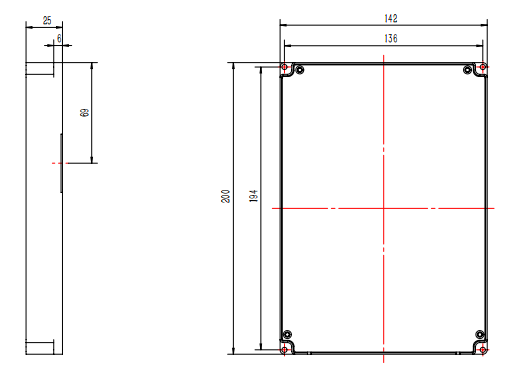

size | 200 * 142 * 25 | mm | ||
Power consumption | 130 | W | ||
Voltage | 11.75 | 12 | 12.25 | V |
Communication level | LVTTL | |||
