Domestic Chip Program
Saturated output optical power up to 37dBm
low noise
Low power consumption, +5V and +12V power supply optional
APC, ACC, AGC three working modes
customizable
optical fiber sensing
Control Optical Communication System
Nonlinear Optics Research
parameters | minimum value | typical value | maximum values | unit (of measure) |
wavelength range | 1540 | - | 1565 | nm |
Number of channels | 1 | |||
Input optical power | -10 | - | +10 | dBm |
Output optical power | 23 | - | 37 | dBm |
Noise Factor (NF) | - | 5.5 | 6 | dB |
Pump On Threshold | - | -12 | - | dBm |
High temperature pump shutdown threshold | - | 65 | - | ℃ |
return loss | 45 | - | - | dB |
Polarization Related Gain | - | 0.5 | dB | |
operating temperature | -5 | - | +55 | °C |
Storage temperature | -40 | - | 85 | °C |
Relative humidity (non-condensing) | 5 | - | 85 | % |

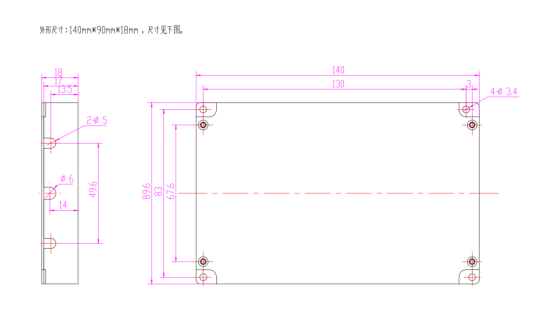

sizes | 140*90*18 | mm | ||
power wastage | 50 | W | ||
input voltage | 4.75/11.75 | 5/12 | 5.25/12.25 | V |
communication level | LVTTL/RS232 | |||
