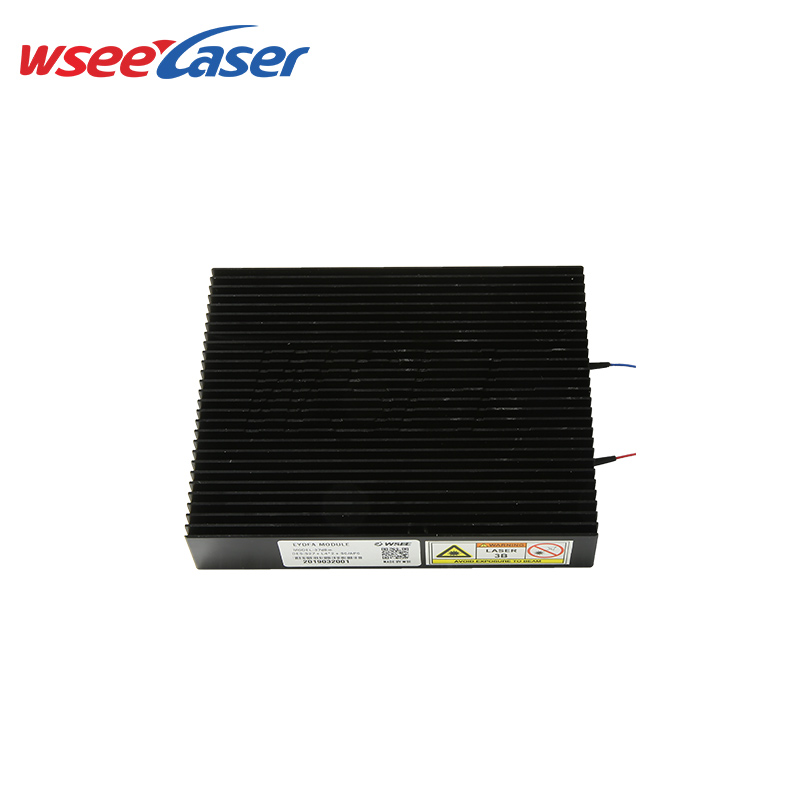

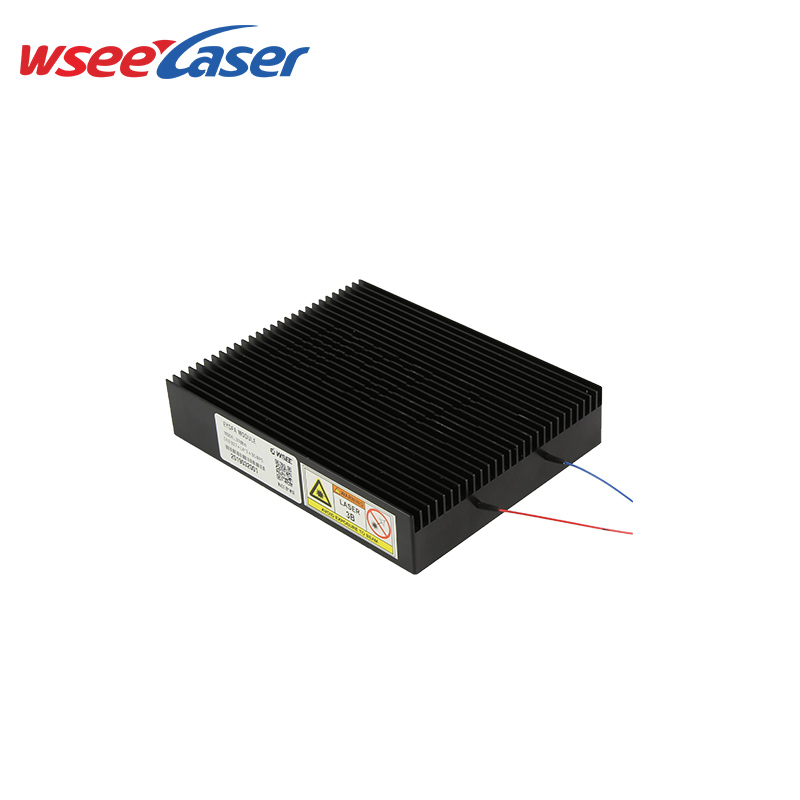

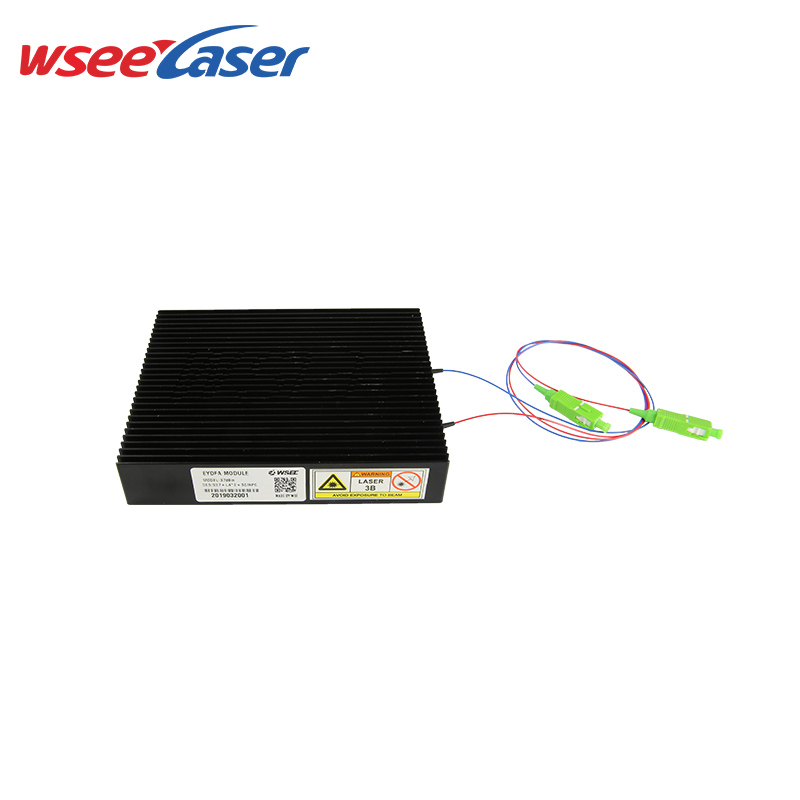

M520 Erbium-Ytterbium Fiber Amplifier

 Compact package

 High reliability

 High output optical power with low noise figure

 Low power consumption


Share:
  • Feature
  • Parameter

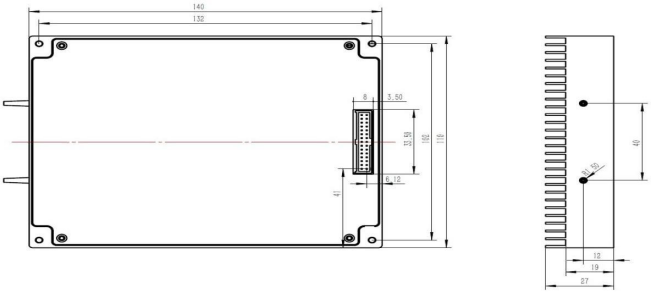

  • Diagram

 Metro and Access networks

 Single-channel optical communication network

 CATV system

 Optical fiber sensing


Parame ter

Min

Typ

Ma x

Specification

Unit

Operating Wavelength



1545~ 1565

nm

Input Power



-5 ~ +10

dBm

Total Output Power



27~37

dBm

Noise Figure(Pin=0 dBm, 1550 nm)



6

dB

Input/Output Return Loss



40

dB

PDG



0.5

dB

PMD



0.5

ps

Supply Voltage




12

V

Power Consumption



40

W

Operating Temperature




-5 ~ +50

°C

Storage Temperature




-25 ~ +75

°C

Relative Humidity (non-condensation)




5 ~ 95

%

Dimensions




140*110*27

mm

Or Customization

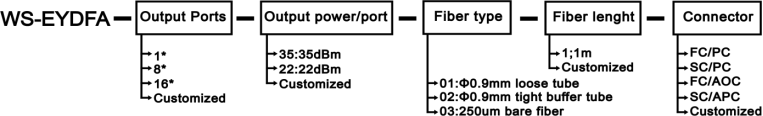

Order Information
