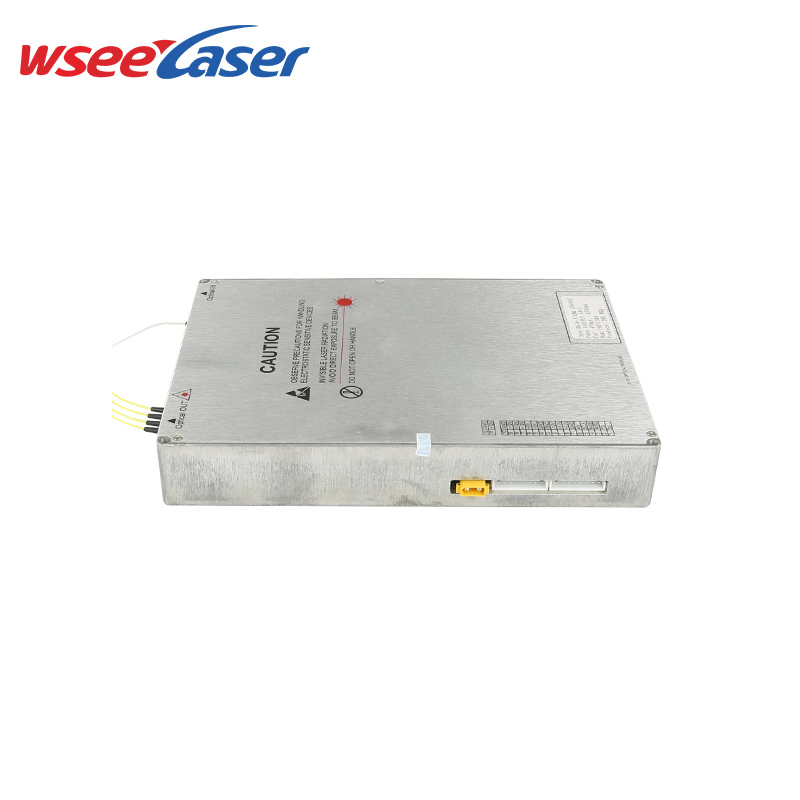

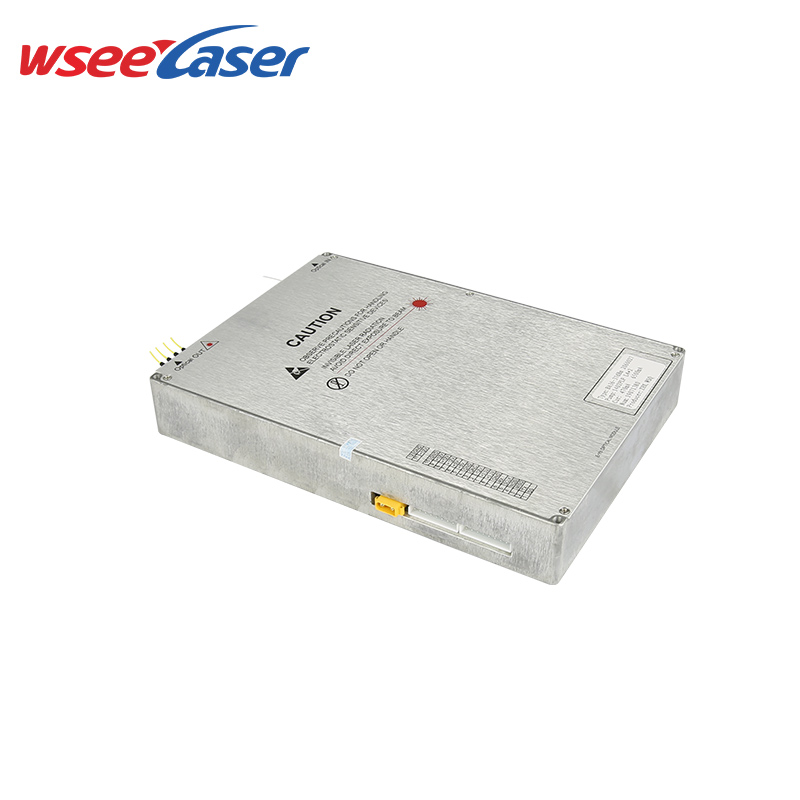

M510 Erbium-Ytterbium Fiber Amplifier

Compact package

High reliability

High output optical power with low noise figure

Low power consumption


Share:
  • Feature
  • Parameter
  • Diagram

Metro and Access networks

Single-channel optical communication network

CATV system

Optical fiber sensing


Parameter

Min

Typ

Ma x

Specification

Unit

Operating Wavelength



1545~ 1565

nm

Input Power



-5 ~ +10

dBm

Total Output Power



27 ~ 37

dBm

Noise Figure(Pin=0 dBm, 1550 nm)



6

dB

Input/Output Return Loss



40

dB

PDG



0.5

dB

PMD



0.5

ps

Supply Voltage




+5&+12

V

Power Consumption



40

W

Operating Temperature




-5 ~ +50

°C

Storage Temperature




-25 ~ +75

°C

Relative Humidity (non-condensation)




5 ~ 95

%

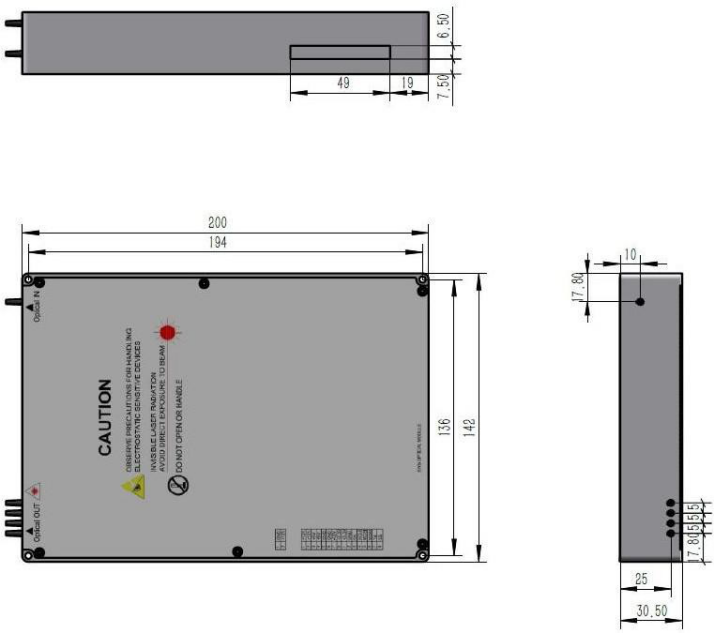

Dimensions




200*141*30

Or Customization

mm

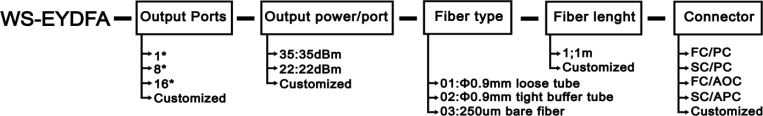

Order Information
