● The machine can test 7 kinds of wavelengths with high measurement accuracy
● Support USB power supply or charging
● Powerful 650nm red light source
● Red light source can be added to realize dual purpose of one machine (red light source is customized)
● High-brightness LED lighting, easy to use in dark environments
● Self-service wavelength memory
● Self-service user calibration

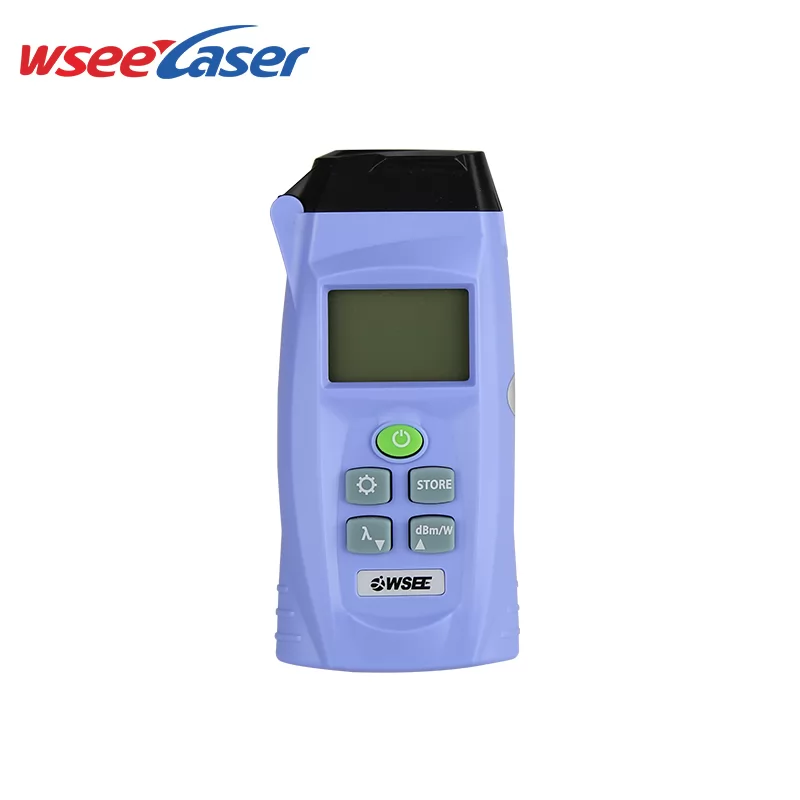

Technical parameters | WS-OPM-36 |
Red light source part（This feature is customizing for customers） | |
Light emitting device | FP-LD |
Working wavelength（nm） | 650nm |
Typical output of output power（mw） | （1mw 5km）、（10mw 10km)、（30mw 20km)、（50mw 25km) optional |
Transmission distance（Km） | |
Red light frequency scintillation function | Yes, the frequency is 2Hz |
Red light mode | Always on and flashing |
Optical power meter section | |
Calibrated wavelength（nm） | 850、980、1300、1310、1490、1550、1625 |
Probe type | InGaAs |
Detection range（dBm） | -70～+6；-50～+26 optional |
Inherent uncertainty | ±5% |
Degree of linearity(dB) | ±0.001 |
Display resolution(dB) | 0.05 |
Communication interface | Micro USB |
Connector type | FC，SC optional |
Power supply battery type | Dry battery: 3pcs No. 7 1.5V AA dry battery Lithium battery: 800mAh 4.2V lithium battery |
Continuous working time of dry battery type (h) | 120h(Only for the optical power meter to operate alone) |
Intelligent automatic shutdown time | Automatic shutdown without operation within 10min |
Working temperature(℃) | -10～+50 |
Storage temperature(℃) | -25～+70 |
Net weight（g） | 87g(Without battery) |
Size（mm） | 126*56*27 |
