Optical Power Meter

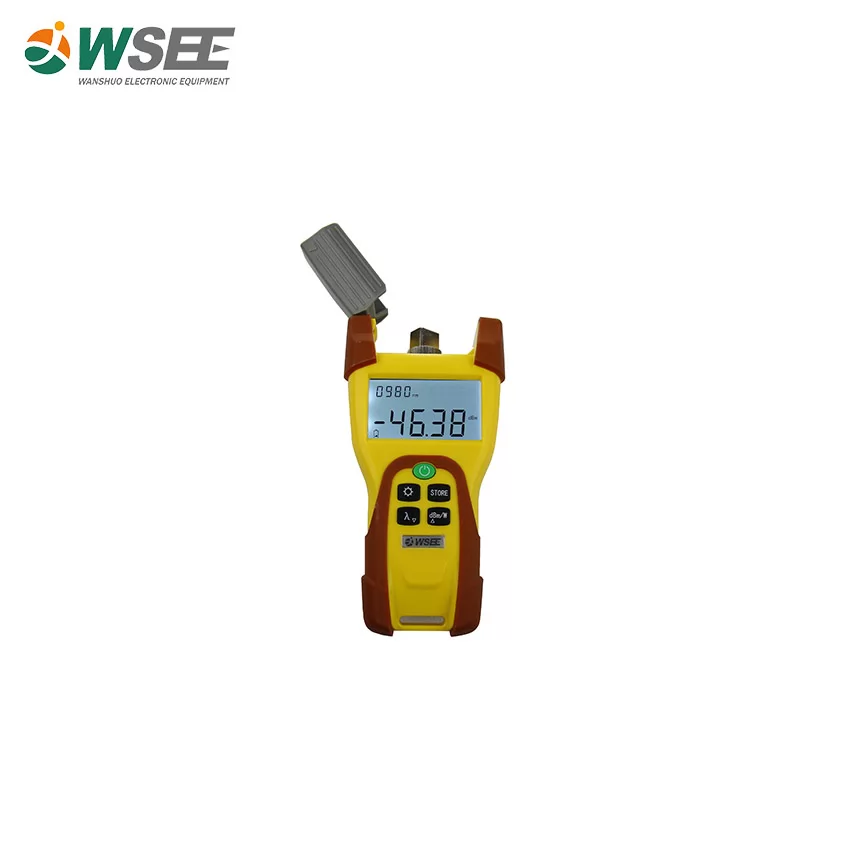

OLP-35 series portable optical power meter is a brand-new optical fiber test equipment. This device can increase the function of the red light source, and it is an ideal device for quick and easy solution to the problems of both optical and red light sources.


  • Feature
  • Parameter
  • Diagram

●The machine can test 7 wavelengths, and can be used with any light source.

●It can add red light source and achieve one machine dual purpose (red light source for customization function).

●The red light source wavelength is 650nm, and the transmission distance is as long as 20Km.

●Large capacity renewable lithium battery, economic, energy saving, environmental protection;

●Optical port uses replaceable interface, equipped with SC&FC head to make the measurement more accurate.

●Data storage, can save 10 sets of data.



Model Parameter

Red Light Source Part(customized for customers)

Light emitting device

FP-LD

Working wavelength(nm)

650nm

Typical output of output power(mw)

10mw(Customized

transmission distance(Km)

20Km

Red light frequency scintillation

function

Frequency is 2Hz

Optical Power Meter Section

Calibrated wavelength(nm)

850、980、1300、1310、1490、1550、1625

Probe type

InGaAs

Detection range(dBm)

-70~+6(A Model);-50~+20(B Model);-50~+26(C Model)

Detection range(mw)

        0~+400

Inherent uncertainty(dB)

±0.10

degree of linearity(dB)

±0.001

Display resolution(dB)

0.01

Storing data(group)

       10

Communication interface

USB

Connector type

FC,SC Optional

lithium battery

900mAh,3.7V

The power adapter(V)

5V

Battery continuous working time(h)

200

working temperature(℃)

       -10~+60

Storage temperature(℃)

        -25~+70

Net weight(g)

145

Shape size(mm)

        157*80*39
