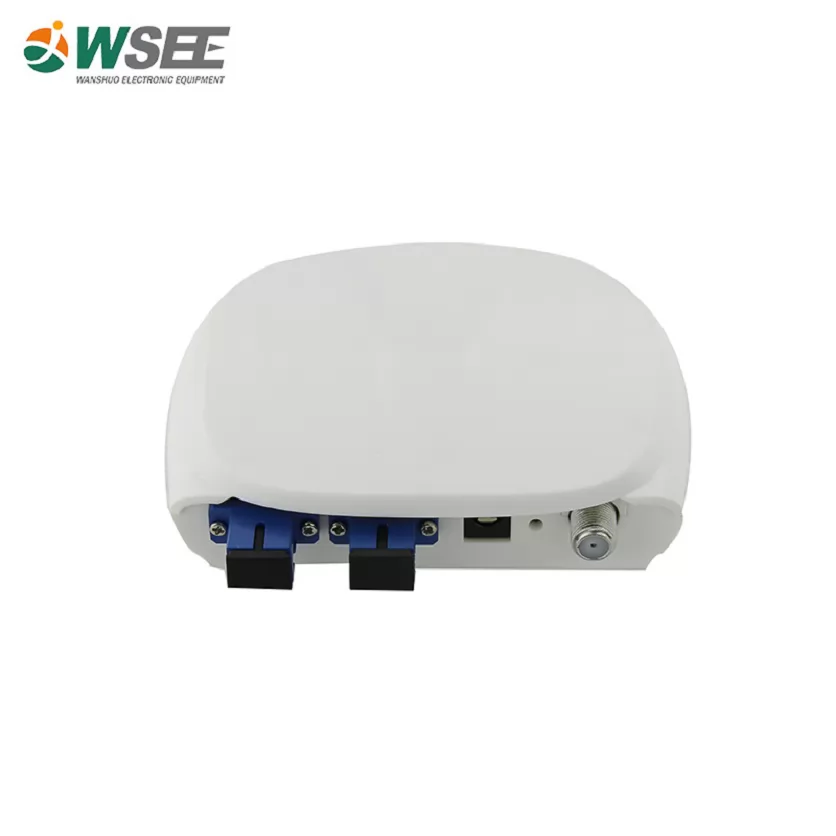

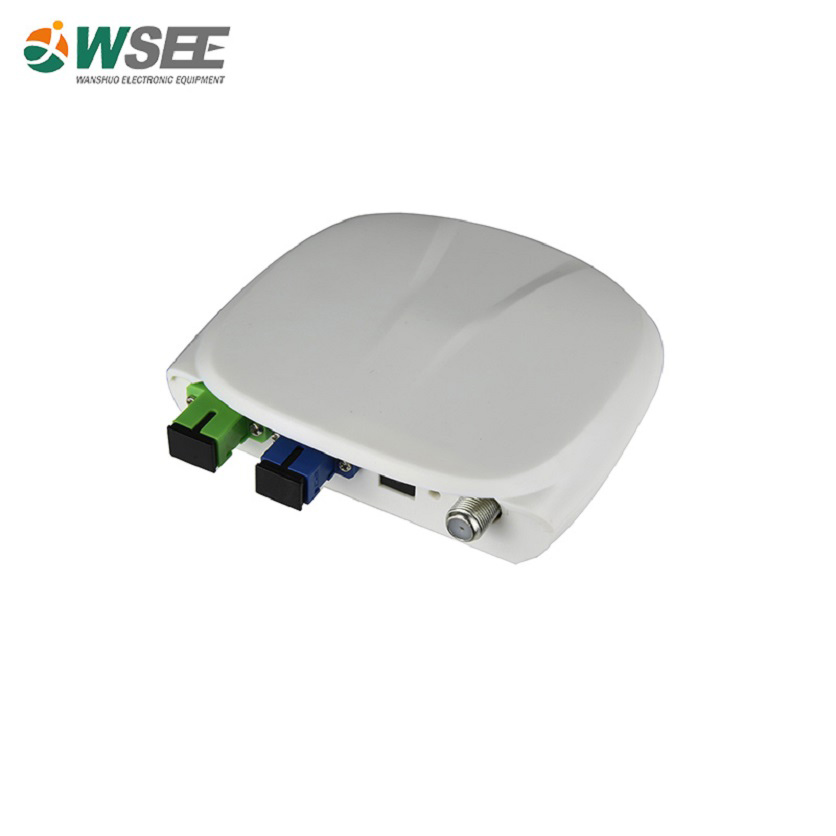

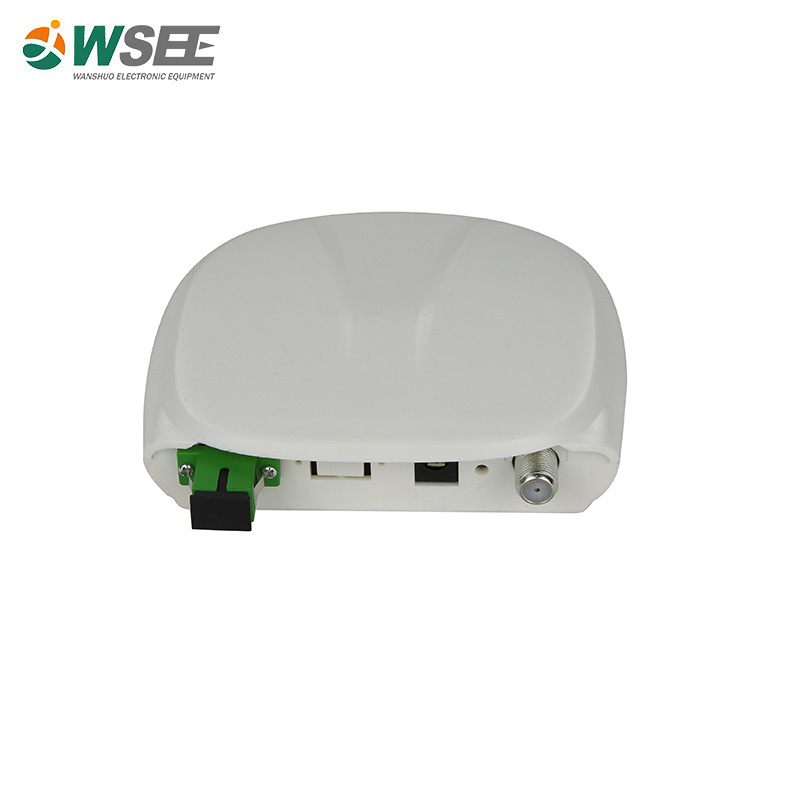

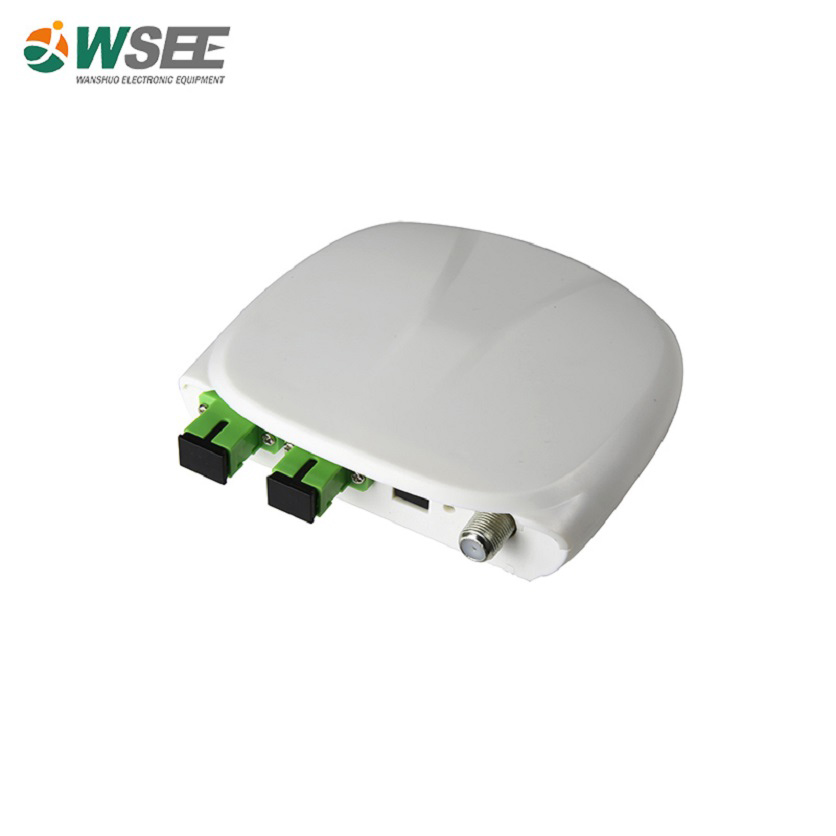

● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With light input AGC function (AGC range can be customized).
● Anti-frequency surge protection device, GaAs amplification chip.
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 2W, with optical detection circuit.
● Built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application.
● FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface (customizable according to customer requirements).
● Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe operation of the equipment.
● Output power supply can be achieved.
Items | Parameter | Items | Parameter |
Wavelength | 1200~1600nm&1550nm | CNR | ≥51dB |
Input optical power | 0dBm~-10dBm(Analog signal） | CTB | ≥65dB |
0dBm~-18dBm(Digital signal) | CSO | ≥62dB | |
Light reflection loss | >45 dB | Host voltage | DC5V |
Optical connector | FC/APC, SC/APC, FC/PC , SC/PC | Infeed voltage | DC5V |
Frequency Range | 47~1006MHz | Adapter voltage | AC90V~145V , AC145V~265V |
In-band flatness | ±1dB@45~862MHz | Consumption | <2W |
RF output reflection | ≥16dB@ 47~550MHz, ≥14dB@550~862MHz | Working TEMP | -20℃ ~+45℃ |
Output level | >78dBuV (AGC:@-9~+0dBm,Pin=0dBm) | Package Size | 315*242*110mm(10pcs) |
RF output impedance | 75Ω | Gross weight | 1.78kgs（10pcs） |
AGC range | 0~-9dBm |

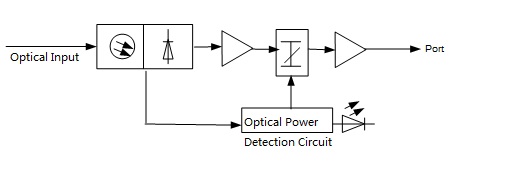

Principle Diagram
