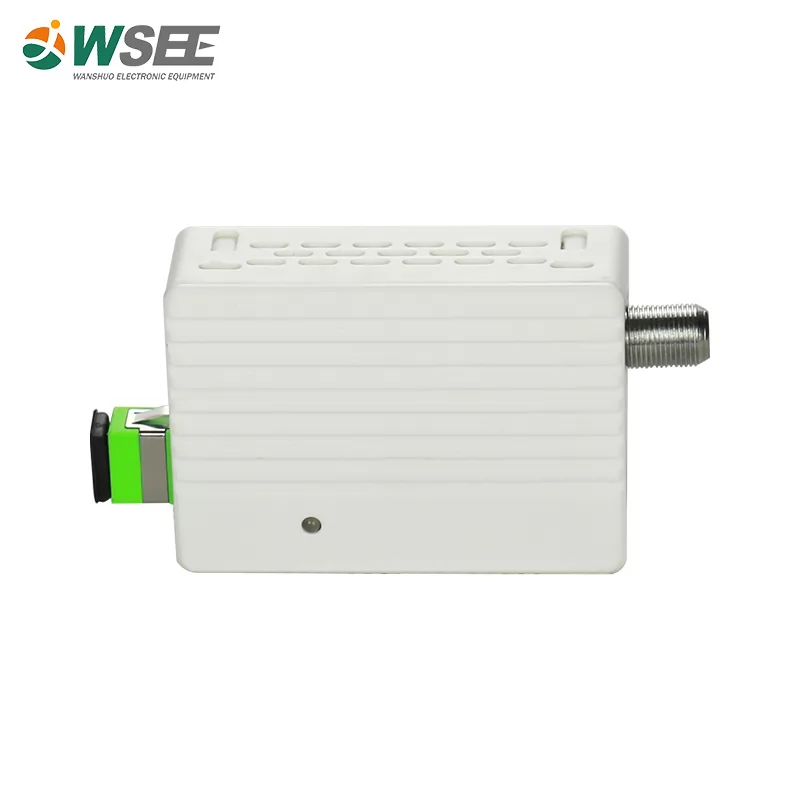

● High quality plastic shell, through hole design on both sides, with good heat dissipation.
● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With optical input AGC function (AGC range can be customized).
● Anti-high frequency surge protection GaAs amplifier tube.
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is only 2W, with optical detection circuit.
● SC/APC & SC/PC&FC/APC&FC/PC optical connectors, custom male or fe-male RF connector.
● Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, ensuring the safe operation of the equipment.
● Different MER values and output levels, there are four program configurations to meet different network design requirements.
Items | Parameters |
Wavelength | 1100~1600nm&1550nm |
Optical input power | 0dBm~-10dBm(analog signal ), 0dBm~-15dBm(digital signal) |
Return loss | >45dBm |
Optical connector | FC/APC&SC/APC&FC/PC&SC/PC, optional |
Bandwidth | 47~1006MHz |
Flatness | ±1@47~1006MHz |
RF output loss | ≥16dB@47~550MHz ≥14dB@550~1006MHz |
Output level (1 port) Pin@-15dBm | (67±1)dBuV |
Output port | 1 or 2 ports(customized) |
Output impedance | 75Ω |
AGC range | 0dBm~-9dBm(normal), -3dBm~-12dBm(customized), -6dBm~-15dBm(customized) |
CNR | ≥51dB |
CTB | ≥65dB |
CSO | ≥62dB |
Equipment voltage | DC5V±0.5 |
Adapter voltage | AC220V |
Inner feedback voltage | DC5V±0.5 |
Working temperature | -25℃~+45℃ |
Consumption | <2W |
Size | 91*79*24mm |
Gross weight | 1.2kgs(10pcs) |

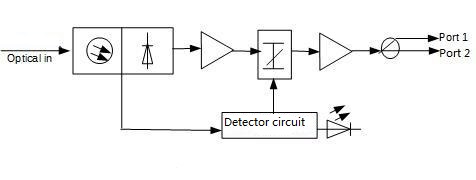

Principle Diagram
