Home > Products > CATV > Optical Receiver
Place of Origin |
Zhangdian District, Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
WS-OR16P / WS-OR19P |
Certification |
CE / FCC / RoHS (optional) |
Standard |
Complies with ITU-T G.984, ITU-T G.987 & GD/J115-2020 |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale price, negotiable by model |
|
Packaging Details |
20pcs/inner box; 100pcs/carton |
|
Delivery Time |
3–7 working days after payment confirmation |
|
Payment Terms |
T/T, L/C, Western Union, PayPal |
|
Supply Ability |
[To be supplemented according to actual production capacity] |
|
Warranty |
12 months standard warranty |

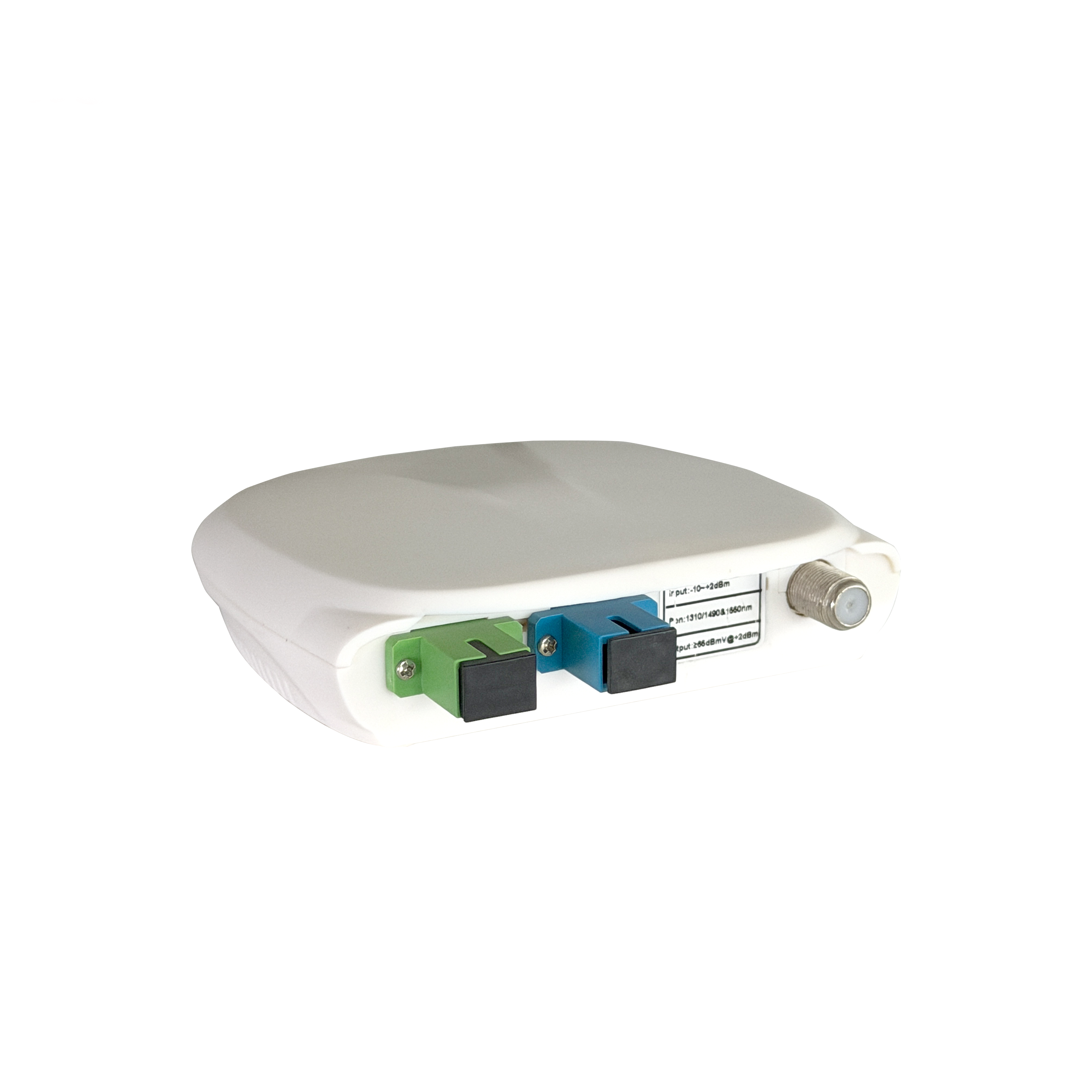

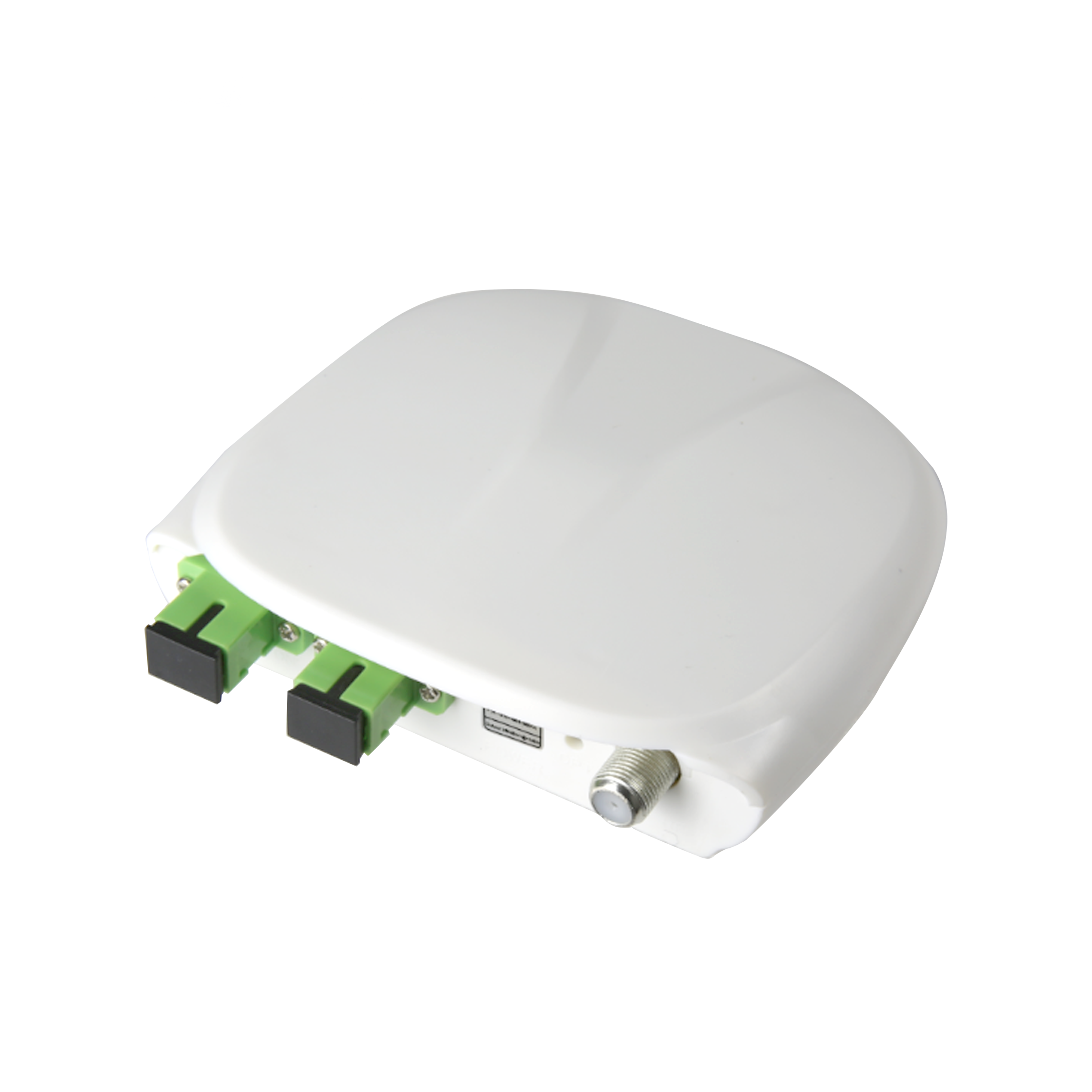

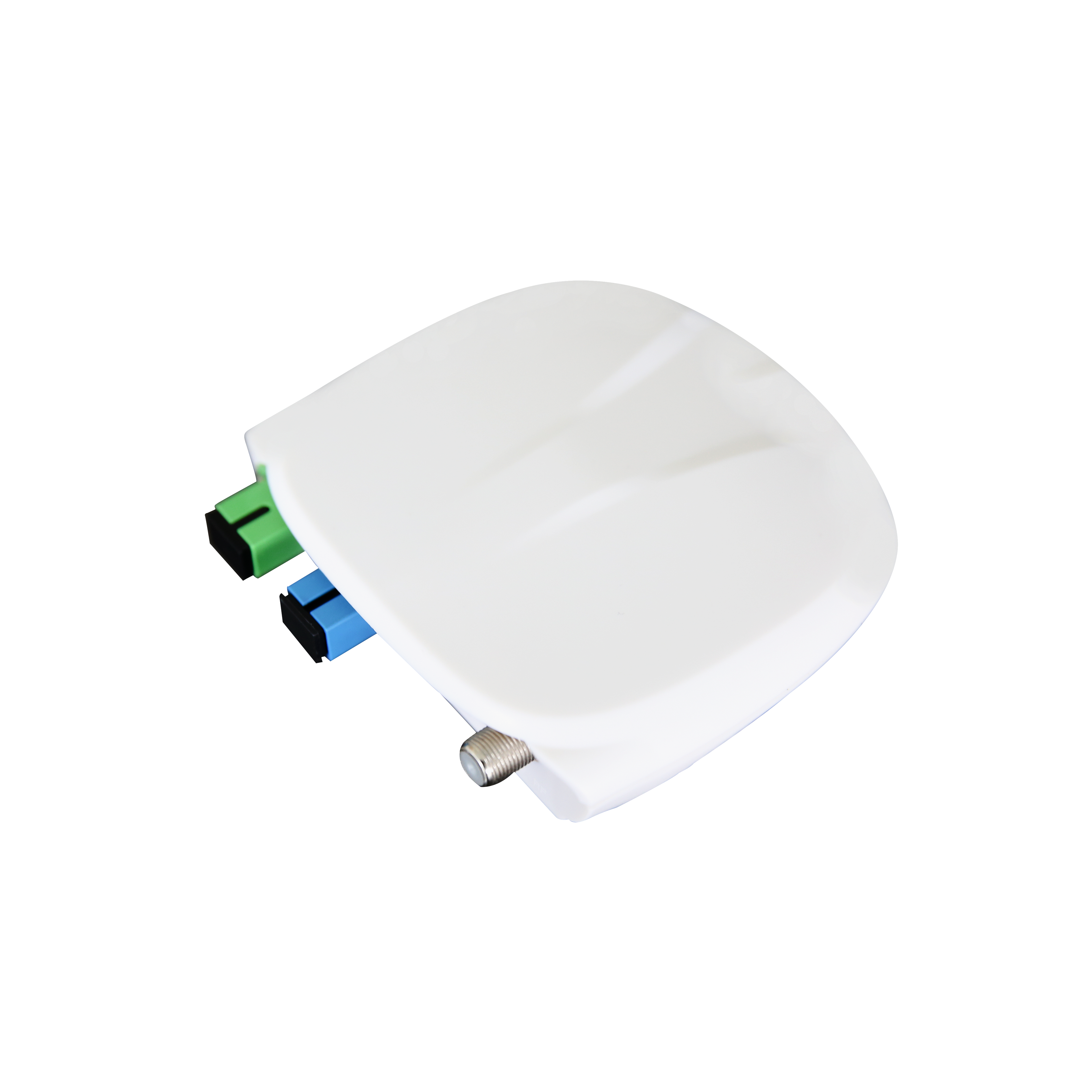

The WS/OR19P series is an integrated passive mini optical receiver with built-in WDM, specially designed for FTTH home digital TV and triple play networks. It integrates WDM wavelength division and high-sensitivity optical reception functions in one compact device, eliminating the need for separate WDM modules and power supplies.
Adopting high-sensitivity photodiodes, it delivers stable RF output with excellent digital signal performance (MER≥36dB, BER<1.0×10⁻⁹ @ 0dBm input). It supports simultaneous transmission of CATV (1550nm) and PON signals (1310/1490nm for GPON, 1270/1577nm for XGSPON), making it the ideal cost-effective terminal for CATV overlay on all mainstream PON networks.
With no power supply required and zero power consumption, it is completely maintenance-free, highly reliable and energy-saving. Its compact size supports easy wall-mounted installation in home environments, making it perfect for large-scale FTTH deployment.
|
Category |
Parameter |
Details |
|
Optical Parameters |
Working Wavelength |
CATV: 1550nmPON: 1310/1490nm (GPON); 1270/1577nm (XGSPON) |
|
|
Responsivity |
≥0.9 A/W |
|
|
Input Optical Power Range |
0 ~ -12 dBm |
|
|
Return Loss |
≥55 dB |
|
|
Optical Connector |
CATV: SC/APCPON: SC/APC or SC/PC (customizable) |
|
RF Parameters |
Bandwidth |
45 ~ 1003 MHz |
|
|
RF Output Level |
≥65 dBμV (@ Pin=0dBm) |
|
|
RF Impedance |
75 Ω |
|
|
Number of RF Outputs |
1 |
|
|
RF Connector Type |
Metric or Imperial (customizable) |
|
Digital Link Performance |
Modulation Error Ratio (MER) |
≥36 dB (@ Pin=0dBm) |
|
|
Bit Error Rate (BER) |
<1.0×10⁻⁹ (@ Pin=0dBm) |
|
Environmental & Mechanical |
Operating Temperature |
-5℃ ~ +50℃ |
|
|
Storage Temperature |
-40℃ ~ +85℃ |
|
|
Operating Humidity |
5% ~ 95% (non-condensing) |
|
|
Dimensions |
OR16P: 67×100×23mmOR19P: 108×103×26mm |
