WS-XR4510-X8 xPON ONU 4GE WiFi6 AX3000+VOIP+CATV RTL Chip GPON/EPON

• Alternative Names: 4GE WiFi6 AX3000 ONU, CATV VOIP ONU, RTL Flagship Chip ONU, Dual Band WiFi6 ONU, SIP Voice ONU, All-in-one Triple Play HGU, GPON Home Gateway
• Main Applications: Premium FTTH full-service access, triple play (data+voice+video), SOHO office networking, smart home central gateway, 8K/VR/AR scenarios, cloud gaming, high-definition security monitoring
• Core Highlights: 4GE/2GE full Gigabit LAN optional, WiFi6 AX3000 dual band (573Mbps 2.4G + 2402Mbps 5G), 4*5dB high-gain antennas, original Realtek flagship chipset, 1-port VOIP (optional), CATV RF (optional with remote on/off), 1 USB 3.0 interface, GPON/EPON automatic switching, personalized customization

The WS-XR4510-X8 series is the flagship all-service xPON Home Gateway Unit (HGU) independently developed by Shandong Wanshuo Optoelectronic. Built with industry-leading original Realtek flagship chipset and the latest WiFi6 (802.11ax) technology, it integrates high-speed data, dual-band wireless internet, VoIP voice and CATV video services into one device, providing a one-stop solution for modern ultra-high-bandwidth full-service scenarios.

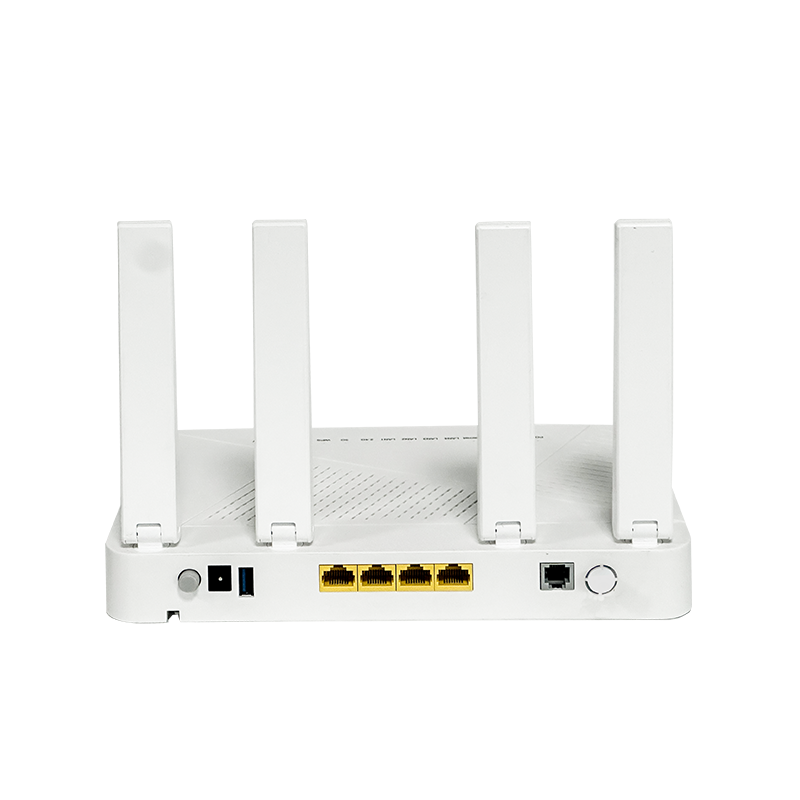

It supports GPON/EPON automatic switching, seamlessly connecting to all mainstream OLT brands (Huawei, ZTE, Fiberhome, Nokia, etc.) without manual configuration, greatly simplifying deployment and reducing inventory costs for operators. It provides flexible LAN port configurations: 4 full Gigabit Ethernet ports or 2 full Gigabit Ethernet ports, meeting the high-bandwidth needs of multiple wired devices such as smart TVs, game consoles, NAS, computers and 8K IP cameras simultaneously.

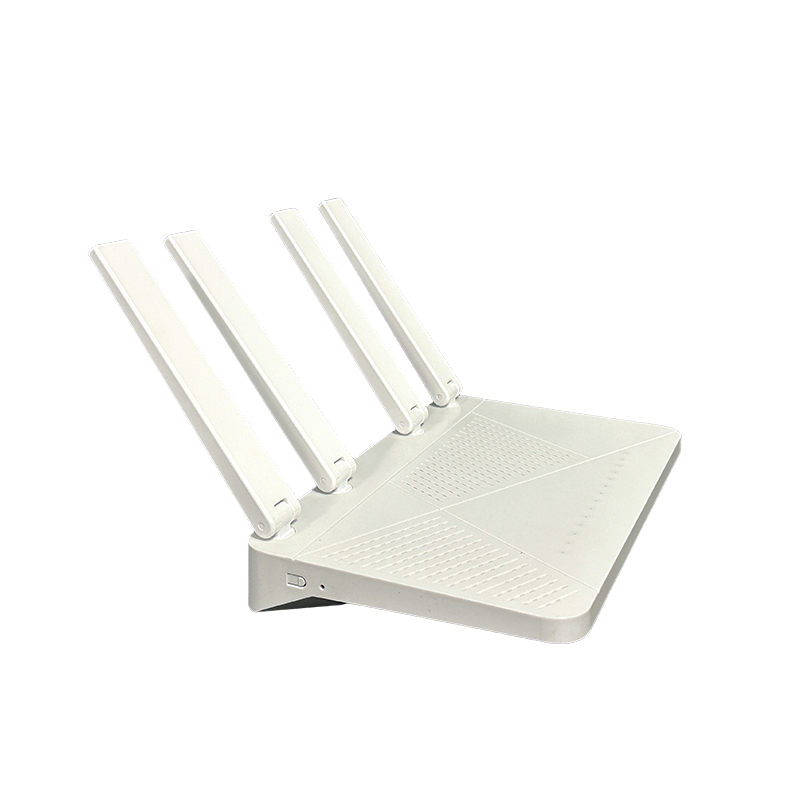

Equipped with 4 high-gain 5dB external antennas and 2*2 MIMO technology for both bands, it delivers a total wireless speed of up to 3000Mbps. The ultra-fast 2402Mbps 5G band provides near-wired transmission speeds, perfectly supporting 8K video streaming, VR/AR experiences and cloud gaming. WiFi6 technology significantly improves network efficiency, supports up to 100+ wireless devices to connect simultaneously without congestion, and reduces latency by up to 75% compared with WiFi5.

The device integrates a standard SIP-based VoIP interface, supporting multiple audio coding standards and rich voice functions including echo cancellation, caller ID, call waiting, call forwarding and three-way conference. It also supports an optional CATV RF interface with remote on/off control, delivering broadcast-quality TV signals with industry-leading carrier-to-noise ratio (≥51dB) and low distortion. The built-in USB 3.0 interface supports high-speed storage expansion, printer sharing and peripheral connection. With native IPv4/IPv6 dual protocol stack support and comprehensive network functions including NAT, DMZ, DDNS, firewall and ACL access control, it ensures secure and efficient network operation. It can operate stably in harsh environments of 0~+50℃ and 10~85% non-condensing humidity, supporting a maximum transmission distance of 20km.

• Premium FTTH residential full-service access (internet + voice + TV)
• Triple play services for telecom operators and cable TV companies
• SOHO and micro-enterprise office network solutions
• Smart home central gateway and IoT device connection
• Ultra-high-bandwidth scenarios such as 8K video streaming, VR/AR and cloud gaming
• High-definition video surveillance and security monitoring systems
• Campus, community and rural fiber broadband coverage

1. Flagship WiFi6 AX3000 Speed: Industry-leading 2402Mbps 5G band + 573Mbps 2.4G band, perfectly supporting 8K video, VR/AR and cloud gaming
2. True All-in-one Full Service: Integrates data, wireless, VoIP voice and CATV video, one device solves all home/office network needs
3. Intelligent CATV Control: Supports remote on/off of CATV function, improving user experience and operation efficiency
4. Ultra-high Device Capacity: Supports up to 100+ wireless devices simultaneously, ideal for large families and small offices
5. High-performance RTL Flagship Chip: Adopts original Realtek flagship chip, stable operation, ultra-low latency, excellent compatibility
6. Flexible Modular Design: LAN, VOIP and CATV functions are optional, customers can customize according to actual needs
7. High-speed USB 3.0: Built-in USB 3.0 interface supports 10x faster file transfer than USB 2.0
8. Intelligent Network Adaptation: Automatic identification of GPON/EPON networks, plug-and-play, no manual configuration required
