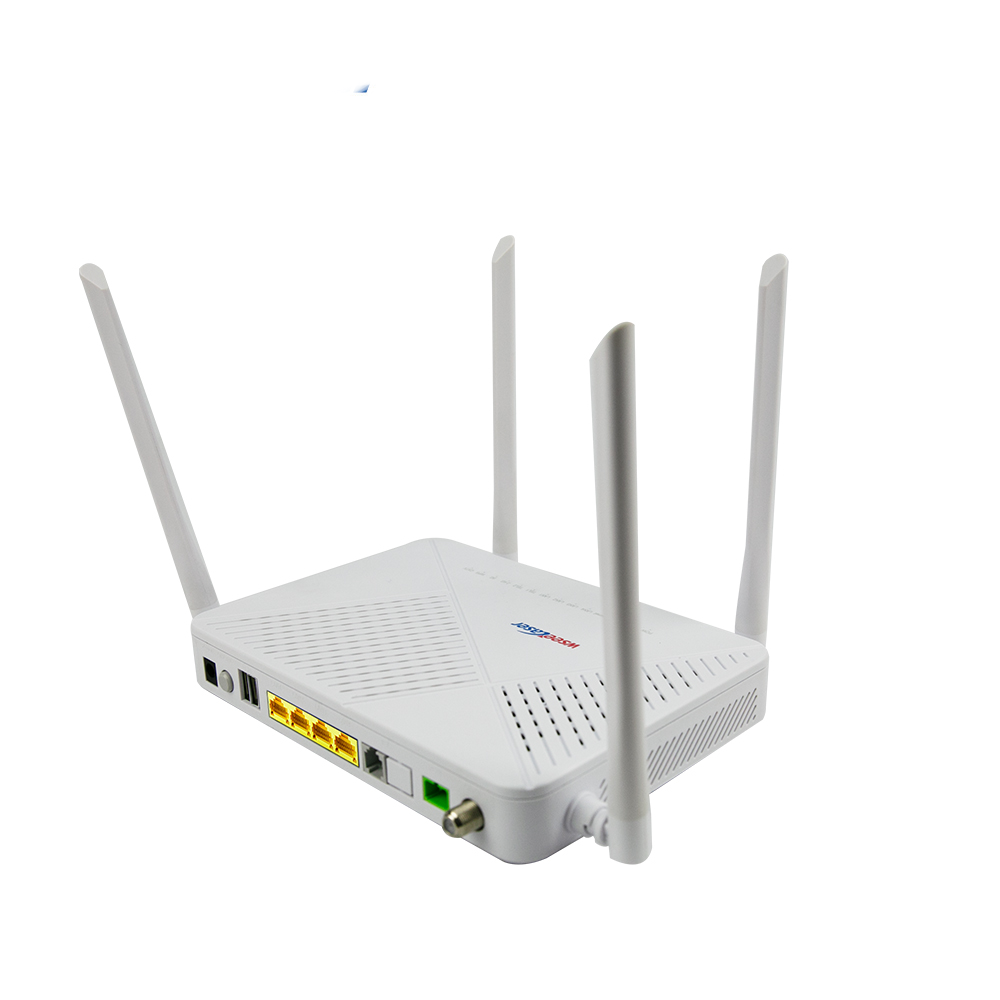

WS-XR4411-X7 xPON ONU 4GE WiFi6 AX1800+VOIP+CATV Dual USB RTL Chip GPON/EPON

• Alternative Names: 4GE WiFi6 AX1800 ONU, Dual USB xPON ONU, High-Speed WiFi6 ONU, RTL Chip ONU, Dual Band WiFi6 ONU, VOIP SIP ONU, CATV RF ONU, All-in-one Home Gateway, GPON HGU, Triple Play ONU
• Main Applications: Premium FTTH full-service access, SOHO office networking, triple play (data+voice+video), smart home central gateway, small enterprise network, high-density wireless scenarios, 8K video streaming
• Core Highlights: 4GE/2GE full Gigabit LAN optional, WiFi6 AX1800 dual band (573Mbps 2.4G + 1201Mbps 5G), 4*5dB high-gain antennas, original RTL chipset, 1-port VOIP (optional), CATV RF (optional), 2 USB ports (optional), ≤7W ultra-low power, GPON/EPON automatic switching, personalized customization

The WS-XR4411-X7 series is the flagship next-generation high-performance xPON Home Gateway Unit (HGU) independently developed by Shandong Wanshuo Optoelectronic. Built with industry-leading original Realtek chipset and the latest WiFi6 (802.11ax) technology, it delivers industry-leading AX1800 total wireless speed, higher device capacity and lower latency, making it the optimal solution for modern multi-device, high-bandwidth and low-latency scenarios.

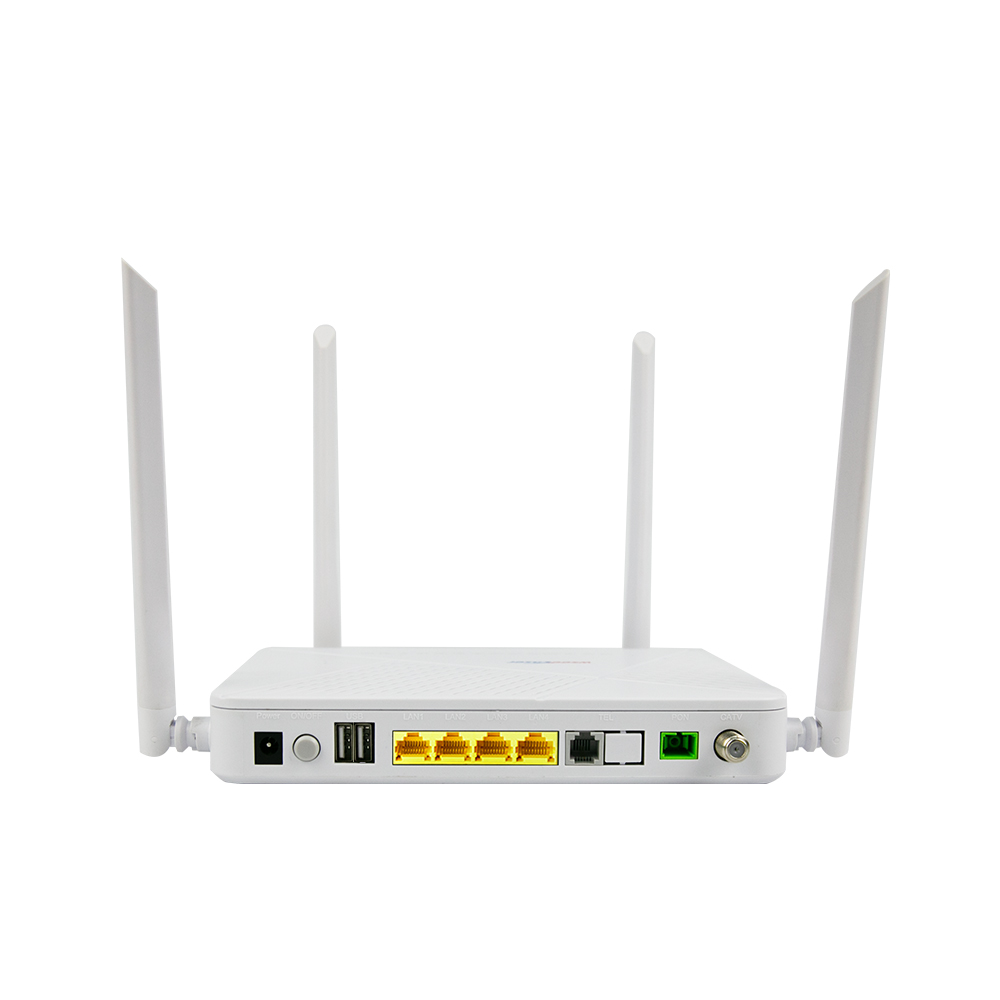

As an all-in-one user-side terminal for PON networks, it integrates high-speed data, dual-band wireless internet, VoIP voice and CATV video services into a single device. It supports GPON/EPON automatic switching, seamlessly connecting to all mainstream OLT brands (Huawei, ZTE, Fiberhome, etc.) without manual configuration, greatly simplifying deployment and reducing inventory costs for operators. It provides flexible LAN port configurations: 4 full Gigabit Ethernet ports or 2 full Gigabit Ethernet ports, meeting the high-bandwidth needs of multiple wired devices such as smart TVs, game consoles, NAS, computers and IP cameras simultaneously.

Equipped with 4 high-gain 5dB external antennas and 2*2 MIMO technology for both bands, it delivers a total wireless speed of up to 1800Mbps (573Mbps 2.4G + 1201Mbps 5G). The upgraded 2.4G band provides wider coverage and stronger wall penetration, while the 5G band delivers ultra-high-speed transmission, perfectly supporting 8K video streaming, cloud gaming, VR/AR and high-definition video conferencing. WiFi6 technology significantly improves network efficiency, supports up to 70+ wireless devices to connect simultaneously without congestion, and reduces latency by up to 75% compared with WiFi5.

The device integrates a standard SIP-based VoIP interface, supporting multiple audio coding standards and rich voice functions including caller ID, call waiting, call forwarding, call hold and three-way conference. It also supports an optional CATV RF interface with remote on/off control, delivering broadcast-quality TV signals with industry-leading carrier-to-noise ratio and low distortion. The optional dual USB interfaces greatly enhance scalability, supporting simultaneous connection of storage devices, printers, cameras and other peripherals. With native IPv4/IPv6 dual protocol stack support and comprehensive network functions including NAT, DMZ, DDNS, firewall and ACL access control, it ensures secure and efficient network operation. With an industry-leading rated power consumption of only ≤7W, it achieves excellent energy efficiency while maintaining high performance, and can operate stably in harsh environments of 0~+50℃ and 10~85% non-condensing humidity, supporting a maximum transmission distance of 20km.

• Premium FTTH residential full-service access (internet + voice + TV)
• Triple play services for telecom operators and cable TV companies
• Small office/home office (SOHO) and micro-enterprise network solutions
• Smart home central gateway and IoT device connection
• High-definition video surveillance and security monitoring systems
• High-density wireless scenarios such as 8K video streaming, cloud gaming and VR/AR
• Campus, community and rural fiber broadband coverage

1. Flagship WiFi6 AX1800 Speed: Industry-leading 573Mbps 2.4G + 1201Mbps 5G total speed, perfectly supporting 8K video, cloud gaming and VR/AR applications
2. Enhanced 2.4G Coverage: Upgraded 2.4G band provides wider coverage and stronger wall penetration, eliminating wireless dead zones in large houses and offices
3. Higher Device Capacity: Supports up to 70+ wireless devices simultaneously, ideal for multi-device families and small offices
4. Dual USB Expansion: Optional 2 USB interfaces, support simultaneous connection of storage, printers, cameras and other peripherals, greatly improving scalability
5. Industry-Leading Low Power: ≤7W rated power consumption, 30% more energy-efficient than similar WiFi6 products, reducing long-term operating costs
6. High-performance RTL Chipset: Adopts original Realtek chip, stable operation, low latency, excellent compatibility with all mainstream OLT brands
7. Full Gigabit LAN Ports: 4GE/2GE optional configuration, supports multiple high-bandwidth wired devices to run simultaneously without congestion
8. Flexible Modular Design: VOIP, CATV and USB functions are optional, customers can customize according to actual needs, reducing procurement costs
