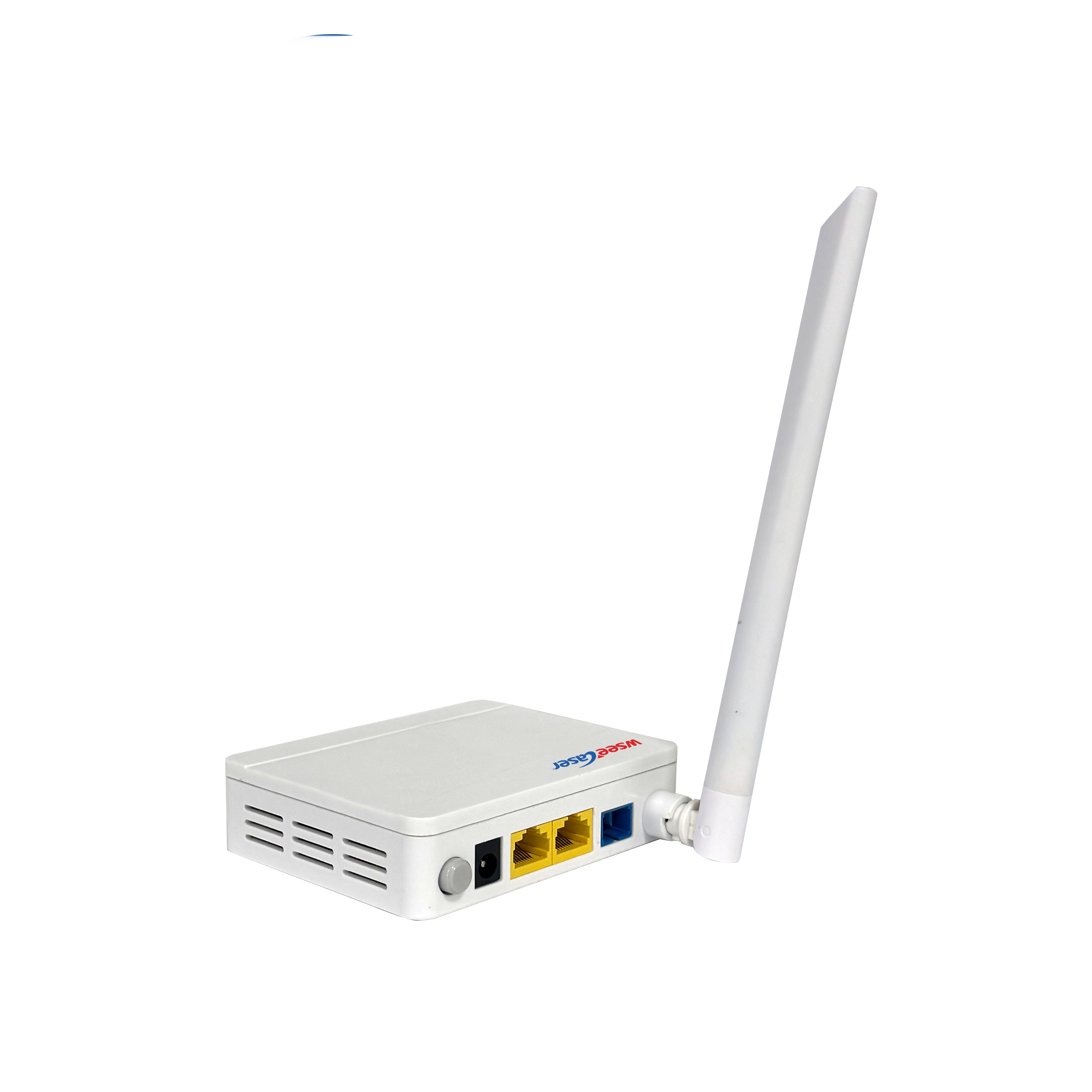

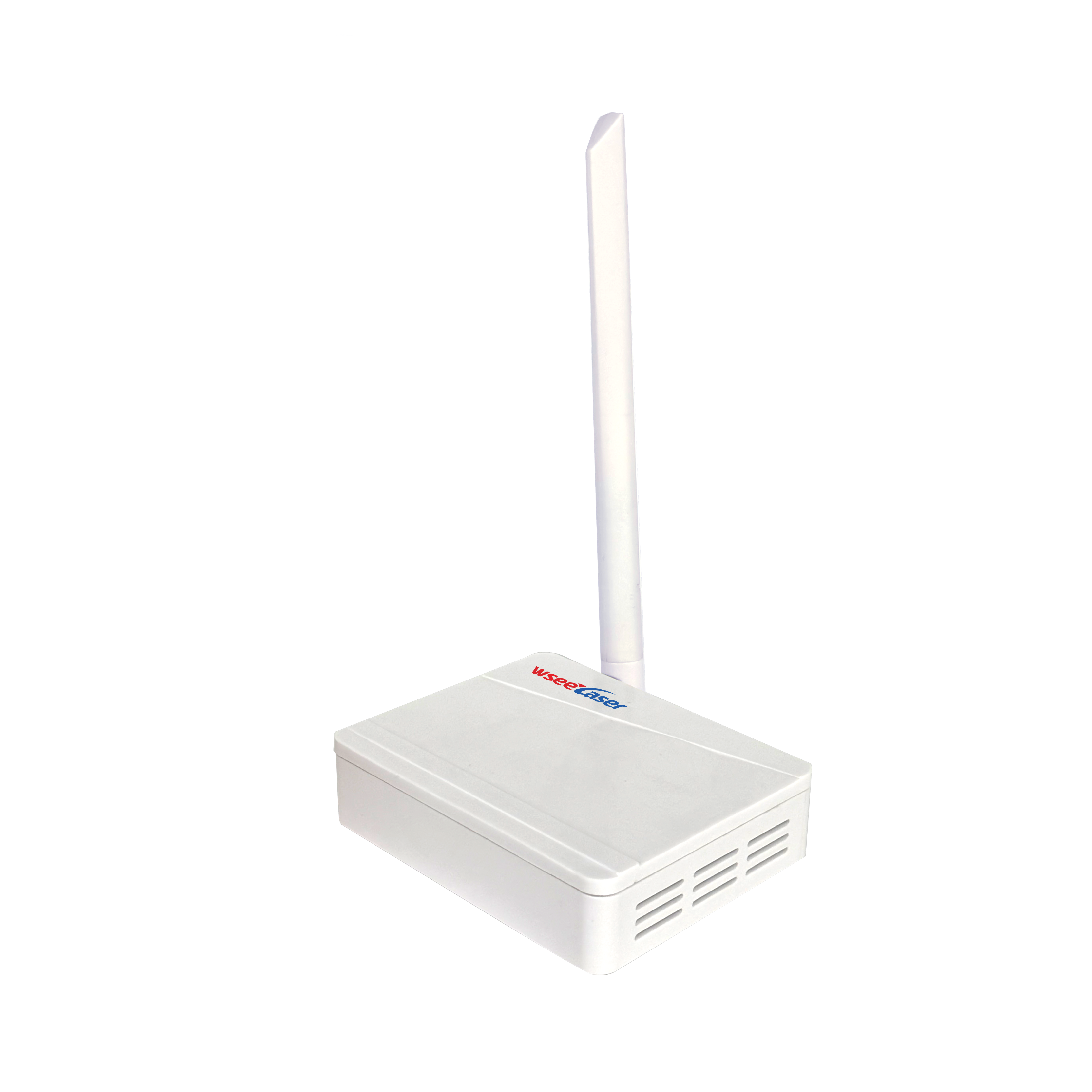

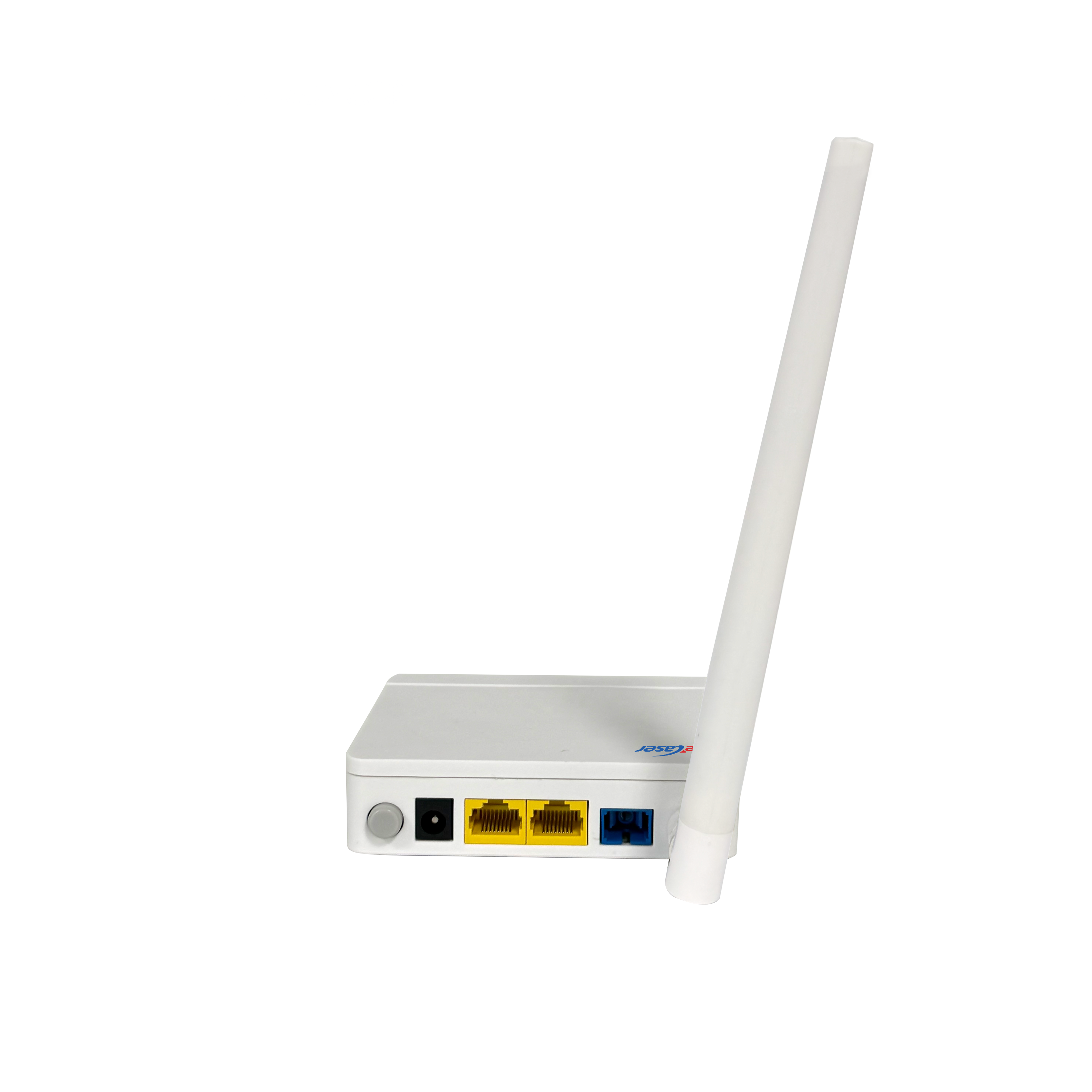

WS-XF1100-L2 xPON ONU 1G1F 2.4G WiFi 300Mbps RTL Chip GPON/EPON Adaptive

• Alternative Names: 1G1F WiFi ONU, Single Port ONU with WiFi, 2.4G 300Mbps ONU, RTL Chip ONU, GPON EPON Adaptive ONU, Budget FTTH ONU, Small Size ONU, HGU ONU
• Main Applications: Economical FTTH residential broadband, rental housing/apartment networks, student dormitory networks, security monitoring systems, basic smart home connections, rural fiber broadband coverage
• Core Highlights: 1GE/1GE1FE LAN optional, 2.4G 300Mbps WiFi (2*2 MIMO), 1 external + 1 internal 5dB antenna, original RTL chipset, ≤6W ultra-low power, compact small size, GPON/EPON automatic adaptation, personalized customization

The WS-XF1100-L2 series is a high-cost-effective entry-level xPON Home Gateway Unit (HGU) independently developed by Shandong Wanshuo Optoelectronic. Built with industry-proven original Realtek chipset and mature PON technology, it delivers stable performance at an affordable price, making it the ideal choice for large-scale batch deployment in economical scenarios.

As a compact user-side terminal for PON networks, it integrates high-speed wired data and 2.4G wireless internet services. It supports GPON/EPON automatic adaptation, seamlessly connecting to all mainstream OLT brands without manual configuration, greatly simplifying deployment and reducing inventory costs for operators. It provides flexible LAN port configurations: 1 Gigabit Ethernet port or 1 Gigabit + 1 Fast Ethernet port, meeting the basic connectivity needs of PCs, smart TVs and IP cameras.

Equipped with 1 external 5dB high-gain antenna + 1 internal 5dB antenna and 2*2 MIMO technology, it delivers stable 300Mbps 2.4G WiFi coverage, balancing signal strength and device aesthetics. It natively supports IPv4/IPv6 dual protocol stack, and integrates comprehensive network functions including HGU gateway, DHCP Client/Server, PPPoE dial-up, NAT, DMZ, DDNS, port mapping, loop detection, firewall and ACL access control, ensuring secure and efficient network operation.

With an ultra-compact size of 1008026mm and light weight of only 220g, it saves valuable installation space and is easy to deploy in various indoor scenarios. Its rated power consumption is only ≤6W, achieving excellent energy efficiency and significantly reducing long-term operating costs. It can operate stably in harsh environments of 0~+50℃ and 10~85% non-condensing humidity, supporting a maximum transmission distance of 20km.

• Economical FTTH residential broadband access
• Rental housing, apartment and shared accommodation networks
• Student dormitory and campus basic network coverage
• Security monitoring and IP camera remote access systems
• Basic smart home device network connections
• Rural and remote area fiber broadband construction
• Small shop and kiosk internet access solutions

1. Ultra-high Cost Performance: Affordable price with stable performance, ideal for large-scale batch deployment in economical scenarios
2. Flexible LAN Configuration: 1GE or 1GE1FE optional, meeting different wired connection needs
3. Compact Small Size: Ultra-miniature design, saves installation space, easy to hide and deploy
4. Balanced Antenna Design: 1 external + 1 internal antenna, balances signal coverage and device aesthetics
5. Ultra-low Power Consumption: ≤6W rated power, energy-saving and environmentally friendly, reduces long-term operating costs
6. Stable RTL Chipset: Adopts original Realtek chip, strong anti-interference ability, excellent compatibility with mainstream OLT equipment
7. Intelligent Network Adaptation: Automatic identification of GPON/EPON networks, plug-and-play, no manual configuration required
8. Personalized Customization: Supports firmware customization, logo printing and other personalized services
