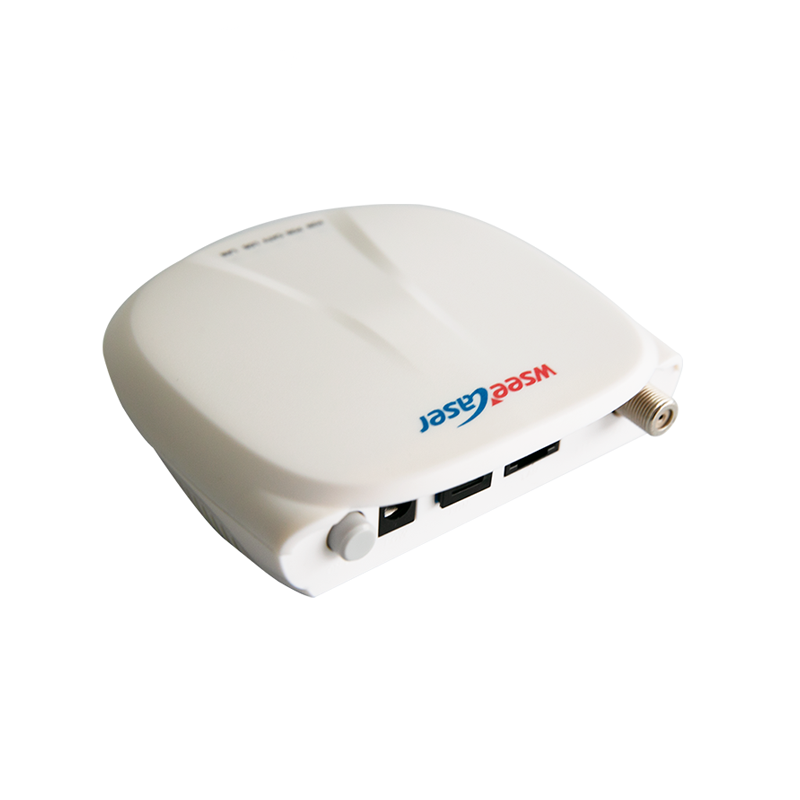

WS-XF0001-X1 xPON ONU 1GE+CATV GPON/EPON Auto Switch ONU with RTL Chip for Triple Play

• Alternative Names: xPON ONU with CATV, 1GE CATV ONU, GPON ONU with RF, EPON ONU with CATV, Auto Switch ONU, Triple Play ONU, Gigabit Optical Network Unit
• Main Applications: FTTH triple play services, CATV digital TV, IPTV, residential broadband, security monitoring, smart home
• Core Highlights: 1GE+CATV dual interface, GPON/EPON automatic switching, RTL chipset, CATV remote on/off, IPv4/IPv6 dual stack, ≤4W ultra-low power, optional CATV configuration

The WS-XF0001-X1 series is a professional triple-play xPON Optical Network Unit (ONU) independently developed by Shandong Wanshuo Optoelectronic. As the core user-side terminal for Passive Optical Network (PON) systems, it realizes bidirectional conversion between optical signals and Ethernet packets, and simultaneously transmits high-speed data and high-definition CATV signals, providing a one-stop solution for fiber-to-the-home triple play services.

This ONU adopts industry-proven RTL chipset and advanced PON technology, delivering superior stability, compatibility and cost-effectiveness compared with traditional access solutions. Its most distinctive feature is the integrated CATV RF interface (optional) with remote on/off control, supporting high-quality analog and digital TV signal transmission. It also supports GPON/EPON automatic switching, which can automatically identify and adapt to different network modes without manual configuration, greatly simplifying deployment and reducing inventory pressure for operators. Equipped with 1 Gigabit Ethernet RJ45 port supporting 10/100/1000Mbps adaptive transmission, it fully meets the high-bandwidth requirements of 4K/8K video streaming, online gaming, high-speed internet access and IP monitoring.

The device natively supports IPv4/IPv6 dual protocol stack, and integrates comprehensive network functions including HGU gateway, DHCP Client/Server, PPPoE dial-up, NAT, DMZ, DDNS, port mapping, loop detection, firewall and ACL access control. It has optimized IGMP Snooping/Proxy multicast features, ensuring smooth IPTV and video on demand services. With a rated power consumption of only ≤4W, it achieves industry-leading energy efficiency, significantly reducing long-term operating costs. It can operate stably in harsh environments with 0~+50℃ operating temperature and 10~85% non-condensing humidity, and supports a maximum transmission distance of 20km, suitable for large-scale deployment in urban and rural fiber networks.

• Fiber to the Home (FTTH) triple play services (data + voice + video)
• CATV digital TV and analog TV signal transmission
• IPTV and video on demand (VOD) systems
• Residential high-speed broadband access
• Security monitoring and remote video surveillance systems
• Smart home and IoT device network connection
• Campus, community and rural fiber broadband coverage

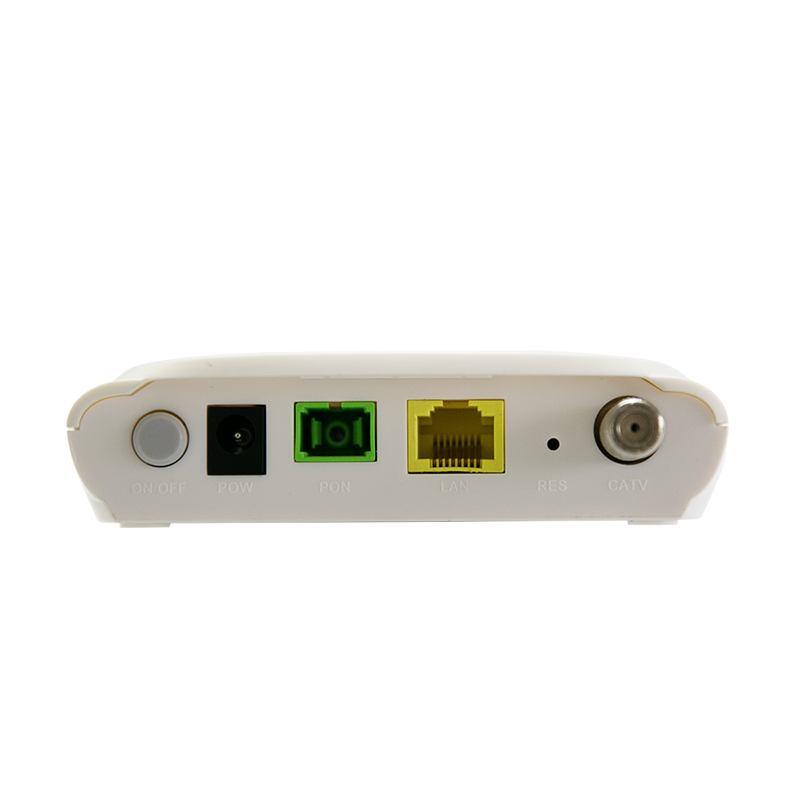

1. Integrated Triple Play Solution: 1GE data port + optional CATV RF port, one device realizes high-speed internet and HD TV transmission
2. High-quality CATV Performance: Industry-leading carrier-to-noise ratio and low distortion, ensuring clear and stable TV signal
3. Convenient CATV Control: Support remote on/off control of CATV function, improving user experience
4. Intelligent Dual-mode Auto Switch: Automatically identifies GPON/EPON networks, no manual configuration required
5. High-performance RTL Chipset: Adopts original Realtek chip, stable operation, strong compatibility with mainstream OLT brands
6. IPv4/IPv6 Dual Stack: Fully compatible with next-generation internet protocols, meets future network upgrade requirements
7. Flexible Ordering: Optional CATV configuration, meeting different customer needs and reducing procurement costs
8. Ultra-low Power Consumption: ≤4W rated power, energy-saving and environmentally friendly, reducing long-term operating costs
