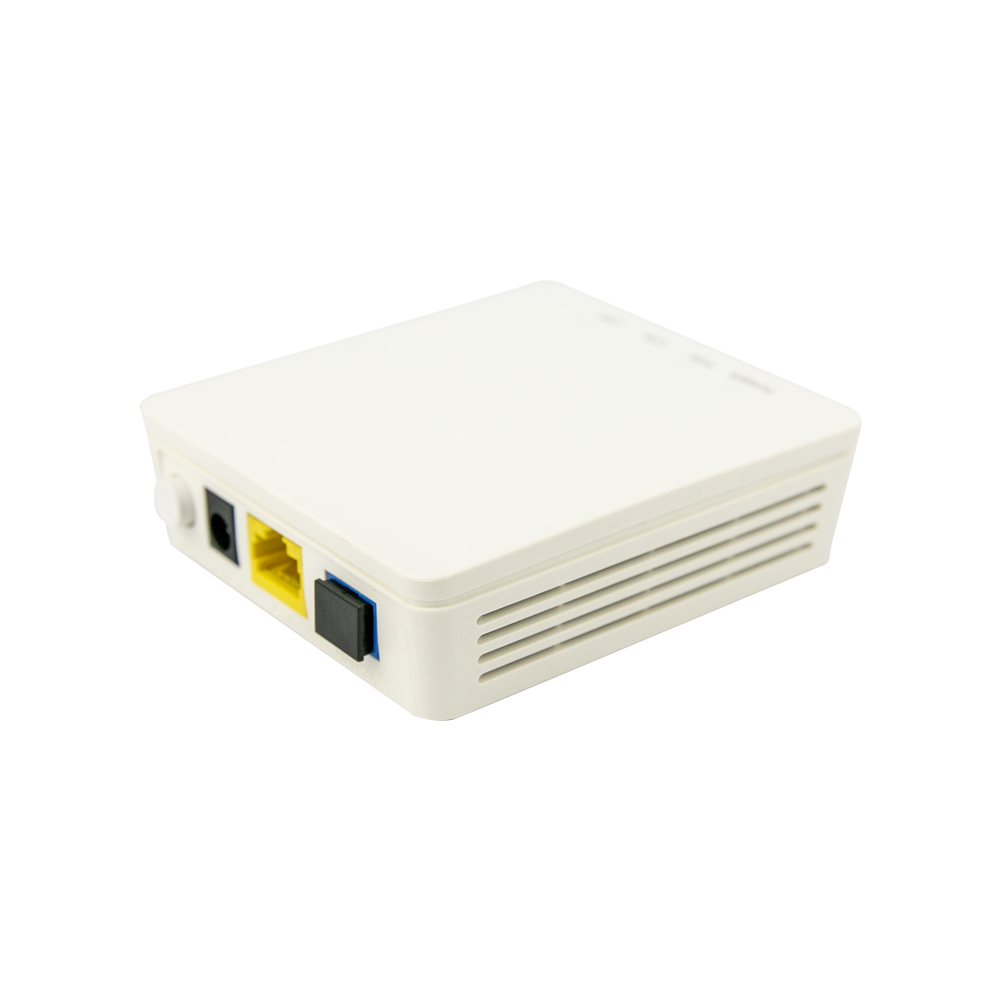

WS-XF0000-L1 xPON ONU 1GE GPON/EPON Auto Switch ONU with RTL Chip & Multicast for FTTH

• Alternative Names: xPON ONU, GPON ONU, EPON ONU, 1GE Gigabit ONU, Auto Switch ONU, FTTH ONU, Multicast ONU, Single Port Optical Network Unit
• Main Applications: FTTH residential broadband, CATV triple play, security monitoring, smart home, small office network access
• Core Highlights: GPON/EPON automatic switching, RTL chipset, IPv4/IPv6 dual stack, IGMP multicast, ≤4W ultra-low power, optional CATV RF port

The WS-XF0000-L1 series is a high-performance, intelligent xPON Optical Network Unit (ONU) independently developed by Shandong Wanshuo Optoelectronic. As the standard user-side terminal for Passive Optical Network (PON) systems, it realizes bidirectional conversion between optical signals and Ethernet packets: receiving downstream optical signals from OLT and converting them into Ethernet packets for end users, while encapsulating upstream user data into optical signals and transmitting them to the upper-layer network.

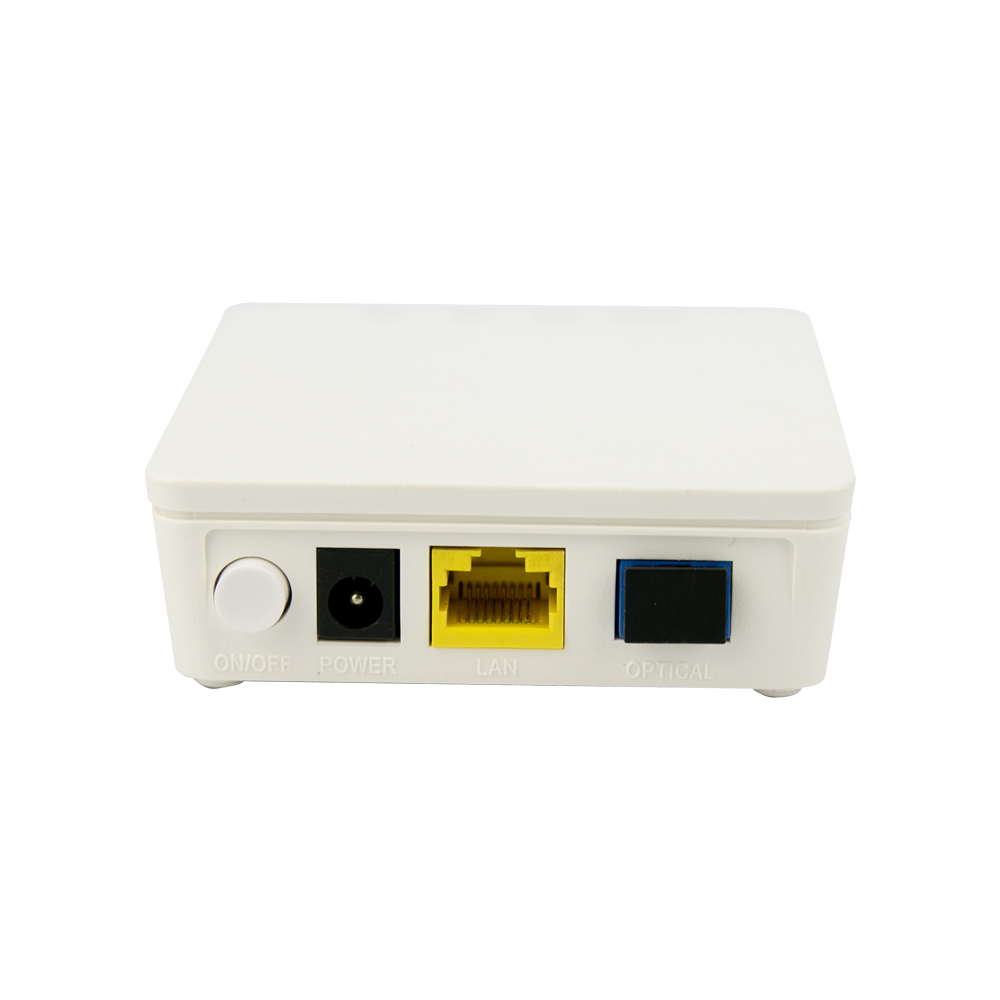

This 1GE ONU adopts industry-leading RTL chipset and advanced PON technology, delivering superior cost-effectiveness, maintainability and scalability compared with traditional copper access solutions. Its most prominent feature is GPON/EPON automatic switching, which can automatically identify and adapt to different network modes without manual configuration, greatly simplifying deployment and reducing inventory pressure for operators. Equipped with 1 Gigabit Ethernet RJ45 port supporting 10/100/1000Mbps adaptive transmission, it fully meets the high-bandwidth requirements of 4K/8K video streaming, online gaming, high-speed internet access and IP monitoring.

The device natively supports IPv4/IPv6 dual protocol stack, and integrates comprehensive network functions including HGU gateway, DHCP Client/Server, PPPoE dial-up, NAT, DMZ, DDNS, port mapping and loop detection. It has optimized IGMP Snooping/Proxy multicast features, and supports optional one-way CATV RF interface, making it an ideal choice for triple play services. With a rated power consumption of only ≤4W, it achieves industry-leading energy efficiency, significantly reducing long-term operating costs. It can operate stably in harsh environments with 0~+50℃ operating temperature and 10~85% non-condensing humidity, and supports a maximum transmission distance of 20km, suitable for large-scale deployment in urban and rural fiber networks.

• Fiber to the Home (FTTH) residential broadband and triple play services
• Fiber to the Office (FTTO) small and micro enterprise network access
• CATV digital TV and video on demand (VOD) systems
• Security monitoring and remote video surveillance systems
• Smart home and IoT device network connection
• Campus, community and rural fiber broadband coverage

1. Intelligent Dual-mode Auto Switch: Automatically identifies GPON/EPON networks, no manual configuration required, reduces operator inventory and deployment costs
2. High-performance RTL Chipset: Adopts original Realtek chip, stable operation, low latency, strong compatibility with mainstream OLT brands
3. IPv4/IPv6 Dual Stack: Fully compatible with next-generation internet protocols, meets future network upgrade requirements
4. Industry-leading Low Power: ≤4W rated power consumption, 20% more energy-efficient than similar products, reduces long-term operating costs
5. Optimized Multicast Performance: Professional IGMP Snooping/Proxy support, smooth HD video and CATV triple play services
6. Flexible Expansion: Optional CATV RF interface, one-stop solution for data and video services
7. Easy Maintenance: Plug-and-play design, support remote management and batch configuration, reduce on-site maintenance workload
