Home > Products > CATV > Optical Receiver
Place of Origin |
Zhangdian District, Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
WS-OR409 Series |
Certification |
CE / FCC / RoHS (optional) |
Standard |
Complies with GD/J115-2020 & global CATV industry standards |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale price, negotiable based on bandwidth, module and configuration |
|
Packaging Details |
1pc/carton; 10pcs/carton, includes device, power cord and user manual |
|
Delivery Time |
3-7 working days after payment confirmation (bulk orders over 20pcs to be confirmed separately) |
|
Payment Terms |
T/T, L/C, Western Union, PayPal (to be confirmed) |
|
Supply Ability |
[To be supplemented according to actual production capacity] |
|
Warranty |
12 months standard warranty, extended warranty available |

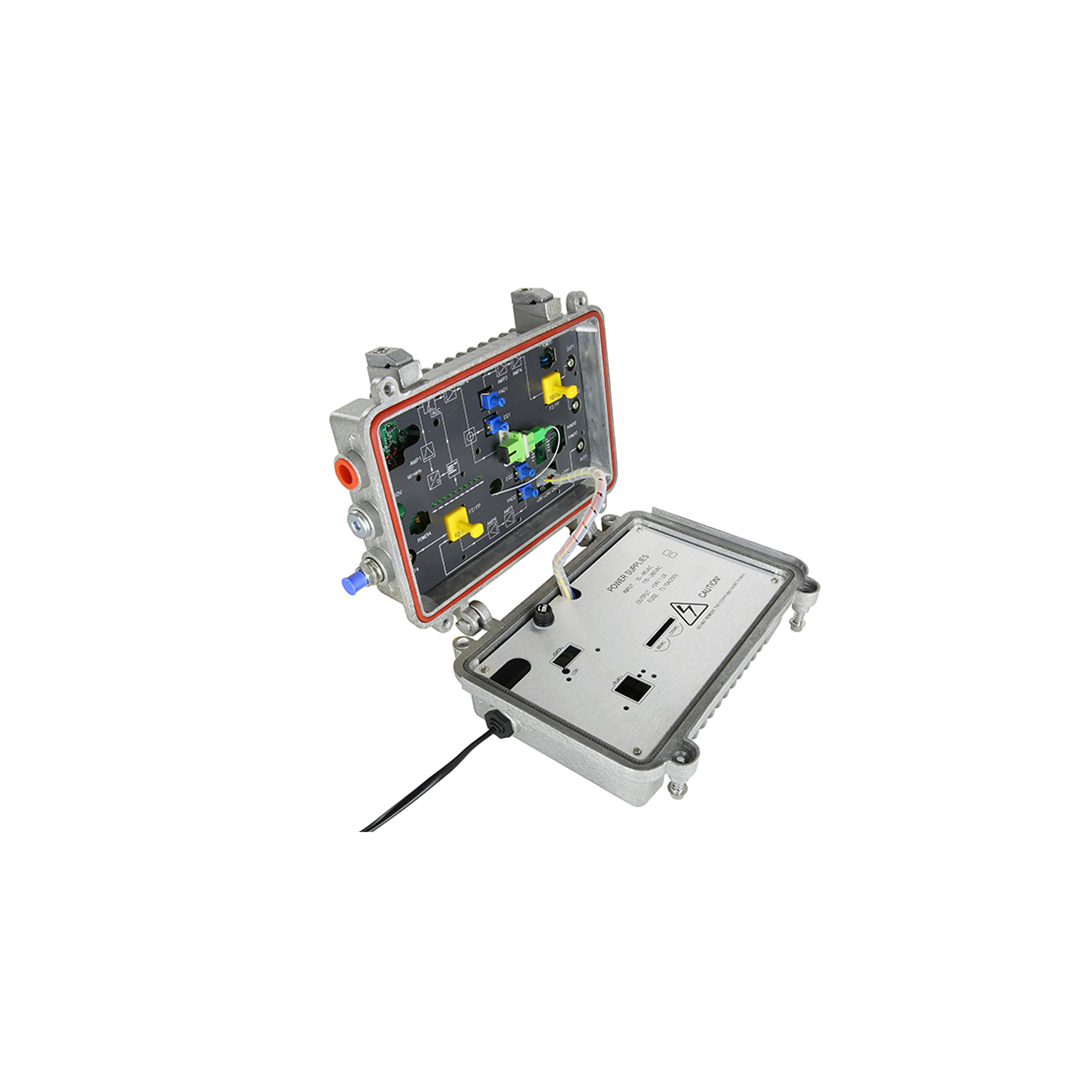

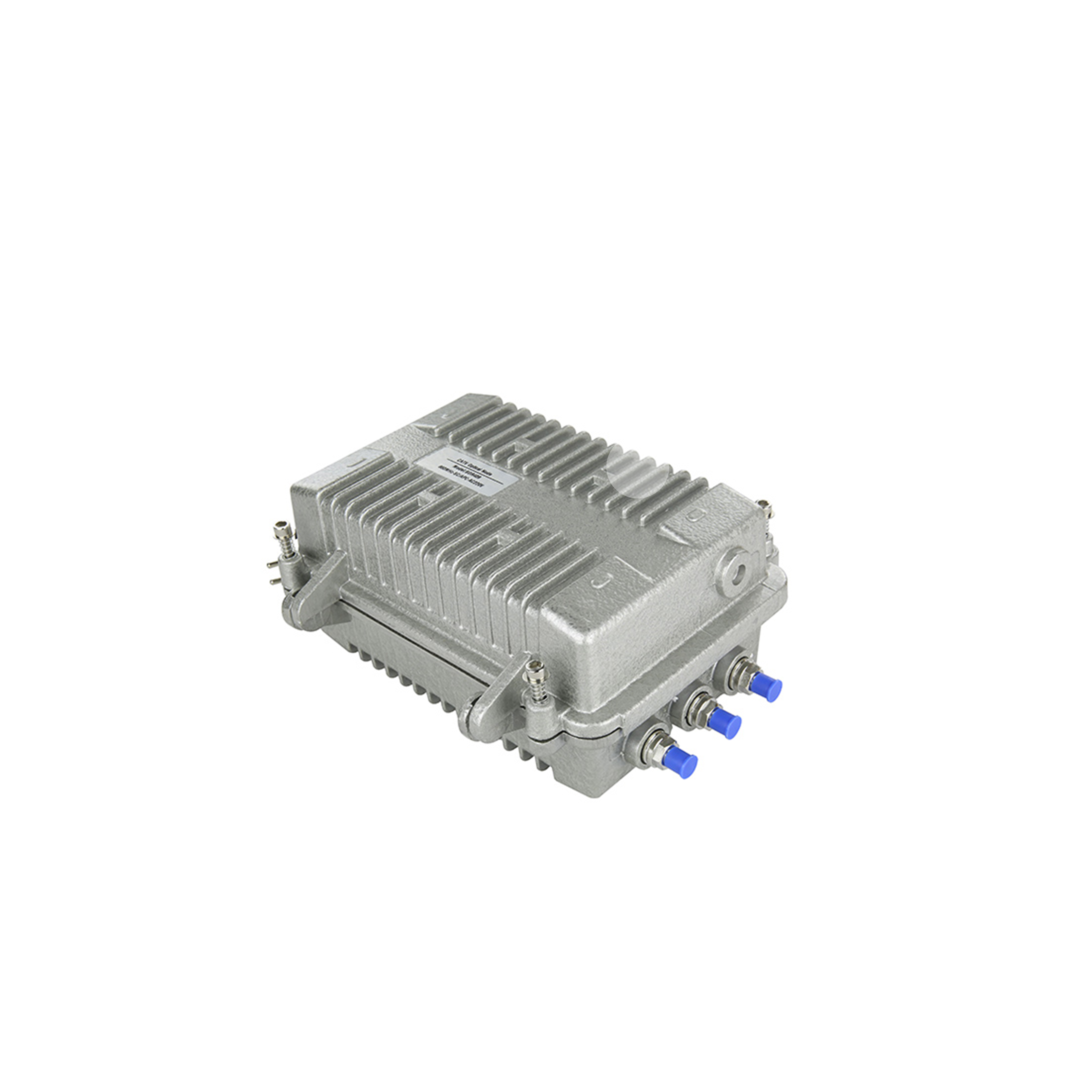

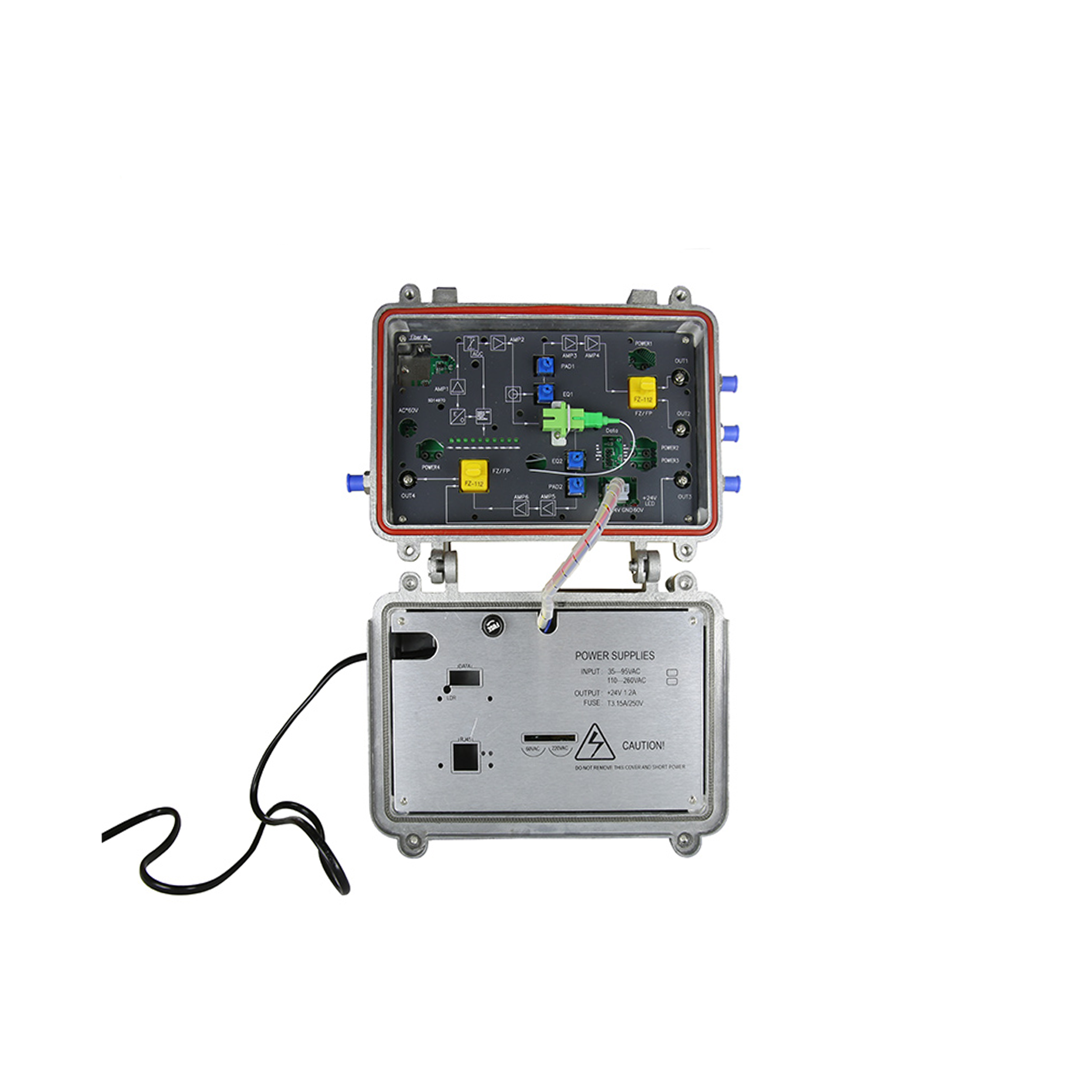

The WS-OR409 series is a high-performance outdoor 4-way CATV optical receiver independently developed by Shandong Wanshuo Optoelectronic. Adopting an IP65 waterproof aluminum alloy housing and double-shielded structure, it delivers excellent EMC performance and is suitable for long-term reliable operation in harsh outdoor environments.
It uses an advanced GaAs low-noise MMIC pre-amplifier and high-performance hybrid module, with adjustable attenuation (0-20dB) and equalization (0-18dB) for extremely convenient on-site debugging. The built-in AGC circuit maintains stable RF output level and unchanged CTB/CSO indicators within the input power range of -7~+2dBm. It is equipped with 10 LED indicators to display optical power more accurately, and an external test port that allows signal testing without opening the housing.
The device supports international standard SNMP network management for remote monitoring and control. It features a built-in button fuse box for quick replacement, and an anti-surge lightning protection circuit to effectively protect the power supply. It can work with ONU or EOC to realize triple-play convergence, making it the ideal choice for high-density user distribution networks in communities and villages.
|
Category |
Parameter |
Details |
|
Optical Parameters |
Working Wavelength |
1100-1600nm |
|
|
Optical Input Power |
-8~+2dBm |
|
|
Optical AGC Range |
-7~+2dBm |
|
|
Optical Return Loss |
>45dB |
|
|
Optical Connector |
FC/APC (standard); SC/APC (customized) |
|
RF Parameters |
Bandwidth |
40-750MHz / 40-862MHz / 40-1006MHz |
|
|
RF Output Level |
≥103dBμV |
|
|
Flatness |
±0.75dB @40-750MHz; ±1dB @40-860/1006MHz |
|
|
RF Return Loss |
≥16dB @40-550MHz; ≥14dB @550-1006MHz |
|
|
Gain Adjustable Range |
0-20dB |
|
|
Equalization Adjustable Range |
0-18dB |
|
|
Impedance |
75Ω |
|
|
C/N |
≥51dB |
|
|
C/CTB |
≥65dB |
|
|
C/CSO |
≥62dB |
|
General Parameters |
Network Management |
SNMP (optional) |
|
|
Test Port |
External RF test port (no need to open housing) |
|
|
Power Supply |
AC35-90V / 90-135V / 140-265V (customizable) |
|
|
Power Consumption |
≤24W |
|
|
Operating Temperature |
-25℃ ~ +55℃ (customizable) |
|
|
Storage Temperature |
-30℃ ~ +70℃ |
|
|
Waterproof Grade |
IP65 |
|
|
Dimensions |
270×210×100mm |
|
|
Net Weight |
2.6kg |
|
|
Carton Weight |
28kg (10pcs) |
