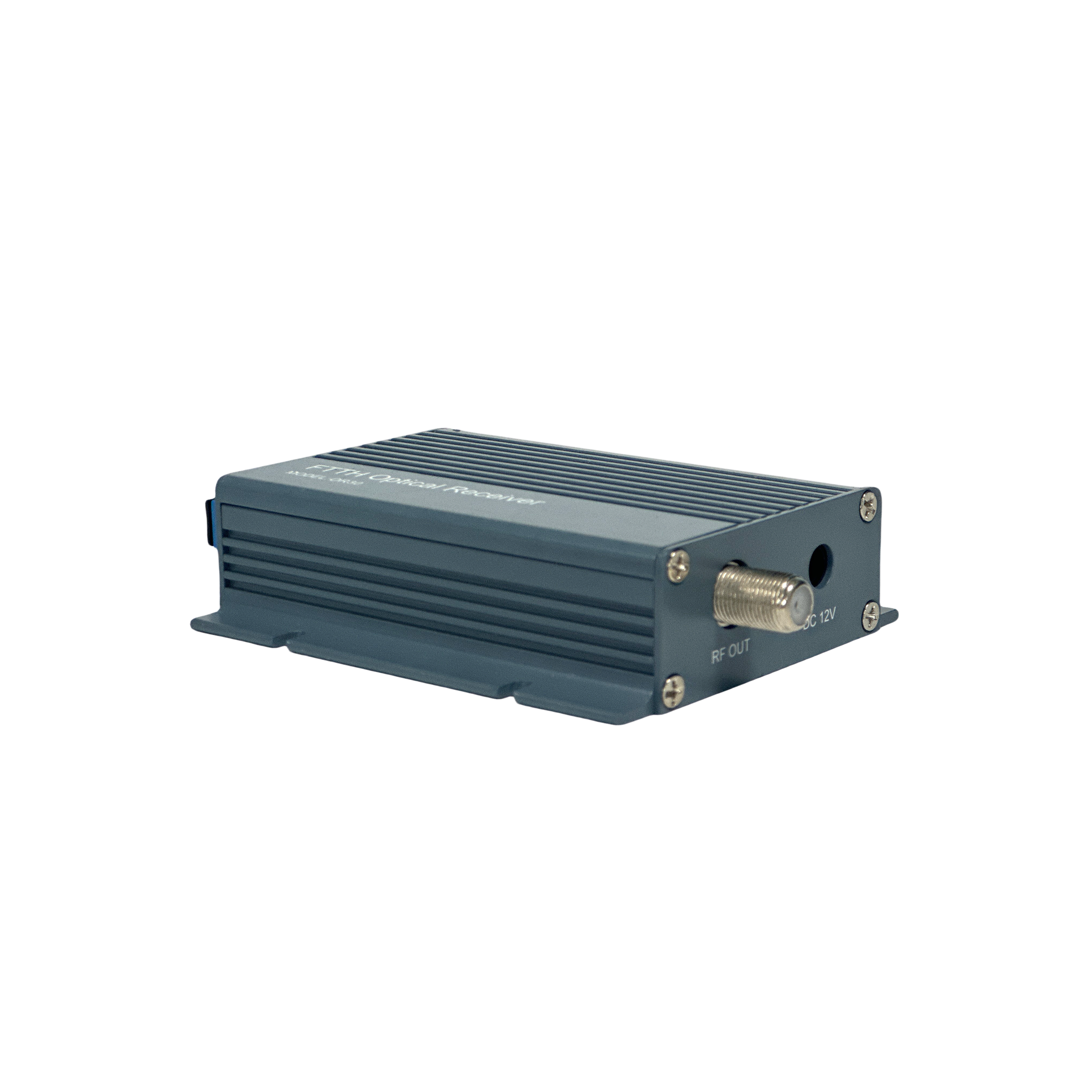

WS-OR30 Series AGC GaAs CATV Receiver Aluminum Housing 12V Single Port FTTH Terminal

• Alternative Names: OR30 active receiver, aluminum profile CATV receiver, 12V single port FTTH terminal, WDM integrated home receiver, triple play optical node
• Main Applications: FTTH triple play convergence, CATV signal overlay on GPON/EPON/XGSPON, home HDTV reception, residential community deployment, rural broadband CATV integration
• Core Highlights: High-quality aluminum profile housing (excellent heat dissipation), full GaAs low-noise RF circuit, fixed AGC range 0~-11dBm, AC100~240V→DC12V power supply, optional built-in WDM, multi-level lightning protection, single RF output, ultra-low power consumption <2W

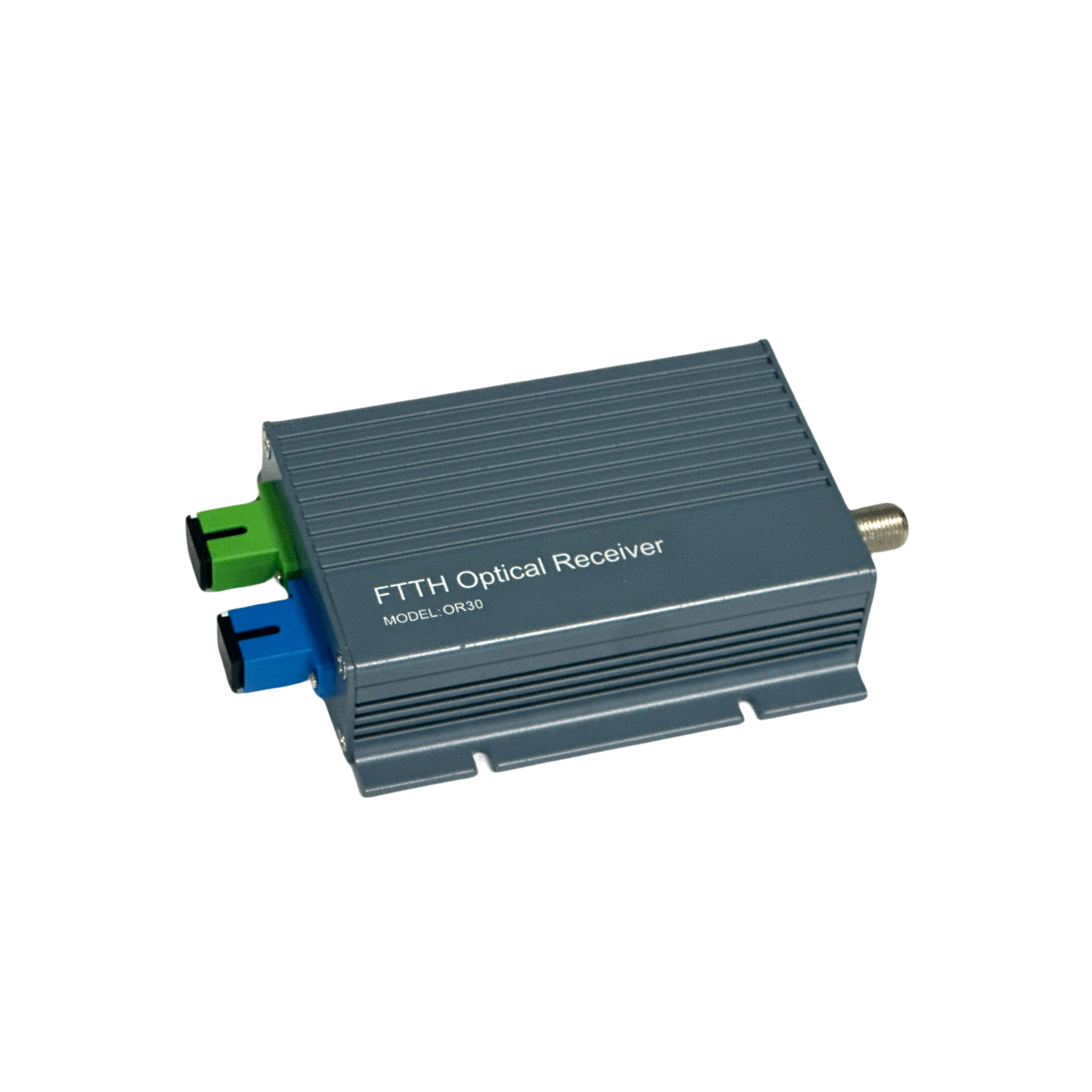

The WS-FTTH-OR30 series is a high-performance single-port active home optical receiver specially designed for FTTH CATV and triple play networks. Adopting a high-quality aluminum profile housing for superior heat dissipation and corrosion resistance, it ensures long-term stable operation even in harsh indoor environments. It uses advanced full GaAs low-noise amplification technology and high-sensitivity photodetectors, delivering excellent signal quality and reliable receiving performance.

This receiver features a fixed automatic gain control (AGC) circuit with a range of 0~-11dBm, maintaining stable RF output across varying input power levels. It supports optional built-in WDM for simultaneous transmission of CATV (1550nm) and full-band PON signals (1270/1310/1490/1577nm), making it compatible with all mainstream PON standards. It is equipped with built-in lightning protection devices to prevent surge damage and ensure safe operation.

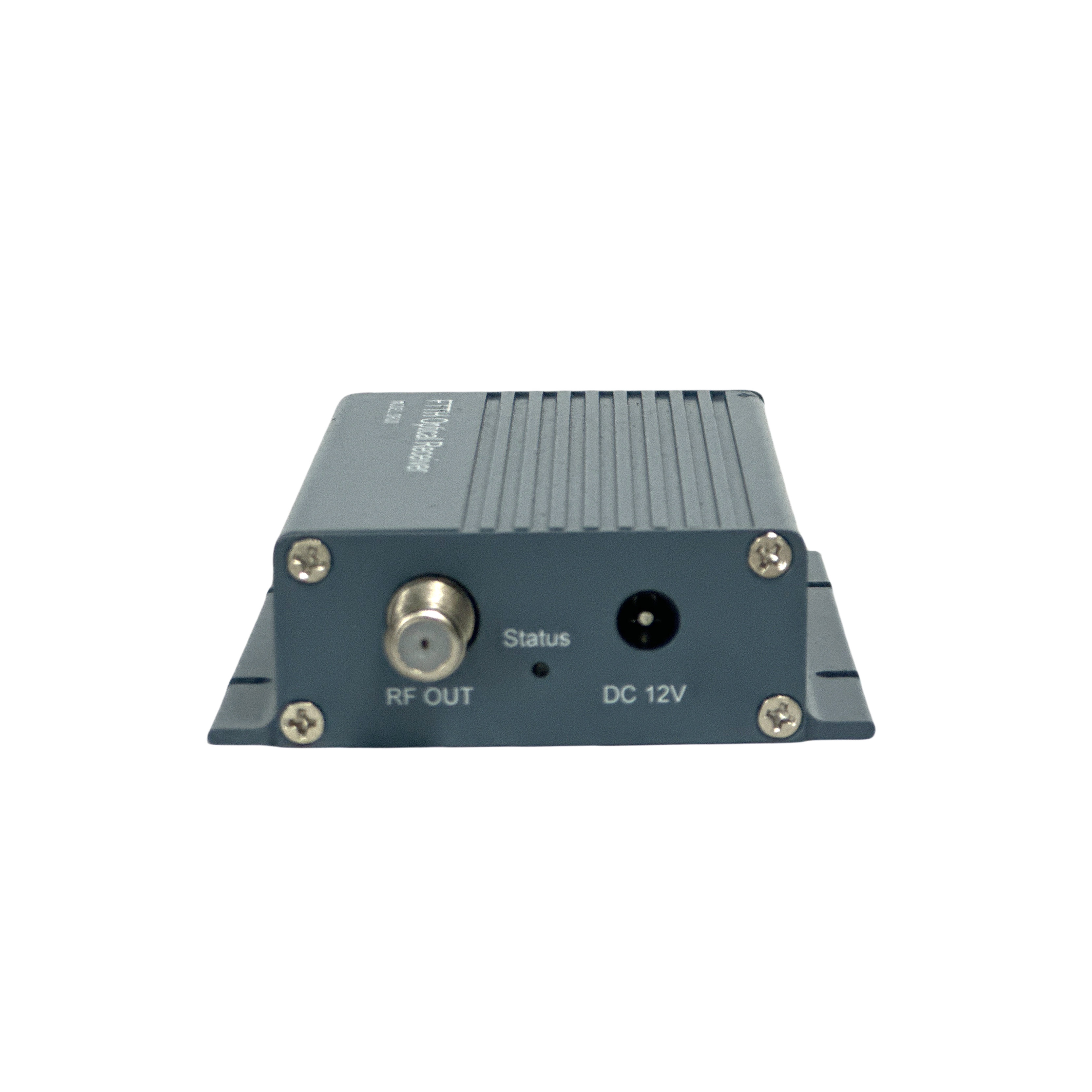

It provides a single RF output configuration, with multiple optical connector (SC/APC, SC/PC, FC/APC, FC/PC) and RF interface (metric/imperial) options. With an ultra-low power consumption of less than 2W, it is energy-saving and environmentally friendly for long-term operation. It can work with ONU or EOC devices to realize triple play convergence of CATV, data and voice services.

• FTTH fiber-to-the-home triple play (CATV + voice + data) convergence
• CATV signal overlay on GPON, EPON and XGSPON optical access networks
• Home digital TV, HDTV and analog TV signal reception
• Residential community and apartment building CATV deployment
• Rural broadband and CATV integrated network construction
• Small office and home office (SOHO) CATV access
• CATV network expansion and upgrade projects

Note 1: Tested at 0dBm input optical power with 59 PAL-D analog channels + digital modulation signals. Results may vary with different amplifier modules.

1. Premium Aluminum Profile Housing: Excellent heat dissipation and corrosion resistance, more durable than plastic housings
2. High Output Level: ≥82dBuV single-port output, provides strong signal coverage for home use
3. Standard 12V Power Supply: Matches most FTTH ONU power standards, simplifies deployment
4. Full PON Compatibility: Supports 1270/1310/1490/1577nm full-band WDM
5. Ultra-low Power Consumption: <2W overall power consumption, 50% more energy-efficient than similar products
6. Comprehensive Protection: Built-in multi-level lightning protection devices, ensures safe operation
7. Compact & Lightweight: Only 0.17kg net weight, easy for wall-mounted installation
8. Wide Operating Temperature: -35℃~+75℃, adapts to various harsh indoor environments
