Place of Origin |
Zhangdian District, Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
WS-FTTH-OR18P Series (Single-port / Dual-port) |
Certification |
CE / FCC / RoHS (optional) |
Standard |
Complies with ITU-T G.984, GD/J115-2020 & global CATV standards |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale price, negotiable by port configuration |
|
Packaging Details |
10pcs/inner box; 100pcs/carton |
|
Delivery Time |
3–7 working days after payment confirmation |
|
Payment Terms |
T/T, L/C, Western Union, PayPal |
|
Supply Ability |
[To be supplemented according to actual production capacity] |
|
Warranty |
12 months standard warranty |

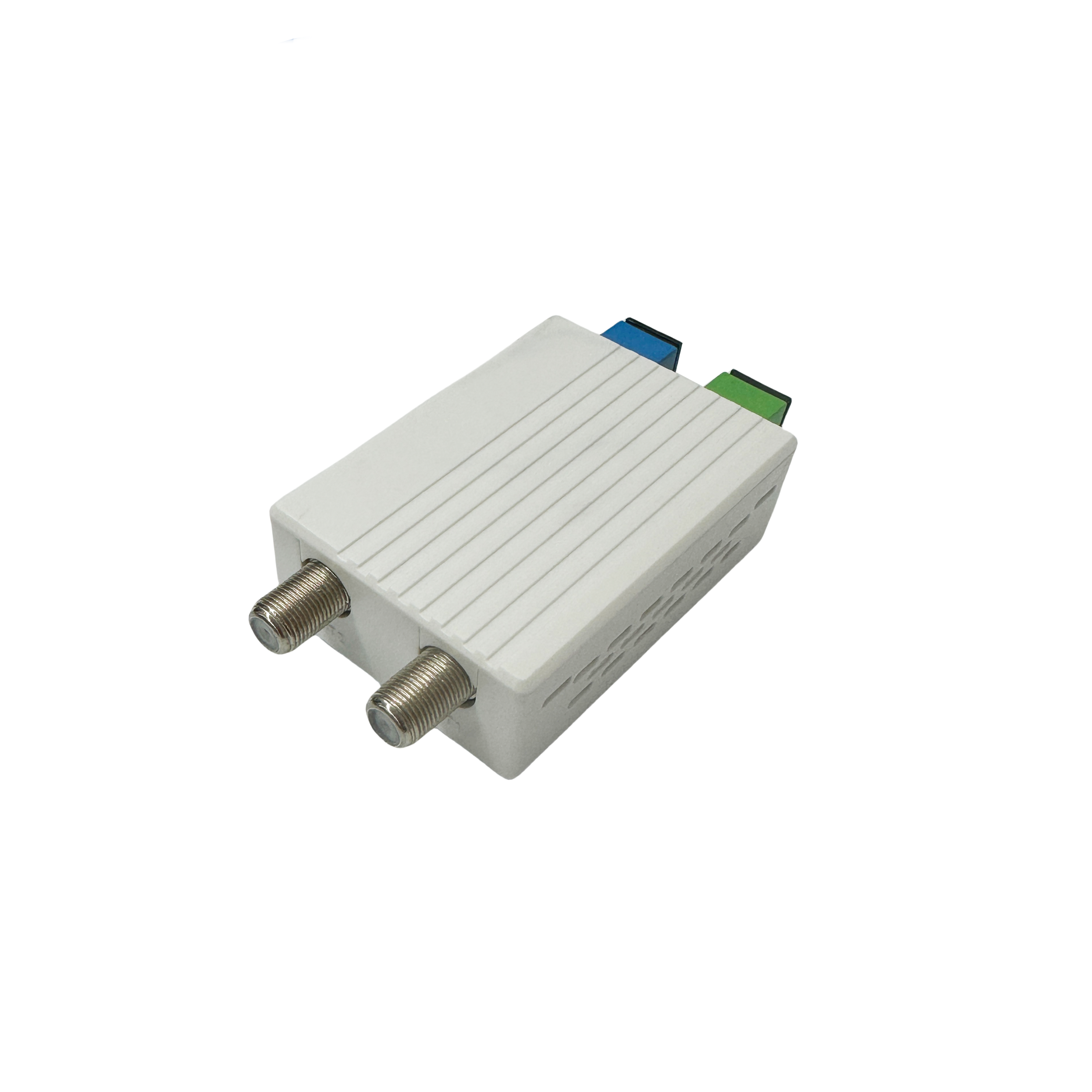

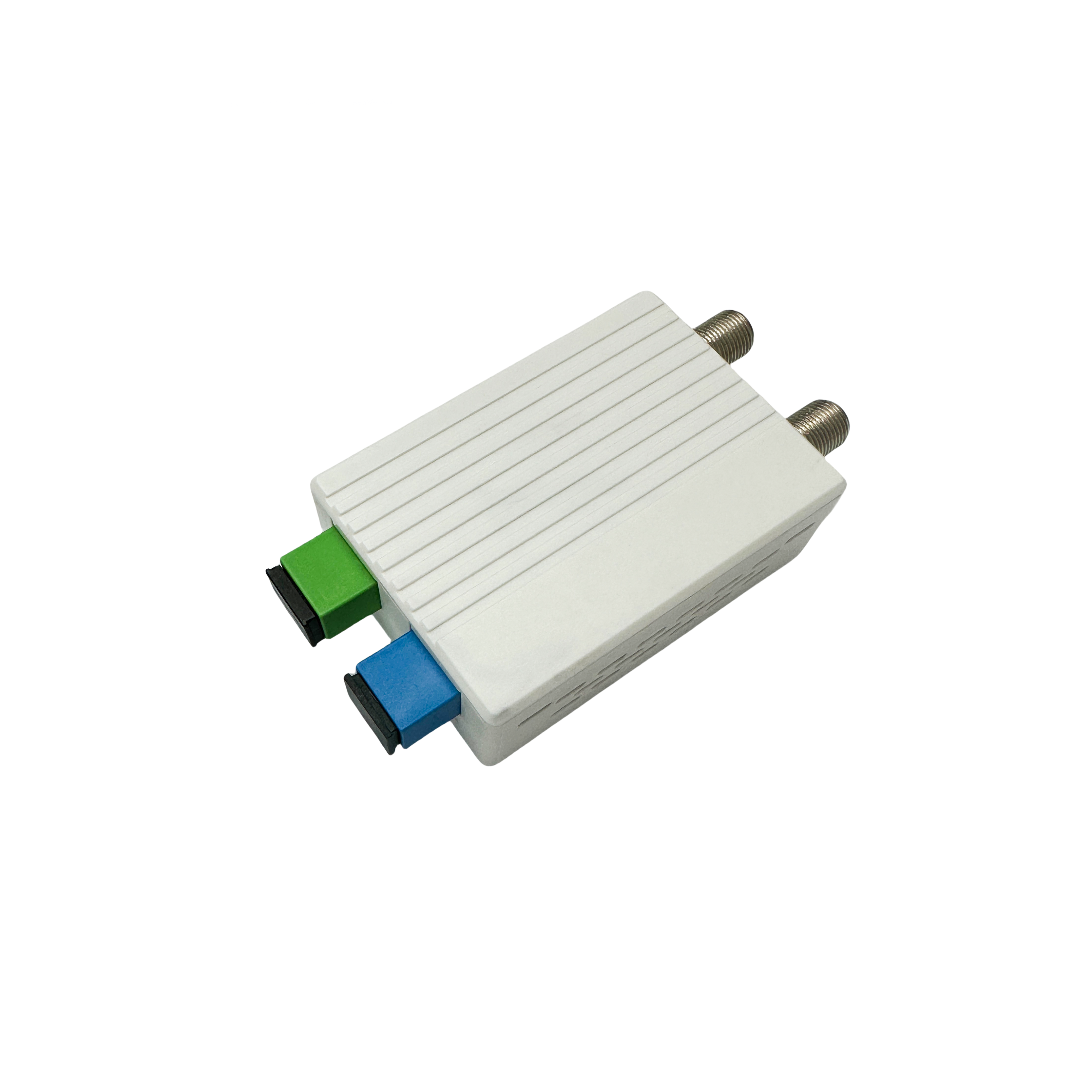

The WS-FTTH-OR18P series is a high-performance passive optical receiver with integrated WDM, specially designed for home FTTH CATV and triple play networks. Adopting high-sensitivity photodiodes, it requires no power supply and has zero power consumption, making it extremely cost-effective and maintenance-free for large-scale deployment.

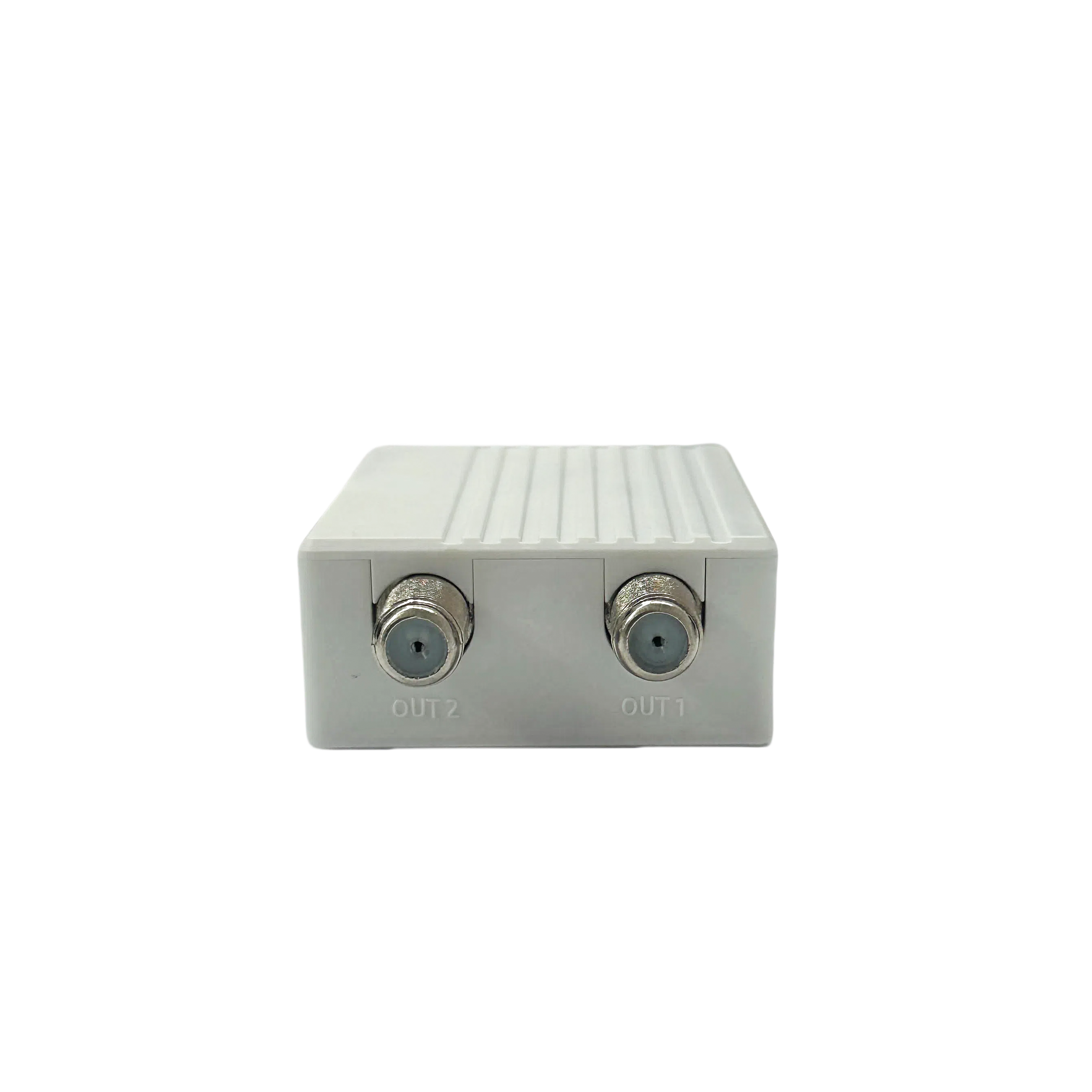

This receiver integrates WDM wavelength division function, supporting simultaneous transmission of CATV (1550nm) and PON (1310/1490nm) signals in a single fiber, realizing the convergence of telephone, TV and internet services. It provides flexible single-port or dual-port RF output options, with stable output level and excellent signal quality.
It features a high-quality plastic housing with side through-hole design for good heat dissipation, and an ultra-wide operating temperature range of -35℃ to +75℃, adapting to various harsh indoor and semi-outdoor environments. It is the ideal terminal product for building economical and flexible home fiber optic networks.
|
Category |
Parameter |
Details |
|
Optical Parameters |
Working Wavelength |
CATV: 1550nmPON: 1310/1490nm |
|
|
Input Optical Power Range |
0 ~ -12 dBm |
|
|
Optical Return Loss |
≥55 dB |
|
|
Optical Connector |
CATV: SC/APC (standard); FC/APC (customized)PON: SC/PC (standard); SC/APC, FC/PC (customized) |
|
RF Parameters |
Frequency Range |
40 ~ 1006 MHz |
|
|
In-band Flatness |
±1.5 dB @40~1006MHz |
|
|
RF Return Loss |
≥16 dB @40~550MHz; ≥14 dB @550~1006MHz |
|
|
RF Output Level |
65±1 dBμV (single-port, @ Pin=0dBm)61±1 dBμV (dual-port, @ Pin=0dBm) |
|
|
Number of RF Outputs |
1 / 2 (optional) |
|
|
RF Impedance |
75 Ω |
|
Signal Performance |
C/N |
≥51 dB |
|
|
CTB |
≥65 dB |
|
|
CSO |
≥62 dB |
|
|
Bit Error Rate (BER) |
<1.0×10⁻⁹ (@ Pin=0dBm) |
|
|
Modulation Error Ratio (MER) |
≥36 dB (@ Pin=0dBm) |
|
Environmental & Mechanical |
Operating Temperature |
-35℃ ~ +75℃ |
|
|
Storage Temperature |
-40℃ ~ +85℃ |
|
|
Operating Humidity |
5% ~ 95% (non-condensing) |
|
|
Product Dimensions |
96×50×24mm |
|
|
Net Weight |
48.6g |
|
|
Package Size |
310×240×82mm (10pcs); 510×450×340mm (100pcs) |
