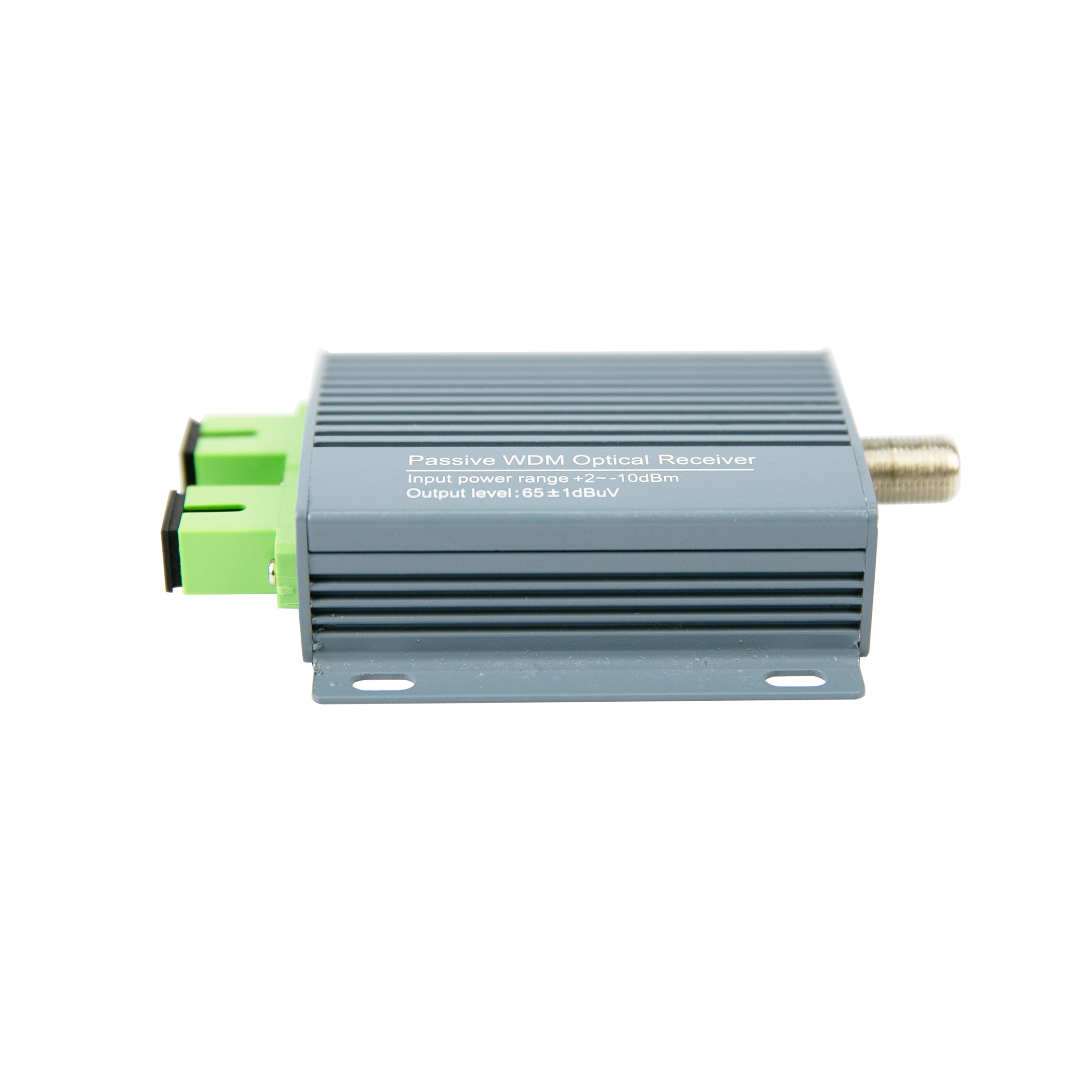

WS-OR16P/OR19P Passive Optical Receiver

Product Description

Place of Origin	Zhangdian District, Zibo, Shandong, China
Brand Name	Wanshuo Optoelectronic (WSEE)
Model Number	WS-OR16P / WS-OR19P
Certification	CE / FCC / RoHS (optional)
Standard	Complies with ITU-T G.984, ITU-T G.987 & GD/J115-2020

Business Terms

Minimum Order Quantity	Negotiable
Price	Factory direct wholesale price, negotiable by model & configuration
Packaging Details	20pcs/inner box; 100pcs/carton
Delivery Time	3–7 working days after payment confirmation
Payment Terms	T/T, L/C, Western Union, PayPal
Supply Ability	[To be supplemented according to actual production capacity]
Warranty	12 months standard warranty

Quick Detail

Alternative Names: Passive WDM optical receiver, FTTH triple play receiver, no power CATV receiver, PON CATV overlay receiver, XGSPON integrated receiver
Main Applications: FTTH triple play convergence, CATV + PON integrated access, home digital TV reception, XGSPON/GPON network CATV overlay, residential community deployment
Core Highlights: Built-in WDM for triple play, passive no power/zero consumption, 0~-12dBm wide input range, MER≥36dB, supports XGSPON/GPON/EPON, compact wall-mount design

Description

The WS-OR16P/OR19P series is an integrated passive optical receiver with built-in WDM, specially designed for FTTH triple play (CATV + voice + data) networks. It integrates WDM wavelength division and high-sensitivity optical reception functions in one device, eliminating the need for separate WDM modules and power supplies.

Adopting high-sensitivity photodiodes, it delivers stable RF output with excellent digital signal performance (MER≥36dB, BER<1.0E-9 @ 0dBm input). It supports simultaneous transmission of CATV (1550nm) and PON signals (1310/1490nm for GPON, 1270/1577nm for XGSPON), making it the ideal terminal for CATV overlay on PON networks.

With no power supply required and zero power consumption, it is maintenance-free, highly reliable and cost-effective for large-scale FTTH deployment. Its compact size supports easy wall-mounted installation in home environments.

Applications

FTTH fiber-to-the-home triple play convergence
CATV signal overlay on GPON/EPON/XGSPON networks
Home digital TV and analog TV signal reception
Residential community and apartment CATV deployment
Rural broadband and CATV integrated network construction
Low-cost passive optical access terminal solutions

Technical Specifications

Category	Parameter	Details
Optical Parameters	Working Wavelength	CATV: 1550nmPON: 1310/1490nm (GPON); 1270/1577nm (XGSPON)
	Responsivity	≥0.9 A/W
	Input Optical Power Range	0 ~ -12 dBm
	Return Loss	≥55 dB

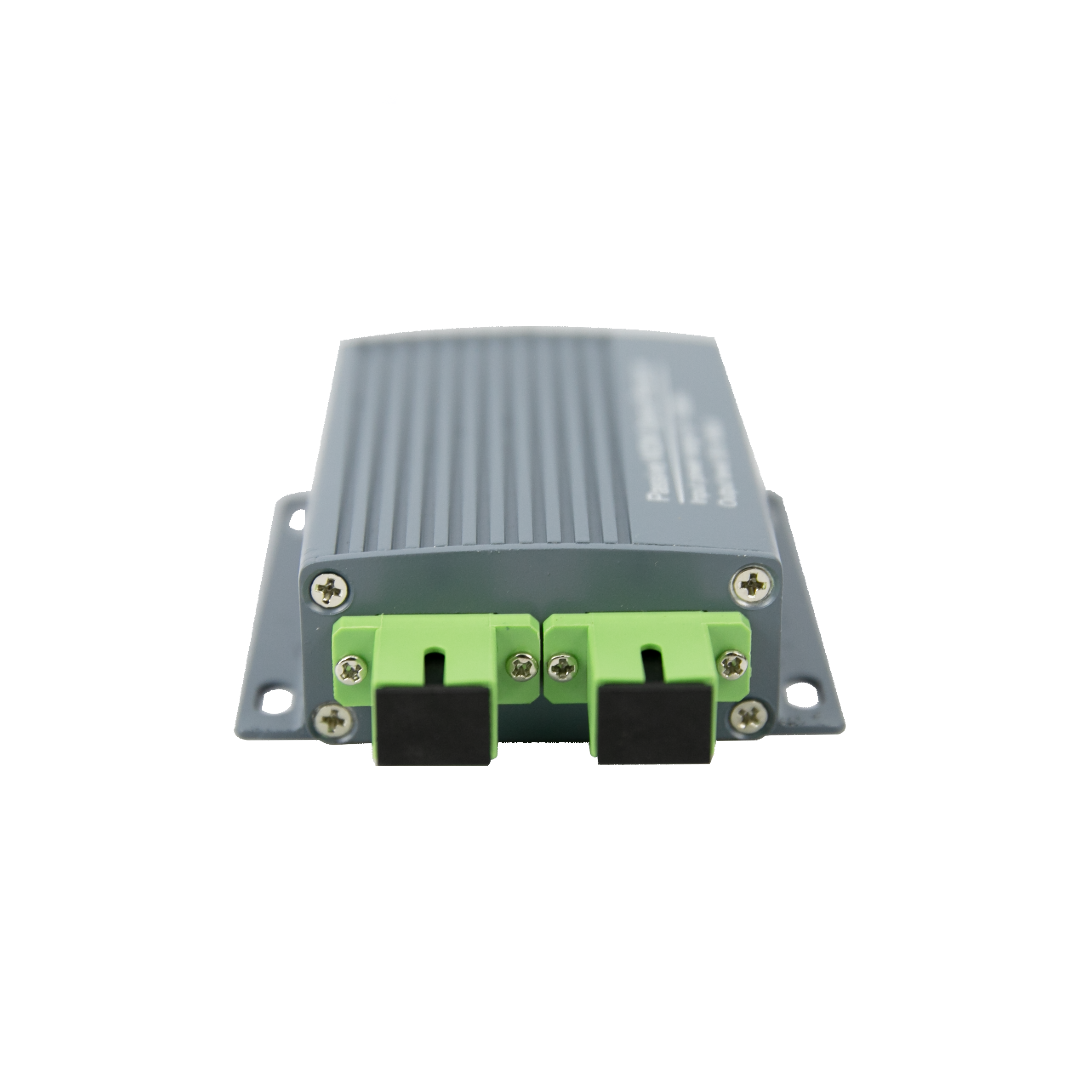

	Optical Connector	CATV: SC/APCPON: SC/APC or SC/PC (customizable)

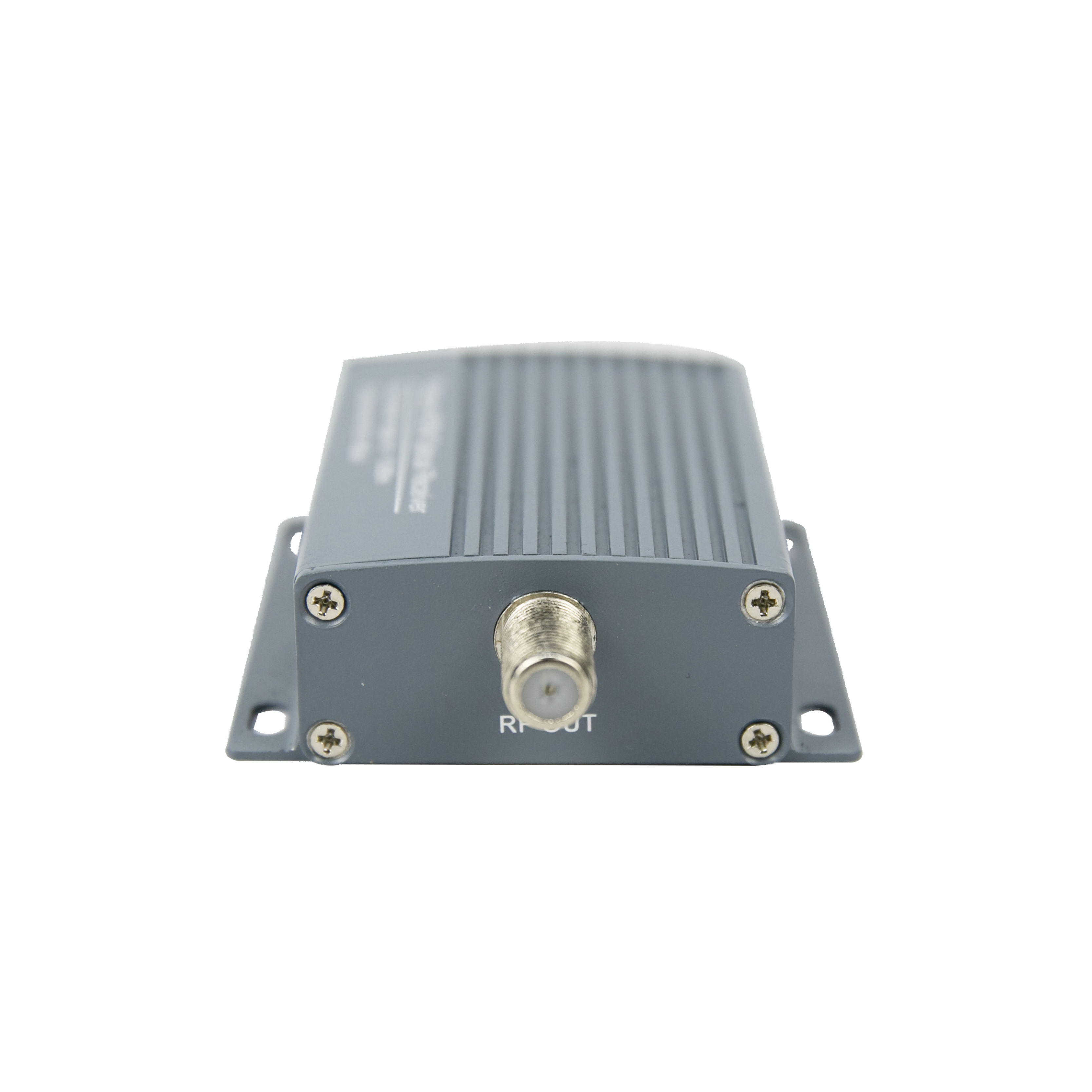

RF Parameters	Bandwidth	45 ~ 1003 MHz
	RF Output Level	≥65 dBμV (@ Pin=0dBm)
	RF Impedance	75 Ω
	Number of RF Outputs	1
	RF Connector Type	Metric or Imperial (customizable)
Digital Link Performance	Modulation Error Ratio (MER)	≥36 dB (@ Pin=0dBm)
	Bit Error Rate (BER)	<1.0×10⁻⁹ (@ Pin=0dBm)
Environmental & Mechanical	Operating Temperature	-5℃ ~ +50℃
	Storage Temperature	-40℃ ~ +85℃
	Operating Humidity	5% ~ 95% (non-condensing)
	Dimensions	OR16P: 67×100×23mmOR19P: 108×103×26mm

Competitive Advantage

All-in-One WDM Integration: Built-in WDM eliminates separate components, simplifies installation and reduces cost
True Passive Design: No power supply required, zero power consumption, maintenance-free
Wide Input Power Range: 0~-12dBm, adapts to various optical link losses
Excellent Digital Performance: MER≥36dB, BER<1e-9, ensures clear HDTV and 4K TV reception
Full PON Compatibility: Supports XGSPON, GPON and EPON standards
Compact & Easy Installation: Small size, wall-mount design, suitable for home environments
High Reliability: Solid-state design, no moving parts, long service life
Cost-Effective: Ideal for large-scale FTTH triple play deployment
