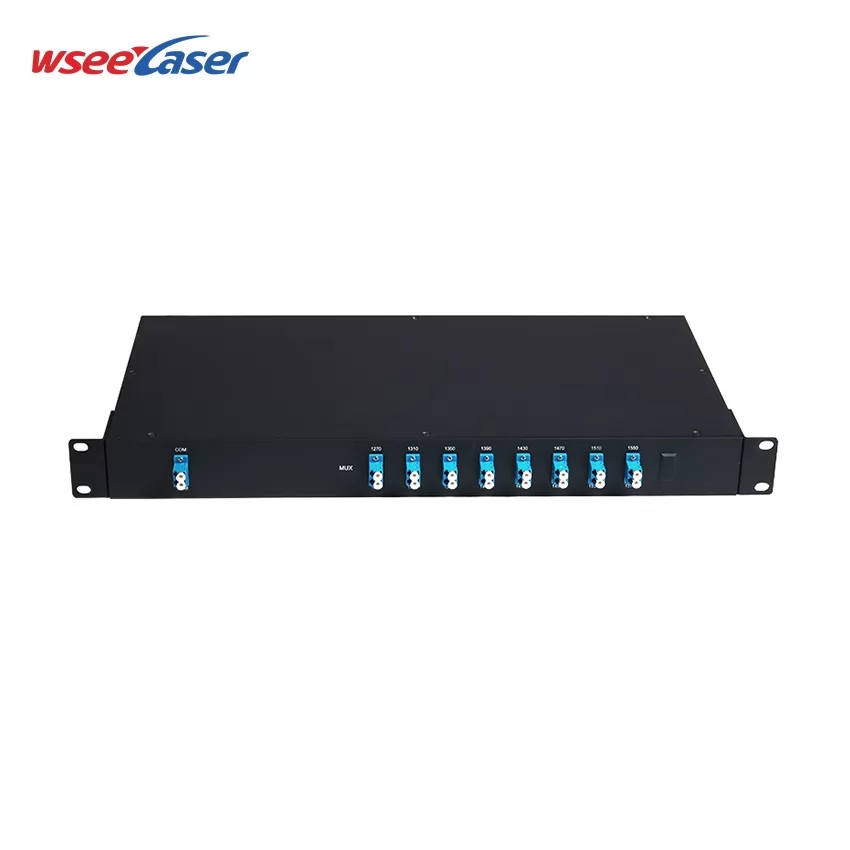

8CH CWDM MUX/DEMUX

Performance Characteristics

MUX 8 channels to a single fiber

Low insertion loss

High channel isolation

High stability and reliability

  • Feature
  • Parameter
  • Diagram

Line monitoring

WDM network

Telecommunication

Equipment test areas

Fiber optical amplifier

Access Network


Parameter

MUX/DEMUX

CWDM Channels Number

8

Operation Wavelength (nm)

1470~1610

Center wavelength accuracy (nm)

± 0.5

Channel Spacing (nm)

20

Pass band @-0.5dB bandwidth(nm)

>13

Insertion LossdB

2.5

Pass band FlatnessdB

<0.5



Isolation(dB)

Adjacent Channel

30

Non-adjacent Channel

45

Insertion Loss Temperature Sensitivity (dB/°C )

<0.005

Wavelength Temperature Shifting (nm/ °C )

<0.002

PDL (dB)

<0.10

PMD (ps)

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Rated power (mW)

500

Operation Temperature (°C)

0 ~ +70

Storage Temperature (°C)

-40 ~ +85

Dimension (mm)

440 x 200 x 44 mm
