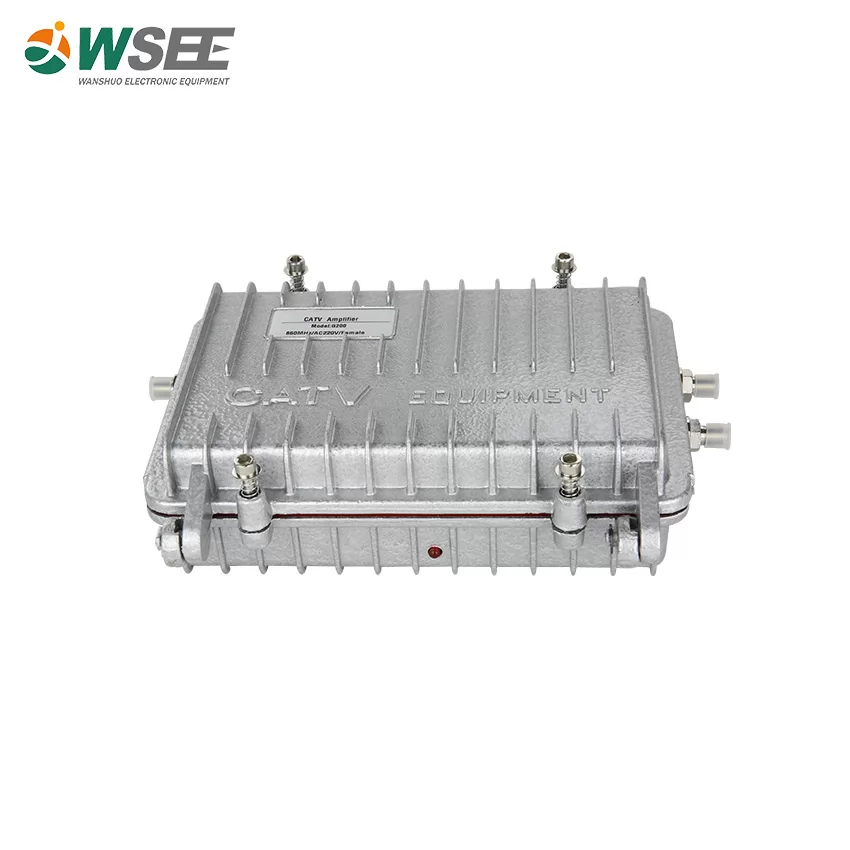

WS-G200 Two-way Outdoor Trunk Amplifier

The main function of the WS-G200 trunk amplifier is to compensate for the attenuation caused by the cable transmission of the cable TV signal and the high and low end of the signal, so that the signal can be transmitted stably, with high quality and long distance. Applicable to all kinds of cable TV systems, satellite TV systems, residential CCTV, surveillance systems, hotels, hotel audio-visual systems, as well as military and school education audio-visual systems.



  • Feature
  • Parameter
  • Diagram

● High quality waterproof and dustproof aluminum shell, good shielding and heat dissipation performance.

● Adjustable attenuator and equalizer.

● Adopt low noise push-pull hybrid module in the forward path, ensure the noise index of the amplifier.

● Two RF outputs with plug in splitter and distributor and feeding voltage.

● High reliability E type transformer, AC220V and AC60V for optional.


Items

Parameters

Bandwidth

47-750/862MHz

Nominal Gain

30dB

In-Band Flatness

±0.75dB

Noise Figure

≤10dB

Return Loss

≥14dB

Nominal Input Level

72dBuV

Nominal Output Level

102dBuV

Gain Adjustable Range

0-20dB

Slop Adjustable Range

0-18dB

CTB

≥58dB

CSO

≥57dB

Noise Figure

≤10dB

Return Loss

≥14dB

Group delay

≤ 10ns(112.25MHz/116.68MHz)

Singal hum ratio

<2%

(10/700us)Surge-resistant voltage

>5KV

Gain stability

-1.0+1.0dB

Voltage

36-65/220±20%Vac

Size

280×195×60mm

Weight

1.5kgs

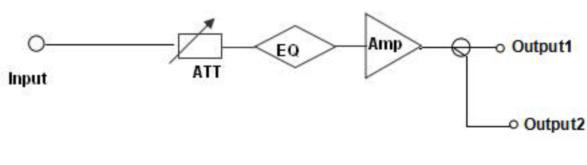

Principle Diagram

CATV Outdoor Two Outputs Trunk Amplifier WS-G200
