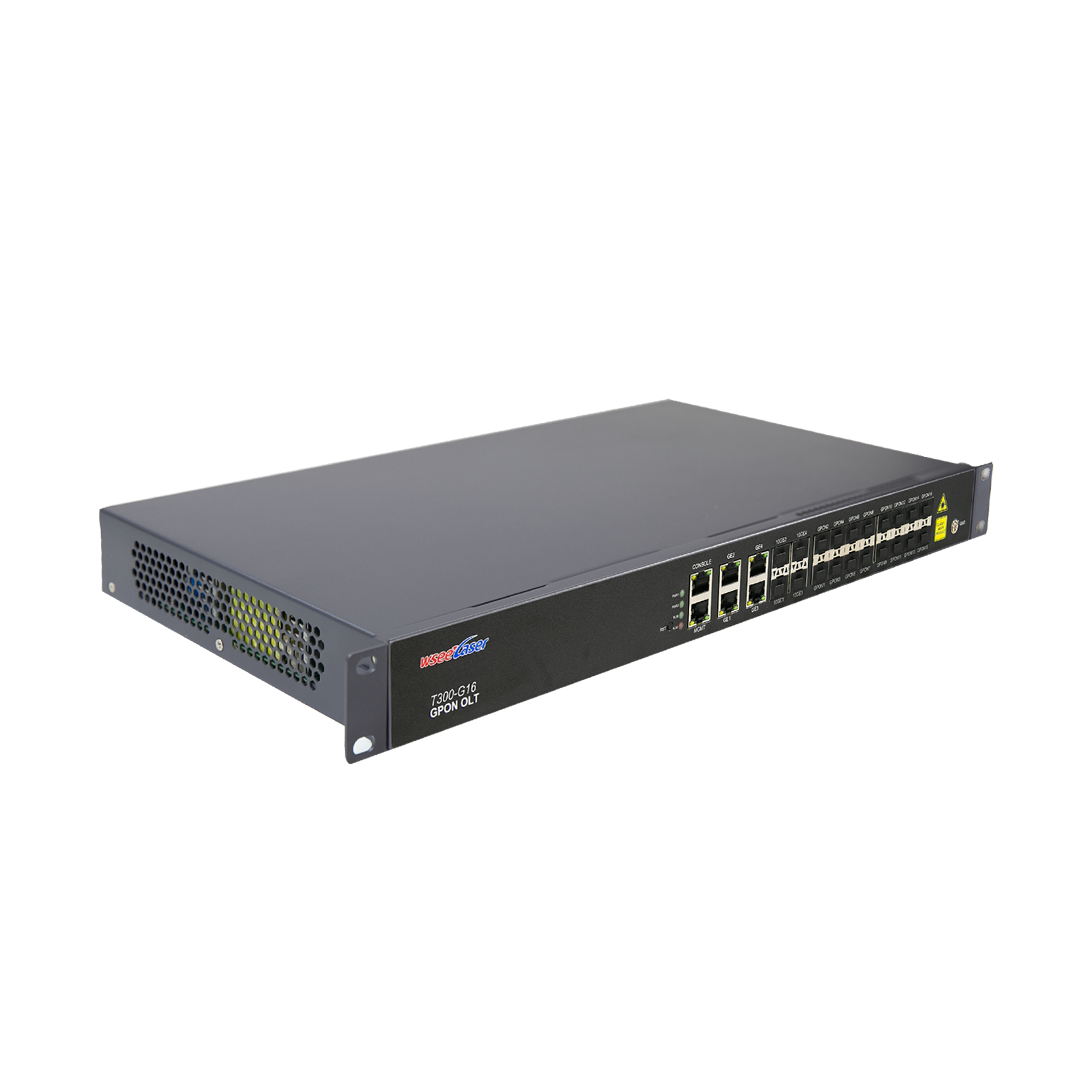

T300-G16 16-Port GPON OLT 1U 160Gbps Dual Power for Large FTTH Deployment

• Alternative Names: 16 Port GPON OLT, High Density GPON OLT, Large Capacity OLT, Carrier Grade GPON OLT, Operator Edge OLT, 2048 ONU OLT, FTTH Central Office OLT
• Main Applications: Large residential communities, urban core areas, operator edge nodes, university campuses, large industrial parks, smart city backbone access
• Core Highlights: Industry-leading 1U 16-port density, 160Gbps switching capacity, supports 2048 ONUs total, dual redundant hot-swappable power supply, 4*10G SFP+ uplink, comprehensive security features, carrier-grade reliability

The T300-G16 is an industry-leading high-density carrier-grade 1U GPON Optical Line Terminal (OLT) independently developed by Shandong Wanshuo Optoelectronic. With the highest port density in the industry (16 GPON ports in 1U space), it supports up to 128 ONUs per port, with a total access capacity of 2048 terminals, perfectly meeting the large-scale FTTx deployment needs of operators and large communities.

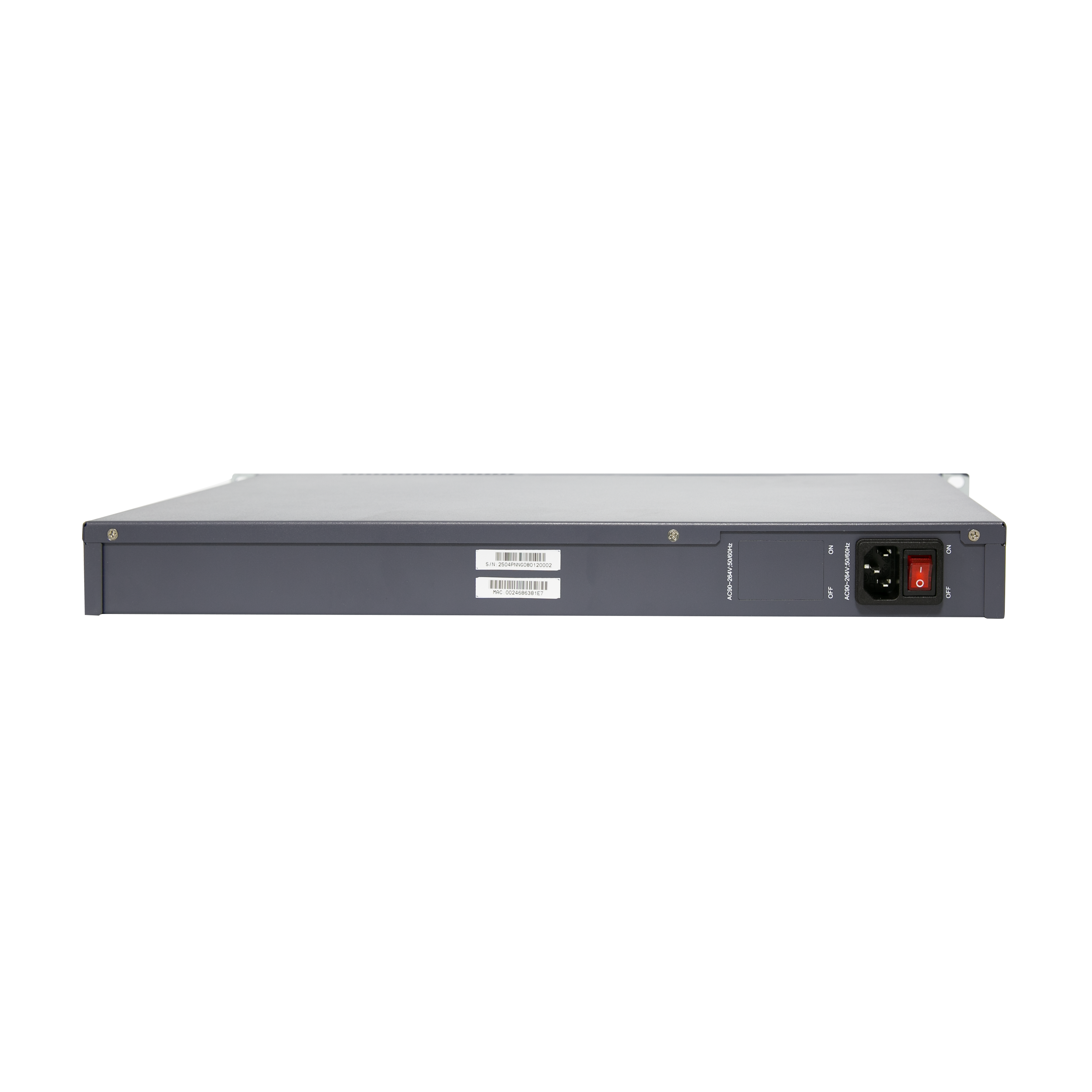

Adopting advanced non-blocking switching architecture, it delivers 160Gbps backplane switching capacity and 16K MAC address table, ensuring line-speed forwarding of all services even under full load. It supports dual redundant hot-swappable power supply (AC 90-264V / DC 40-62V), enabling power module replacement without interrupting services. It provides 410G SFP+ and 4GE RJ45 uplink interfaces, supporting flexible networking and smooth capacity expansion.

The device fully complies with ITU-T G.984.x/G.988.x standards, supports intelligent DBA, bidirectional FEC and AES-128 encryption. It integrates comprehensive L2/L3 functions including rich VLAN features, static/dynamic routing (OSPF/BGP/ISIS), IGMP/MLD multicast and hierarchical QoS. It supports up to 2048 multicast channels, perfectly meeting the needs of large-scale IPTV deployment. It provides comprehensive security features including anti-DOS attack, ARP protection and IP+MAC+VLAN+Port binding, ensuring network security. It supports multiple management methods and the NM3000 unified management system, greatly reducing operation and maintenance costs for large-scale deployment. It supports a maximum transmission distance of 20km, making it the ideal choice for carrier-grade large-scale FTTx construction.

• Large residential communities (1000-2000 households)
• Urban core area and operator edge nodes
• University campuses and research institutions
• Large industrial parks and high-tech zones
• Smart city and digital government construction
• Large-scale triple play service deployment

1. Industry-leading Port Density: 16 GPON ports in 1U space, saving 50% rack space compared with traditional 16-port OLTs
2. 160Gbps Non-blocking Switching: Line-speed forwarding of all 16 ports simultaneously, no performance bottleneck
3. Ultra-large Access Capacity: Supports up to 2048 ONUs, meeting the needs of large-scale community deployment
4. Hot-swappable Dual Power Supply: Supports AC/DC hybrid power supply and online replacement, ensuring 99.999% availability
5. Powerful Routing Function: Supports OSPF/BGP/ISIS dynamic routing, meeting carrier-grade networking requirements
6. Comprehensive Security Protection: Multi-dimensional security features including anti-DOS, ARP protection and binding authentication
7. Intelligent Operation and Maintenance: Unified NM3000 management system, supports batch configuration and remote fault diagnosis
8. Future-proof Design: Supports IPv6 and L3 switching, enabling smooth evolution to 10G PON networks
