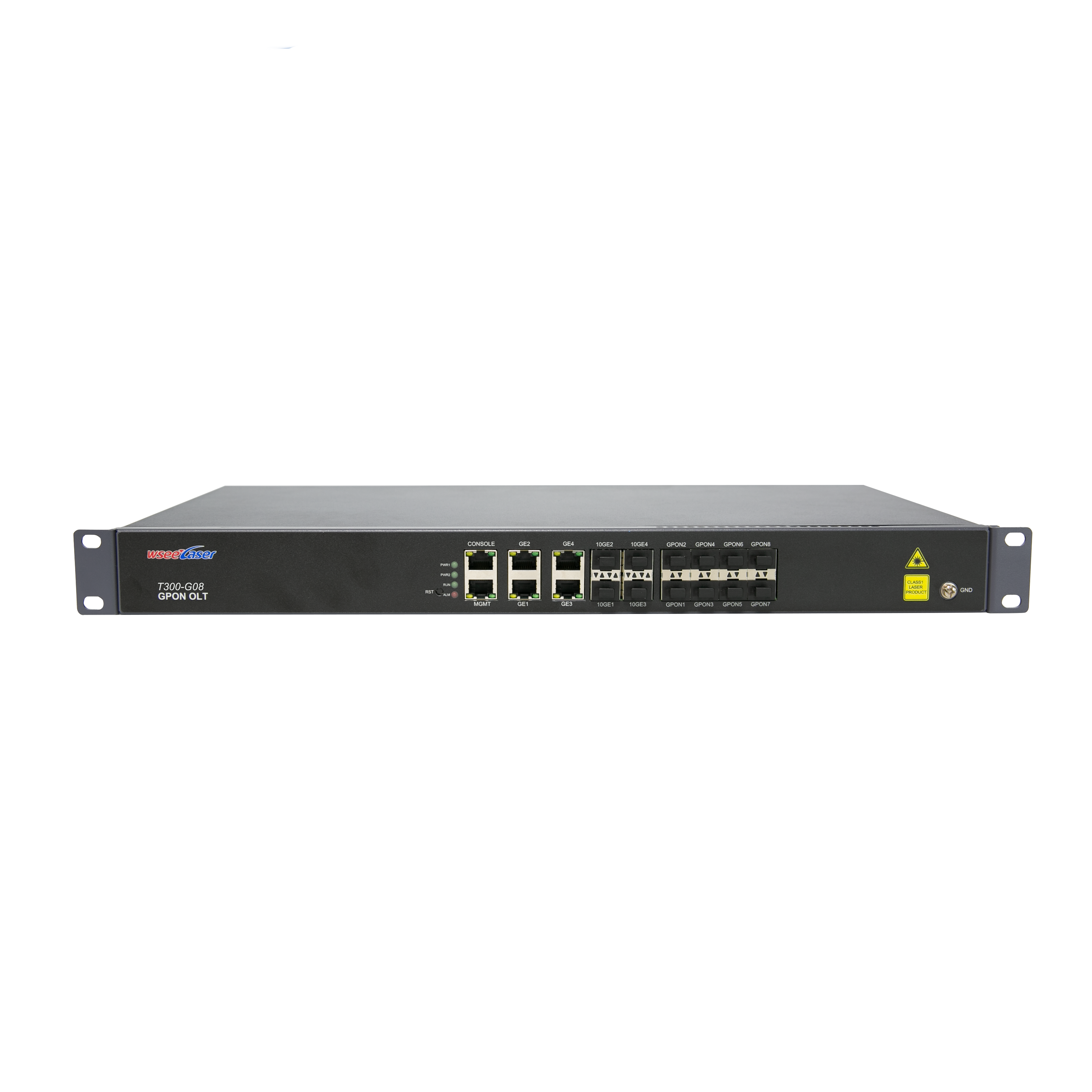

T300-G08 8-Port GPON OLT 1U 160Gbps Dual Power Supply for Medium FTTH

• Alternative Names: 8 Port GPON OLT, 160Gbps GPON OLT, Medium Capacity OLT, Community GPON OLT, Commercial Building OLT, Triple Play OLT, FTTO OLT
• Main Applications: Medium residential communities, commercial office buildings, hotels, hospitals, schools, large enterprise campuses
• Core Highlights: 1U rack-mount design, 8GPON ports (supports 1024 ONUs total), 160Gbps switching capacity, dual redundant power supply, 410G SFP+ uplink, 2048 multicast channels, carrier-grade reliability

The T300-G08 is a medium-capacity carrier-grade 1U GPON Optical Line Terminal (OLT) independently developed by Shandong Wanshuo Optoelectronic. Designed for medium-sized access scenarios, it provides 8 GPON ports and supports up to 128 ONUs per port, with a total access capacity of 1024 terminals, perfectly meeting the triple play service requirements of medium communities and commercial buildings.

Adopting advanced non-blocking switching architecture, it delivers 160Gbps backplane switching capacity and 16K MAC address table, ensuring line-speed forwarding of all services even under full load. It supports dual redundant power supply (AC 90-264V / DC 40-62V) with hot-swappable design, enabling power module replacement without interrupting services. It provides 410G SFP+ and 4GE RJ45 uplink interfaces, supporting flexible networking and smooth capacity expansion.

The device fully complies with ITU-T G.984.x/G.988.x standards, supports NSR/SR DBA, bidirectional FEC and AES-128 encryption. It integrates comprehensive L2/L3 functions including VLAN Stacking, selective QinQ, static/dynamic routing, IGMP/MLD multicast and hierarchical QoS. It supports up to 2048 multicast channels, perfectly meeting the needs of IPTV and video on demand services. It supports multiple management methods and the NM3000 unified management system, greatly improving operation and maintenance efficiency. It supports a maximum transmission distance of 20km, making it the ideal choice for medium-scale FTTx deployment.

• Medium residential communities (500-1000 households)
• Commercial office buildings and business centers
• Hotels, hospitals and school campuses
• Large enterprise headquarters and industrial parks
• Triple play service (data+voice+video) deployment
• Smart city and smart community construction

1. High Capacity 1U Design: 8-port configuration in 1U space, achieving the highest port density in the industry
2. 160Gbps Non-blocking Switching: Line-speed forwarding of all services, no packet loss even under full load
3. Hot-swappable Dual Power Supply: Supports online replacement of power modules, ensuring zero service interruption
4. Powerful Multicast Capability: Supports 2048 multicast channels, perfectly meeting IPTV and video service requirements
5. Comprehensive VLAN Functions: Supports VLAN conversion, aggregation, QinQ and Stack VLAN, meeting complex network planning needs
6. Carrier-grade Reliability: 99.999% system availability, supports link protection and device redundancy
7. Flexible Networking: Supports ring, chain and star topologies, adapting to various deployment scenarios
8. Smooth Evolution: Supports IPv6 and L3 routing, enabling seamless upgrade to future networks
