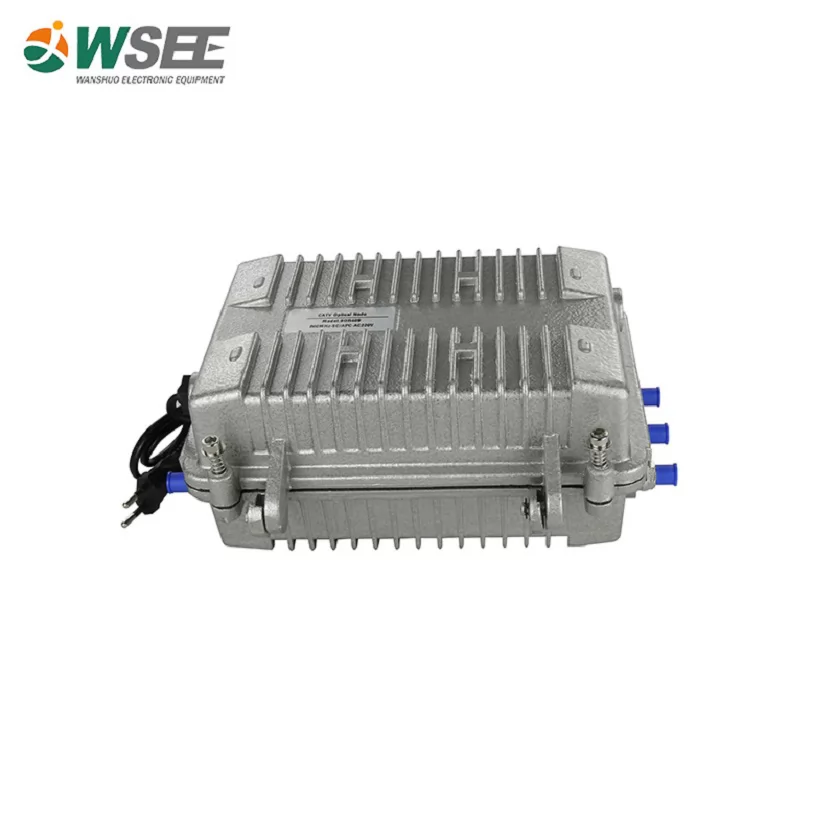

WS-OR409 Four-way Outdoor Optical Receiver with Return Path

The WS-OR409 optical receiver is a four-output outdoor rain-proof optical receiver. It is suitable for buildings, communities or villages concentrated with many users. The WS-OR719 optical is suitable for multi-port high-level output distribution networks. It can be used with ONU or EOC for triple play.



  • Feature
  • Parameter
  • Diagram

● Adopt waterproof aluminum shell and the waterproof level could reach to IP65 grade.

● Double shield panel that can ensure the excellent EMC index.

● Advanced GaAs low noise amplified circuit increases the receiving sensitivity.

● AGC control range +2~-8dBm, output level unchanged. CTB, CSO basically unchanged.

● Ten pieces luminescent can show more accurate optical power. The branch and distribution can be exchanged.

● AC - 60v has independent power supply port. su

● With internal button fuse box, convenient and quick to change.

● Adopt anti surge lighting circuit that can protect he power supply effectively.

● With external test port that can test without opening the housing. International general SNMP.


Items

Parameters

Wavelength

1100-1600nm

Optical input power

-8dBm~+2dBm

AGC control range

null

-8dBm~+2dBm

Optical return loss

>45dB

Optical connector

FC/APC&SC/APC

Bandwidth

40~750&862&1000MHz

Flatness

±0.75dB@40-750MHz±1dB@40-860&1000MHz

Output return loss

≥16dB@40-550MHz

              ≥14dB@550-750&860&1000MHz

Gain adjustable range

0-20dB*2

Slope adjustable range

0-18dB

Impedance

75Ω

CNR

≥51dB

CTB

≥65dB

CSO

≥62dB

Power supply

AC35-AC90V&AC140V~265V or AC110V

Mainboard voltage

+24V

Working temperature

-25℃~+55℃

Consumption

≤36w

    Size

270x210x100mm

Net weight

2.6Kg

Gross weight

28kgs(10pcs)


Principle Diagram
