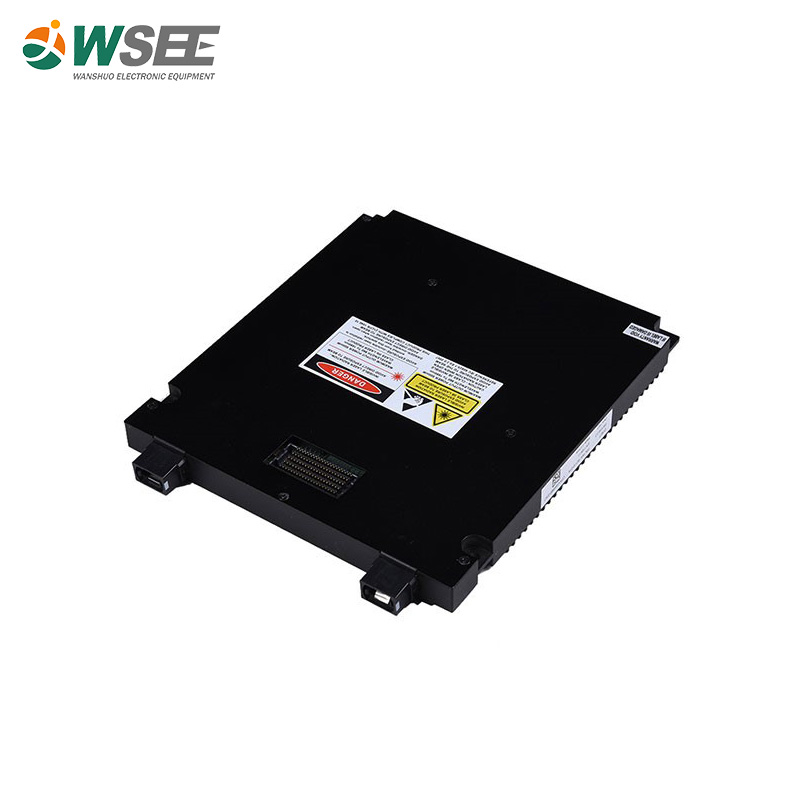

Pin | Description | Pin | Description |
1 | +5V | 26 | Ground |
2 | +5V | 27 | NC |
3 | +5V | 28 | Ground |
4 | +5V | 29 | NC |
5 | +5V | 30 | Ground |
6 | +5V | 31 | NC |
7 | Ground | 32 | Ground |
8 | Ground | 33 | NC |
9 | Ground | 34 | NC |
10 | Ground | 35 | Pump Temperature Alarm |
11 | NC | 36 | NC |
12 | NC | 37 | Amplifier Disable (Mute) Input |
13 | Ground | 38 | Output Mute or Eye-Safe Mode Input |
14 | Reset Input | 39 | NC |
15 | Serial Input | 40 | NC |
16 | Serial Output | 41 | Ground |
17 | Pump Current Alarm | 42 | Ground |
18 | Loss of Power Alarm | 43 | Ground |
19 | Ground | 44 | Ground |
20 | Ground | 45 | +5V |
21 | NC | 46 | +5V |
22 | Ground | 47 | +5V |
23 | NC | 48 | +5V |
24 | Ground | 49 | +5V |
25 | Ground | 50 | +5V |

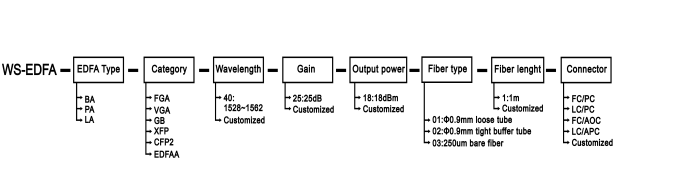

Order Information
