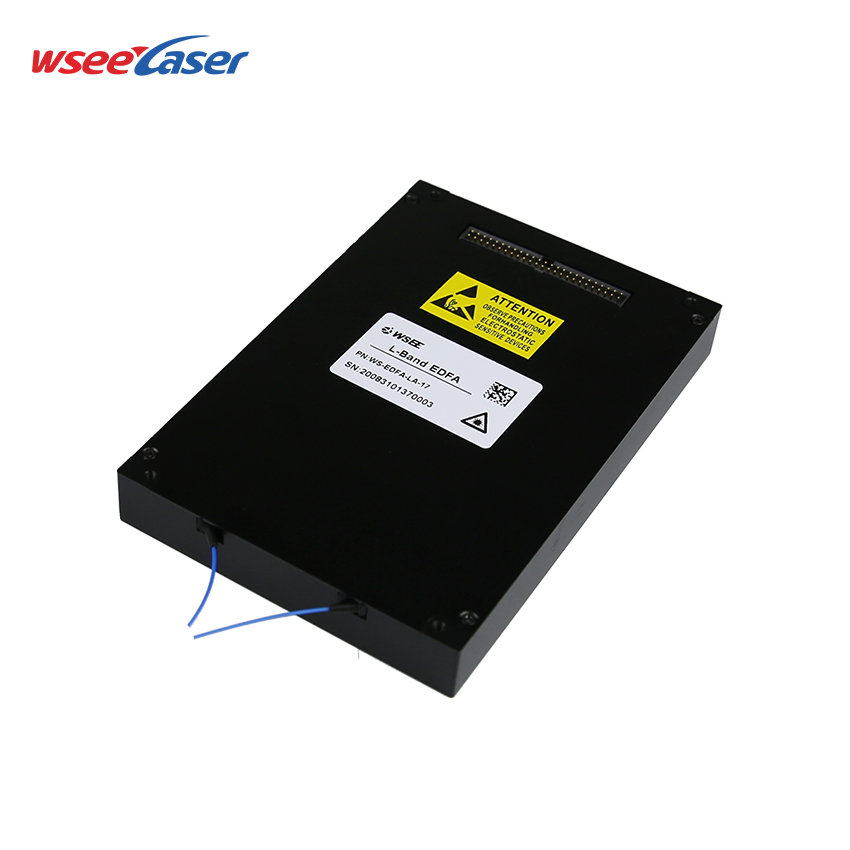

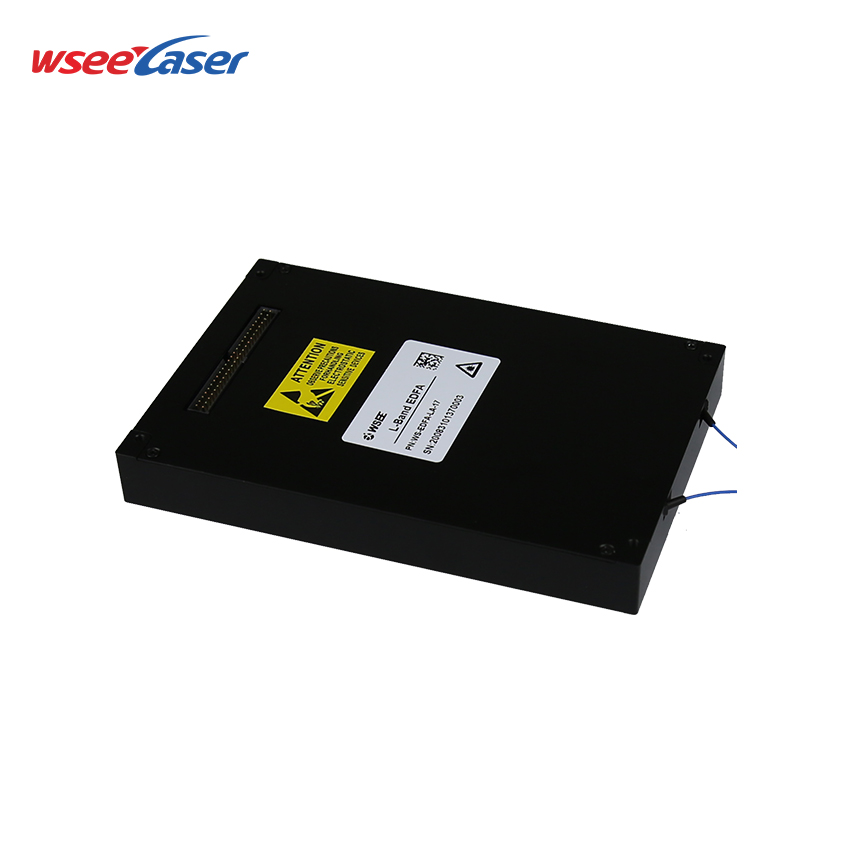

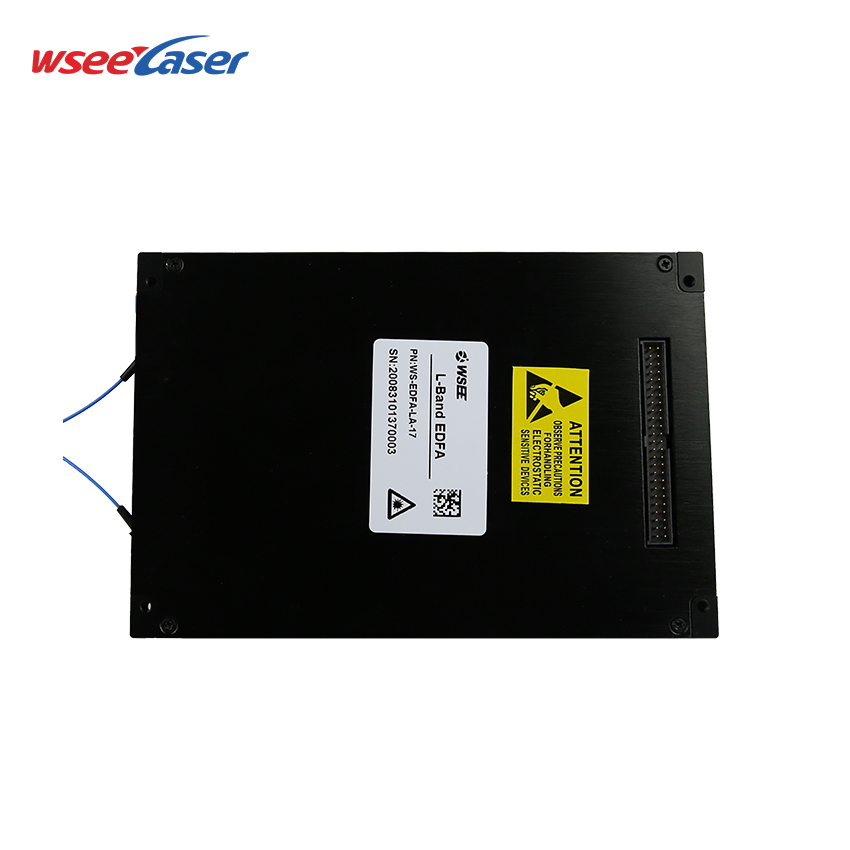

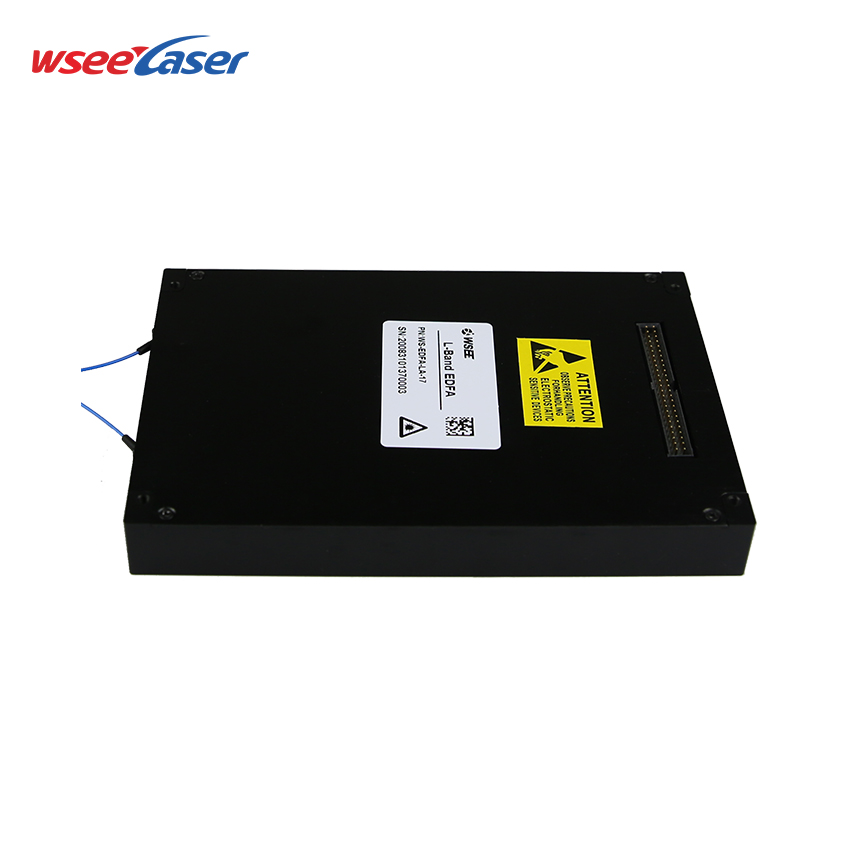

L-band EDFA

L-band EDFA module working mode can be configured as APC、AGC、ACC mode according to the need. the module is equipped with a special upper computer software. through serial communication, the module operation parameters such as output power, working temperature, working current can be monitored.


Share:
  • Feature
  • Parameter
  • Diagram

Features

  • Signal gain flat

  • High reliability and Good stability

  • High output power

  •  Low noise figure

  • Work mode optional

  • Support customization



Applications

  • OTDR system

  • Submarine Optical Fiber Communication System

  • Distributed Optical Fiber Sensor

  • Long-range optical fiber transmission system



Standards

  • Telcordia GR-1312-CORE

  • ROHS



Parameter

Unit

Min

Typ.

Max.

Note







Operating Wavelength

nm

1565

-

1605








Input Power

dBm

-35

-20

-








Output Power

dBm

-

16

-








Gain

dB

-

-

40








Gain flat

dB

-

1

1.5








Noise Figure

dB

-

-

6








Output Power Stability

dB

-

±0.1

±0.2








PDG

dB

-

-

0.5








PMD

ps

-

-

0.5








Input Isolation

dB

40

-

-








Output Isolation

dB

40

-

-








Consumption

W

-

-

10








Working Temperature

-20

-

+60








Storage Temperature

-40

-

+80








Humidity

%

5

-

90
