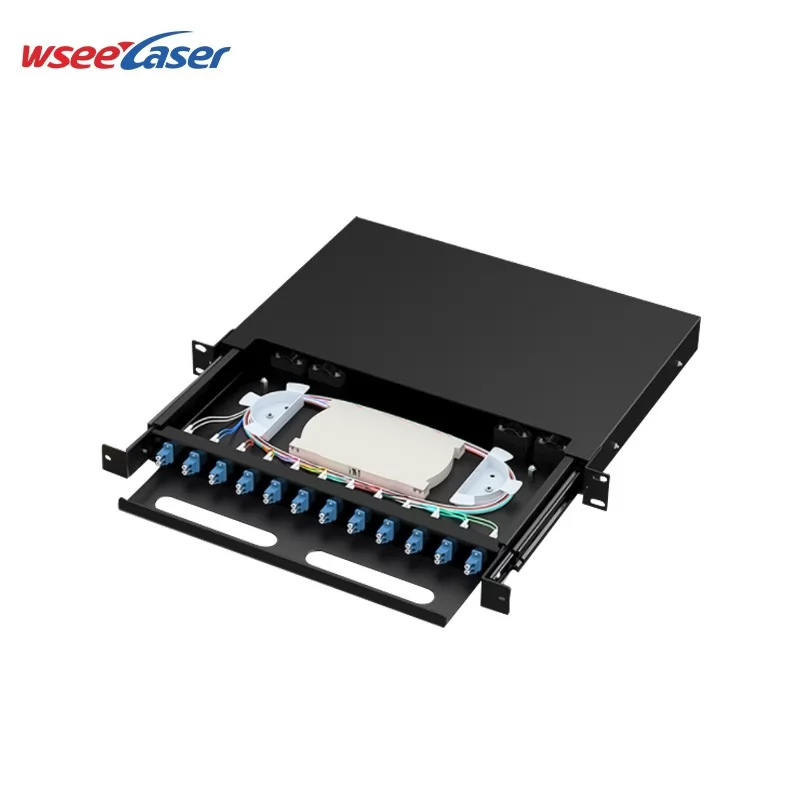

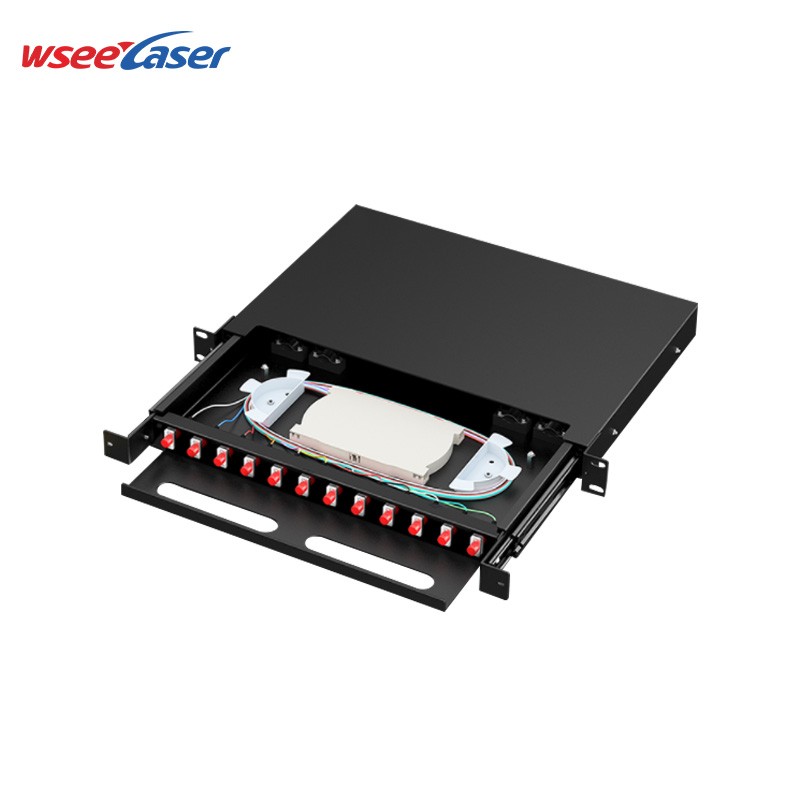

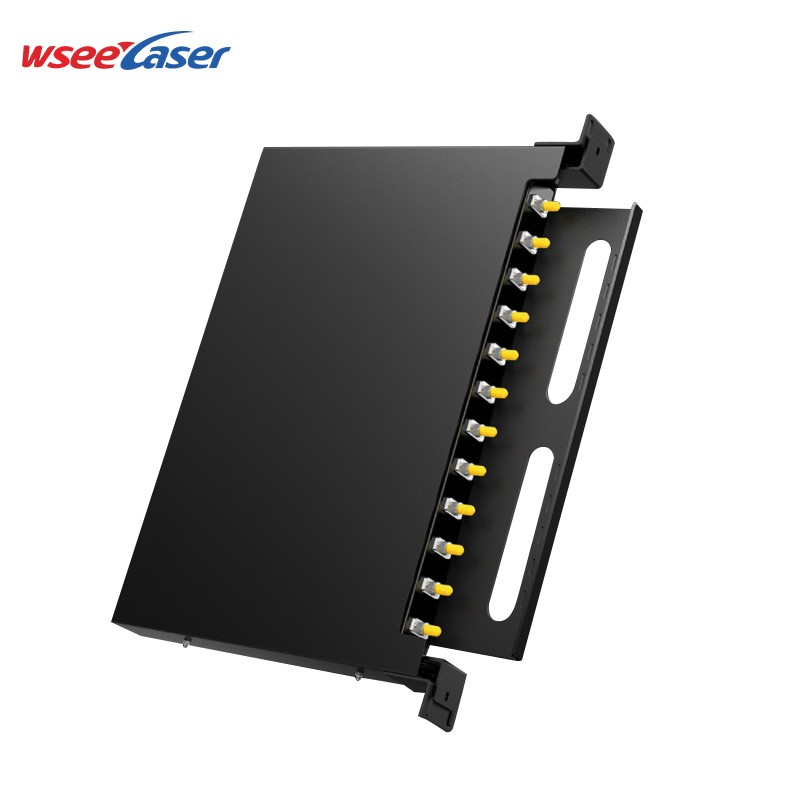

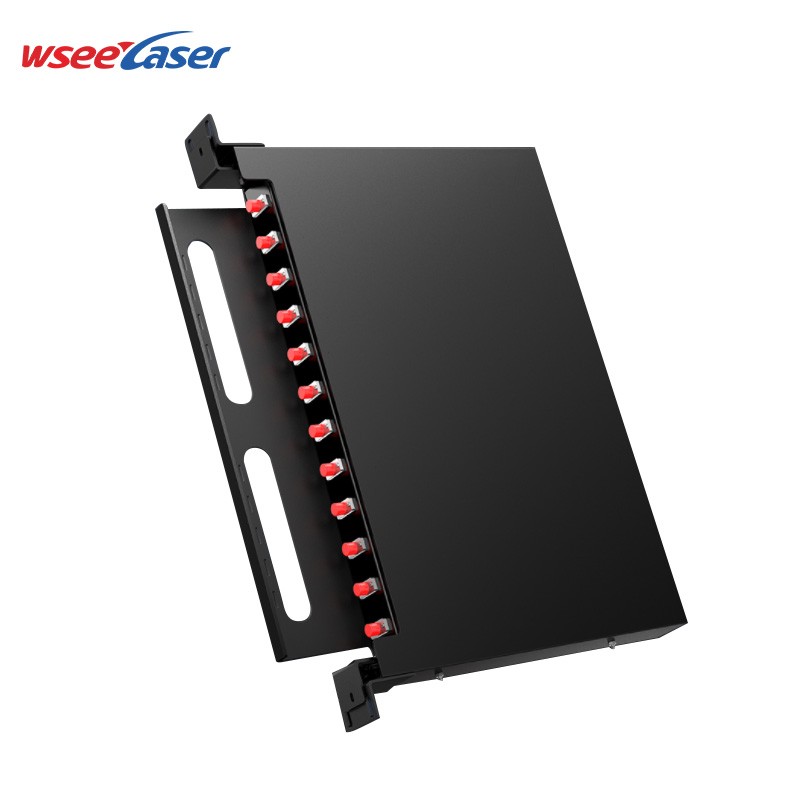

Optical Fiber Distribution Frame

Optical distribution frame is a device used for optical fibre cable connection and scheduling. It is applicable for optical fibre connecting point between the optical transmission network and equipment or between the access network and subscriber cable by cross connection or direct connection to realize the fibre connection, allocation and scheduling conveniently.

  • Feature
  • Parameter
  • Diagram


Telecommunications subscriber loop

Fiber to the home (FTTH)



Performance Characteristics

Standard 19" installation, half-open structure, depth of recess can be determined in supply contract.

Various panel plate to fit different adapter interface

Uses FC, SC, and LC adapters, applicable to ribbon and bundle cables (optional).

Complete set of reliable cable fixing, stripping, and grounding parts available.

Easy for management and operatio

Product Name

 Optical Fiber Distribution Frame

Rack Type

Standard 19" rack mounting


1U、2U、3U、4U or customized

Adapter Type

SC、FC、LC or customized


Metal plate

Operating Temperature


Ambient Humidity

≤ 95%

Standard Capacity(core)

12、24、48 or customized
