Low Insertion Loss High Isolation
Low PDL
High stability and reliability
Parameter | Value |
Center wavelength (nm) | 980/1550 |
Operating bandwidth (nm) | 980±10 / 1550±20 |
Configuration | 1x2 |
IL(dB) | ≤0.25 |
PDL(dB) | ≤0.10 |
Isolation(dB) | ≥18 |
Directivity(dB) | ≥55 |
Fiber type | YOFC CS980/125-16/250，250um bare fiber |
Package size (Ф×L) mm | 3.0x35 |
Fiber lead length | 1m |
Operating Temperature | -40~85℃ |
Storage Temperature | -40~85℃ |
Power handling | ≤500mW |

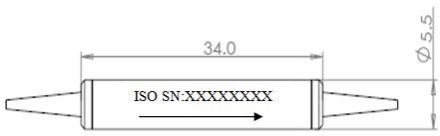

Port mark | See structure below |
