Optical Fiber Combiner

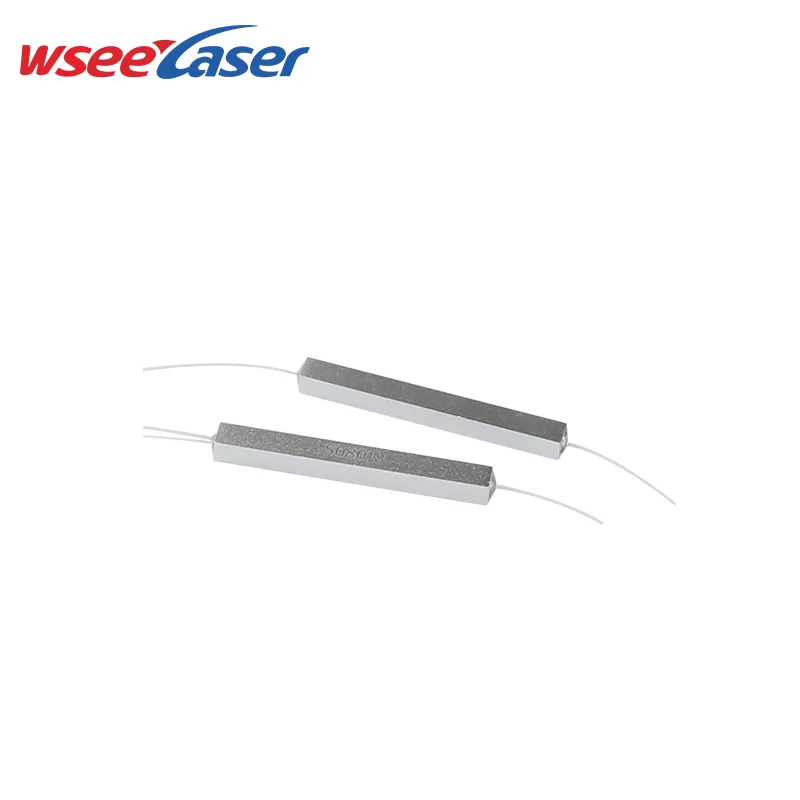

The multi-mode pump combiner is designed for high power EDFA. Excellent optical properties are obtained by the use of unique fusion tapering process. The input port includes two pump channels, and one signal channel, and the output port is double cladding fiber. The fiber type can be customized

Share:
  • Feature
  • Parameter
  • Diagram

Low insertion loss

High efficiency

Customized


Parameters

Index

Product Type

MPC1-P12-S476

MPC2-P12-S476

Product Discription

(1+1) x 1 Optical Fibre Combiner

(2+1) x 1 Optical Fibre Combiner

Signal Operating wavelength (nm)

1500-1600, Typical 1550

Pump Operating wavelength (nm)

800〜1000

Fiber Type

Input Pump Fiber

SI 105/125 (0.22)

Input Signal Fiber

G.652.D or DCF 11/125 (0.12/0.46)

Output Fiber

DCF 11/125(0.12/0.46)

Optical Properties

Pump Efficiency (%)

>90 (Typical 93%)

Insertion Loss (dB)

<0.5 (Typical 0.3)

Isolator (dB)

^25(Typica!30)

Max Pump Power per Port (W)

Typical 10

Environmental Properties

Operating Temperature (°C)

-5 to +70

Operating Relative Humidity (%)

5-95

Storage Temperature (°C)

-40 to +85

Appearance

Dimensions (mm)

5X5X50,8X12X70

Fibre Length (m)

1
