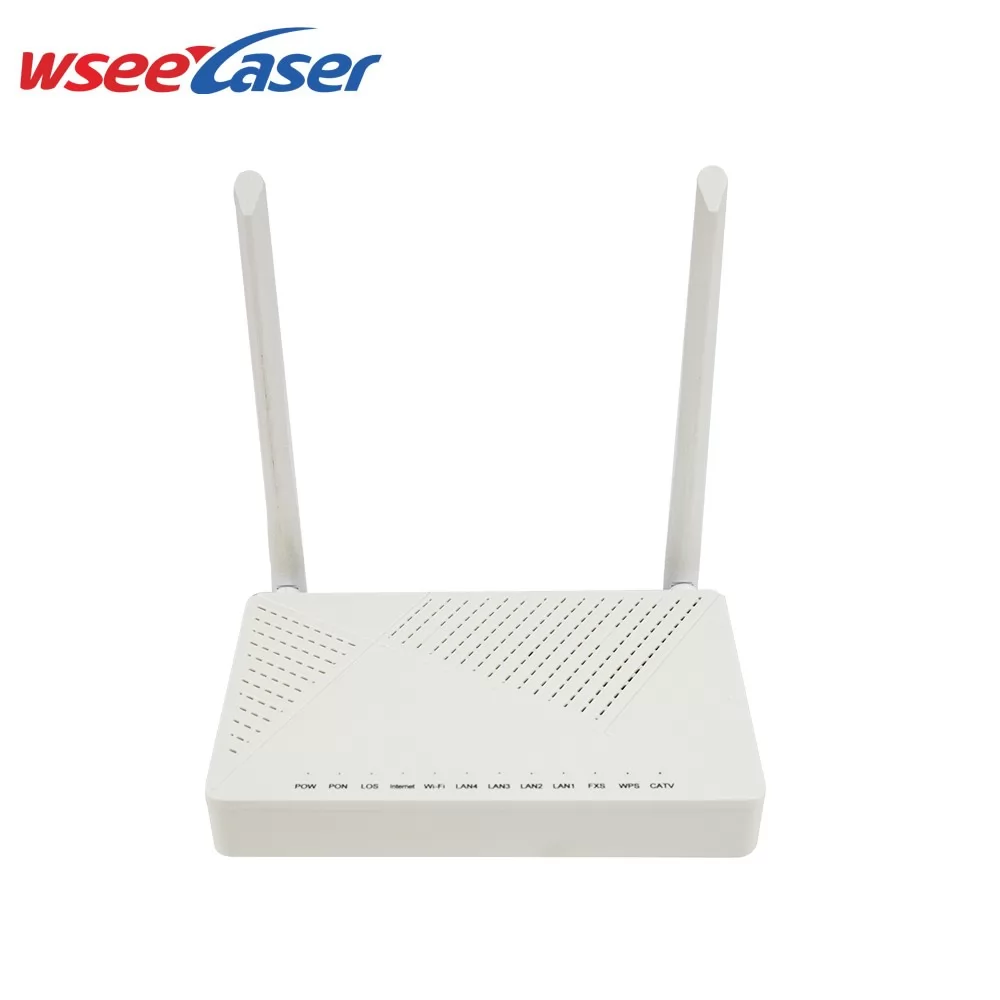

Support EPON/GPON mode automatic switching
Support HGU function
Support PPPoe/DHCP/static IP routing mode and bridge mode
Supports IPV4 and IPV6 dual modes
Support 2.4G WIFI and multiple SSID functions
Support LAN IP and DHCP Server configuration
Supports port mapping and loop detection
Support 1*10/100/1000Mbps, 3 *10/100M bps adaptive
Support firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Supports one CATV RF radio frequency (optional )
Item | type | Technical Parameters |
PON | Interface Type | No CATV : SC/UPC There is CATV : SC/APC |
Receive sensitivity | ≤-27dBm | |
Luminous power | +1~+4dBm | |
Transmission distance | 20km | |
Working wavelength | TX: 1310nm RX: 1490nm | |
CATV ( optional ) | central wavelength | 1550nm |
Input optical power | +2~-15dBm | |
Light reflection loss | >45dBm | |
Frequency Range | 47-1006MHz | |
flatness | ±1dBm（47-1006MHz） | |
Output level | ≥80dBuv(0~-12dB) | |
Output impedance | 75Ω | |
AGC | 0~-12dBm | |
Carrier-to-noise ratio | ≥51dB | |
CTB | ≥65dB | |
CSO | ≥62dB | |
LAN | Interface Type | 1 Gigabit and 3 Fast RJ45 interfaces |
Transmission mode | 1*10/100/1000M bps, 3*10/100M bps adaptive | |
Wi-Fi | protocol | IEEE802.11a/b/g/n |
2.4G working frequency | 2.400-2.4835GHz | |
Number of antennas | 2 5dB high gain antennas | |
other | Support multiple SSIDs | |
Power related | interface | DC005φ2.1mm |
Voltage | 12V1A | |
Rated power consumption | ≤ 6W | |
environment related | Operating temperature | 0~+50 ℃ |
Working humidity | 10~85% (non-condensing) | |
storage temperature | -30~+60 ℃ | |
size and weight | Product Size | 175*110*28mm |
Package Size | 267*175*40mm | |
Product Weight | ≤ 0.3KG | |
gross weight | ≤ 0.5KG |
