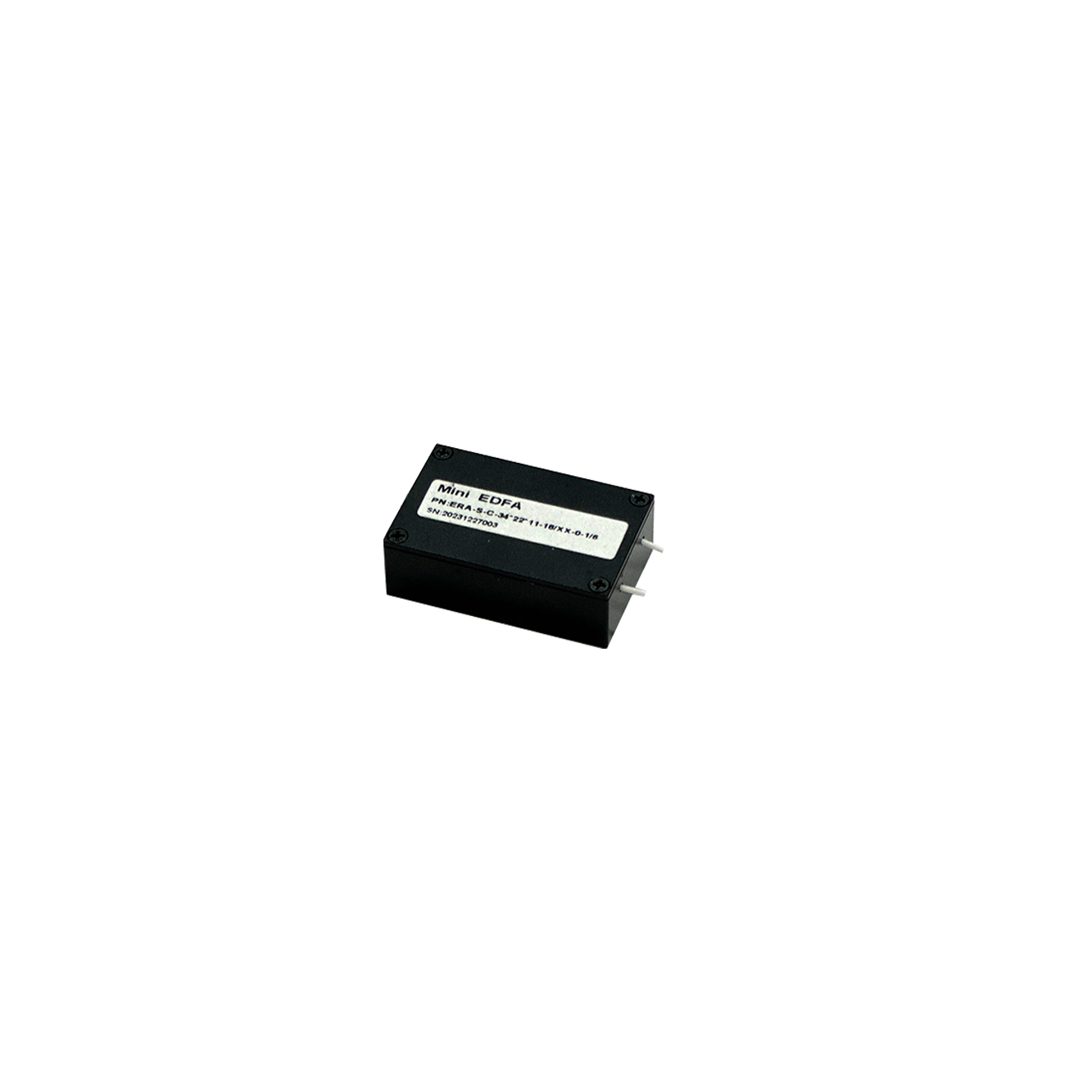

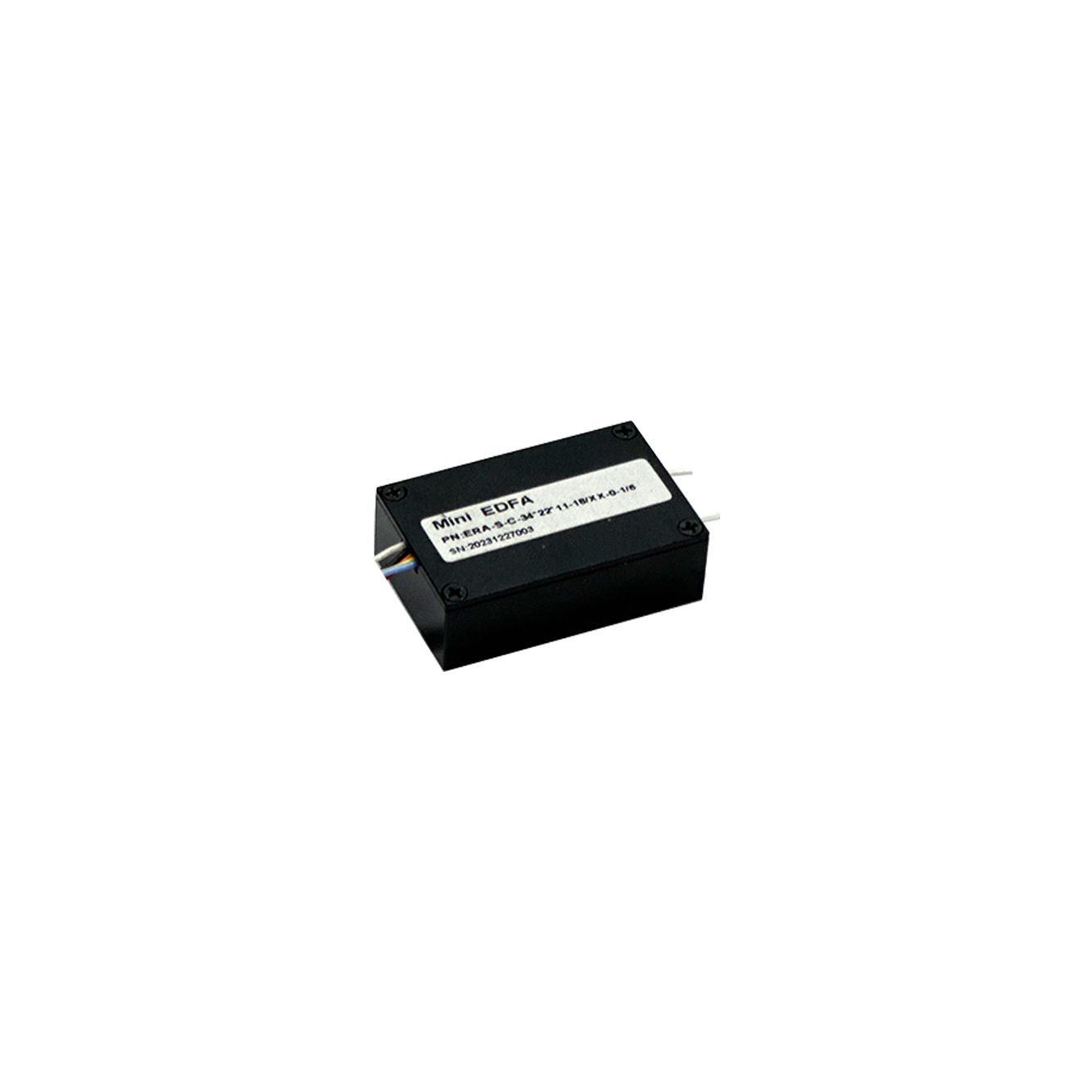

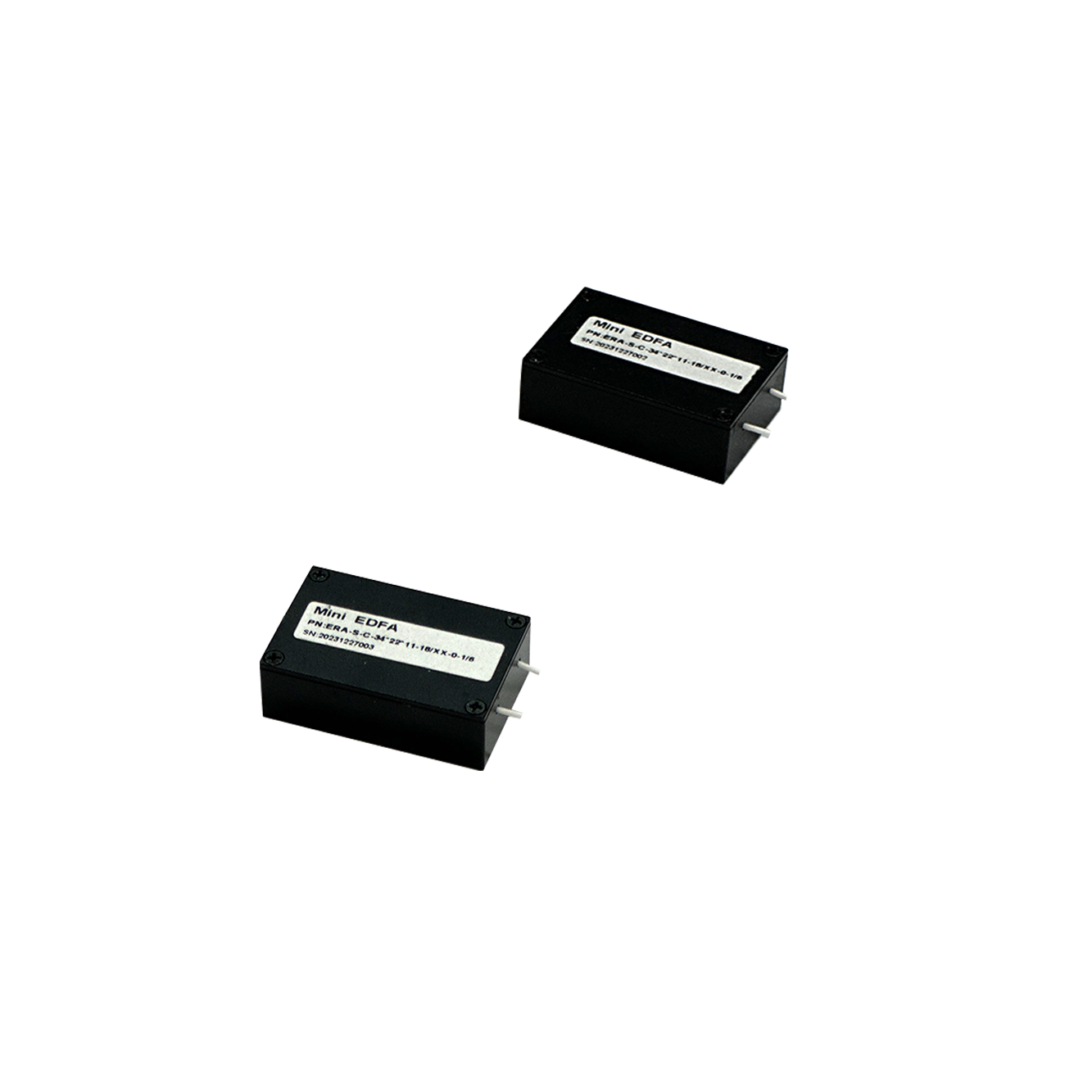

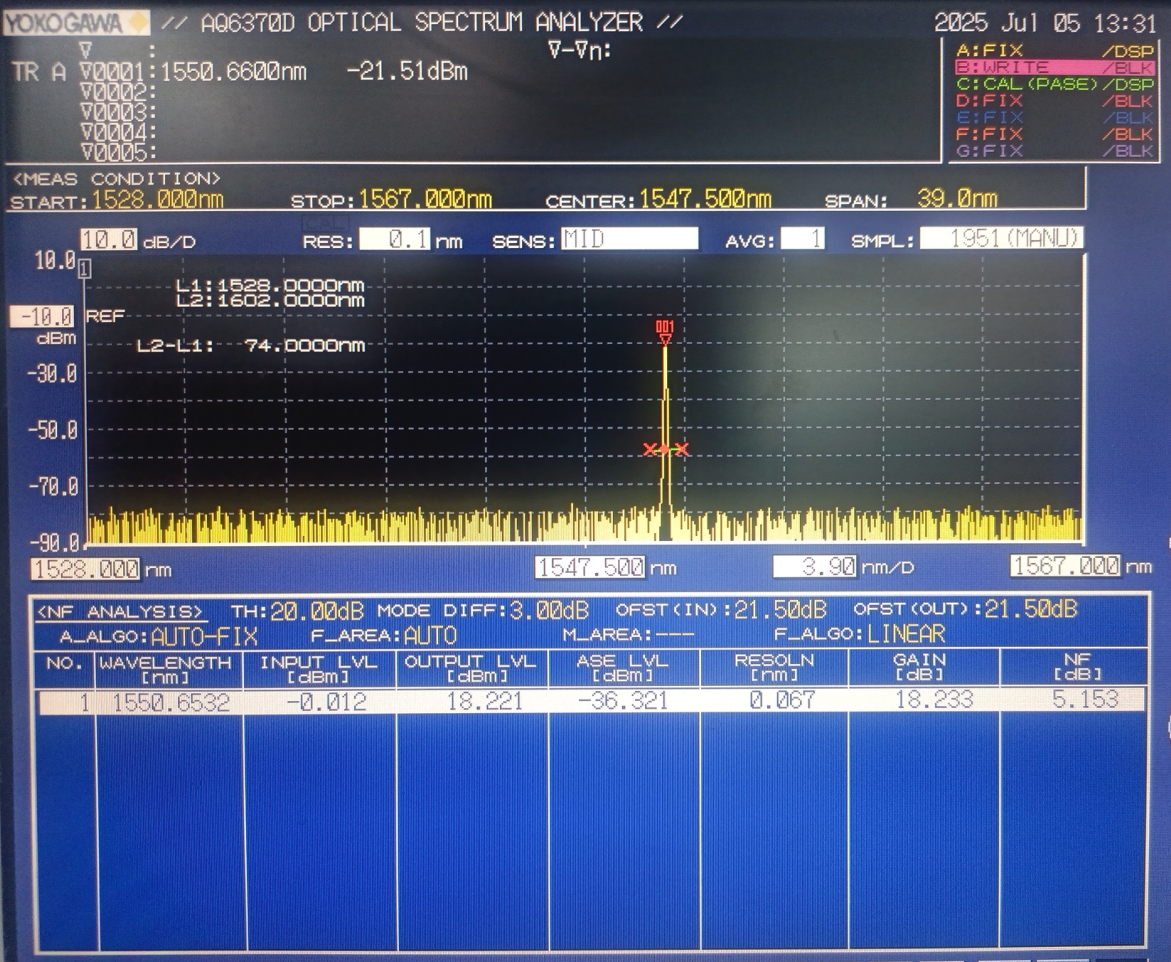

This product is an ultra-compact fiber amplifier module designed for single channel or narrow band signal amplification. It supports up to 18dBm output power and supports ACC and APC.
|
Parameters |
Min |
Typ |
Max |
Unit |
|||
|
Wavelength Coverage |
1528 |
1550.12 |
1565 |
nm |
|||
|
Input Power |
-15 |
-12 |
+5 |
dBm |
|||
|
Output Power |
6 |
10 |
18 |
dBm |
|||
|
Noise Finger |
- |
- |
5.5 |
dB |
|||
|
Working Temperature |
-25 |
- |
+55 |
°C |
|||
|
Storage Temperature |
-40 |
- |
85 |
°C |
|||
|
Relative Humidity (non-condensation) |
5 |
- |
85 |
% |
|||
|
Product Size |
34*22*11 |
mm |
|||||
|
Power Consumption |
|
|
3 |
W |
|||
|
Supply Voltage |
- |
3.3 |
- |
V |
|||
|
Communication Level |
LVTTL |
||||||

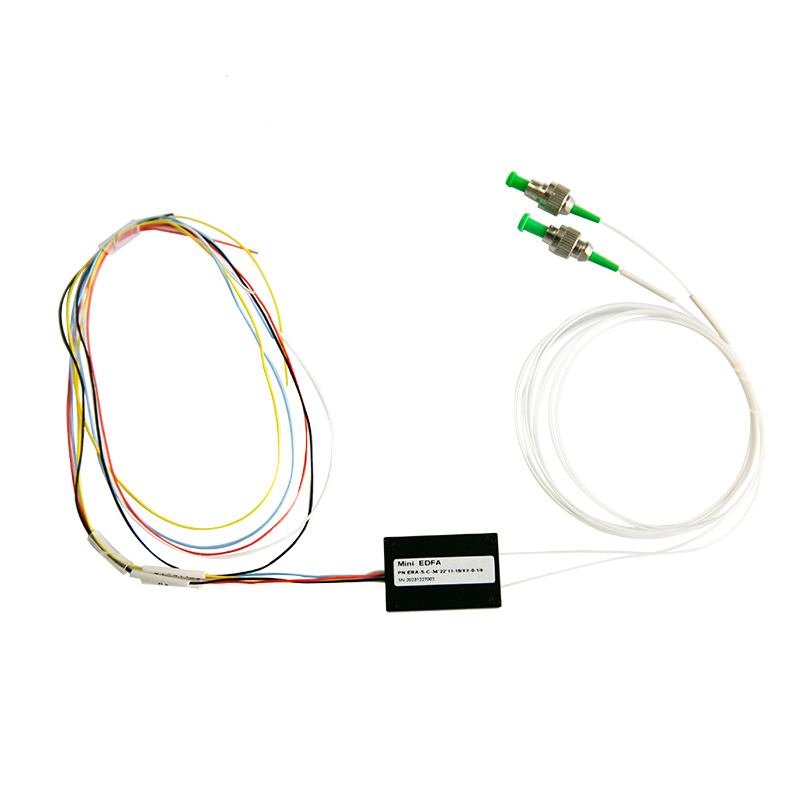

Communication interface type: wire output, power and signal line length is more than 20cm
|
Pigment |
Description |
Remarks |
|
red |
+3.3V |
|
|
black |
Ground |
|
|
white |
EN |
Low level enables pumping |
|
yellow |
Serial Output |
LVTTL |
|
blue |
Serial Input |
LVTTL |

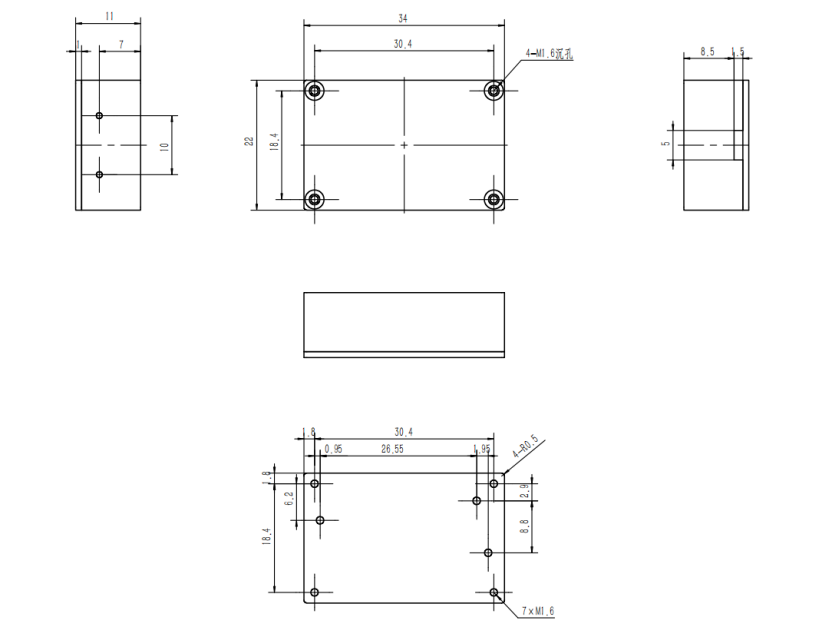

unit ：mm

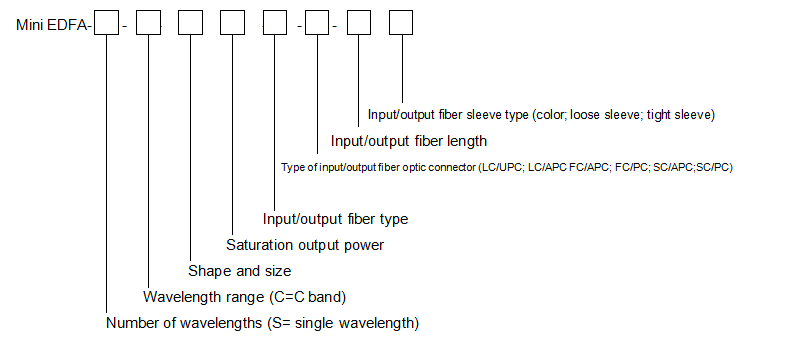

Example ：

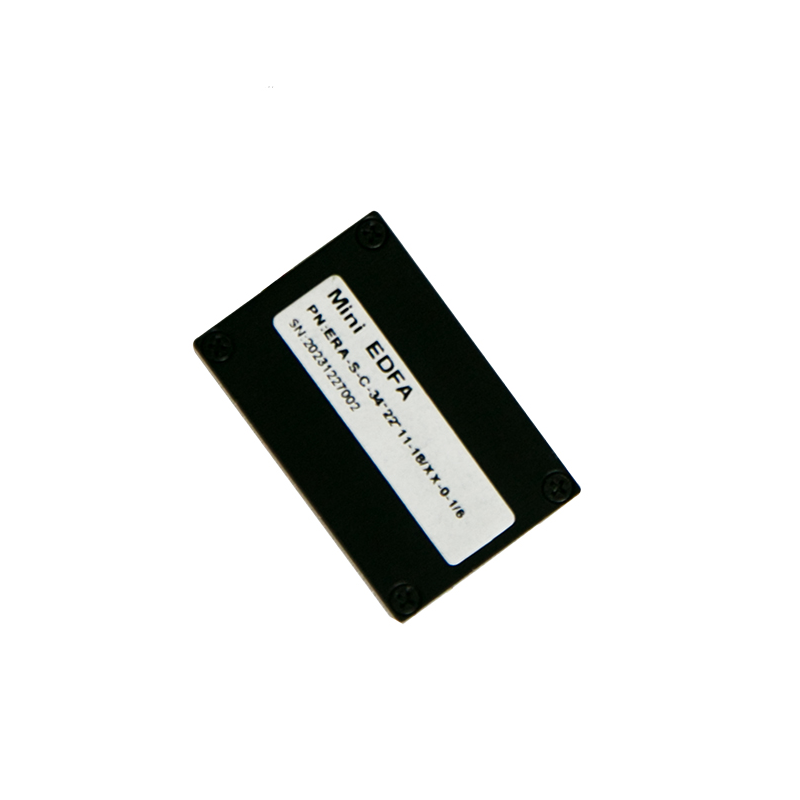

MiniEDFA-S-C-34*22*11-18/xx-0.9-LC/UPC-1-White pine casing
MiniEDFA: Mini optical fiber amplifier
S: Single wavelength
C：C wave band
34*22*11: external dimensions
18/xx: 18= saturated output power 18dBm
0.9: Input/output fiber type SMF-28e,900um
LC/UPC: Type of fiber optic connector
1: Input and output fiber length 1m
White loose tube: fiber optic tail fiber tube type

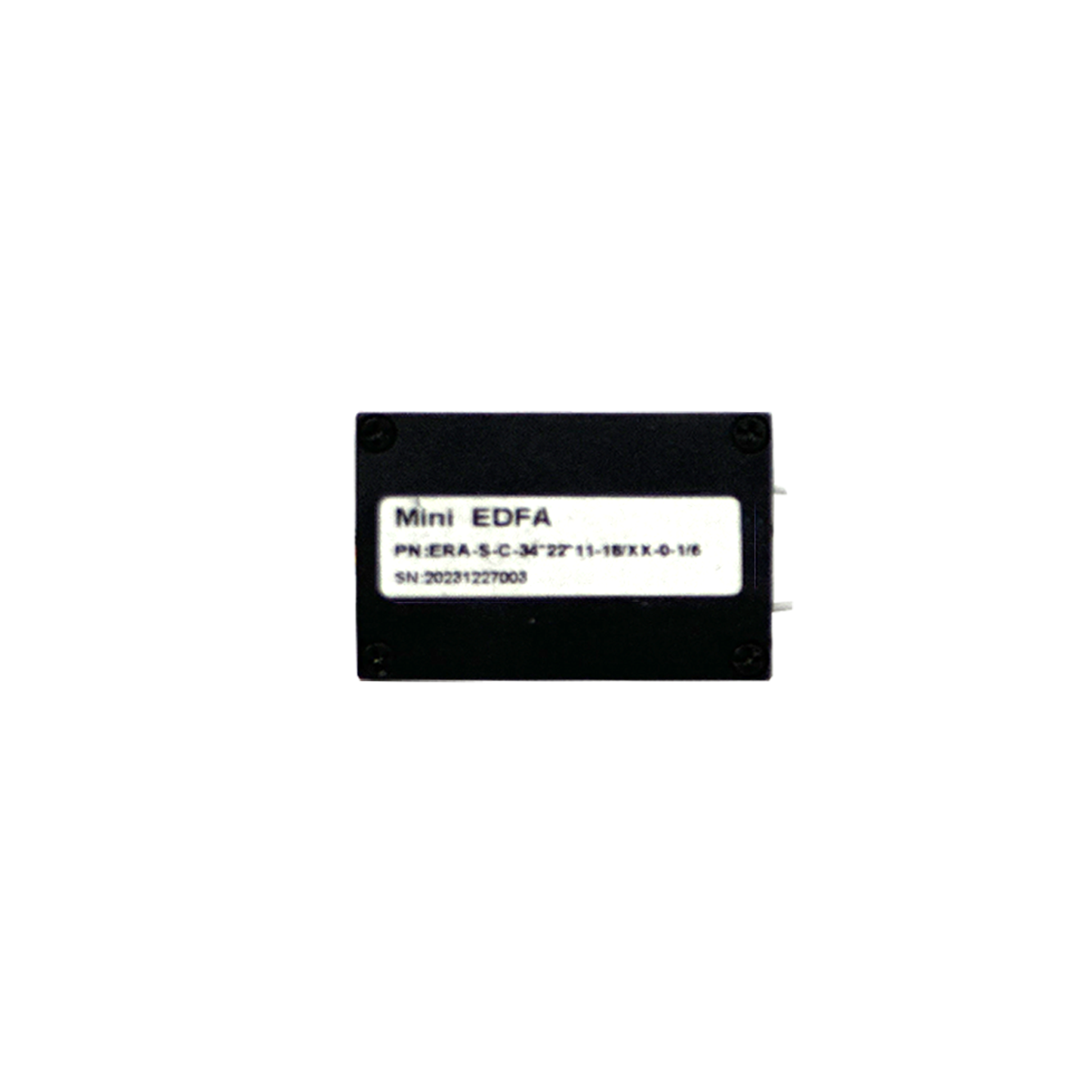

The label content can be customized.
