WDM passive optical receiver

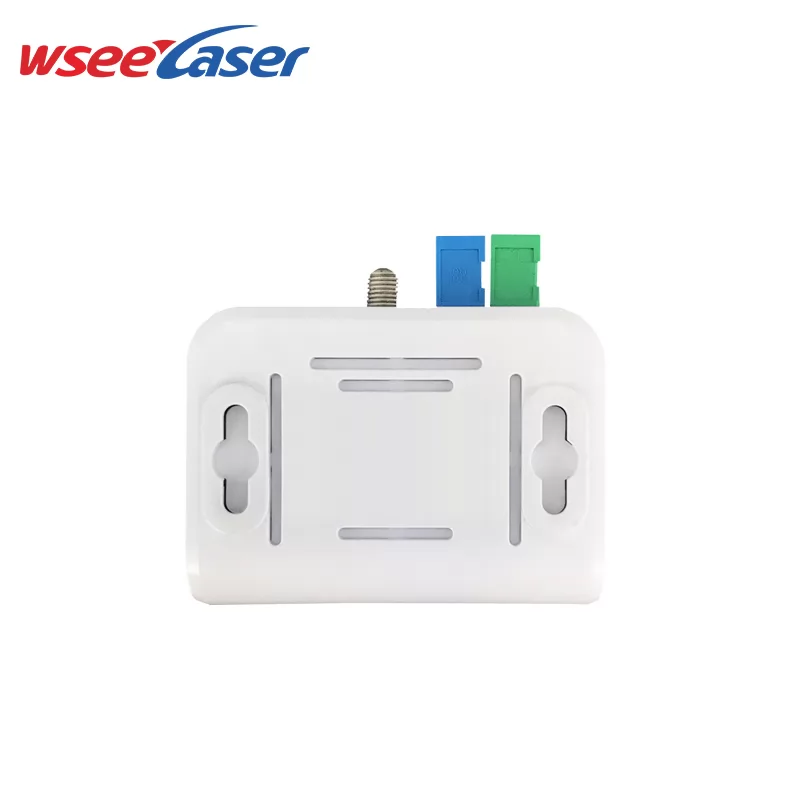

WS-PTR3292H CATV Passive optical receiver is designed for digital TV fiber to the home. It adopts high sensitivity optical receiver tube, no power supply, no power dissipation. When input optical power Pin=0dBm, output level Vo=58dBμV. It can be economically and flexibly used in the application of fiber to the home. Built-in WDM, CATV bandwidth 1260nm~1620nm.

Share:
  • Feature
  • Parameter
  • Diagram

No power supply, no power dissipation

45~1050MHz Bandwidth

output level=58dBμV (Pin=0dBm)


Description

Value

Notes

Optical Characteristics

CATV wavelength

(nm)

1260~1620


1540~1563

With WDN

Wavelength

(nm)

1310, 1490

With WDN


(dB)

≥40


Response

(A/W)

≥0.85

1310nm

≥0.9

1550nm

Optical Power Input Range

(dBm)

+2~-9


Optical Return loss

(dB)

≥55


Connector


SC/APC


RF Characteristics

Bandwidth

(MHz)

45 ~ 1050


Output level

(dBμV)

>58±2

Digital TvPin-0dBm

Output impendence

(Ω)

75


Output port


1


RF connector


F connector

Imperial

Digital TV link Characteristics

OMI

(%)

4.3


MER

(dB)

≥28

Pin= -3dBm

BER

(dB)

<1.0E-9

Pin= -3dBm

Physical Characteristics

Operating Temperature

(℃)

-20 ~ +50


Storage Temperature

(℃)

-40 ~ 85


Working Humidity

(%)

5 ~ 95


Dimensions

(mm)

50*88*22




None
