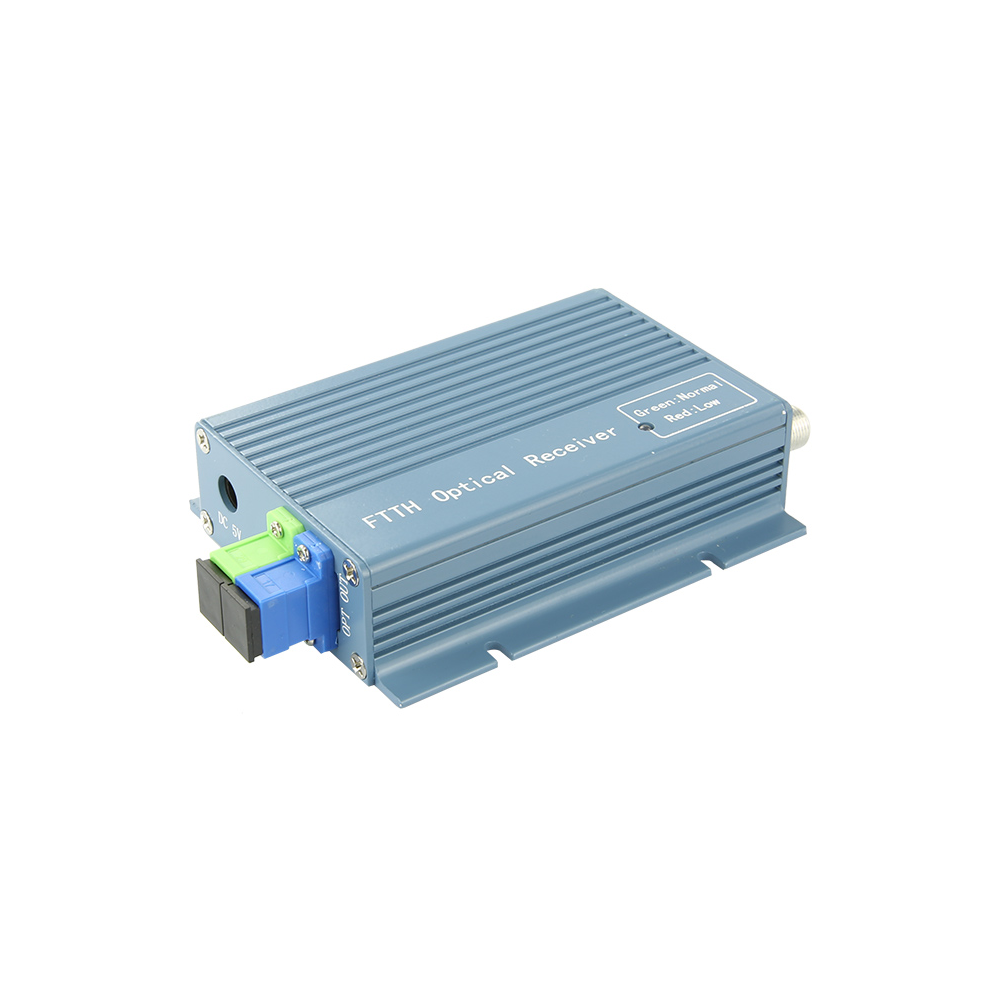

FTTH-OR20 Series AGC GaAs CATV Receiver Aluminum Housing Single/Dual Port FTTH Terminal

• Alternative Names: OR20 active receiver, aluminum housing CATV receiver, WDM integrated FTTH terminal, optical isolator receiver, output power feeding receiver
• Main Applications: FTTH triple play convergence, CATV signal overlay on GPON/EPON/XGSPON, home HDTV reception, high-density residential deployment, rural broadband CATV integration
• Core Highlights: Premium aluminum housing (excellent heat dissipation), full GaAs low-noise circuit (-18dBm digital sensitivity), customizable AGC, optional built-in WDM & 1550nm optical isolator, output port power feeding, multi-level lightning protection, single/dual RF output

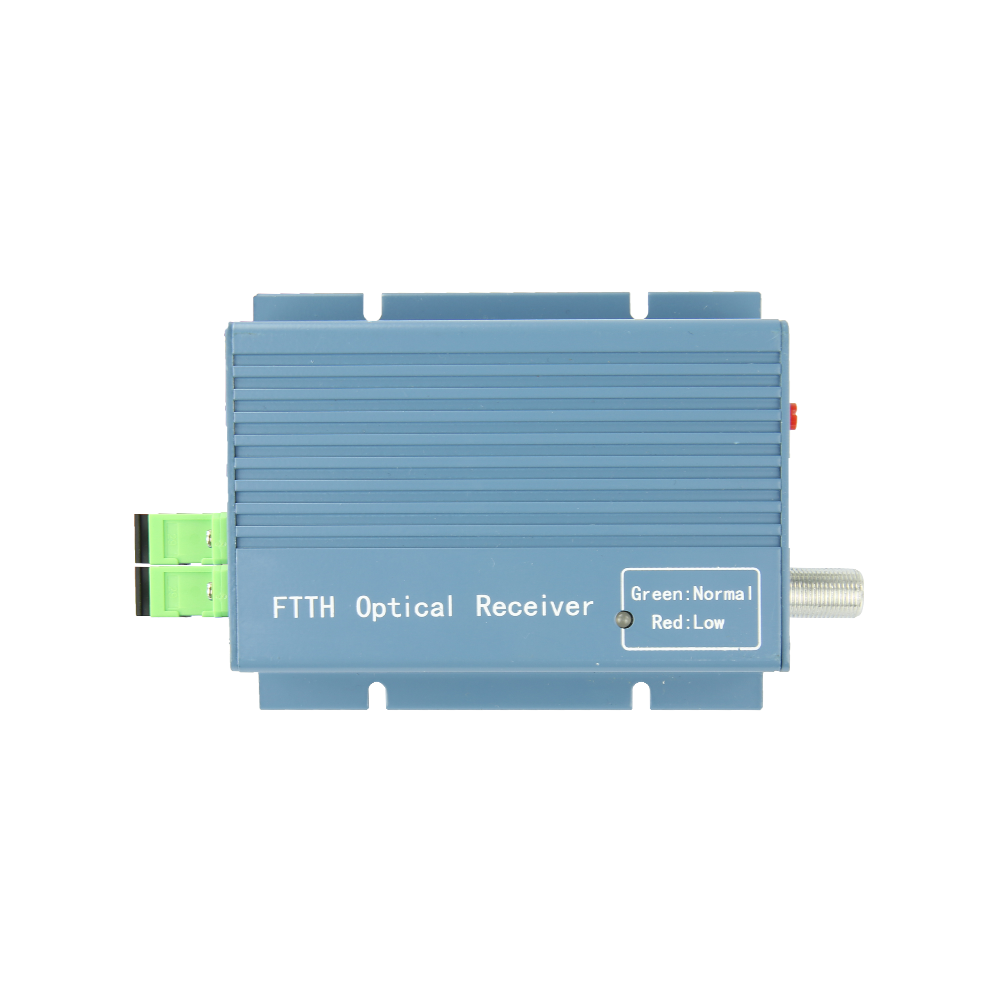

• Indicator Status
• Green light: Device operating normally
• Red light: Low input optical power or no optical signal

The FTTH-OR20 series is a high-performance active home optical receiver specially designed for FTTH CATV and triple play networks. Adopting a high-quality aluminum alloy housing for superior heat dissipation, it ensures long-term stable operation even in high-temperature environments. It uses advanced full GaAs low-noise amplification technology and high-sensitivity photodetectors, delivering industry-leading receiving sensitivity down to -18dBm for digital signals.

This receiver features a customizable automatic gain control (AGC) circuit (default range -2~-12dBm, adjustable on request) to maintain stable RF output across varying input power levels. It supports optional built-in WDM for simultaneous transmission of CATV (1550nm) and PON signals (1310/1490nm, customizable 1270/1577nm for XGSPON), and an optional optical isolator to filter out non-1550nm wavelengths for dedicated CATV reception.

Equipped with multi-stage TVS transient suppression diodes for comprehensive surge and lightning protection, it also supports output port power feeding to supply downstream devices through RF cables. It provides flexible single-port or dual-port RF output options, with multiple optical connector (SC/APC, SC/PC, FC/APC, FC/PC) and RF interface (metric/imperial) options. It can work with ONU or EOC devices to realize triple play convergence of CATV, data and voice services.

• FTTH fiber-to-the-home triple play (CATV + voice + data) convergence
• CATV signal overlay on GPON, EPON and XGSPON optical access networks
• Home digital TV, HDTV and analog TV signal reception
• High-density residential community and apartment building CATV deployment
• Rural broadband and CATV integrated network construction
• Small office and home office (SOHO) CATV access
• CATV network expansion and upgrade projects

Note 1: Tested at 0dBm input optical power with 59 PAL-D analog channels + digital modulation signals. Results may vary with different amplifier modules.

1. Premium Aluminum Housing: Excellent heat dissipation, extends service life by 30% compared to plastic housings
2. Industry-leading Sensitivity: Supports digital signal reception down to -18dBm, enables longer transmission distances
3. High Customization: AGC range, optical connectors and functions (WDM/isolator) can be fully customized
4. All-in-One Integration: Optional built-in WDM and optical isolator eliminate separate components, reduces system cost
5. Output Power Feeding: Simplifies downstream device power supply, no additional power cables required
6. Comprehensive Protection: Multi-stage TVS surge and lightning protection, ensures safe operation in harsh environments

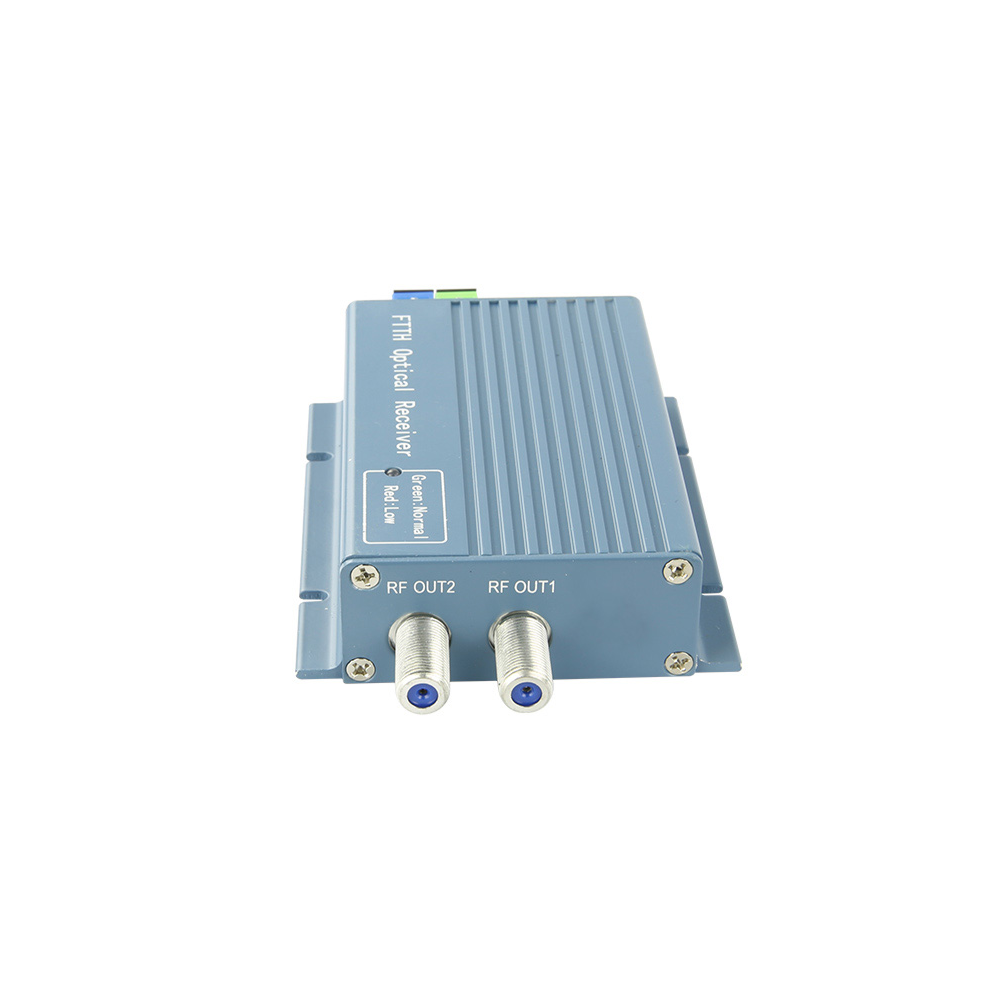

7. Flexible Port Configuration: Single-port or dual-port output options meet different user needs
8. Wide Operating Temperature: -35℃~+75℃, adapts to various indoor and semi-outdoor environments
