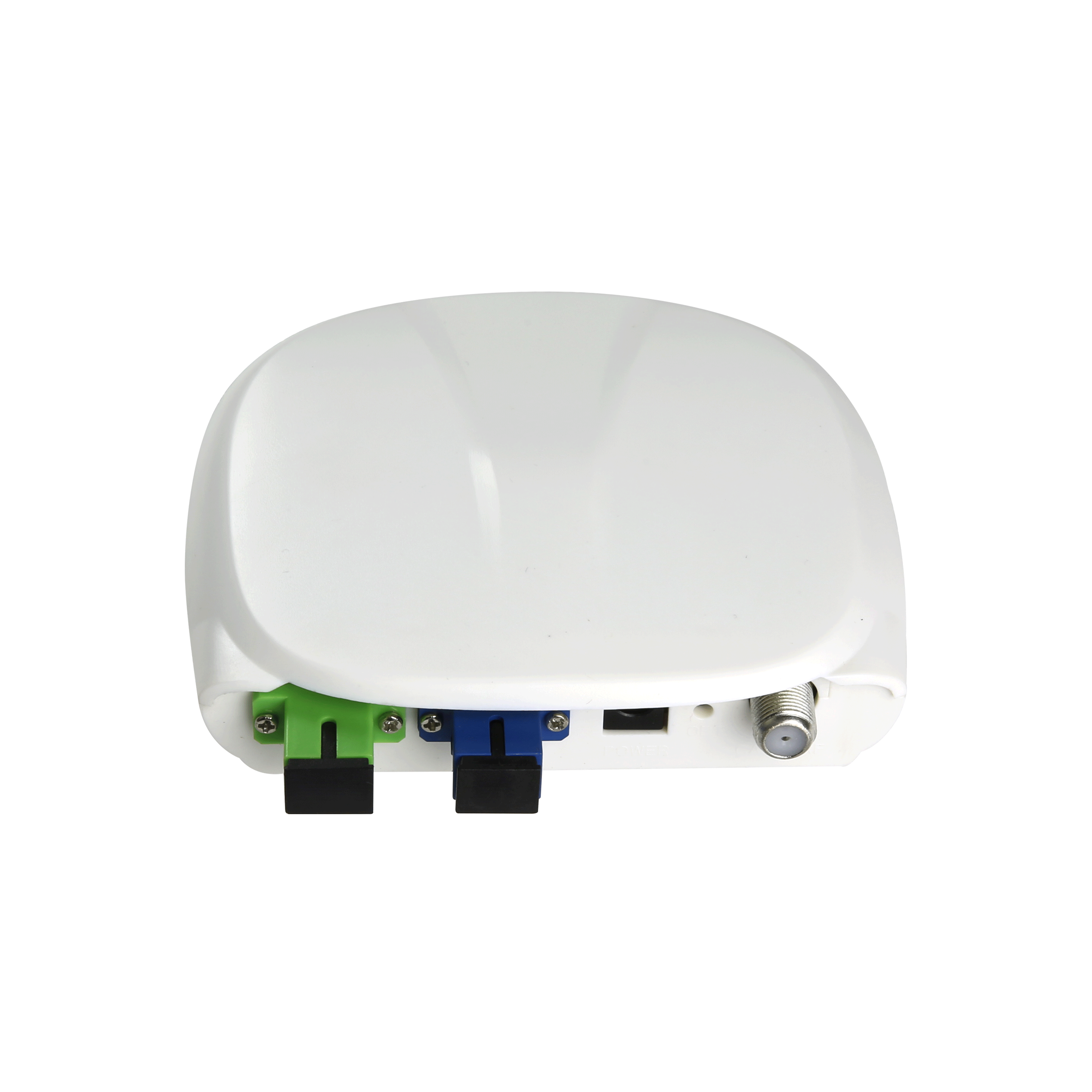

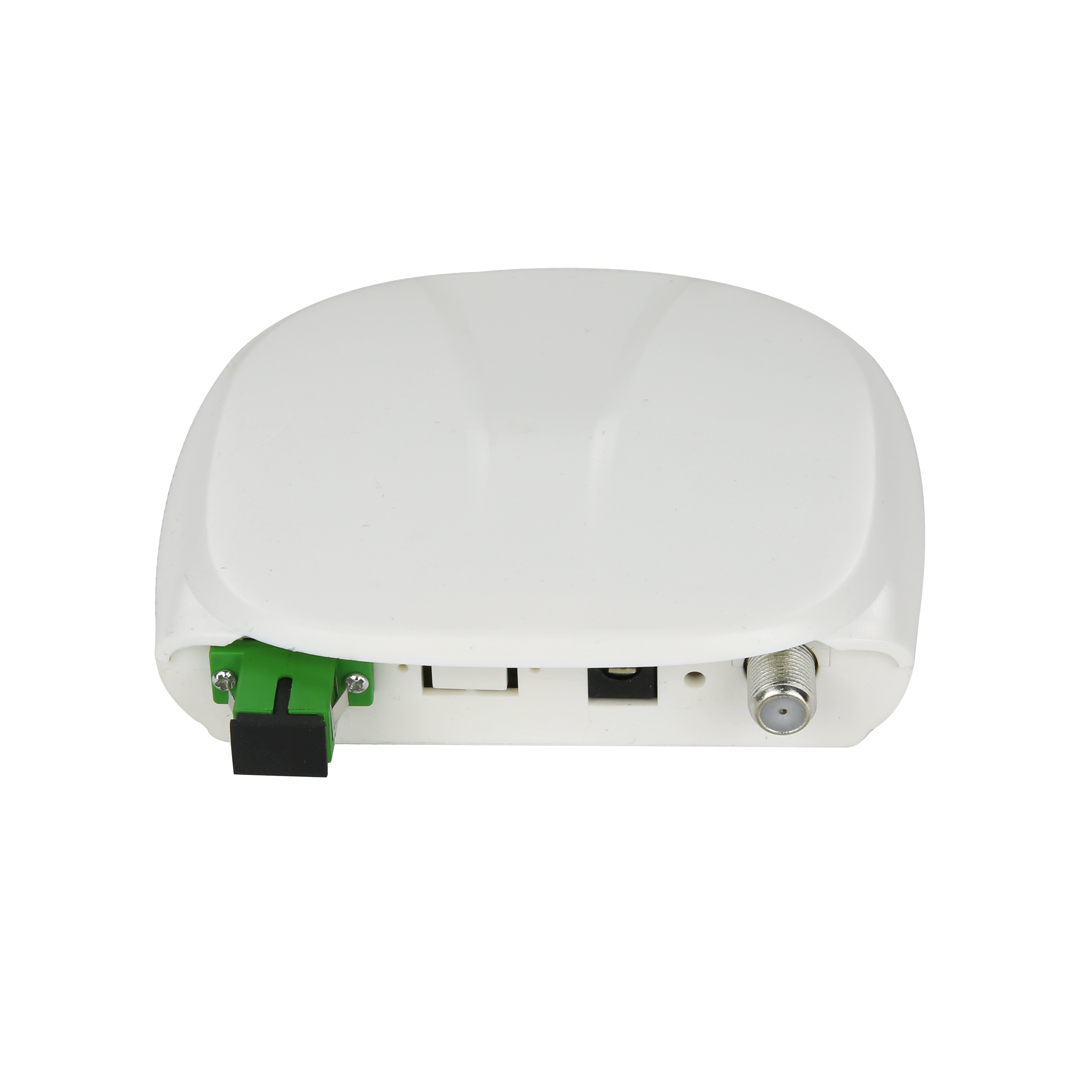

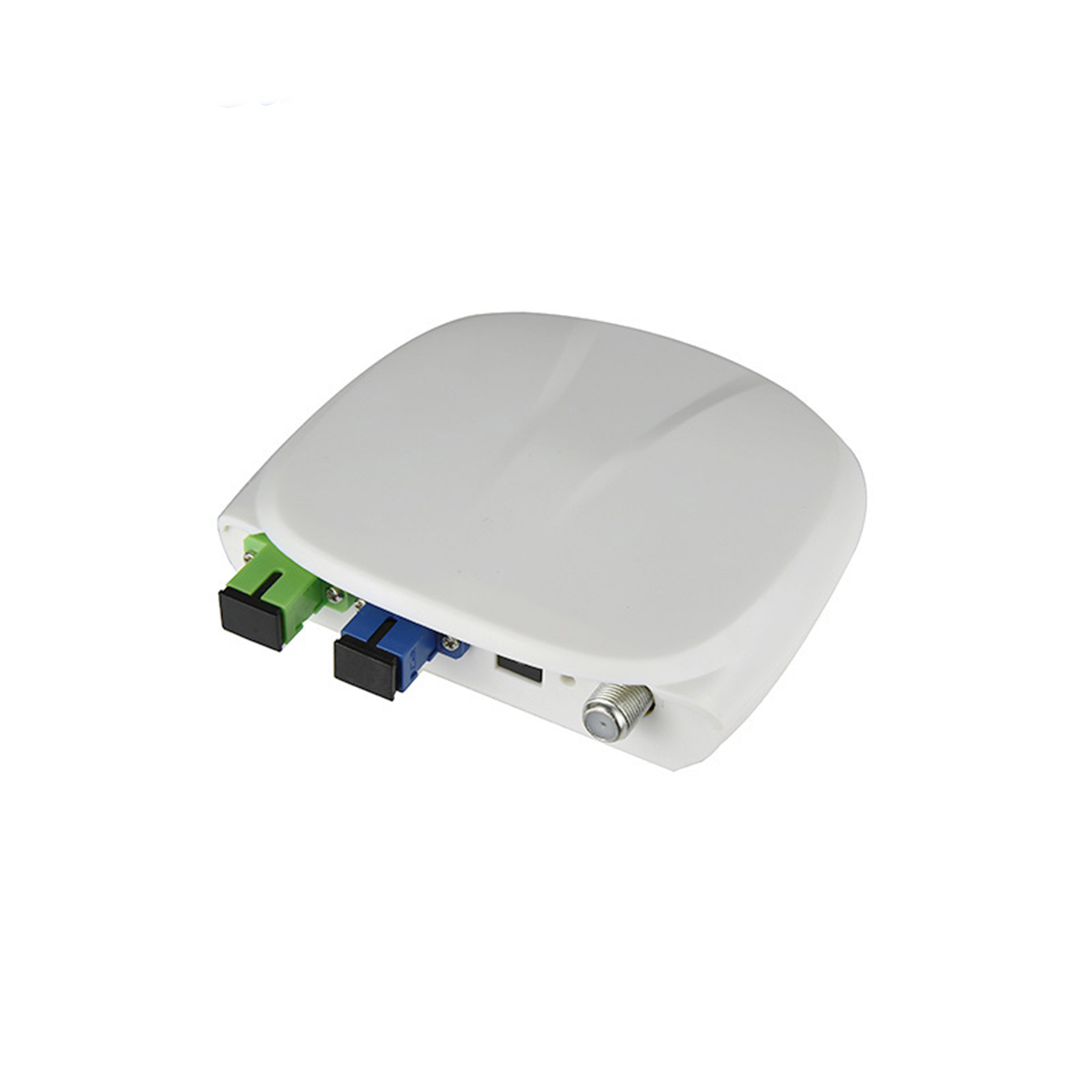

AGC GaAs CATV Optical Receiver

Business Terms

Minimum Order Quantity	Negotiable
Price	Factory direct wholesale price, negotiable by model & configuration
Packaging Details	10pcs/inner box; 100pcs/carton, includes power adapter
Delivery Time	3–7 working days after payment confirmation
Payment Terms	T/T, L/C, Western Union, PayPal
Supply Ability	[To be supplemented according to actual production capacity]
Warranty	12 months standard warranty, lifetime maintenance available

Quick Detail

Alternative Names: OR19 optical receiver, WDM integrated CATV receiver, multi-AGC FTTH terminal, 12V low power receiver, triple play home receiver, PON CATV overlay receiver
Main Applications: FTTH fiber-to-the-home triple play convergence, CATV signal overlay on GPON/EPON/XGSPON networks, home digital/analog TV reception, residential community deployment, rural broadband CATV integration
Core Highlights: Full GaAs low-noise RF circuit, 4 AGC configuration options, built-in WDM for triple play, ultra-low power consumption (<1W for OR19N/M), output port power feeding support, multi-stage lightning protection, optional 1550nm optical isolator, flexible 5V/12V power supply

Description

The FTTH-OR19 series is a high-performance active home optical receiver specially designed for FTTH CATV and triple play networks. Adopting high-sensitivity low-power photodetectors and advanced full GaAs low-noise amplification technology, it delivers industry-leading receiving sensitivity, supporting digital signal reception down to -18dBm.

This series provides 4 customized AGC configuration options to meet different network link requirements: OR19 (-2~-12dBm), OR19B (-5~-15dBm), OR19N (+2~-10dBm) and OR19M (0~-12dBm). It features an optional built-in WDM module, supporting simultaneous transmission of CATV (1550nm) and PON (1310/1490nm, customizable 1270/1577nm for XGSPON) signals in a single fiber, realizing the convergence of telephone, TV and internet services.

It is equipped with high-frequency surge protection for GaAs amplifier chips and multi-stage TVS transient suppression diodes for comprehensive lightning protection. The device supports output port power feeding function and provides flexible power supply options: OR19/19B default to AC90~250V→DC5V, OR19N/M default to 12V (customizable to 5V). With ultra-low power consumption (≤2W for OR19/19B, <1W for OR19N/M), it is energy-saving and environmentally friendly for long-term operation.

Applications

FTTH fiber-to-the-home triple play (CATV + voice + data) convergence
CATV signal overlay on GPON, EPON and XGSPON optical access networks
Home digital TV, HDTV and analog TV signal reception
Residential community and apartment building CATV network deployment
Rural broadband and CATV integrated network construction
Small office and home office (SOHO) CATV access

Technical Specifications

Item	Unit	OR19	OR19B	OR19N	OR19M	Notes
Working Wavelength	nm	1550nm, 1310/1490nm	1550nm, 1310/1490nm	1550nm, 1310/1490nm	1550nm, 1310/1490nm	Customizable 1270/1577nm for XGSPON
Input Optical Power	dBm	-18 ~ +2	-18 ~ +2	-18 ~ +2	-18 ~ +2
Optical Return Loss	dB	>55	>55	>55	>55
Optical Connector	-	SC/APC, SC/PC, FC/APC, FC/PC	SC/APC, SC/PC, FC/APC, FC/PC	SC/APC, SC/PC, FC/APC, FC/PC	SC/APC, SC/PC, FC/APC, FC/PC	Customizable
Frequency Range	MHz	47-1006	47-1006	47-1006	47-1006
In-band Flatness	dB	±1 @47~1006MHz	±1 @47~1006MHz	±1 @47~1006MHz	±1 @47~1006MHz
RF Return Loss	dB	≥16 @47~550MHz; ≥14 @550~1006MHz	≥16 @47~550MHz; ≥14 @550~1006MHz	≥16 @47~550MHz; ≥14 @550~1006MHz	≥16 @47~550MHz; ≥14 @550~1006MHz
RF Output Level	dBuV	≥80	≥80	74±2	80±2
Number of Output Ports	-	Single	Single	Single	Single
RF Impedance	Ω	75	75	75	75
AGC Range	dBm	-2 ~ -12	-5 ~ -15	+2 ~ -10	0 ~ -12
C/N	dB	≥51	≥51	≥51	≥51	*Note 1
CTB	dB	≥65	≥65	≥65	≥65
CSO	dB	≥62	≥62	≥62	≥62
Power Supply	V	AC90~250V→DC5V	AC90~250V→DC5V	AC→DC12V	AC→DC12V	OR19N/M customizable to 5V
Operating Temperature	℃	-35 ~ +75	-35 ~ +75	-35 ~ +75	-35 ~ +75
Power Consumption	W	<2	<2	<1	<1
Product Dimensions	mm	110×109×28	110×109×28	110×109×28	110×109×28	Including connectors
Package Size	mm	310×240×110 (10pcs); 582×510×340 (100pcs)	310×240×110 (10pcs); 582×510×340 (100pcs)	310×240×110 (10pcs); 582×510×340 (100pcs)	310×240×110 (10pcs); 582×510×340 (100pcs)
Full Box Weight	kg	19	19	19	19	100pcs

Note 1: Tested at 0dBm input optical power with 59 PAL-D analog channels + digital modulation signals. Results may vary with different amplifier modules.

Competitive Advantage

4 AGC Configuration Options: Covers all common network link loss scenarios, no need for on-site gain adjustment
Built-in WDM Integration: Eliminates separate WDM modules, simplifies installation and reduces system cost
Ultra-low Power Consumption: <1W for OR19N/M, 50% more energy-efficient than similar products
Output Port Power Feeding: Supports power supply for downstream devices through RF cable
Comprehensive Protection Design: High-frequency surge protection + multi-stage TVS lightning protection
Flexible Power Supply: 5V/12V optional, adapts to various installation environments
Excellent Signal Performance: Full GaAs circuit, high sensitivity and low distortion
Wide Operating Temperature: -35℃~+75℃, adapts to harsh indoor and semi-outdoor environments

Place of Origin	Zhangdian District, Zibo, Shandong, China
Brand Name	Wanshuo Optoelectronic (WSEE)
Model Number	FTTH-OR19 / OR19B / OR19N / OR19M (Single-port)
Certification	CE / FCC / RoHS (optional)
Standard	Complies with ITU-T G.984, GD/J115-2020 & global CATV standards

Optical Receiver

FTTH-OR19 Series AGC GaAs CATV Optical Receiver with Built-in WDM Triple Play FTTH Terminal
