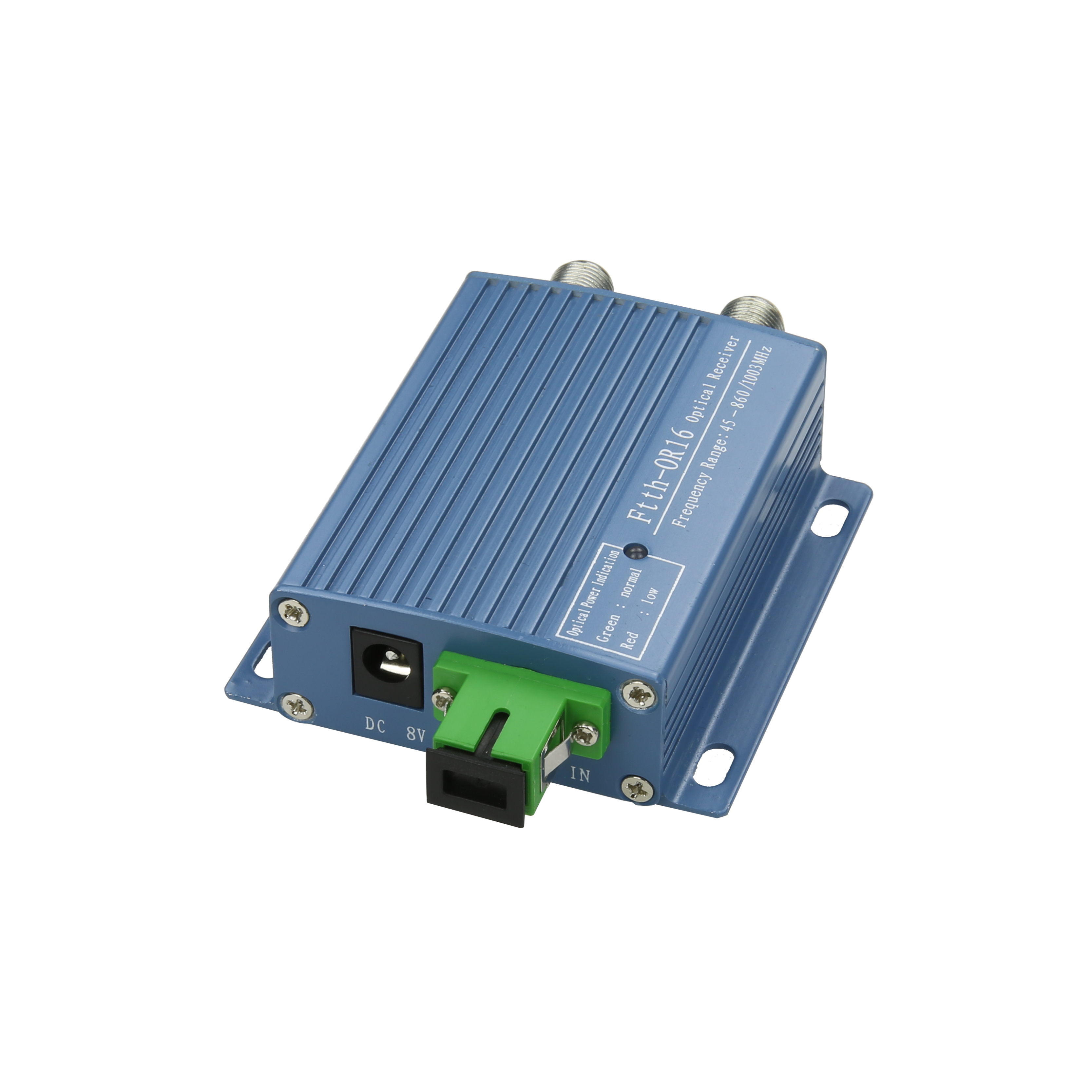

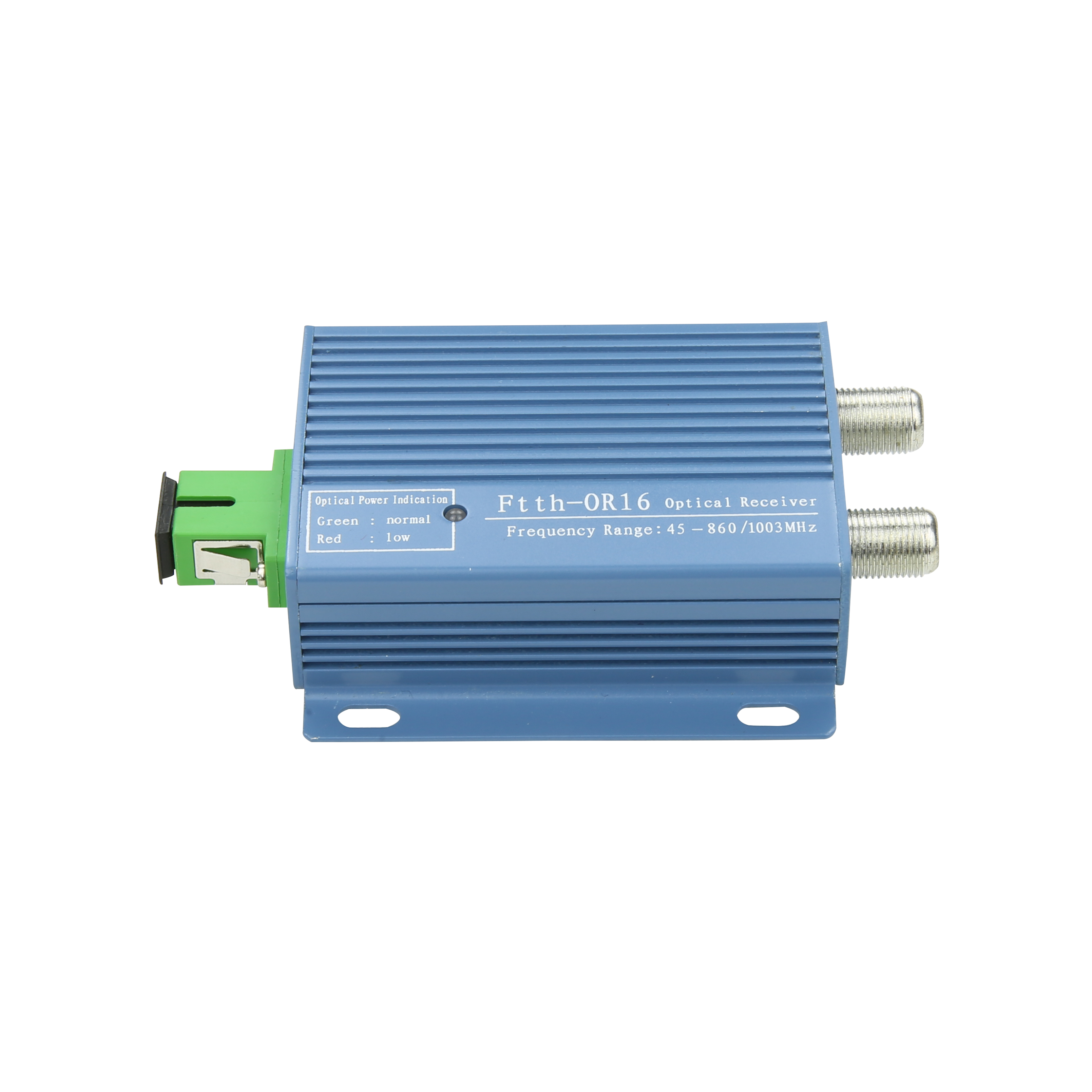

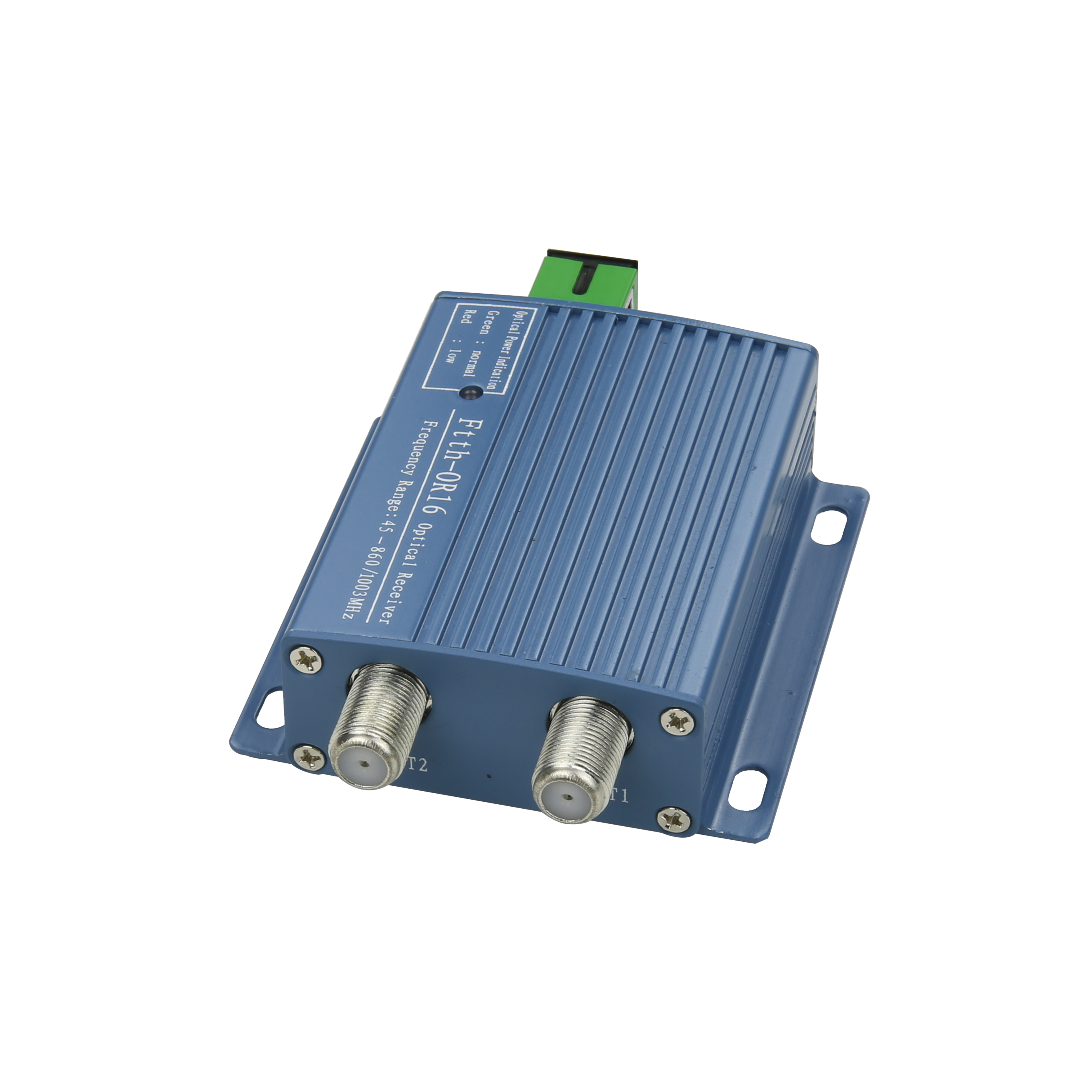

FTTH-OR16B Series FTTH CATV Optical Receiver AGC GaAs 1006MHz Single/Dual Port Home Receiver

• Alternative Names: OR16B FTTH receiver, home CATV optical receiver, AGC fiber receiver, GaAs low-noise receiver, triple play compatible receiver, 1550nm isolated receiver
• Main Applications: FTTH fiber-to-the-home terminal access, CATV home signal reception, digital/analog TV transmission, triple play convergence with ONU/EOC
• Core Highlights: Full GaAs low-noise RF circuit, wide AGC range (-5~-15dBm, customizable), ultra-low power consumption <3W, multi-stage lightning protection, 5V DC feed support, optional 1550nm optical isolator, aluminum alloy brushed housing

The FTTH-OR16B series is a high-performance home optical receiver specially designed for FTTH CATV network terminal access. Adopting high-sensitivity low-power photodetectors and advanced GaAs amplification technology, it delivers excellent signal quality and ultra-high receiving sensitivity, supporting digital signal reception down to -18dBm.

This receiver features a built-in automatic gain control (AGC) circuit with a standard range of -5~-15dBm (customizable on request), ensuring stable RF output even with fluctuating input optical power. It adopts a high-quality aluminum alloy brushed housing for excellent heat dissipation, and is equipped with multi-stage TVS transient suppression diodes for comprehensive lightning protection.

It supports both single-port and dual-port output configurations, with optional SC/APC or SC/PC optical connectors and metric/imperial RF interfaces. An optional built-in optical isolator is available to filter out non-1550nm wavelengths, meeting dedicated 1550nm reception requirements. It supports 110-220V AC to 5V DC power supply and 5V DC feed power supply, making it highly flexible for various installation scenarios. It can work with ONU or EOC devices to realize triple play convergence of CATV, data and voice services.

• FTTH fiber-to-the-home CATV signal terminal reception
• Home digital TV and analog TV signal access
• Triple play convergence systems with ONU/EOC
• Residential community and apartment CATV network deployment
• Rural CATV network reconstruction and upgrade
• Small office and home office (SOHO) CATV access

Indicator Status

Red light: No optical input or input optical power is too low

Green light: Device is working normally

1. Full GaAs Low-Noise Circuit: Delivers excellent signal quality and ultra-high receiving sensitivity
2. Wide Customizable AGC Range: Stable output within -5~-15dBm, customizable on request
3. Ultra-Low Power Consumption: <3W overall power consumption, energy-saving and environmentally friendly
4. Comprehensive Lightning Protection: Multi-stage TVS transient suppression diodes, ensures safe operation
5. Flexible Power Supply: Supports AC 110-220V and 5V DC feed power supply
6. Optional Optical Isolator: Filters out non-1550nm wavelengths for dedicated reception
7. Excellent Heat Dissipation: Aluminum alloy brushed housing, ensures long-term stable operation
8. Easy Installation: Compact size, plug-and-play, no complex configuration required
