Place of Origin |
Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
FTTH-OR1, FTTH-OR2 |
Certification |
CE, FCC, RoHS (Optional) |
Standard |
CATV FTTH, ITU-T G.983 |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale |
|
Packaging |
20pcs/inner box |
|
Delivery Time |
3–7 working days |
|
Payment Terms |
T/T, L/C, Western Union, PayPal |
|
Supply Ability |
[To be filled] |
|
Warranty |
12 months |

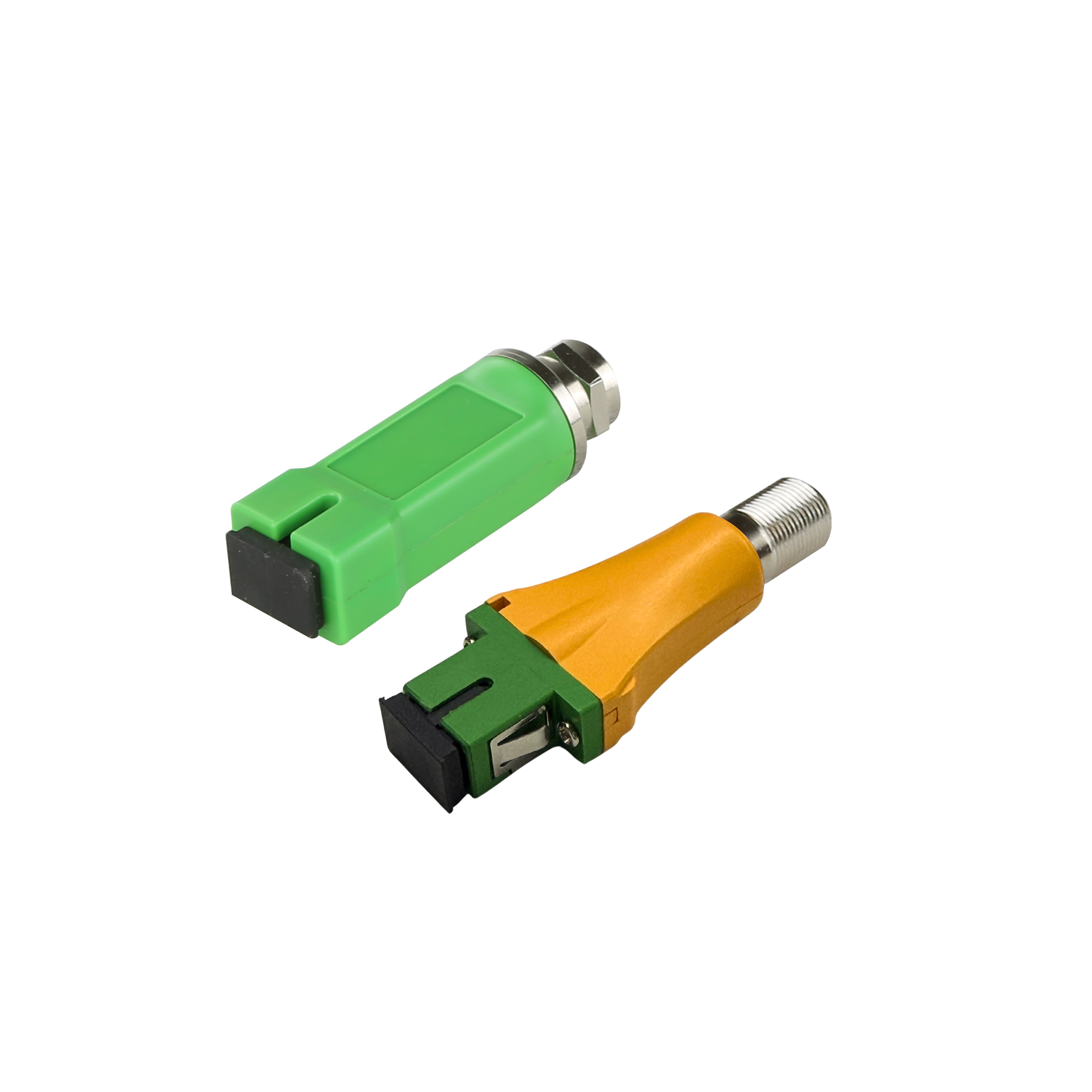

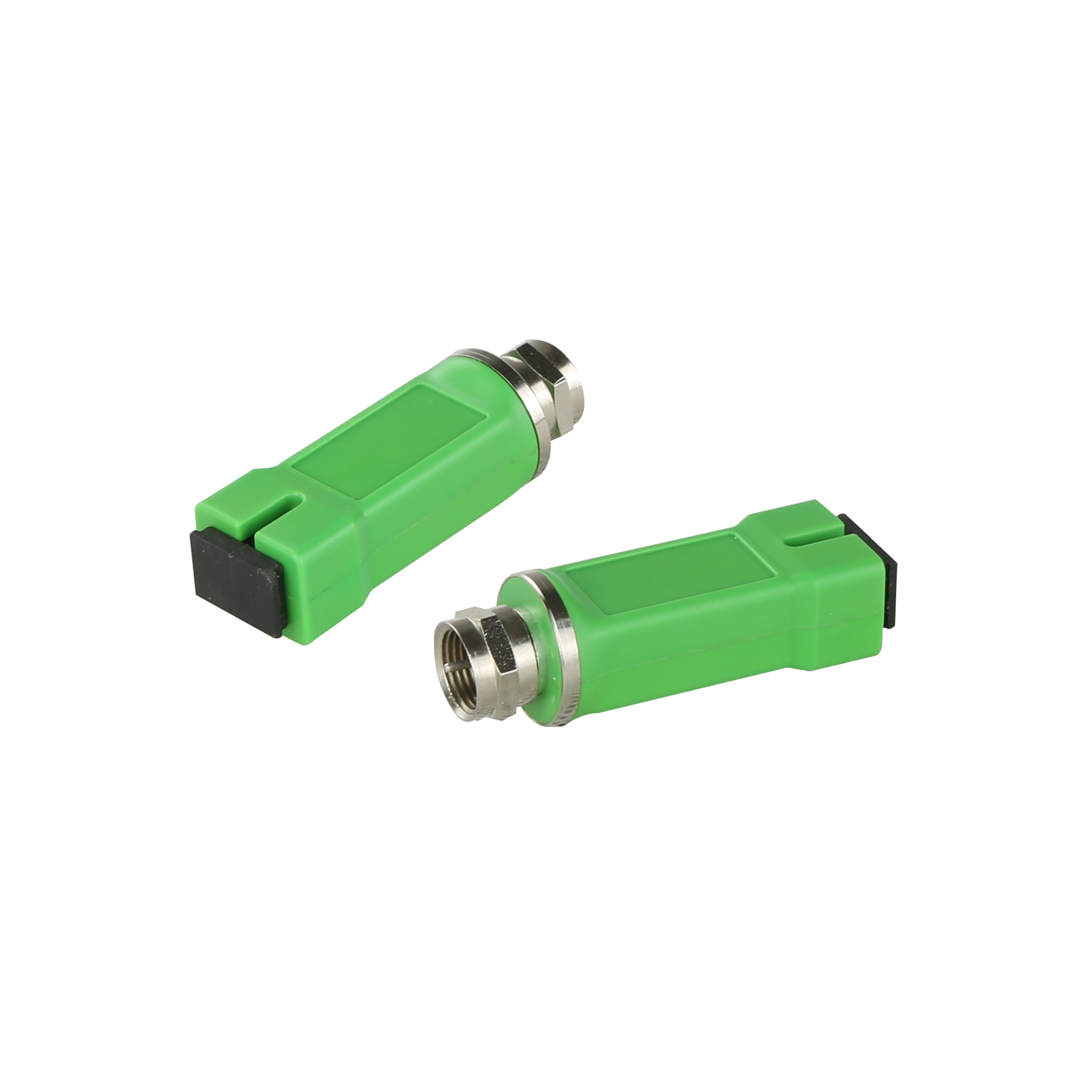

The FTTH-OR1/OR2 series is a passive mini optical receiver designed for home CATV FTTH terminal access. It requires no power supply and zero power consumption, making it stable, reliable and maintenance-free.
It adopts high-sensitivity photodiodes to support analog signal reception down to –7dBm and digital signal down to –10dBm. It provides stable RF output and covers a wide bandwidth of 40–1006MHz. The product uses a high-quality plastic shell and supports multiple optical connectors and RF interface options. It is the ideal terminal receiver for FTTH CATV networks.
|
Item |
FTTH-OR1 |
FTTH-OR2 |
|
Working Wavelength |
1100–1600nm & 1550nm |
1100–1600nm & 1550nm |
|
Input Optical Power |
Analog: –7~+2dBm; Digital: –10~+2dBm |
Analog: –7~+2dBm; Digital: –10~+2dBm |
|
Optical Return Loss |
>45dB |
>45dB |
|
Bandwidth |
40–1006MHz |
40–1006MHz |
|
Flatness |
±1.5dB@40–1006MHz |
±1.5dB@40–1006MHz |
|
RF Output Level |
65dBμV@0dBm |
65dBμV@0dBm |
|
Output Port |
1 |
1 |
|
Impedance |
75Ω |
75Ω |
|
C/N |
≥51dB |
≥51dB |
|
CTB |
≥65dB |
≥65dB |
|
CSO |
≥62dB |
≥62dB |
|
Working Temperature |
-25℃~+45℃ |
-25℃~+45℃ |
|
Dimensions |
63×23×15mm |
50×16×14mm |
