● Erbium co-doped double-clad fiber technology.
● Built-in low-noise preamplifier eliminates the need for EDFA cascading, greatly reducing system CNR and MER degradation.
● Output total power range: up to 23dBm~37dBm (5W) optional.
● Perfect network management interface, in line with SNMP network management protocol.
● Adopt a mature dual-power hot backup structure dedicated to servers, and cooperates with a microcomputer-controlled intelligent temperature control system to effectively improve system reliability.
● The back panel can be flexibly removed and replaced according to the number of output ports.
Item | Unit | Parameters | Notes | |
Bandwidth | nm | 1535~1565 | ||
Input optical power range | dBm | -10 ~ +10 | Nominal input +3dBm | |
Total output optical power range | dBm | 24~31 | ||
Optical power stability | dBm | ±0.1 | ||
Noise figure pin | dB | ≤ 5.0 | @+0dBm Input,λ=1550nm | |
Reflection loss | Input | dB | ≥ 45 | |
Output | dB | ≥ 45 | ||
Output Optical ports | 4 ports
| Customized | ||
Optical connector | SC/APC；SC/PC；LC/APC；LC/PC | Customized | ||
C/N | dB | ≥ 50 | The test conditions are performed by GT/T 184-2002. | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||
Supply voltage | V | AC220V(160V ~ 265V) / AC110V（90V ~130V）/ DC48V（38V- 58V） | Customized | |
Power consumption | W | ≤ 10 | ||
Working TEMP | ℃ | -5 ~ +42 | ||
Max relative humidity | % | Maximum 95% non - condensing | ||
Storage TEMP | ℃ | -30 ~ +70 | ||
Maximum storage relative humidity | % | Maximum 95% no condensing | ||
Size | mm | 357(W)*482(L)*44(H) | ||
Packing size (one set) | mm | 595(W)*490(L)*120(H) | ||
Packing size (two sets) | mm | 595(W)*490(L)*230(H) | ||

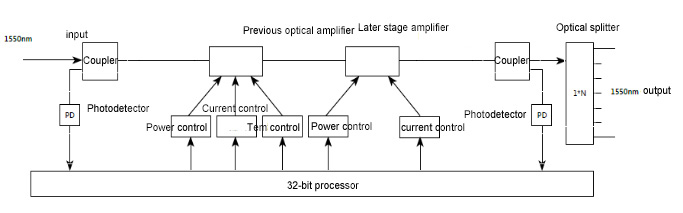

Principle Diagram
