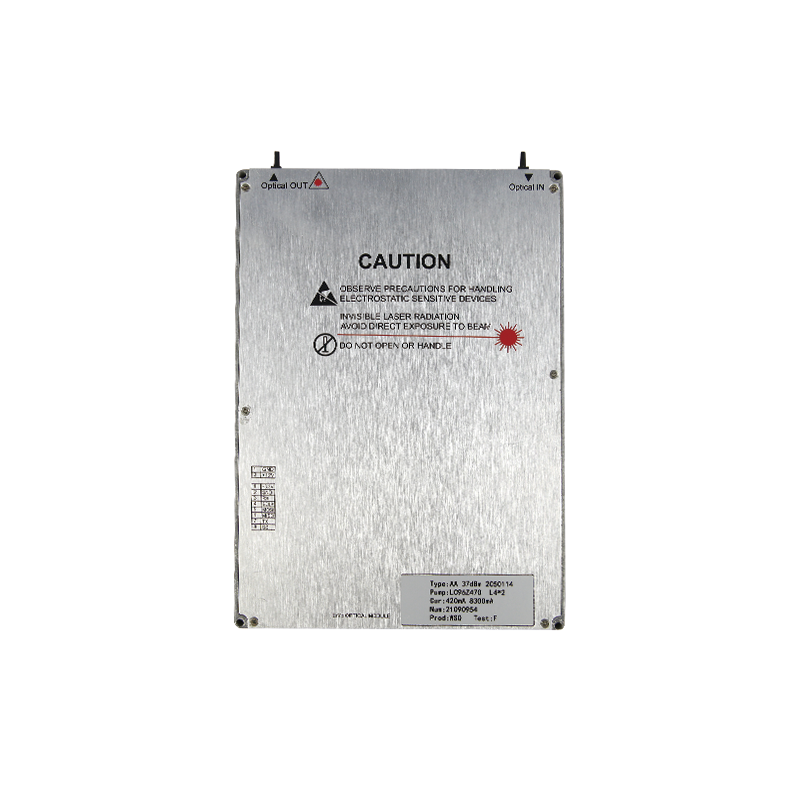

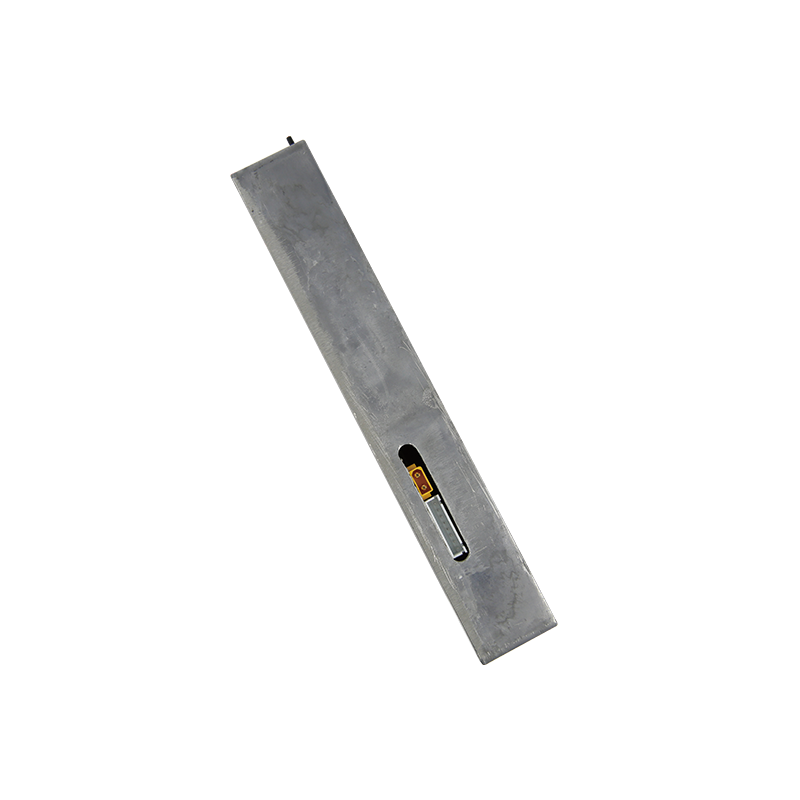

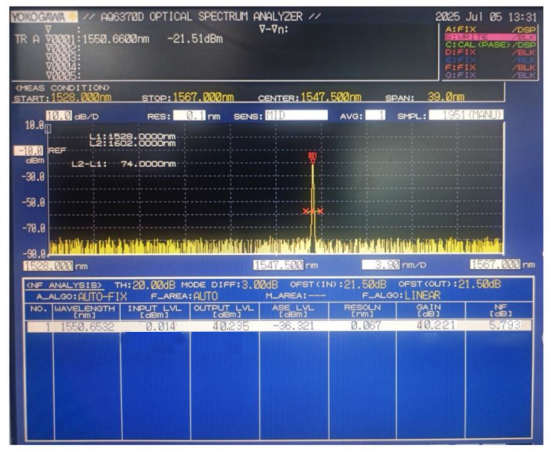

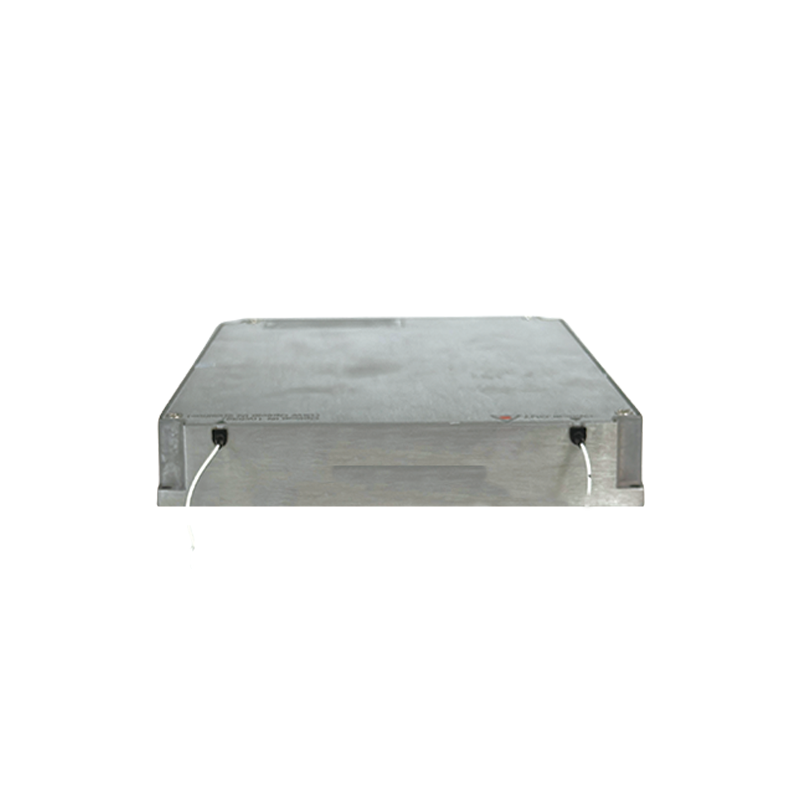

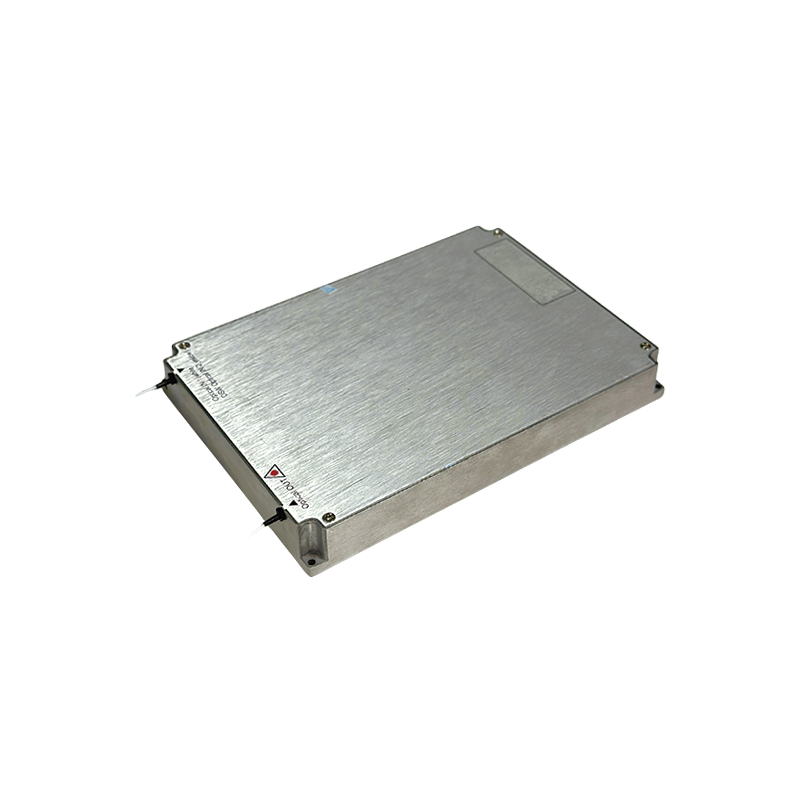

The high power EYDFA has an output optical power up to 40dBm and has APC and ACC control modes. The product can work well in a wide temperature range.
|
Parameters |
Min |
Typ |
Max |
Unit |
|||
|
Wavelength Coverage |
1540 |
- |
1565 |
nm |
|||
|
Number of Channels |
|
1 |
|
|
|||
|
Input Power |
-5 |
- |
+10 |
dBm |
|||
|
Output Power |
23 |
- |
40 |
dBm |
|||
|
Noise Finger |
- |
- |
6 |
dB |
|||
|
High Temperature Shutdown Threshold |
- |
65 |
- |
℃ |
|||
|
Return Loss |
45 |
- |
- |
dB |
|||
|
Polarization-Dependent gain |
|
- |
0.5 |
dB |
|||
|
Working Temperature |
-5 |
- |
+55 |
°C |
|||
|
Storage Temperature |
-40 |
- |
85 |
°C |
|||
|
Relative humidity (non-condensation) |
5 |
- |
85 |
% |
|||
|
Product Size |
200*142*25 |
mm |
|||||
|
Power Consumption |
|
|
130 |
W |
|||
|
Supply Voltage |
11.75 |
12 |
12.25 |
V |
|||
|
Communication Level |
LVTTL |
||||||
Power supply interface: 2pin, XT30U female socket, with power supply socket-XT30PW-M male head +30cm red and black wire
Communication interface type: 2.54mm spacing, male socket
|
Pin |
Description |
Remarks |
|
1 |
NC |
|
|
2 |
GND |
|
|
3 |
Serial Input |
LVTTL |
|
4 |
NC |
|
|
5 |
NC |
|
|
6 |
NC |
|
|
7 |
Serial Output |
LVTTL |
|
8 |
NC |

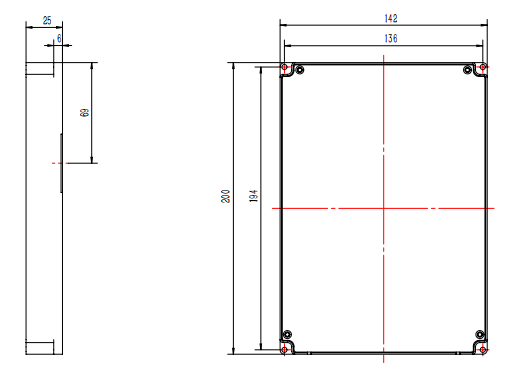

unit ：mm
Example ：

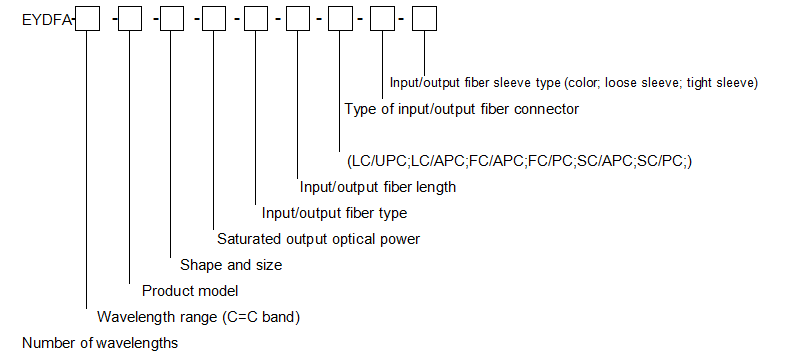

EYDFA-S-C-M511-200*142*25-40/XX-0.9-FC/APC-1-White loose tube
EYDFA: Erbium ytterbium co-doped fiber amplifier
S： single channel
C：C wave band
M511: Product model
200*142*25: external dimensions
40/xx: The saturated output optical power is 40dBm
0.9: Input/output fiber type SMF-28e,900um
FC/APC: Type of fiber optic connector
1: Input and output fiber length is 1m
White loose tube: fiber optic tail fiber tube type
The label content can be customized.
