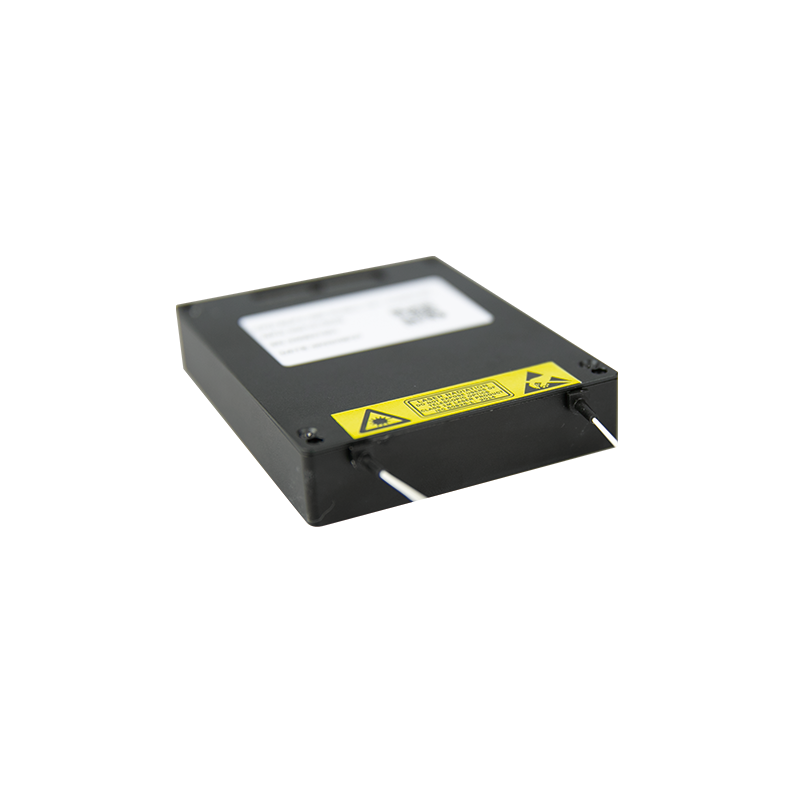

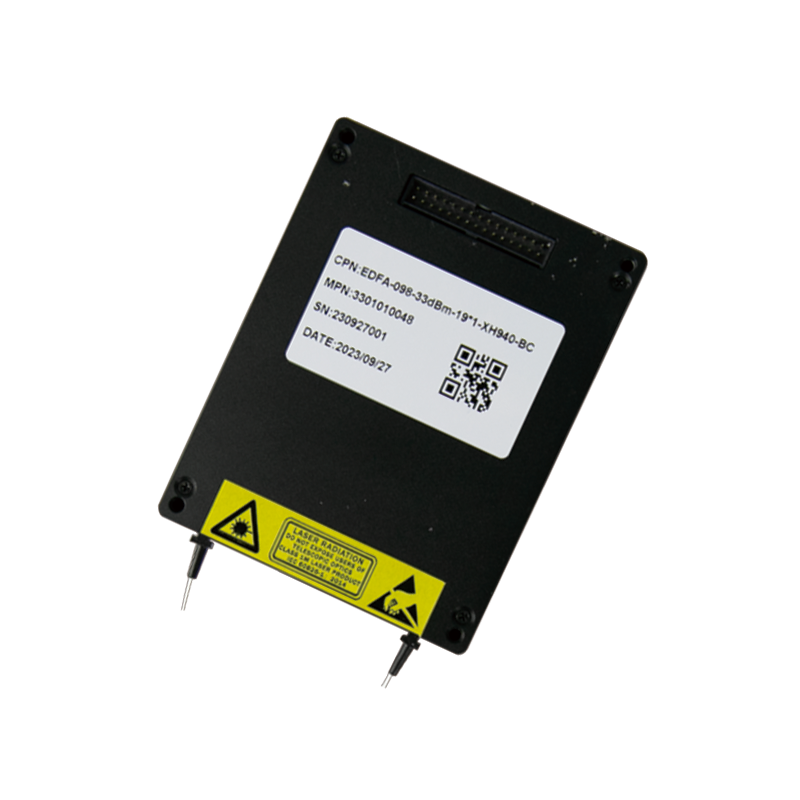

Designed for small-scale EYDFA, the compact structure and all circuit chips are domestic chips. The output optical power is up to 2W (33dBm) in a single port, with APC and ACC control modes. Optical indicators, software protocols and electrical port structure support customization;
|
Parameters |
Min |
Typ |
Max |
Unit |
|
|
Wavelength Coverage |
1540 |
- |
1565 |
nm |
|
|
Input Power |
-10 |
- |
+10 |
dBm |
|
|
Output Power |
23 |
- |
33 |
dBm |
|
|
Noise Finger |
- |
5.5 |
6 |
dB |
|
|
Open Pump Threshold |
- |
-12 |
- |
dBm |
|
|
High Temperature Shutdown Threshold |
- |
65 |
- |
℃ |
|
|
Return Loss |
45 |
- |
- |
dB |
|
|
Polarization-Dependent gain |
|
- |
0.5 |
dB |
|
|
Working Temperature |
-5 |
- |
+55 |
°C |
|
|
Storage Temperature |
-40 |
- |
85 |
°C |
|
|
Relative Humidity (non-condensation) |
5 |
- |
85 |
% |
|
|

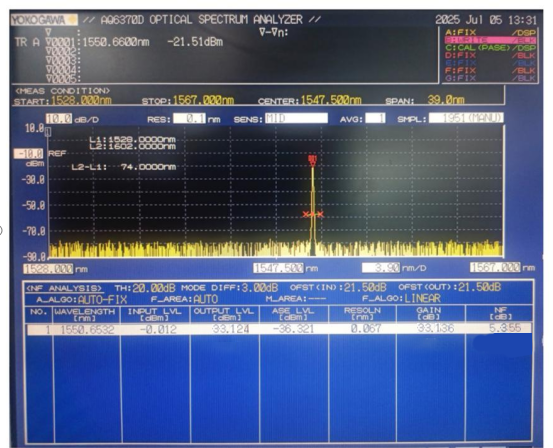

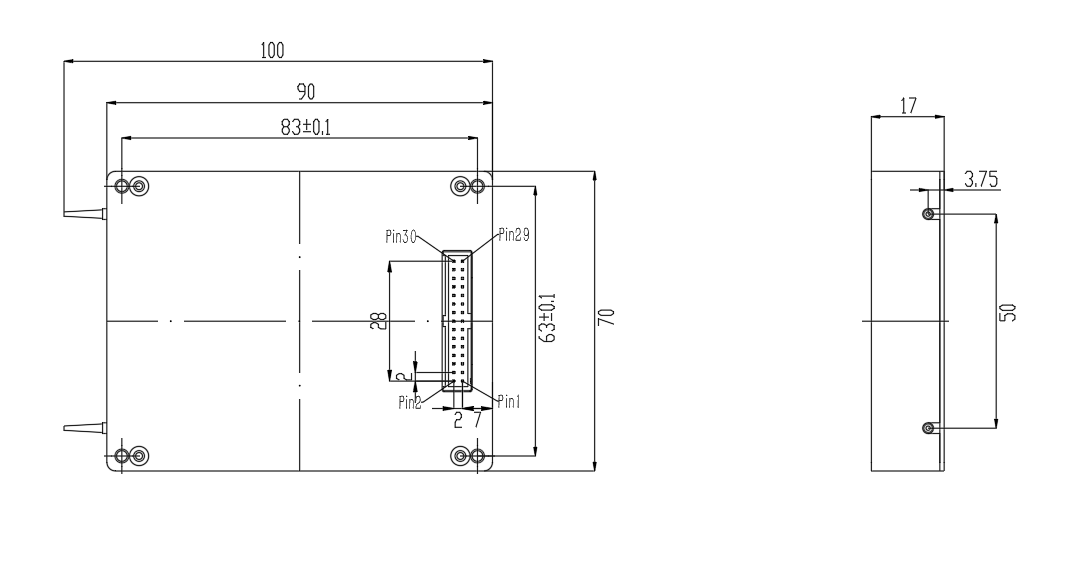

Product Size |
90*70*17 |
mm |
|||
|
Power Consumption |
|
|
15 |
W |
|
|
Supply Voltage |
4.75 |
5 |
5.25 |
V |
|
|
Communication Level |
LVTTL/RS232 |
||||

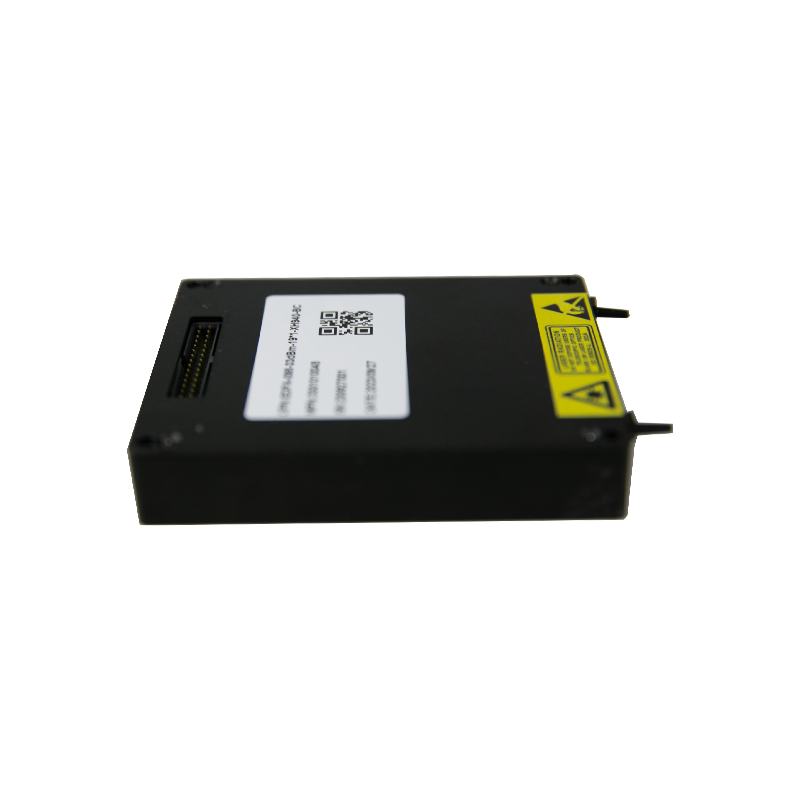

Communication interface type: 2.00mm spacing, male socket
|
Pin |
Description |
Pin |
Description |
|
1 |
+5V |
16 |
Common Alarm |
|
2 |
+5V |
17 |
Case Temp Alarm |
|
3 |
+5V |
18 |
Pump Temp Alarm |
|
4 |
+5V |
19 |
Intput Loss Alarm |
|
5 |
Ground |
20 |
NC |
|
6 |
Ground |
21 |
NC |
|
7 |
Ground |
22 |
NC |
|
8 |
Ground |
23 |
Ground |
|
9 |
NC |
24 |
Ground |
|
10 |
NC |
25 |
Ground |
|
11 |
Serial Input |
26 |
Ground |
|
12 |
Serial Output |
27 |
+5V |
|
13 |
MOD_ABS |
28 |
+5V |
|
14 |
AMP_Disable |
29 |
+5V |
|
15 |
Reset |
30 |
+5V |

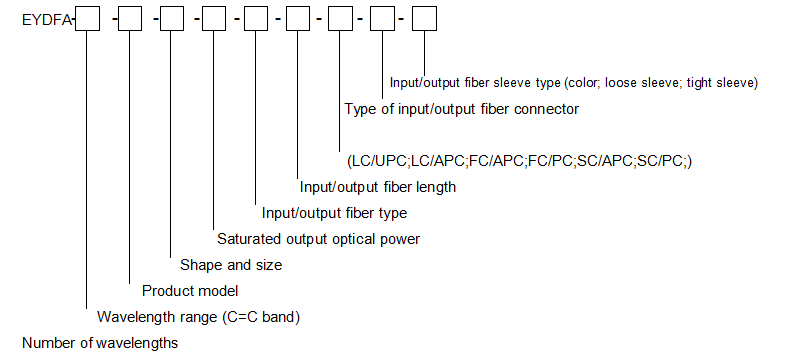

Example:
EYDFA-S-C-098-90*70*18-33/xx-0.9-FC/APC-1-White pine casing
EYDFA: Erbium ytterbium co-doped fiber amplifier
S： single channel
C：C wave band
098: Product model
90*70*18: external dimensions
33/xx: The saturated output optical power is 33dBm
0.9: Input/output fiber type SMF-28e,900um
FC/APC: Type of fiber optic connector
1: Input and output fiber length 1m
White loose tube: fiber optic tail fiber tube type
The label content can be customized.
