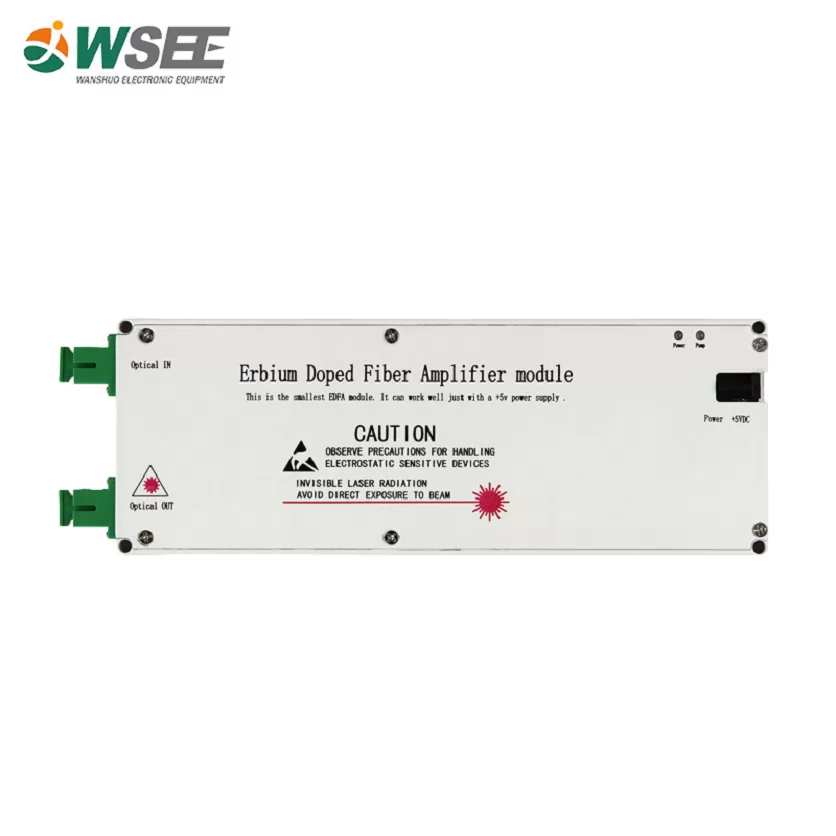

● Adopted internationally renowned brand low noise pump lasers, low distortion, wide band, high output optical power.
● Imported high-performance erbium-doped fiber, high energy conversion efficiency.
● Optical power receiving range -10dBm ~ +10dBm, optical power output 13~24dBm.
● 32-bit ARM control chip, real-time monitoring of the working status and operating parameters, light control output accuracy of ± 0.1dBm.
● All control circuits and devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
● Working mode APC/ACC optional,Output power +0.2~-4dBm adjustable.
● Equipped with USB serial port tool, through the computer connection, it can realize parameter on-site monitoring and reset.
Item | Unit | Parameters | Notes | |
Bandwidth | nm | 1535~1565 | ||
Input optical power range | dBm | -5 ~ +10 | Normal input +3dBm | |
Output optical power range | dBm | 20~23 | ||
Optical power stability | dBm | ±0.1 | ||
Noise figure pin | dB | ≤ 5.0 | @+0dBm Input,λ=1550nm | |
Reflection loss | Input end | dB | ≥ 45 | |
Output end | dB | ≥ 45 | ||
Output Optical port number | 1 port | Customized | ||
Optical connector type | SC/APC or FC/APC | Customized | ||
C/N | dB | ≥ 50 | The test conditions are performed by GT/T 184-2002. | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||
Supply voltage | V | DC8V | External power supply | |
Power consumption | W | ≤10 | ||
Working TEMP range | ℃ | -5 ~ +42 | ||
Max relative humidity | % | Maximum 95%, no condensing | ||
Storage temperature range | ℃ | -30 ~ +70 | ||
Max storage relative humidity | % | Maximum 95%, no condensing | ||
Size | mm | 82(W)*245(L)*19(H) | ||
Packing size (1 set) | mm | 340*134*50 | ||
Weight after package | kgs | 0.44 | Device & power supply | |
Principle Diagram
