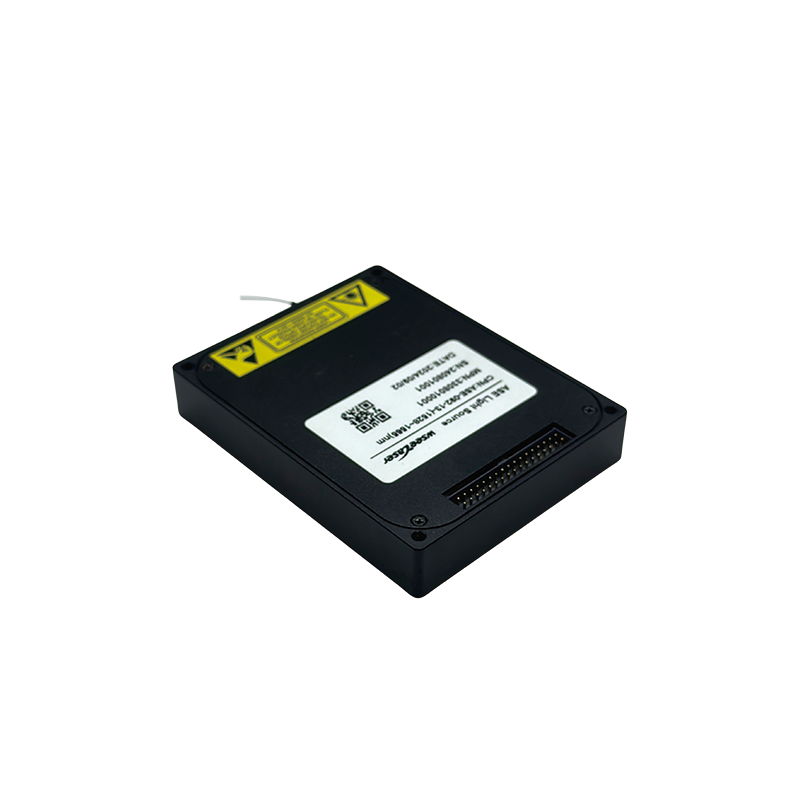

ASE Optical Source

Working Environment Indicators

Parameters	Min	Typ	Max	Unit	Remarks
Operating Temperature	-5		55	℃
Storage Temperature	-40		85	℃
Working Relative Humidity	5		85	%	40° non-condensable
Store relative Humidity	5		90	%

Optical Indicators

Parameters	Min		Typ		Max	Unit	Remarks
Operating Wavelength	1528				1602	nm
Size	(WLH)907015					mm
Output Fiber	SMF-28e,900um, white pine sleeve					nm
Output fiber Connector	FC/APC						custom made
Output Fiber Length	0.49	0.5		0.51		m	0.5+/-0.01m, including head, custom
Work Pattern	APC/ACC
No Optical Reported	-60					dBm
Output Power	-		-		17	dBm
Gain Flatness	-		-		3	dB	@Test at typical values
Short-term Output Power Stability	-		-		±0.01	dB	Fifteen minutes
Long-term Output Power Stability	-		-		±0.03	dB	Eight hours
Full Temperature Power Stability	-		-		5	%
Return Loss	45		-		-	dB
Insulation	-		35		-	dB
APC Output Power Can Be Set Within aRange	0		-		17	dBm	Set the precision to 0.1dB

Electrical Indicators

Power Supply Parameters:

Parameters	Min	Typ	Max	Unit	Remarks
Service Voltage	4.75	5.0	5.25	V
Supply Current	-	-	0.6	A
Power Dissipation	-	-	3	W

Pin Definition:

Communication interface type: 30/34Pin optional 2.00mm spacing, male socket

30pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	+5V	P
2	+5V	P
3	+5V	P
4	+5V	P
5	the earth	P
6	the earth	P
7	NC	F
8	NC	F
9	the earth	P
10	the earth	P
11	NC	F
12	NC	F
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	GND	P
22	GND	P
23	Serial input	I	LVTTL
24	Serial output	O	LVTTL
25	GND	P
26	GND	P
27	+5V	P
28	+5V	P
29	+5V	P
30	+5V	P

34pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	NC	F
2	NC	F
3	+5V	P
4	+5V	P
5	+5V	P
6	+5V	P
7	the earth	P
8	the earth	P
9	NC	F
10	NC	F
11	the earth	P
12	the earth	P
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	NC	F
22	NC	F
23	GND	P
24	GND	P
25	Serial input	I	LVTTL
26	Serial output	O	LVTTL
27	GND	P
28	GND	P
29	+5V	P
30	+5V	P
31	+5V	P
32	+5V	P
33	NC	F
34	NC	F

Note 1: P: power; I: input; O: output; F: suspended.

Serial Communication Protocol

Serial Port Parameters:

parameter	price	unit
Baud rate	9600	Bit/s
data bit	8	Bit
stop bit	1	Bit
check bit	not have

Communication Protocol: Customizable

Communication protocol format: Downlink command start flag bit first byte 55, second byte AA, uplink command return start flag, first byte AA second byte 55.

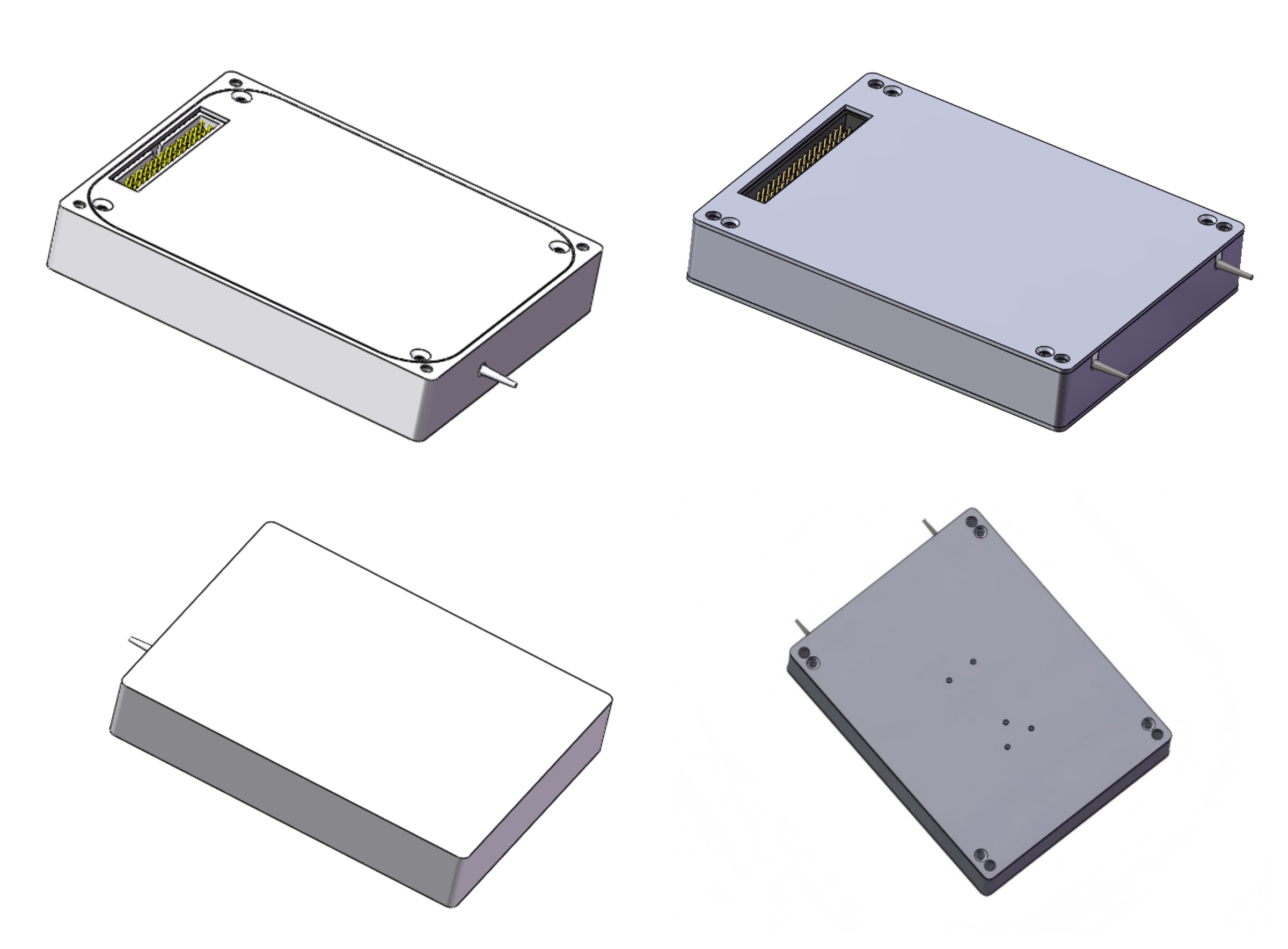

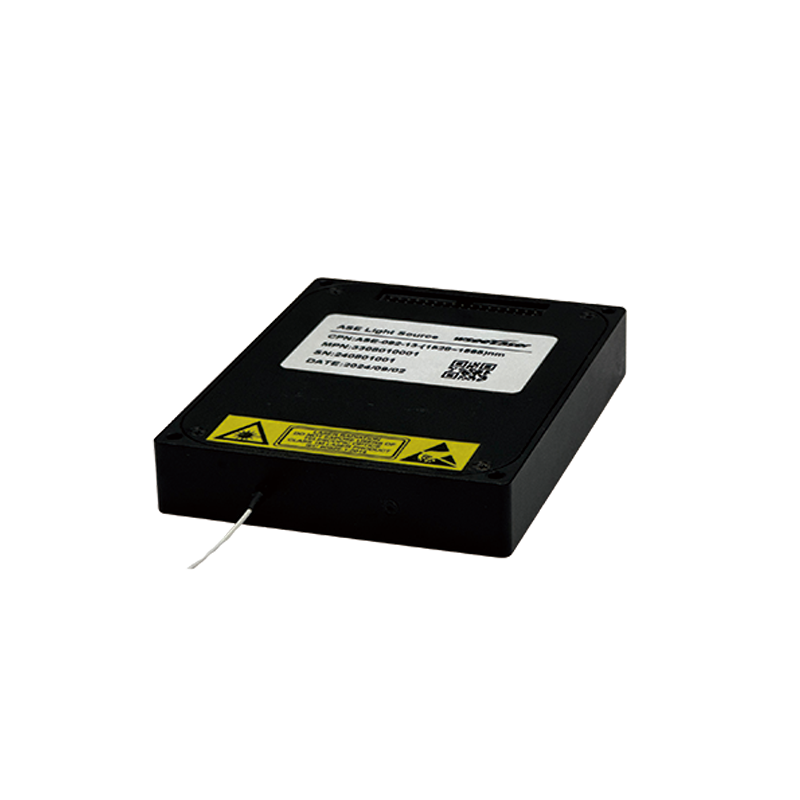

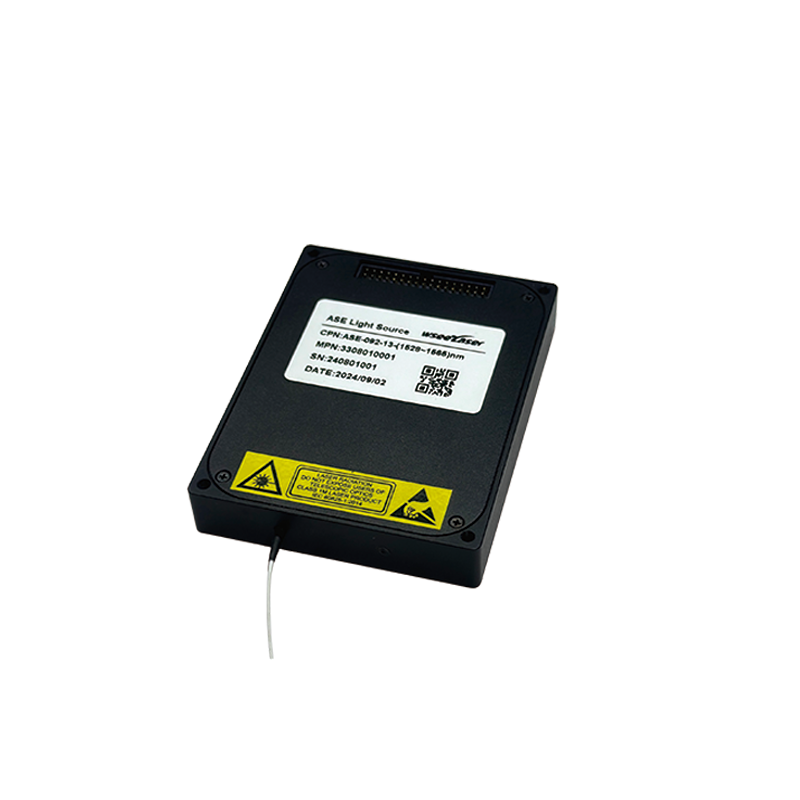

Structure Appearance

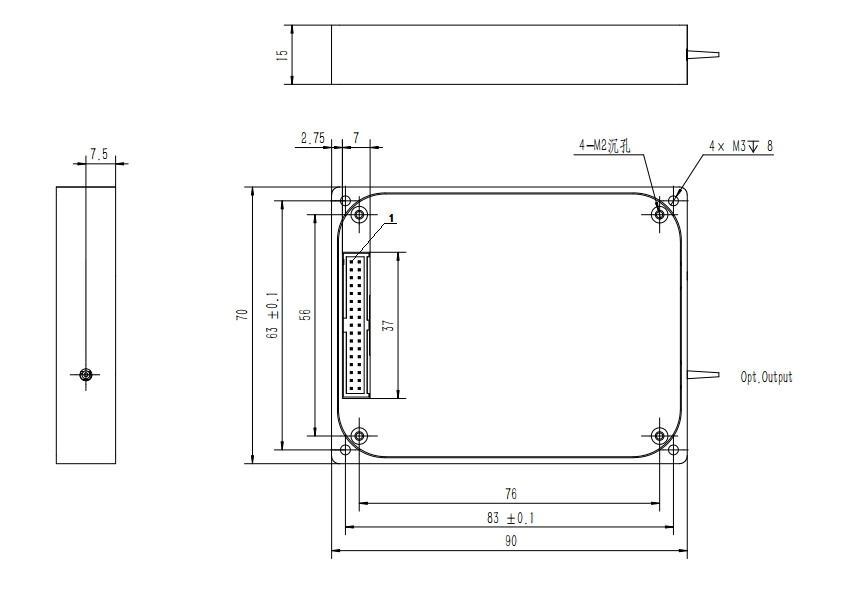

Mechanical Size: 90*70*15mm
