n Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
n Support multi-video decoder up to 4x1080P@60fps
n Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
n Video/Picture Decoding
n VP9 Profile-2 up to 8Kx4K@24 fps
n H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
n AVS2-P2 Profile up to 8Kx4K@24 fps
n H.264 AVC HP@L5.1 up to 4Kx2K@30fps
n MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
n WMV/VC-1 SP/MP/AP up to 1080P@60fps
n AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
n MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
n MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
n RealVideo 8/9/10 up to 1080P@60fps
n Multiple language and multiple format sub-title video support
n MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
n Supports JPEG thumbnail, scaling, rotation and transition effects
n Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

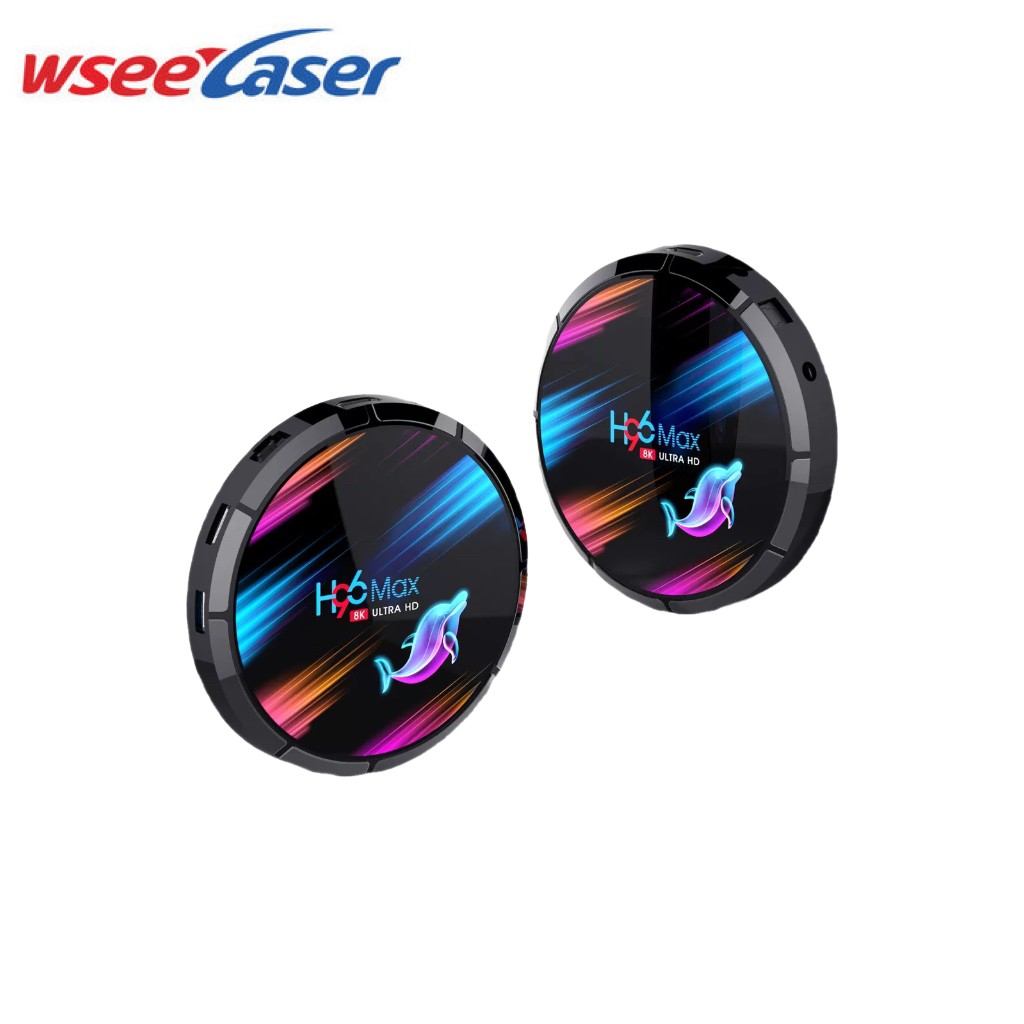

H96 Max X3-S905X3 | ||
System | ||
CPU | Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU | |
GPU | G31™ MP2 GPU processor | |
Memory | DDR3: 4GB | |
Flash | eMMC：32GB/ 64GB/ 128GB | |
WiFi | IEEE 802.11 a/b/g/n ; 2.4G / 5G | |
Bluetooth | BT 4.0 (Support Voice Remote) | |
Moudle | Plastic : Black Color | |
I/O | 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output |
1*AV OUT | 480i/576i standard definition output | |
2*USB | 1 * USB 3.0 ; 1*USB 2.0 | |
1*IR Reciver | Remote Reciver Connect | |
1*RJ45 | Ethernet Interface;Support 100M/1000M | |
1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |
SPDIF | Support | |
1*DC | 5V/2A | |
Power | DC 5V/2A；LED indicator，Working ：Blue; | |
