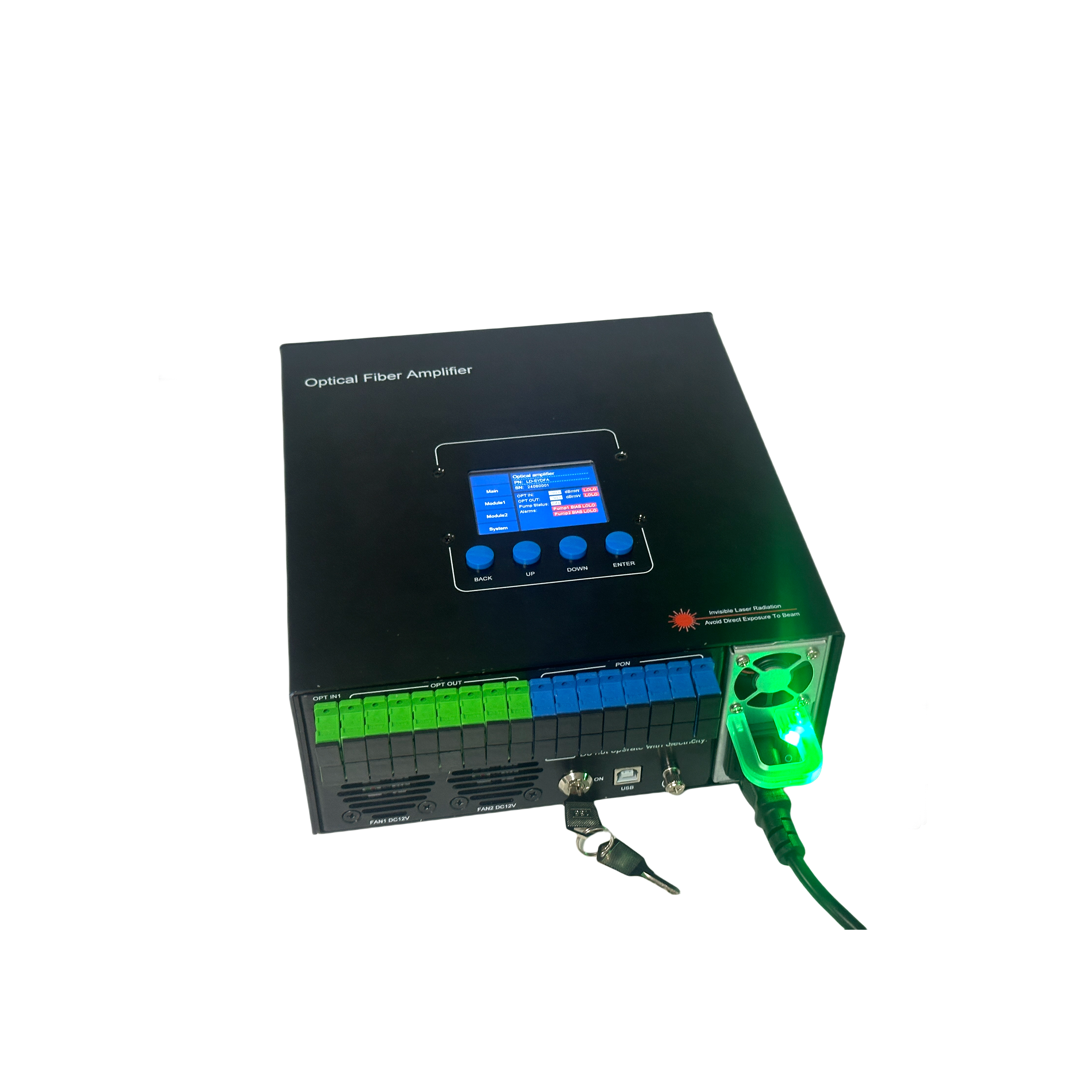

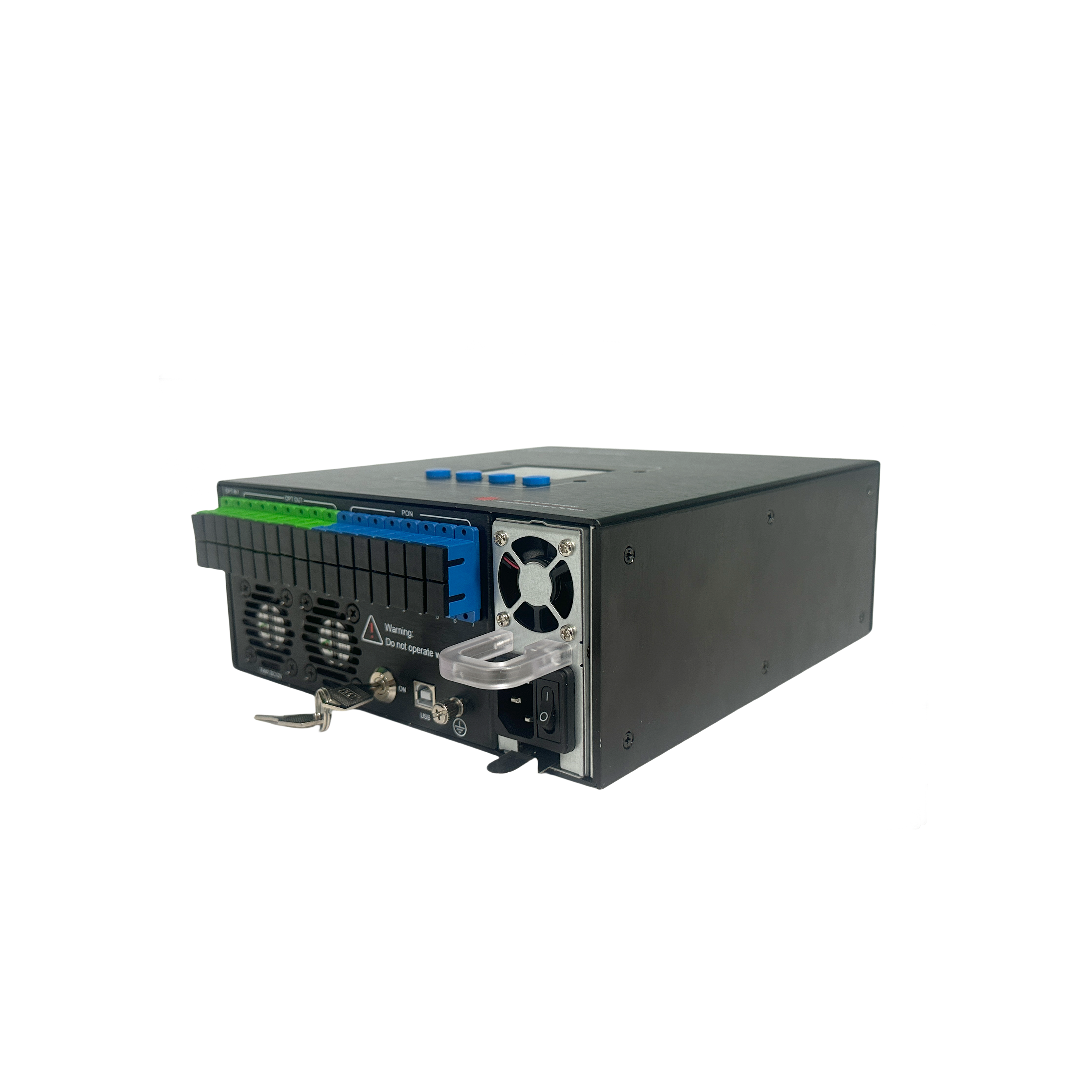

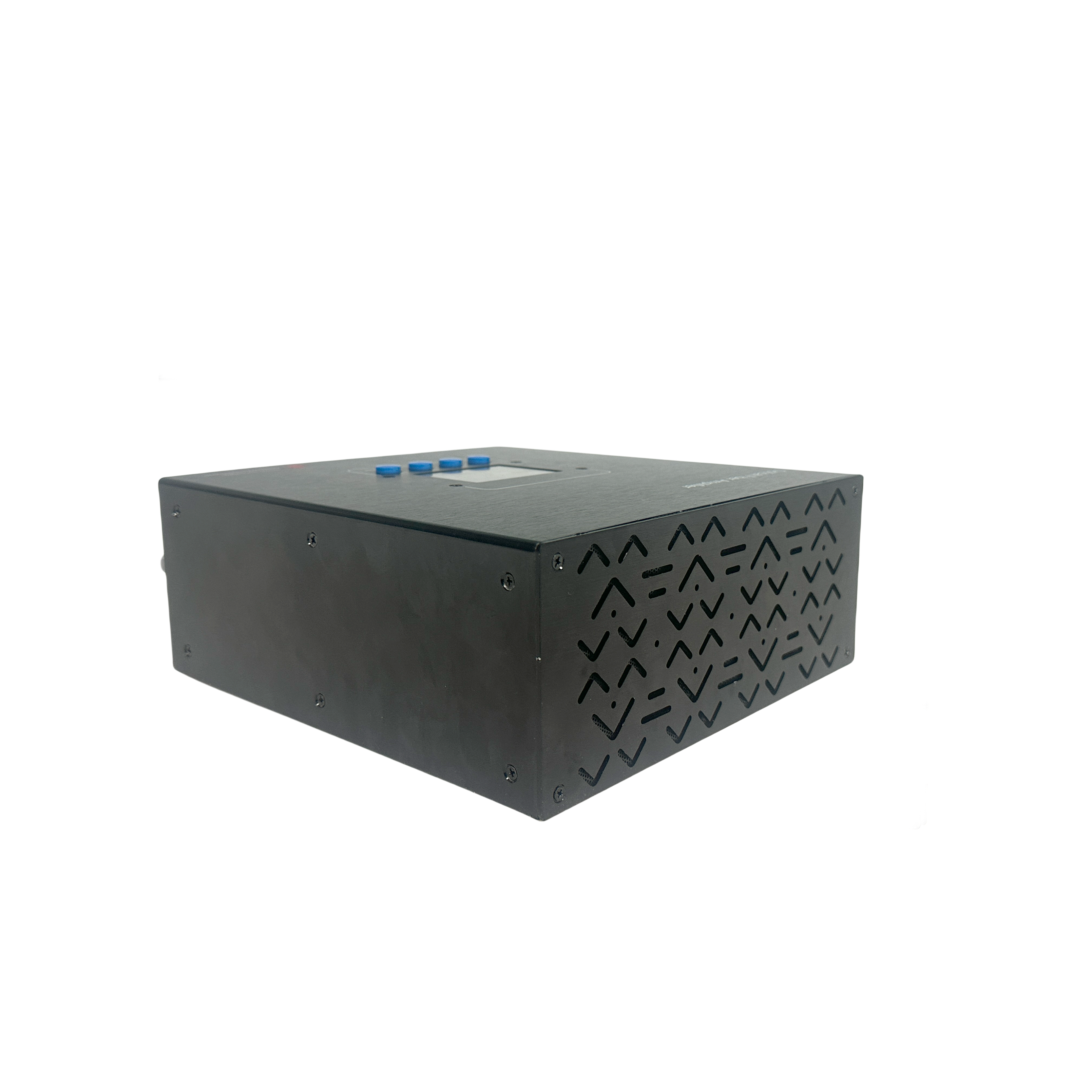

77MEA Series Compact Ytterbium-Erbium Fiber Amplifier 16-Port CATV EDFA with WDM & OSW

• Alternative Names: Compact EDFA, small fiber amplifier, 77MEA EDFA, 8-port CATV amplifier, 16-port LC EDFA, triple play WDM EDFA, optical switch EDFA
• Main Applications: Small and medium CATV FTTH coverage, community CATV networks, rural broadband CATV, triple play convergence, small office building networks, optical signal distribution
• Core Highlights: Erbium-ytterbium co-doped double-clad fiber technology, compact desktop design, 1-16 ports optional, 13-23dBm per port, adjustable output power, optional WDM/OSW/OR, modular design, one-button pull-out power supply, low power consumption

The 77MEA series is a high-performance compact ytterbium-erbium co-doped fiber amplifier (EDFA) independently developed by Shandong Wanshuo Optoelectronic. Adopting advanced erbium-ytterbium co-doped double-clad fiber technology and high-efficiency low-noise pump lasers, it delivers stable output power and excellent signal quality in a compact desktop form factor, making it the ideal cost-effective solution for small and medium-scale CATV network deployment.

It features adjustable LCD backlight, complete alarm system with buzzer reminder, and a modular design for easy maintenance and management. It supports output power adjustment within +0.5~-4dBm range, and provides flexible port configurations: 1-8 SC ports or 2-16 LC ports. The device supports multiple optional functions: 2-port optical switch (OSW) for automatic optical path protection, built-in WDM module for triple play convergence, and OR function.

Adopting a one-button pull-out power supply design with wide voltage input (AC 90-264V, optional DC or UPS backup), it ensures reliable operation for 7×24-hour use. With its ultra-compact size and low power consumption, it is suitable for installation in various space-constrained environments such as community equipment rooms, wall-mounted boxes and desktop deployments.

• Small and medium CATV FTTH coverage in counties and towns
• Community and residential area CATV network construction
• Rural broadband and CATV integrated network deployment
• Triple play (CATV + Internet + VoIP) convergence in small areas
• Small office building and commercial building CATV networks
• Optical signal distribution and amplification in local networks
• Backup and expansion of existing CATV systems

1. Ultra-compact Desktop Design: Small size and light weight, suitable for space-constrained environments, no rack required
2. High Cost Performance: Affordable price with stable performance, ideal for small and medium-scale deployment
3. Flexible Port Configuration: 1-16 ports optional (SC/LC), meets different network scale needs
4. Rich Optional Functions: Integrated WDM, OSW and OR, one device solves multiple needs
5. Low Power Consumption: ＜75W overall power consumption, energy-saving and environmentally friendly
6. Easy Maintenance: Modular design, one-button pull-out power supply, quick replacement
7. Perfect Alarm System: Buzzer alarm, real-time fault monitoring and reminder
8. Wide Adaptability: Wide voltage input, suitable for various power supply environments
