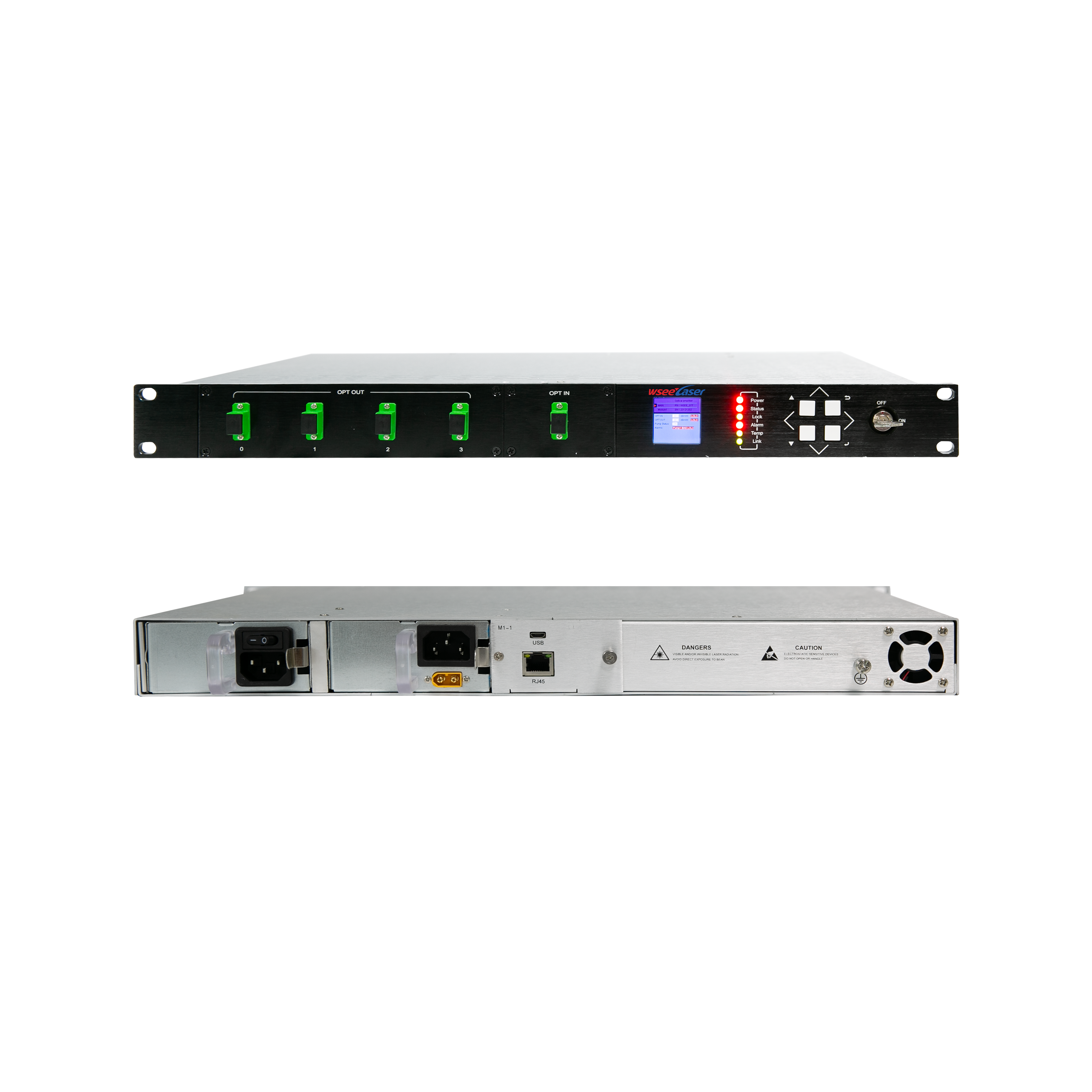

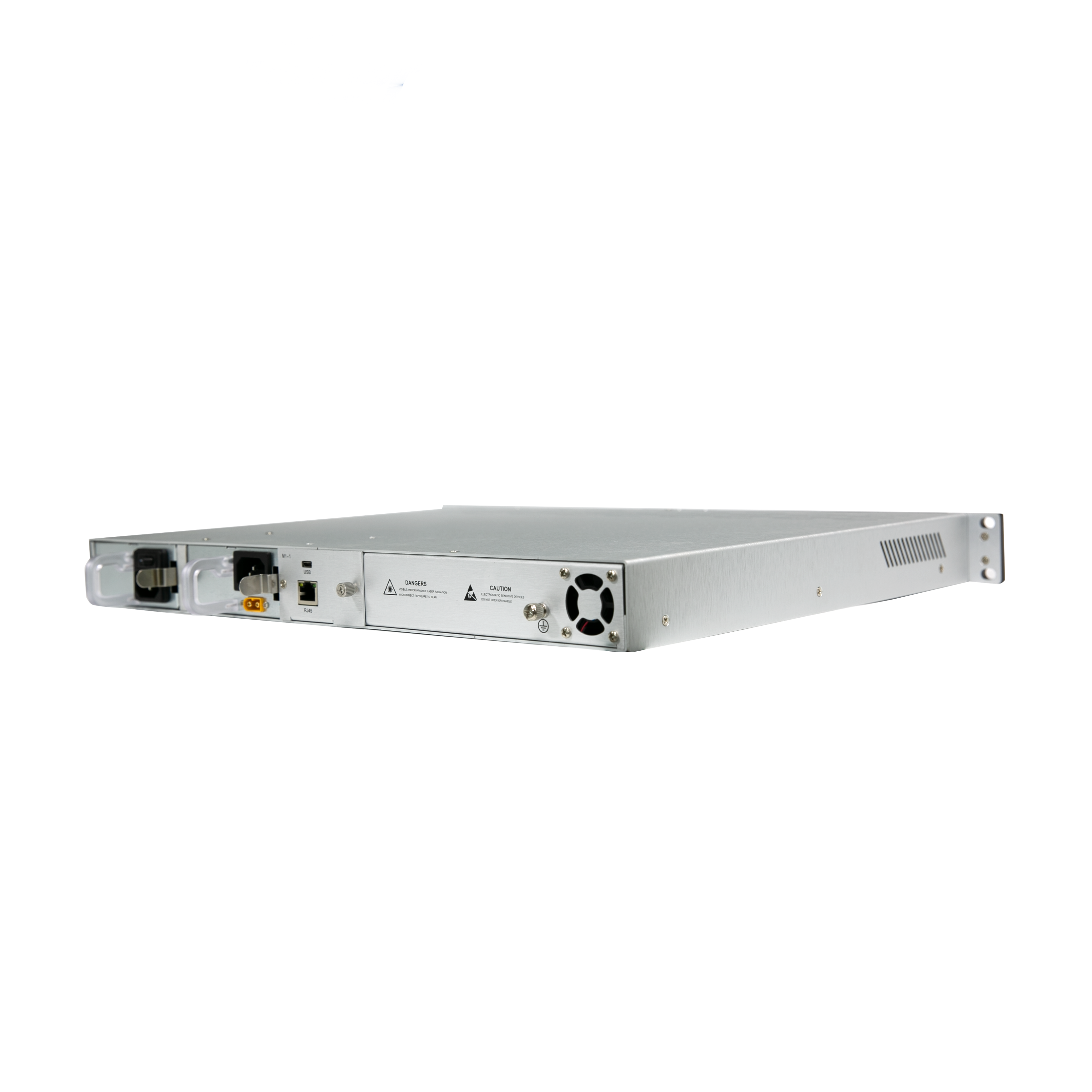

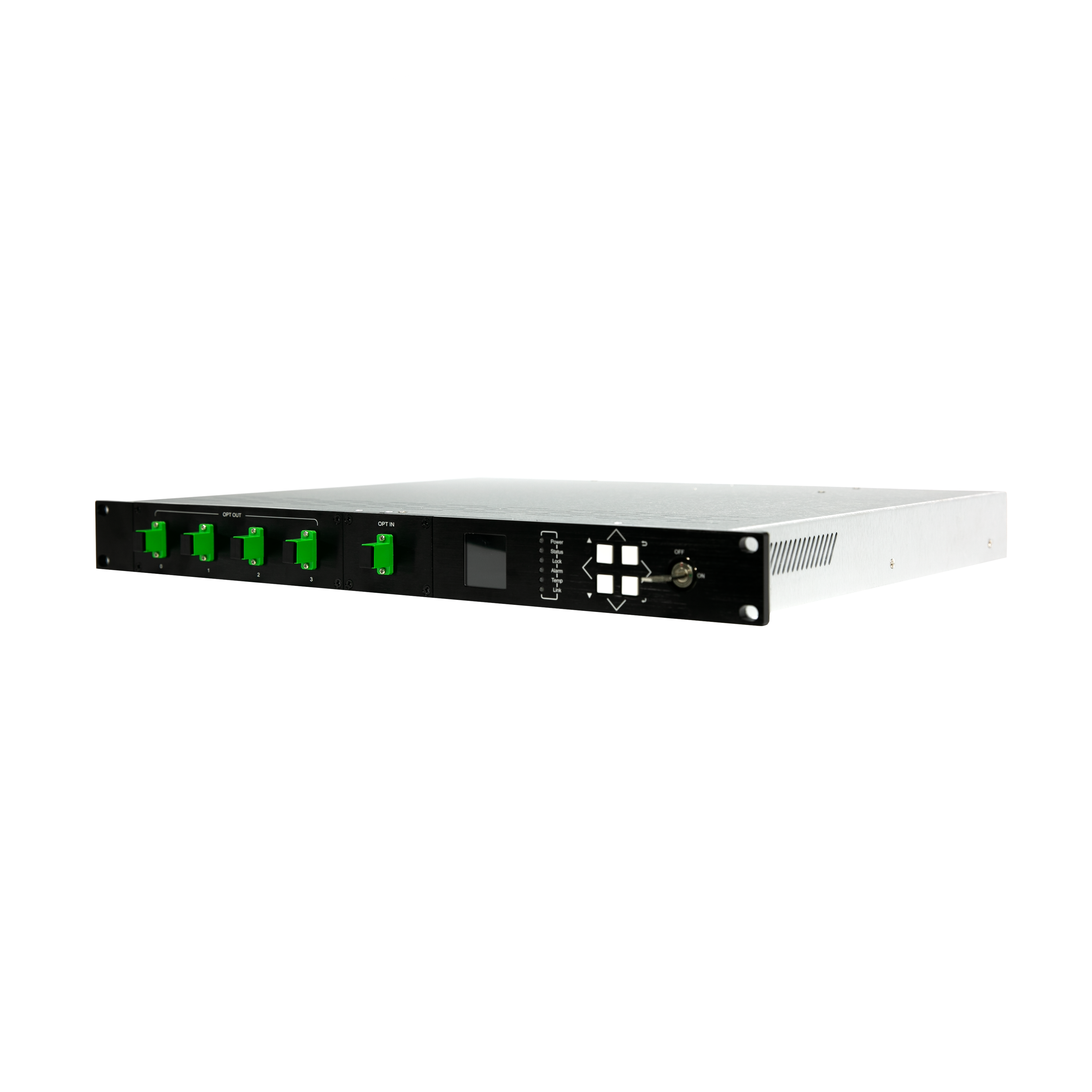

The 77F-EA1500 series is a high-performance 1U low-noise erbium-doped fiber amplifier (EDFA) independently developed by Shandong Wanshuo Optoelectronic. Adopting imported high-performance erbium-doped optical fibers from Corning of the United States and internationally renowned brand low-noise pump lasers, it delivers industry-leading low noise figure and high energy conversion efficiency, making it the ideal choice for CATV front-end, trunk relay and node signal amplification.
Equipped with a 32-bit ARM Cortex-M4 core N32G455 processor, it achieves ±0.1dBm ultra-high precision optical power control. It supports a wide input optical power range of -10~+10dBm and provides flexible 1/2/4/8 port configurations with output power up to 26dBm per port. The device adopts a unique dual-module reserved structure, which can be expanded with additional functional modules such as optical transmitters, EDFAs, optical switches and optical receivers, realizing multi-purpose use of one device.
It features a 240*240 TFT color display screen for real-time on-site parameter monitoring, and supports standard SNMP network management protocol for remote monitoring and control. The whole machine adopts high-efficiency switching chips, with an overall power consumption of only ≤20W, which is 50% more energy-efficient than similar products. The one-button pull-out dual hot-swappable power supply (AC 90-264V / DC 36-72V optional) ensures 7×24-hour uninterrupted reliable operation.
|
Category |
Parameter |
Details |
|
Optical Parameters |
CATV Operating Wavelength |
1545~1565nm (center 1550nm) |
|
|
Input Optical Power Range |
-10~+10dBm (recommended: 0dBm ± 3dBm) |
|
|
Output Optical Power Range |
13~26dBm (adjustable +0.5~-4dBm) |
|
|
Output Power Stability |
±0.1dBm |
|
|
Noise Figure |
≤5.0dB (@ +0dBm input, 1550nm) |
|
|
Return Loss |
≥45dB (input & output) |
|
|
Output Ports |
1/2/4/8 ports (customizable) |
|
|
Optical Connector Type |
SC/APC (standard); FC/APC, LC/APC (customized) |
|
Optional Functions |
WDM Module |
Built-in FWDM for CATV+PON convergence |
|
|
Dual-Module Expansion |
Supports optical transmitter, EDFA, optical switch, optical receiver modules |
|
RF Parameters |
C/N |
≥50dB (tested according to GD/J115-2020) |
|
|
C/CTB |
≥65dB |
|
|
C/CSO |
≥65dB |
|
General Parameters |
Management Interface |
RJ45 (SNMP v1/v2/v3) |
|
|
Display |
240*240 TFT color screen |
|
|
Power Supply |
Dual hot-swappable: AC 90-264V 50/60Hz; optional DC 36-72V / UPS backup |
|
|
Power Consumption |
≤20W |
|
|
Operating Temperature |
-5℃ ~ +42℃ |
|
|
Operating Humidity |
≤95% (non-condensing) |
|
|
Storage Temperature |
-30℃ ~ +70℃ |
|
|
Product Dimensions (W×D×H) |
482×356×44mm (19-inch 1U) |
|
|
Package Size |
590×505×115mm (1pc); 590×505×220mm (2pcs); 590×505×525mm (5pcs) |
