77-OSW 1U Rack-Mount Optical Switch 2×1 / 2×2 Automatic Protection Switch for CATV & Fiber Network

• Alternative Names: Optical Protection Switch, Fiber Automatic Switch, 1U Rack Optical Switch, CATV Optical Switch, 2×1 OSW, 2×2 OSW, Network Management Optical Switch
• Main Applications: CATV broadcast network, fiber optic line protection, optical cross-connect, fiber link backup, optical device testing, telecom transmission network
• Core Highlights: 1260–1650nm wide wavelength, low insertion loss <1.3dB, fast switching <8ms, auto/manual control, LCD display, SNMP network management, dual power supply, 1U rack-mount

The 77-OSW series is a high-performance optical automatic switching module designed for optical fiber communication, CATV broadcasting, and telecom transmission systems. It provides reliable optical path switching, automatic line protection, and real-time optical power monitoring to ensure uninterrupted transmission of optical signals.

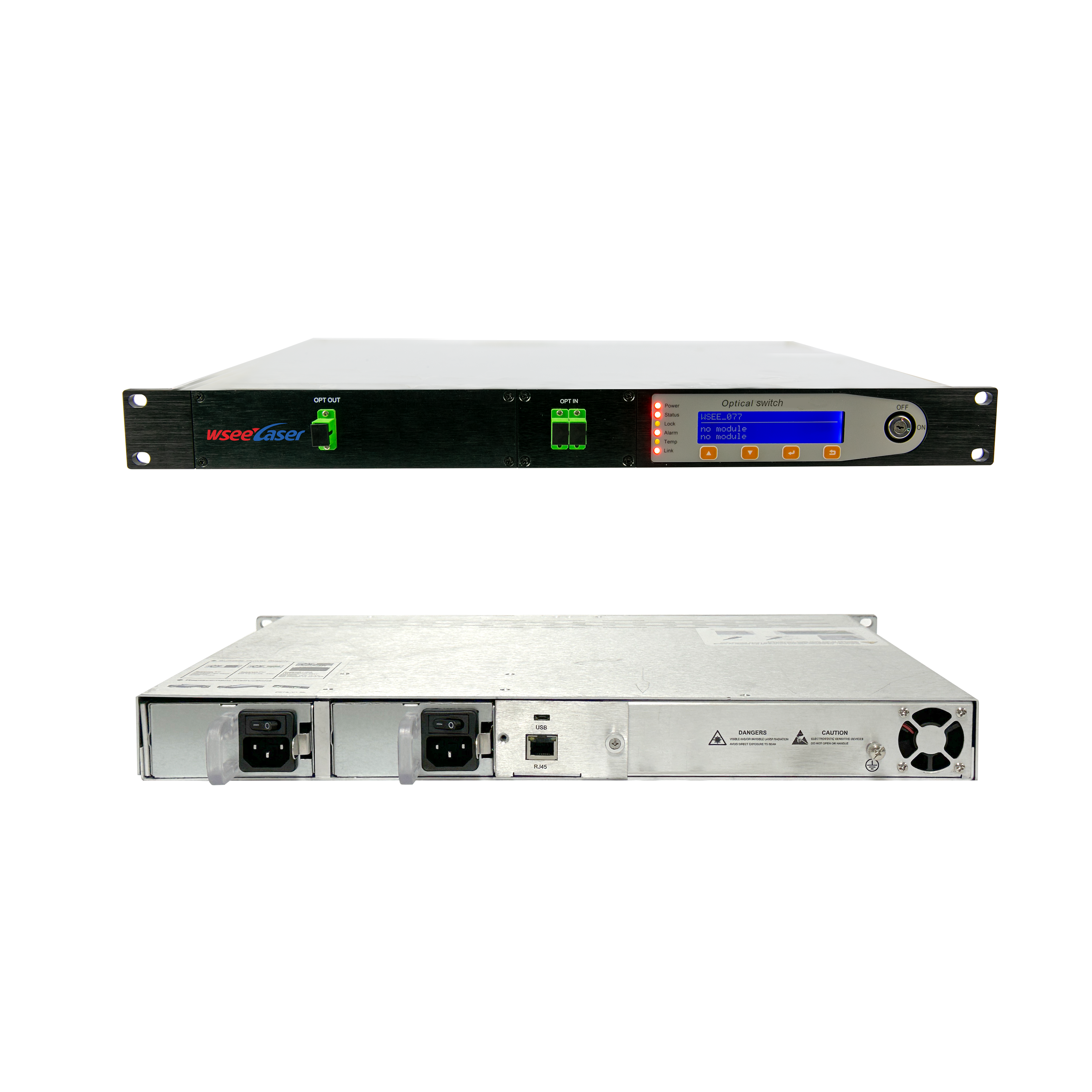

Adopting high-performance optical switching components, this product features ultra-low insertion loss, high return loss, and long service life. It supports both automatic and manual switching modes, and the switching threshold can be flexibly set according to on-site requirements. Equipped with a dot-matrix LCD screen, it displays real-time input optical power and working status, while LED indicators clearly show the equipment operating state.

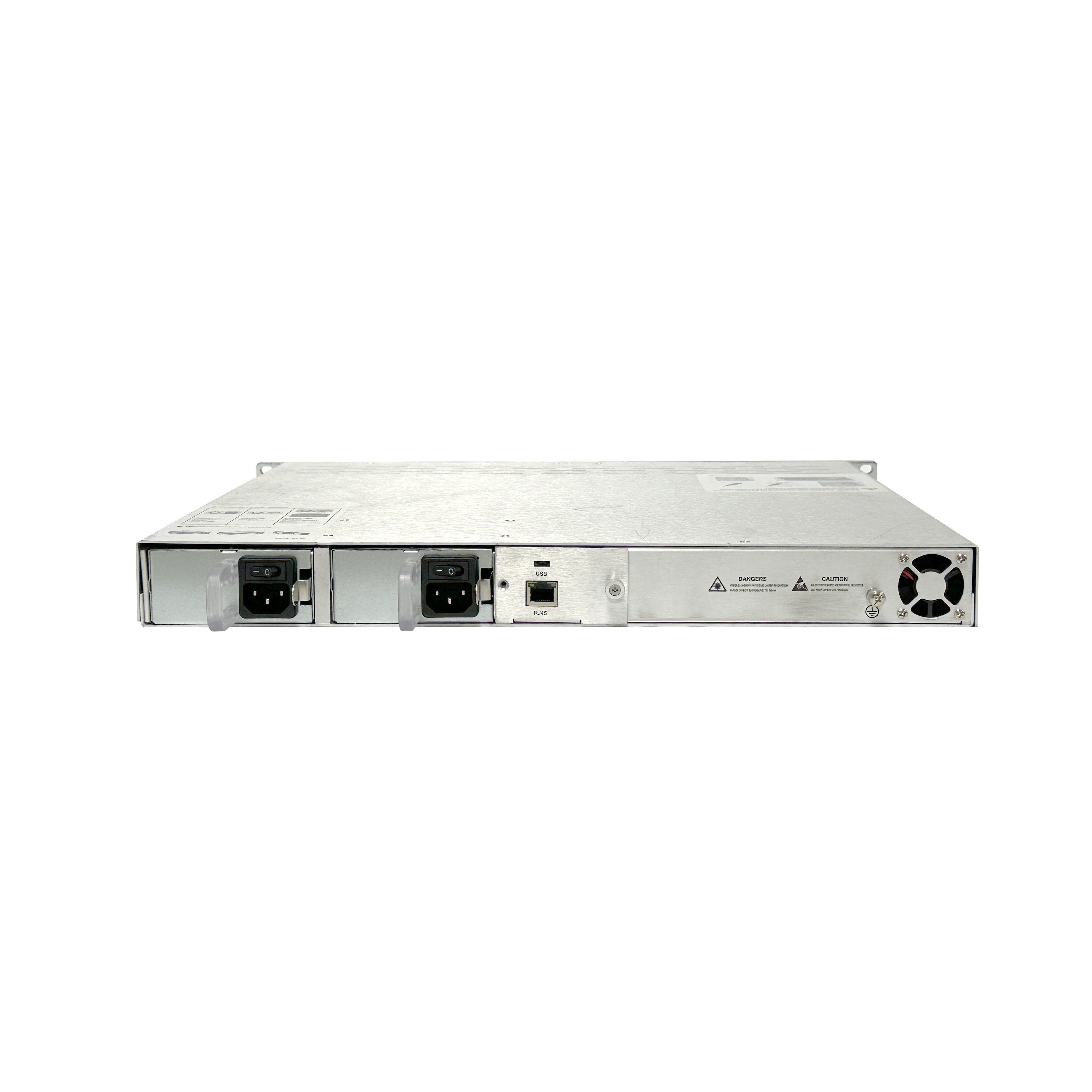

The 77-OSW adopts a standard 19-inch 1U rack-mount structure for easy integration into standard equipment rooms. It supports hot-swappable dual power supply (AC/DC optional) to ensure high system reliability. Through the RJ45 network management interface, users can realize local and remote monitoring, control, and status query via SNMP protocol, greatly improving the intelligence and maintainability of optical network systems.

• CATV broadband and broadcast transmission network
• Optical fiber line automatic protection and backup
• Optical cross-connect (OXC) and dynamic optical path management
• Optical communication equipment testing and monitoring
• Data center fiber link redundancy protection
• Telecom operator optical transmission network
• Industrial optical communication system

1. Ultra-Low Loss & High Stability: Insertion loss <1.3dB, return loss >55dB, ensure high-quality transmission
2. Fast Switching: Switching time <8ms, guarantee service continuity
3. Dual Control Modes: Automatic protection + manual forced switching
4. Real-Time Monitoring: LCD displays optical power & status; LED indicates working mode
5. Flexible Threshold Setting: Switching optical power can be customized
6. Remote Network Management: Supports SNMP via RJ45 for local & remote control
7. Standard 1U Rack: 19-inch rack-mount for easy deployment
8. High Reliability: Optional dual hot-swappable power supply (AC/DC)

1. Wide Wavelength Compatibility: 1260–1650nm covers all mainstream fiber windows
2. Long Service Life: >1 million switching times, reduce maintenance cost
3. Full Monitoring & Management: Visible status + remote SNMP, easy O&M
4. Flexible Configuration: Connectors and power supply can be customized
5. Carrier-Grade Reliability: Dual power supply, suitable for CATV and telecom systems
6. Compact 1U Design: Save rack space, ideal for equipment room integration
