Place of Origin |
Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
53EYA3 Series (64-port / 128-port) |
Certification |
CE, FCC, RoHS (Optional) |
Standard |
Complies with GD/J115-2020 & International CATV Standards |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory wholesale, negotiable by ports, power, functions |
|
Packaging Details |
1 unit/carton, full set accessories |
|
Delivery Time |
3–7 working days |
|
Payment Terms |
T/T, L/C, Western Union, PayPal |
|
Supply Ability |
[To be filled] |
|
Warranty |
12 months |

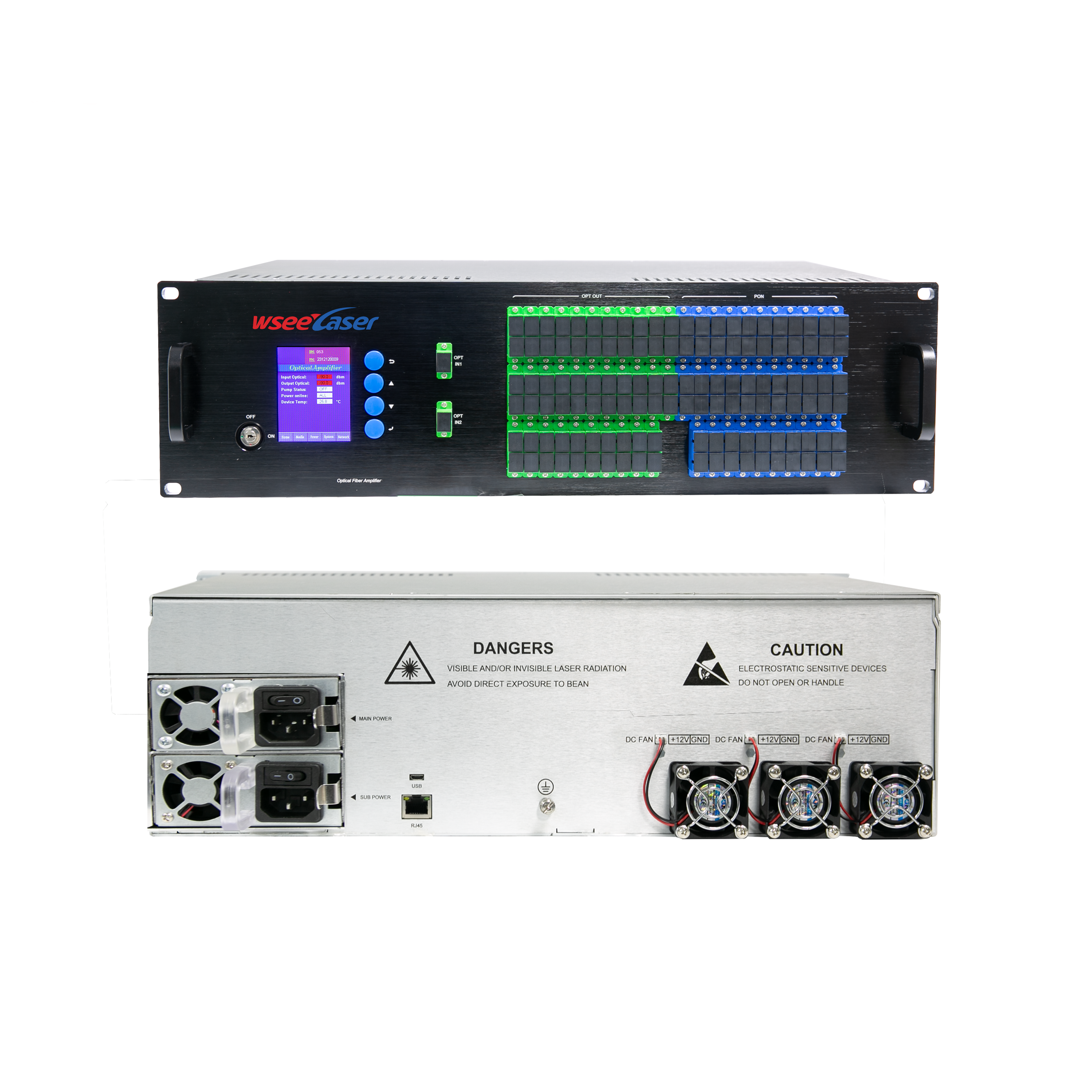

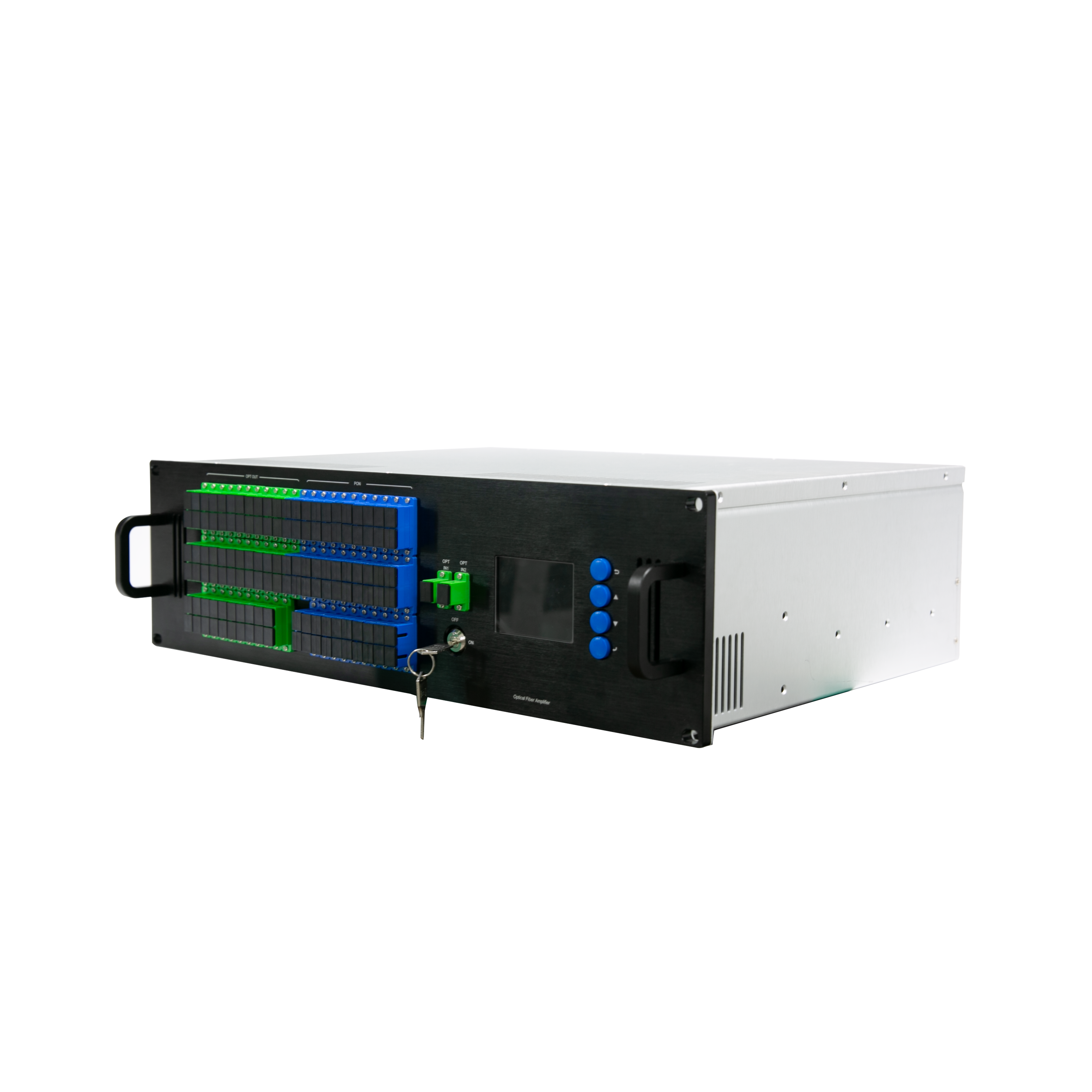

The 53EYA Series 3U High-Power Fiber Amplifier adopts advanced erbium-ytterbium co-doped double-clad fiber technology and high-efficiency low-noise pump lasers, designed for ultra-large-scale CATV and FTTH transmission networks. It provides industry-leading total output power up to 41dBm and supports high-density output of 64 or 128 ports, delivering stable optical power from 13dBm to 20dBm per port.
The device features adjustable LCD backlight, complete audible and visual alarm system, and modular architecture for easy maintenance. It supports standard WEB & SNMP network management for remote monitoring, configuration, and fault diagnosis. Optional 2-port optical switch (OSW) provides automatic optical path protection, and optional WDM module realizes triple-play convergence of CATV, data, and voice services in one fiber.

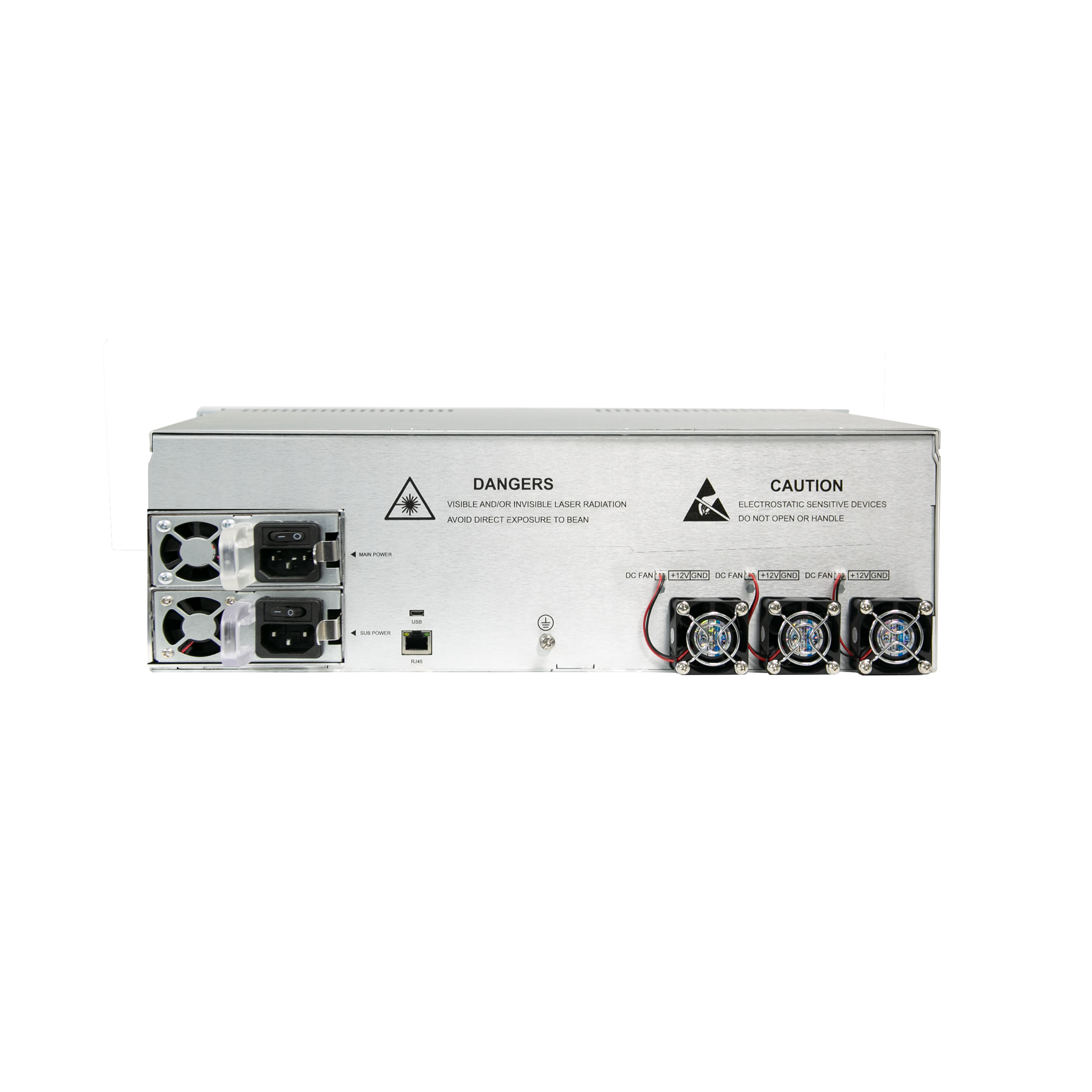

With one-button pull-out dual hot-swap power supply and wide-range power input (AC90–265V / DC36–72V), the amplifier ensures carrier-class reliability for 7×24-hour operation. It is the core equipment for building large-scale, high-stability CATV optical transmission networks.
|
Category |
Parameter |
Value |
Remarks |
|
Optical Parameters |
CATV Wavelength |
1545–1560nm |
Center 1550nm |
|
|
PON OLT Wavelength |
1310/1490nm |
1270/1577nm customizable |
|
|
Input Optical Power |
-10~+10dBm |
Recommended 0~+3dBm |
|
|
Max Total Output |
41dBm |
|
|
|
Output Stability |
±0.1dB |
|
|
|
Noise Figure |
≤6dB |
|
|
|
Return Loss (In/Out) |
≥45dB |
|
|
|
Output Ports |
64 / 128 ports |
SC/APC |
|
|
Per Port Output |
13–20dBm |
|
|
|
Connector Type |
SC/APC, SC/PC, LC/APC, LC/PC |
Customizable |
|
Optional Functions |
Optical Switch (OSW) |
2-input, ≤1.3dB loss, <0.5s switch |
Optional |
|
|
WDM Module |
Built-in for triple-play convergence |
Optional |
|
RF Performance |
C/N |
≥50dB |
Per GD/J115-2020 |
|
|
C/CTB |
≥65dB |
|
|
|
C/CSO |
≥65dB |
|
|
General |
Power Supply |
AC90–265V 50/60Hz |
DC36–72V optional |
|
|
Power Consumption |
≤150W |
|
|
|
Operating Temp |
-5℃ ~ +50℃ |
|
|
|
Dimensions |
480×430×132.5mm (3U) |
Without handle |
|
|
Package Size |
638×638×262mm |
