Place of Origin |
Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
53EYA Series (16-port / 32-port) |
Certification |
CE / FCC / RoHS (optional) |
Standard |
Complies with GD/J115-2020 & CATV industry standards |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale, negotiable by port/power/configuration |
|
Packaging Details |
1 unit/carton, with device, power cord, manual, warranty card |
|
Delivery Time |
3–7 working days after payment |
|
Payment Terms |
T/T, L/C, Western Union, PayPal |
|
Supply Ability |
[To be filled] |
|
Warranty |
12 months standard warranty |

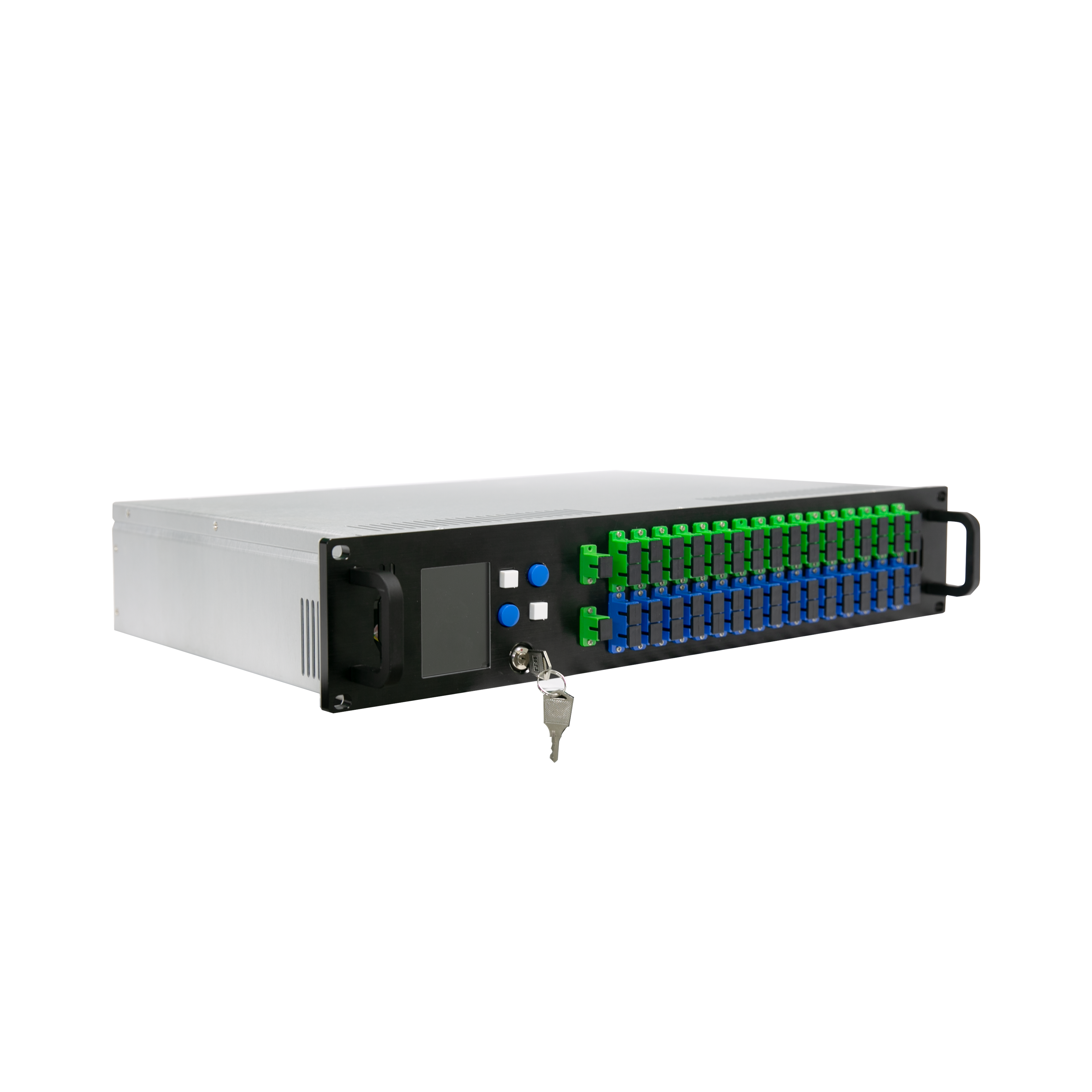

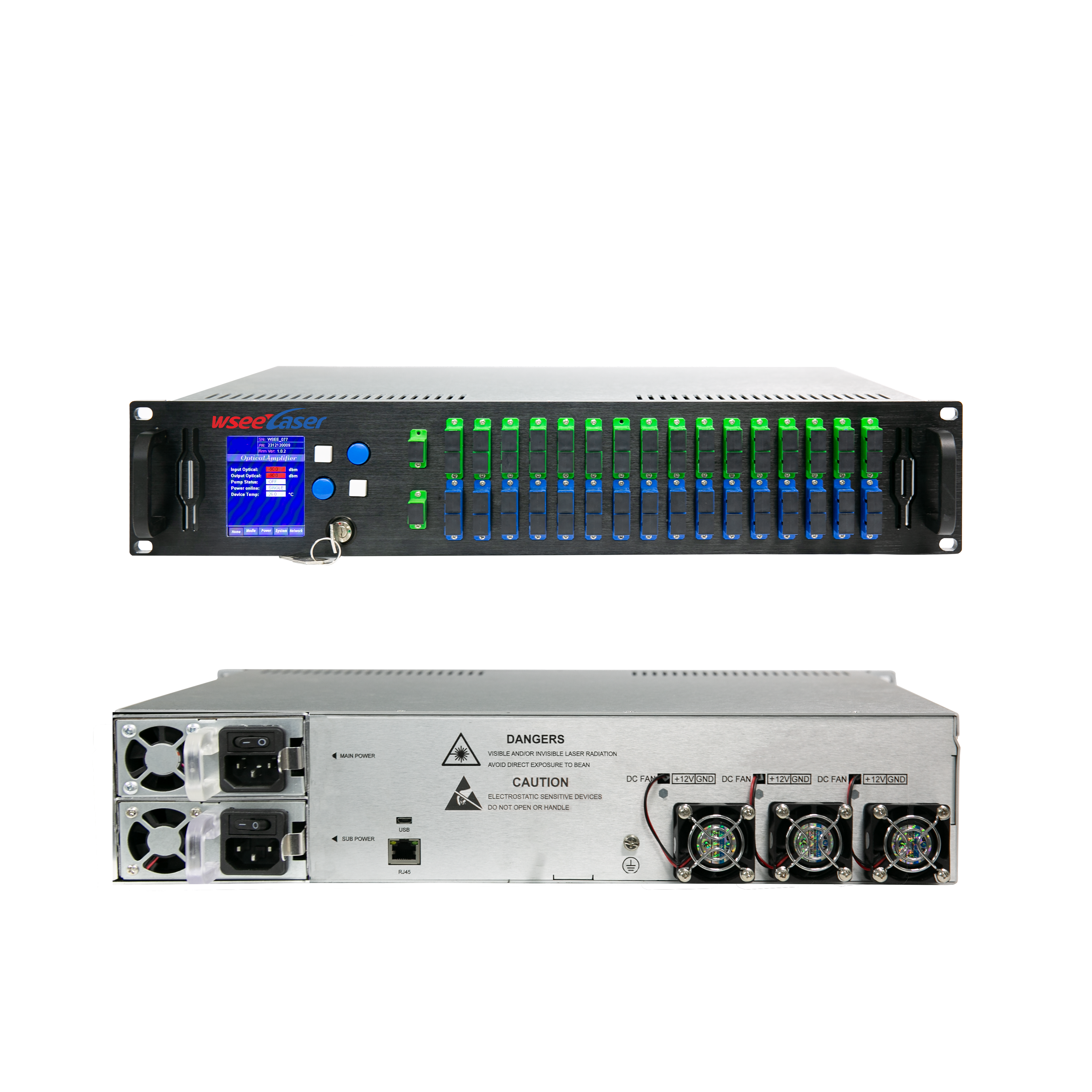

The 53EYA series 2U high-power fiber amplifier adopts advanced erbium-ytterbium co-doped double-clad fiber technology and low-noise pump lasers. It provides ultra-high output power up to 41dBm and supports 16/32 ports with stable output per port from 13–23dBm.

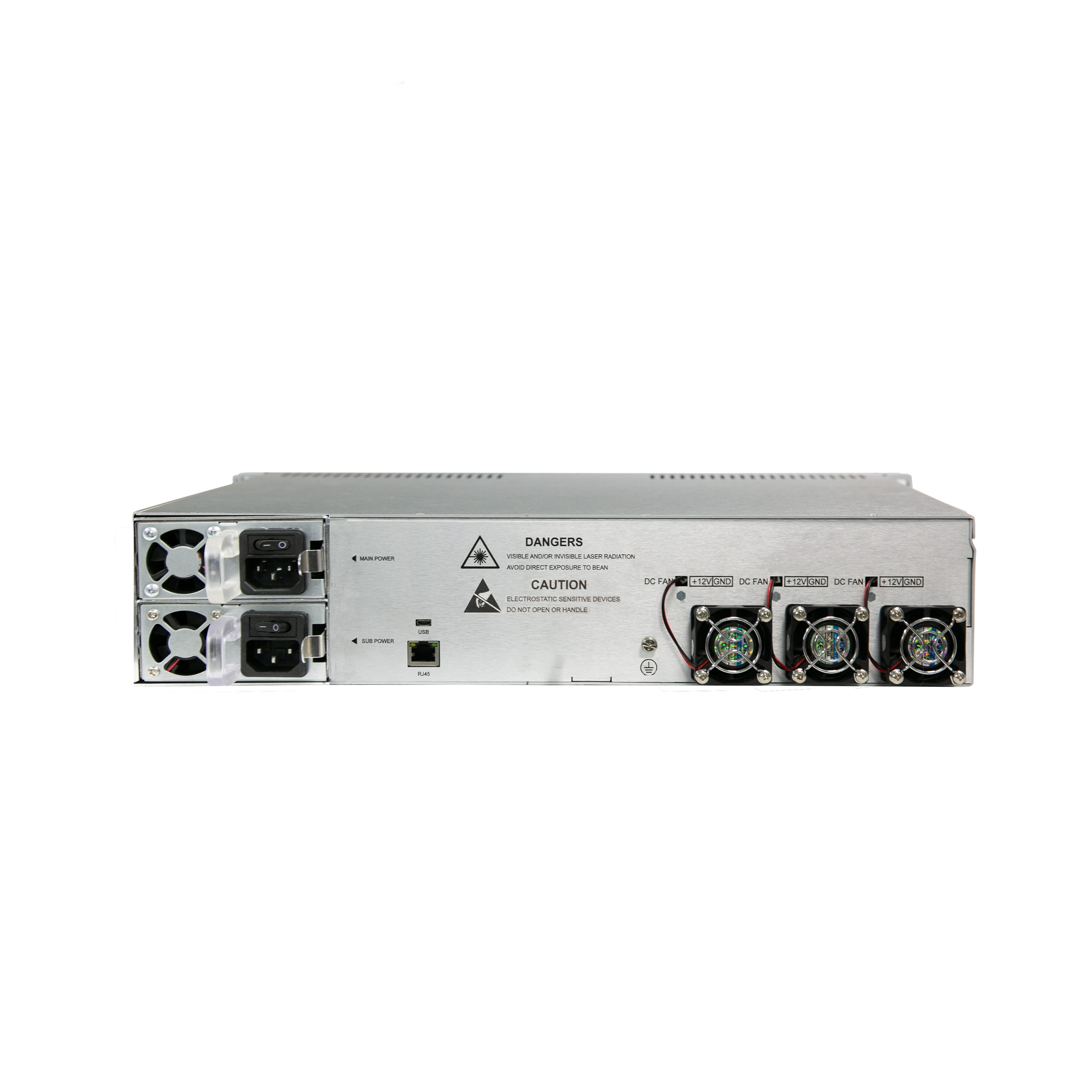

It features adjustable LCD backlight, complete alarm with buzzer prompt, and modular design for easy maintenance. It supports standard WEB and SNMP network management for remote monitoring and control. The unit supports optional 2-port optical switch (OSW) for signal protection and optional built-in WDM for triple-play convergence. It uses one-button pull-out dual power supply for hot backup, ensuring high reliability for large-scale CATV transmission.
|
Category |
Parameter |
Technical Details |
|
Optical Parameters |
CATV Wavelength |
1545–1560nm (1550nm center) |
|
|
PON Wavelength |
1310/1490nm (1270/1577nm customizable) |
|
|
Input Power Range |
-10~+10dBm (recommended 0~+3dBm) |
|
|
Max Total Output |
41dBm |
|
|
Output Stability |
±0.1dB |
|
|
Noise Figure |
≤6dB |
|
|
Input/Output Return Loss |
≥45dB |
|
|
Output Ports |
16/32 ports optional |
|
|
Per Port Power |
13–23dBm |
|
|
Connector Type |
SC/APC, SC/PC, LC/APC, LC/PC (customizable) |
|
Optional Functions |
Optical Switch (OSW) |
2-input, ≤1.3dB loss, <0.5s switch |
|
|
WDM Module |
Built-in for triple-play convergence |
|
RF Index |
C/N |
≥50dB |
|
|
C/CTB |
≥65dB |
|
|
C/CSO |
≥65dB |
|
General |
Power Supply |
AC90–265V; optional DC36–72V |
|
|
Power Consumption |
≤150W |
|
|
Operating Temp |
-5℃~+50℃ |
|
|
Dimensions |
480×430×89mm (2U) |
|
|
Package Size |
610×590×155mm |
