Place of Origin |
Zhangdian District, Zibo, Shandong, China |
Brand Name |
Wanshuo Optoelectronic (WSEE) |
Model Number |
53EYA Series (4-port / 8-port) |
Certification |
CE / FCC / RoHS (optional) |
Standard |
Complies with GD/J115-2020 and global CATV industry standards |
|
Minimum Order Quantity |
Negotiable |
|
Price |
Factory direct wholesale price, negotiable based on ports, power and optional functions |
|
Packaging Details |
1pc per carton, includes device, power cord, user manual and warranty card |
|
Delivery Time |
3-7 working days after payment confirmation (bulk orders over 20pcs to be confirmed separately) |
|
Payment Terms |
T/T, L/C, Western Union, PayPal (to be confirmed) |
|
Supply Ability |
[To be supplemented according to actual production capacity] |
|
Warranty |
12 months standard warranty, extended warranty available |

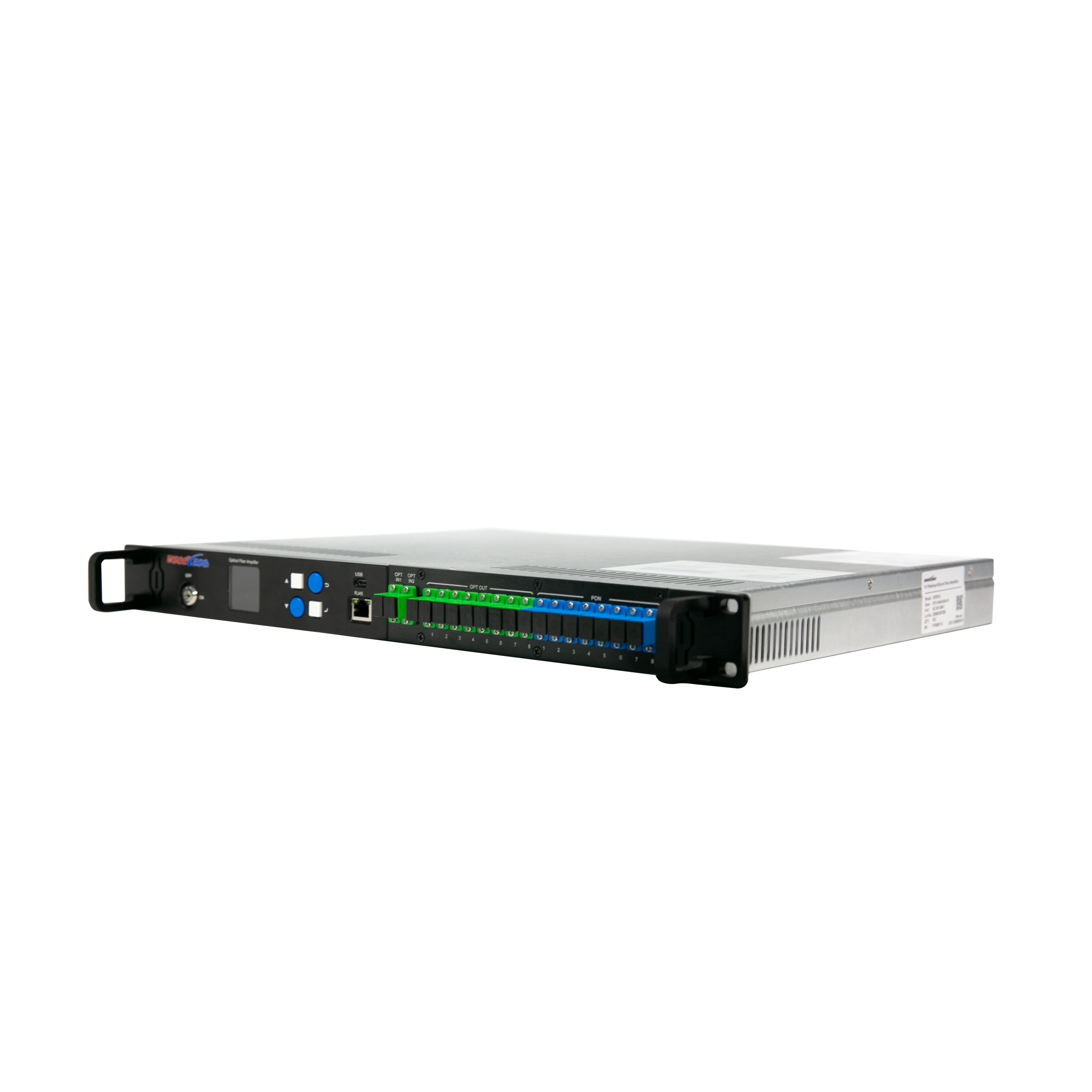

The 53EYA series is a high-performance 1U high-power erbium-ytterbium co-doped fiber amplifier (EDFA) independently developed by Shandong Wanshuo Optoelectronic. Adopting advanced erbium-ytterbium co-doped double-clad fiber technology and low-noise pump lasers, it delivers high output power, low noise figure and excellent signal quality, making it the ideal solution for large-scale CATV FTTH coverage in medium and large cities.
This series provides flexible port configurations: 4-port and 8-port output options, with each port output power adjustable from 13 to 23dBm, and a maximum total output power of 34dBm. It supports optional 2-input optical switch function for automatic signal backup, and optional built-in WDM to realize triple play convergence of CATV, voice and data services.

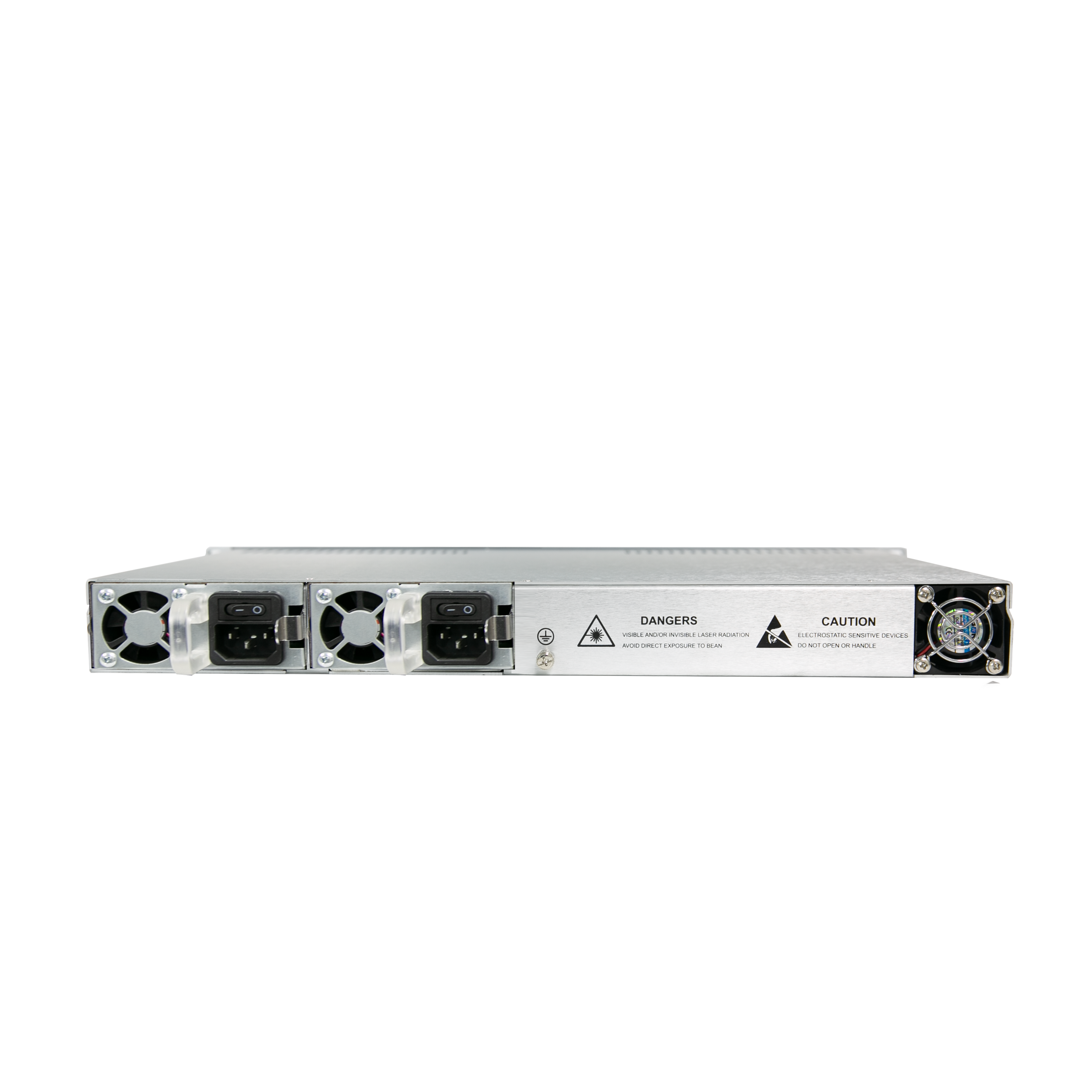

Equipped with a complete intelligent monitoring system, it features adjustable display backlight time and comprehensive alarm functions with buzzer reminder. The whole machine adopts a modular design for easy maintenance and management. It supports standard WEB network management and SNMP protocol, with rich WEB interface functions for remote monitoring and control. The one-key pull-out dual power supply hot backup design ensures uninterrupted 24/7 operation, with AC 90-265V and optional DC 36-72V power supply options.
|
Category |
Parameter |
Details |
|
Optical Parameters |
CATV Operating Wavelength |
1545~1560nm (center 1550nm) |
|
|
PON OLT Operating Wavelength |
1310/1490nm (customizable 1270/1570nm) |
|
|
CATV Input Optical Power Range |
-10~+10dBm (recommended: 0~+3dBm) |
|
|
Maximum Total Output Power |
34dBm |
|
|
Output Power Stability |
±0.1dB |
|
|
Noise Figure |
≤6dB |
|
|
Reflection Loss |
≥45dB (input/output) |
|
|
Number of Output Ports |
4 / 8 (optional) |
|
|
Output Power per Port |
13~23dBm (adjustable) |
|
|
Optical Connector Type |
SC/APC (standard); SC/PC, LC/APC, LC/PC (customized) |
|
Optional Functions |
Optical Switch (OSW) |
2 input ports, insertion loss ≤1.3dB, switching time <0.5s |
|
|
WDM |
Built-in FWDM for triple play convergence |
|
RF Parameters |
C/N |
≥50dB (tested according to GD/J115-2020) |
|
|
C/CTB |
≥65dB |
|
|
C/CSO |
≥65dB |
|
General Parameters |
Management Interface |
RJ45 (WEB + SNMP v1/v2/v3) |
|
|
Power Supply |
Dual hot-swappable: AC 90-265V 50/60Hz; optional DC 36-72V; backup 10.8-14.4V |
|
|
Power Consumption |
≤75W |
|
|
Operating Temperature |
-5℃ ~ +50℃ |
|
|
Operating Humidity |
≤95% (non-condensing) |
|
|
Storage Temperature |
-40℃ ~ +80℃ |
|
|
Product Dimensions (W×D×H) |
480×350×44mm (19-inch 1U, excluding handle) |
|
|
Package Size |
590×505×115mm |
